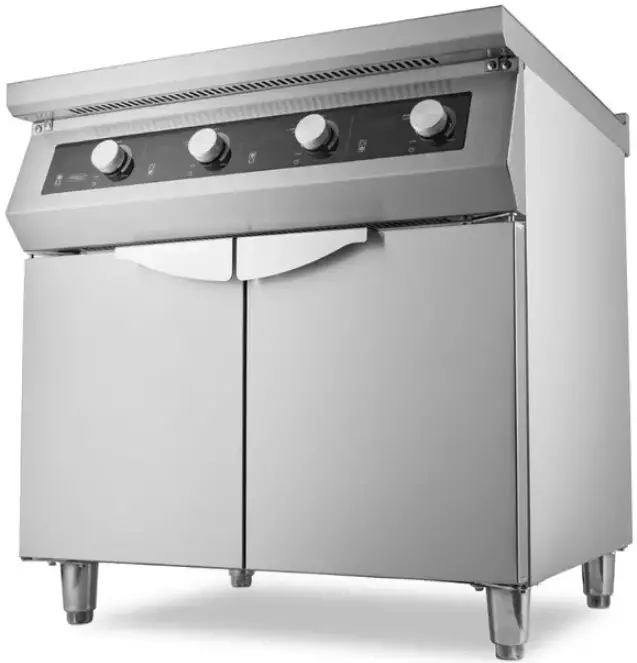

Maxima 09371011, 09371012 Induction Stove User Manual

maxima 09371011, 09371012 Induction Stove User Manual

SAFETY INSTRUCTIONS

• This appliance may only be used for its designed purpose. Neither the manufacturer nor the supplier are liable for damage caused by the incorrect use of this item.
• This is a commercial product that should only to be used by those who have read and fully understand this manual. It must not be used by children, or persons with reduced physical, sensory or mental capabilities without supervision.
• This device is intended for indoor use only.
• Keep the appliance and electrical plug away from water and other liquids. If either is exposed to a liquid, immediately disconnect the power supply and have the appliance checked by a certified technician. Not following these instructions may result in electric shock, or even death.
• Do not use the appliance after it has fallen or if is damaged in any way. Have it checked and repaired by a certified technician.
• Do not move the appliance while in operation and never move or carry the appliance by the power cord.
• Do not place or move the appliance on its side, upside-down or while tilted.
• Do not open the casing or try to repair the appliance yourself, unlessinstructed to by a Maxima technician. This may void the warranty, cause damage to the machine or result in a hazardous situation.
• Do not use any devices or accessories that are not supplied with the appliance or designed to work with it.
• Never put your hands or other body parts near the moving parts of the appliance while operational and always keep an eye on the appliance when in use.
• Do not insert objects in the casing or openings of the appliance.
• Keep all packaging away from children and dispose of packaging in accordance with local and national regulations.
• The electrical installation must comply with local regulations.
• Switch off the appliance before removing the power plug.
• Always disconnect the power supply when the appliance is not in use. To remove the plug from the socket, always pull the plug itself and not the cable.
• Do not touch the power plug with damp or wet hands.
• Keep the power cable away from the range of operation and do not cover the cable. Make sure the power cable does not come in contact with hot or sharp objects and keep it away from open flames.
• Note that while the plug is in the electrical socket, the appliance is connected to the electrical grid

SAFETY SYMBOLS

• Store product between 10-30°C
• Avoid placement in direct sunlight
• Product intended for indoor use
• Double electrical insulation: does not require grounding/earth connections
• Product disposal according to local waste regulations
• Product meets CE requirements

PREFACE

Introduction

Thank you for purchasing this product from Maxima. To ensure your own safety and to get the best out of your purchase, please read the instructions carefully before attempting to install or use this product. This manual should be available at all times and stored near the appliance.

All Maxima products are CE certified. Our products meet the legal requirements regarding health, safety and the environment, as set out by the European Commission. In addition, all products are thoroughly tested prior to shipment to ensure product quality and safety.

General information

For after sales support, please visit our Customer Service page at: www.maxima.com/en/service. User manuals are available online and can be downloaded electronically from the product’s page on our website. If the manual for your product is not available, please contact Customer Service. For more information, visit our website: www.maxima.com

Warranty

We offer a 12-month warranty from the date of purchase, as indicated on your purchase invoice. Under the warranty, we will deliver additional spare parts in case of: material defects, manufacturing defects or other quality issues.

The following is not covered by the warranty:

• Damage relating to the incorrect use of the product
• Damage relating to use of parts that were not part of the original machine
• Damage due to transport to another location after delivery, or incorrect installation and connection
• Component damage caused by incorrect electrical or water connection
• Damage as a result of disassembly and/or modification to the original machine without permission
• Damage as a result of misuse, poor cleaning or improper maintenance
• Damage as a result of fire, building collapse, lightning, flooding, power surges or vermin
• Failure to read or follow the user manual
• Consumables and parts prone to wear and tear
• An altered invoice or no invoice

PRODUCT INFORMATION

Intended use

This appliance may only be used for the purpose for which it was designed and intended. The manufacturer and supplier are not liable for any damage caused by incorrect operation and improper use.

This is a commercial product that must only be used by a trained professional who has read and understands this manual. It must not be used by children or persons with reduced capabilities without supervision.

Specifications

Features

Maxima’s products offer a wide range of features. You can read more about these in Appendix 1.

Spare parts

An exploded view and list of the spare parts is available in Appendix 2.

TRANSPORT

Transport & handling

This appliance needs to be lifted by two or more people. Remember to always lift from the legs and not the back. Never try to lift or move objects beyond your capabilities. Ask for assistance or use the appropriate equipment, if necessary.

Packaging

Unpack and inspect your purchase immediately after receipt. If there are any latent defects or damage to the item, please contact your supplier immediately. Save all packaging materials in case the machine needs to be returned or inspected by the courier.

Before use

Remove any protective film from any surfaces and clean the appliance and accessories thoroughly before use (see section 6 on “Maintenance”)

INITIAL SET-UP

Wiring & connections

If your machine is supplied with a factory fitted molded plug then you may plug the unit into a standard electrical outlet. Make sure that the voltage of the machine and the wall outlet are compatible.

If your machine is not supplied with a factory fitted molded plug then a certified electrician must be contracted to wire the unit to the power supply.

Please find the circuit diagram in Appendix 3.

Placement

The appliance must be positioned on a stable, flat surface. Choose a surface where there is no direct sunlight and is not close to a direct heat source, such as a cooker, oven or radiator.

When positioning the appliance, keep a distance of 10cm (4″) between the appliance and walls, or other objects for ventilation and ease of use.

Position the appliance so that the plug is accessible at all times. Always plug the power cord into a compatible, grounded socket

OPERATION

How to use the appliance

Only use with flat-bottom cookware made from cast iron, enameled iron, or stainless steel.

 Do not use with cookware smaller than Ø16cm, or that is made from ceramic, copper, (heat-resistant) glass or aluminium.

• Place the suitable cookware in the center of the circle on the cooking surface.
  Do not heat empty cookware. Always make sure there is product inside.
• Turn the dial clockwise to turn on the appliance.
• Use the dial to increase (clockwise) or decrease (counterclockwise) the power output.
• When not in use, switch the machine off by turning the dial counterclockwise as far as possible.
• Clean the appliance after use (see chapter 5.2 on “Cleaning”).

If the appliance will not be used for a longer period, remove the plug from the main socket.
If cracks or indentations in the glass surface occurs, the cooktop will have to be replaced.

Cleaning

• Regularly check and clean the appliance, its parts and accessories.
• Always switch off and disconnect the power and gas supply before any cleaning or maintenance.
• Never use aggressive or abrasive cleaning agents. Do not use solvents or petroleum based cleaning agents. Some cleaning agents may leave a harmful residue or cause damage to the machine. Use a mild food-safe cleaning product instead.
• Do not use a scourer or any sharp objects during cleaning as this may cause damage to the machine.
• Never hose down the machine or immerse it in water or any other liquid. Instead wipe the exterior with a damp cloth. Do not use a steamer to clean the machine.
• Never let the power cable or power plug get wet.

MAINTENANCE

Check the mains plug and mains cable regularly for damage. Do not continue to use the appliance if it is damaged. Have the unit repaired by a certified electrical technician.

TROUBLESHOOTING

STORAGE

Roll the power cable up and store it safely. Make sure the appliance is thoroughly cleaned before storing it away. Store in a cool, dry place.

DISCARDING

When disposing of this appliance, please do so in compliance with local and national regulations. It’s also important to dispose of any related materials correctly. This piece of equipment may contain packaging and accessories that have to be collected and disposed of separately. These should not be treated as unsorted municipal waste.

Recycling: By disposing of waste in the proper manner, you help avoid hazards in the environment that could be caused by improper treatment of waste.

Packaging: The packaging is made from materials to be disposed of through local recycling facilities.

Batteries: If the machine contains a battery, these may contain toxic substances and are a hazard to the environment. Please dispose of used or rechargeable batteries responsibly through a local collection point.

Electronics: If this appliance contains electronic parts, please dispose of electrical waste at a recycling collection point for electronic equipment.

FEATURES

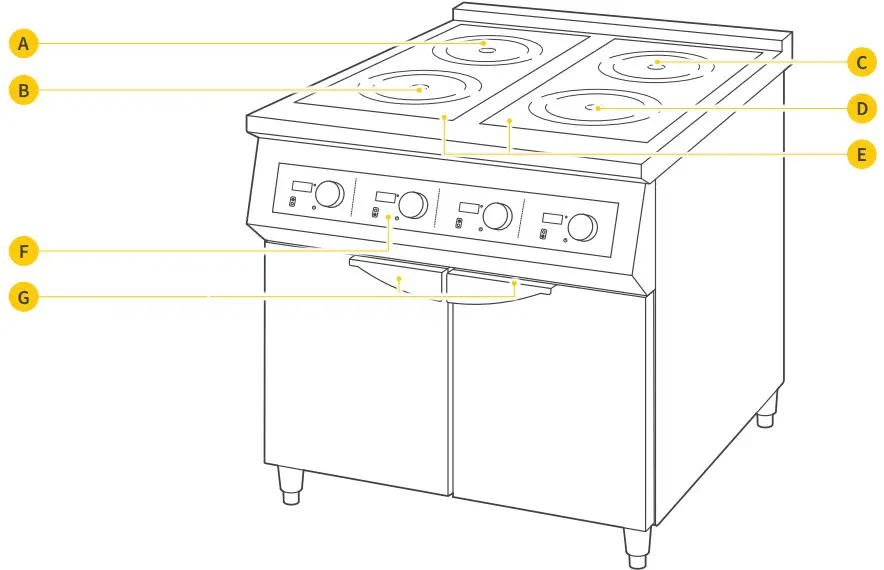

Features – Model: 09371011

1. Left rear cooking element
2. Left front cooking element
3. Right rear cooking element
4. Right front cooking element
5. Ceramic glass
6. Control panel
7. Stainless steel doors

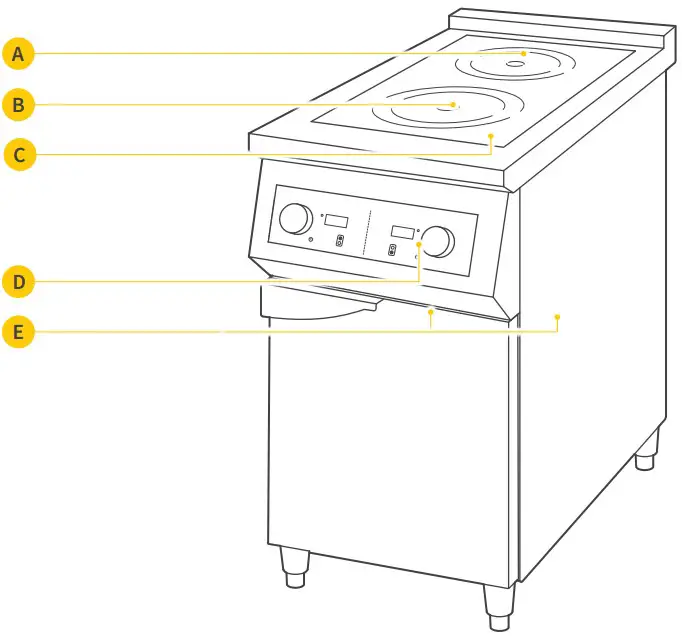

Features – Model: 09371012

• Rear cooking element
• Front cooking element
• Ceramic glass
• Control panel
• Stainless steel door

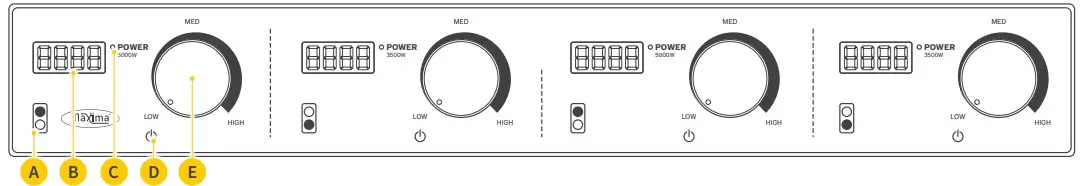

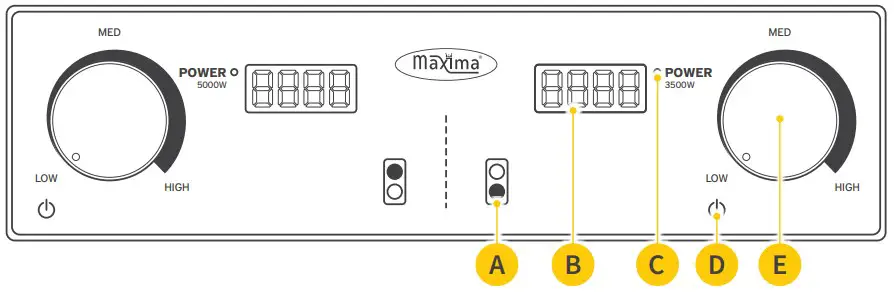

CONTROL PANEL

1. Cooking zone
2. Display window
3. Indicator light
4. On/Off indicator
5. Power regulation control

SPARE PARTS

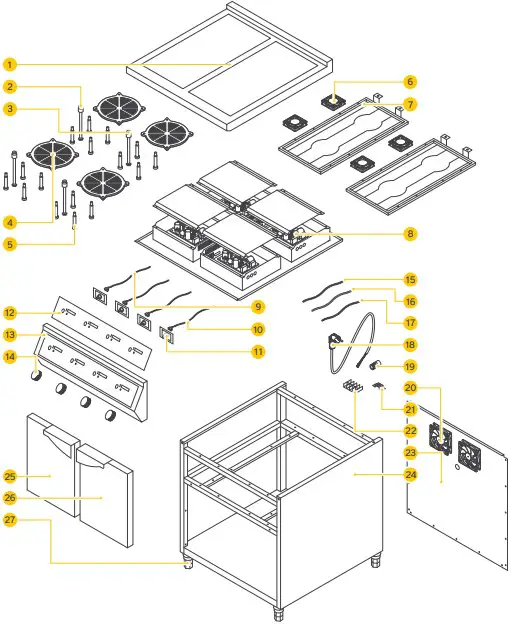

Exploded view – Model: 09371011

Spare parts list – Model: 09371011

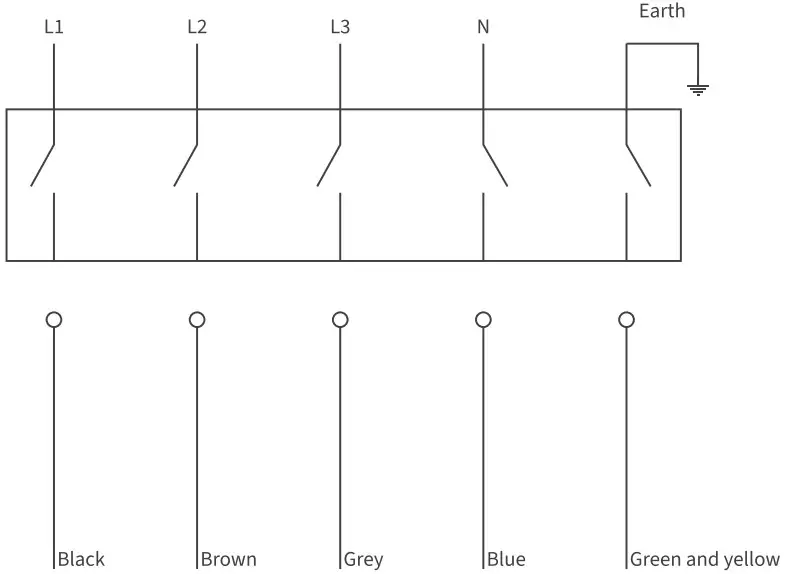

CIRCUIT DIAGRAM

Circuit diagram – Models: 09371011 / 09371011

TECHNICAL DEPARTMENT & WAREHOUSE

NIJVERHEIDSWEG 23A/D – 3641 RP MIJDRECHT – THE NETHERLANDS

 +31 (0) 297 253 969
 [email protected]

Maxima User Manual V1 – Modified 28 February 23
