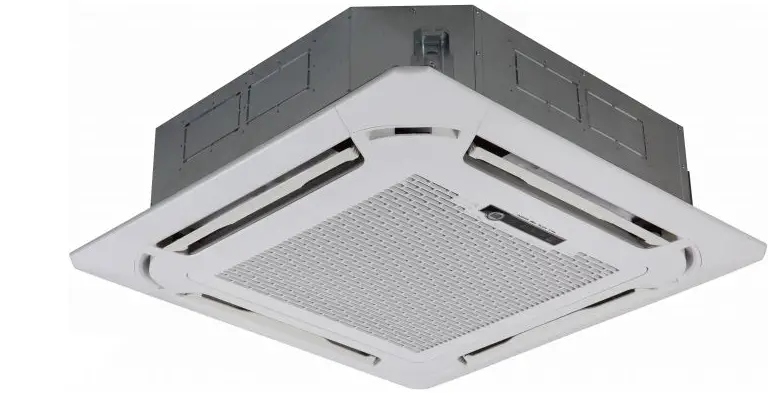

bryant 40MBCQ Cassette Indoor Unit
Sizes: 24 / 36 / 48 Select sizes are ENERGY STAR® certified based on outdoor unit pairing
STANDARD FEATURES
- Modes: Cool, Heat, Dry, Fan, Auto, Turbo
- Louver control (fixed or swing)
- Outside air intake
- Built-in condensate lift pump
- Follow Me (senses temperature at handheld remote)
- Heating setback (46° F Heating Mode)
- Quiet indoor operation
- Anti-corrosive fin coating
COMPATIBLE WITH
- 38MARB Outdoor Unit
- 38MBRB Outdoor Unit
- 38MBRC Outdoor Unit
- 38MGRB Outdoor Unit
- 38MGHB Outdoor Unit
KEY FEATURES
Easier Service & Installation
A relocated condensate pump allows for easy replacement and increased spacing between lines.
Seamless Connection
Optimized Wi-Fi® connectivity means fewer installation steps for faster, more seamless connections.
Enhanced Design
A new, ergonomic design and larger vents for improved airflow means greater comfort from an unobtrusive indoor unit.

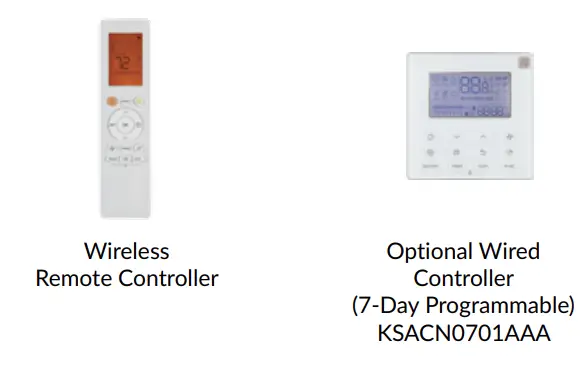

CONTROLS
- Wireless Remote Controller included with indoor unit
- Optional Wired Remote Controller KSACN0101AAA (timer function)
- Optional Wired Remote Controller KSACN0701AAA (7 day programmable)
SPECIFICATIONS
| 40MBCAQ Cassette | ||||
| Heat Pump | ||||
| System | ||||
| Size | 24 | 36 | 48 | |
| Indoor Model | 40MBCAQ24XA3 | 40MBCAQ36XA3 | 40MBCAQ48XA3 | |
| Electrical | ||||
| Voltage-Phase-Cycle | V-Ph-Hz | 208/230-1-60 | 208/230-1-60 | 208/230-1-60 |
| Power Supply | Indoor Unit Powered From Outdoor Unit | |||
| MCA | A. | 1.0 | 1.0 | 1.5 |
| Controls | ||||
| Wireless Remote Controller (° F/° C Convertible) | Standard | Standard | Standard | |
| Wired Remote Controller (° F/° C Convertible) | Optional | Optional | Optional | |
| Operating Range | ||||
| Cooling Indoor DB Min – Max | ° F (° C) | 60.8~90 (16~32) | 60.8~90 (16~32) | 60.8~90 (16~32) |
| Heating Indoor DB Min – Max | ° F (° C) | 32~86 (0~30) | 32~86 (0~30) | 32~86 (0~30) |
| Piping | ||||
| Pipe Connection Size – Liquid | in (mm) | 3/8 (9.52) | 3/8 (9.52) | 3/8 (9.52) |
| Pipe Connection Size – Suction | in (mm) | 5/8 (15.9) | 5/8 (15.9) | 5/8 (15.9) |
| Indoor | ||||
| Body Unit Width | in (mm) | 32.68 (830) | 32.68 (830) | 32.68 (830) |
| Body Unit Height | in (mm) | 8.07 (205) | 9.65 (245) | 11.3 (287) |
| Body Unit Depth | in (mm) | 32.68 (830) | 32.68 (830) | 32.68 (830) |
| Body Net Weight | lbs (kg) | 47.18 (21.4) | 59.97 (27.2) | 64.59 (29.3) |
| Panel Unit Width | 37.4 (950) | 37.4 (950) | 37.4 (950) | |
| Panel Unit Height | in (mm) | 2.17 (55) | 2.17 (55) | 2.17 (55) |
| Panel Unit Depth | in (mm) | 37.4 (950) | 37.4 (950) | 37.4 (950) |
| Panel Net Weight | lbs (kg) | 11.02 (5) | 11.02 (5) | 11.02 (5) |
| Number of Fan Speeds | 4 | 4 | 4 | |
| Airflow (lowest to highest) | CFM | 547/635/706/764 | 753/853/947/1041 | 935/1059/1171/1288 |
| Sound Pressure (lowest to highest) | dB(A) | 42/44/47/49 | 46/49/51/53 | 49/52/54/56 |
| Air Throw Data | ft (m) | 14.7 (4.5) | 16.4 (5) | 16.4 (5) |
| Moisture Removal | Pint/h (L/h) | 5.6 (2.6) | 8.5 (4.0) | 12.3 (5.8) |
| Field Drain Pipe Size O.D. | in (mm) | 1 (25.4) | 1 (25.4) | 1 (25.4) |
COMPATIBILITY
| Indoor Unit | 40MBCAQ24XA3 | 40MBCAQ36XA3 | 40MBCAQ48XA3 |
| Outdoor Unit Single Zone* | 38MARBQ24AA3 | 38MBRBQ36AA3 | 38MBRBQ48AA3 |
| 38MBRCQ36AA3 | 38MBRCQ48AA3 | ||
|
Outdoor Unit Multi-Zone* | 38MGRQ30D–3 | ||
| 38MGRQ36D–3 | |||
| 38MGRQ48E–3 | |||
| 38MGHBQ30DA3 | |||
| 38MGRBQ36DA3 | |||
| 38MGHBQ36DA3 | |||
| 38MGRBQ48EA3 | |||
| 38MGHBQ48EA3 |
Visit our website at BryantDuctless.com © Bryant Heating and Cooling Systems 2022 01-DLS-002-BR-01 04/2022
