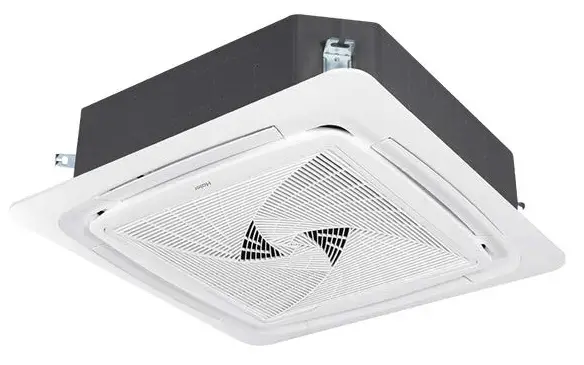

Haier AB71S2PC1FA 7.1kW Round Way Cassette
Round-way grille design for even air distribution, this model is part of our Super Match range and can be paired with a universal multi-head outdoor unit.
- Eight-way air outlet for even heating and cooling to every corner
- Fresh air inlet connection available
- Optional Wi-Fi accessory for remote control using the SmartHQ™ app
- Fan blade designed for quiet operation
DIMENSIONS
- Height 840 mm
- Width 840 mm
- Depth 204 mm
FEATURES & BENEFITS
- Round way design
The unique round way air outlet supplies airflow in all directions for optimal temperature distribution throughout your space. - Fresh air inlet
Fresh air knockout is incorporated in the chassis allowing introduction of fresh air at a rate of up to 20% of airflow without compromising cooling capacity. - Control from anywhere
Installing the optional Wi-Fi accessory lets you control your air conditioning from your phone with the SmartHQ™ app, or use voice control with a smart home device. - Individual louvre control
Each louvre can be controlled individually using the supplied controller for maximum comfort throughout the room. - Flexible installation
This model includes a built-in condensate drain pump with 1000mm lift height to suit your installation. - Central controller
With an optional central controller, you can easily control individual or connected units, and schedule air conditioning to turn on and off automatically.
SPECIFICATIONS
Capacity
| Cooling capacity (kW) | 7.1kW |
| Heating capacity (kW) | 8.0kW |
Features
| 24 Hour timer | • |
| Blue fin coils | • |
| Fresh air connection | • |
| Sleep mode | • |
| Standard controller | YR-HQS01 (remote) |
| Wi-Fi controller compatible | • |
Installation
| Liquid line | 9.52mm |
| Suction line | 15.88mm |
Performance
| Airflow | 1260m3/h |
| R32 Refrigerant | • |
| Sound power | 55dBA |
| Sound pressure SPL (indoor) | 42 / 40 / 38 / 35dBA |
Power Requirements
| Power phase | Single |
| Supply frequency | 50Hz |
| Supply voltage | 220-240V |
Product dimensions
| Depth | 204 mm |
| Height | 840 mm |
| Net weight | 27kg mm |
| Width | 840 mm |
Warranty
| Warranty |
| Parts and labour 5 years |
| SKU | 51635 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? 2020 Haier Inc. All rights reserved.
