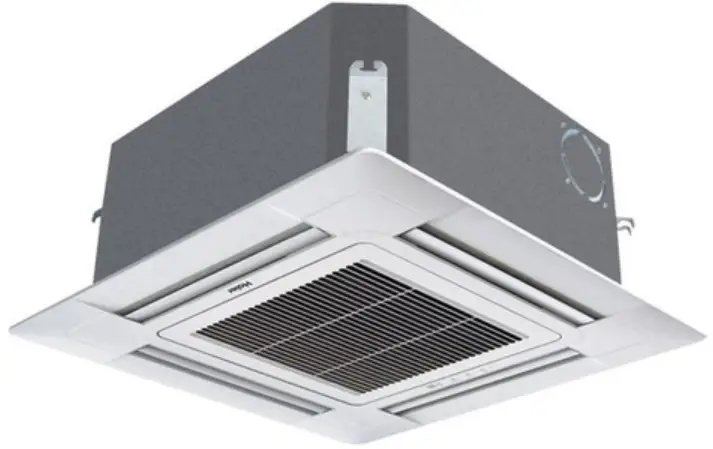

Haier AB24ES1ERA 7.1 kW Cassette User Guide
DIMENSIONS
| Height | 840 mm |
| Width | 840 mm |
| Depth | 240 mm |
SPECIFICATIONS
Capacity
| Cooling capacity (kW) | 7.1kW |
| Heating capacity (kW) | 7.1kW |
Features
| 24 Hour timer | • |
| Blue fin coils | • |
| Sleep mode | • |
| Standard controller | YR-E17 |
| Wi-Fi controller compatible | • |
Installation
| Liquid line | 9.52mm |
| Suction line | 15.88mm |
Performance
| Airflow | 361l/s |
| Self cleaning evaporator | • |
| Sound power | 59dBA |
| Sound pressure | 46dBA |
Power Requirements
| Supply frequency | 50/60Hz |
| Supply voltage | 220-230V |
Product dimensions
| Depth | 240 mm |
| Height | 840 mm |
| Net weight | 25.5kg mm |
| Width | 840 mm |
Warranty
| Parts and labour | 5 years |
| SKU | 51040 |
The product dimensions and specifications in this page apply to the specific product and model.
Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? 2020 Haier Inc. All rights reserved.
