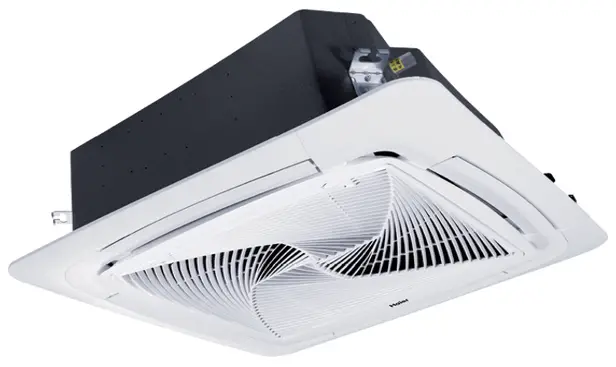

ABH125K5ERG-SET Cassette – Round Way
User Guide
QUICK REFERENCE GUIDE > ABH125K5ERG-SET
Cassette – Round Way, 12.5 kW
White
DIMENSIONS
| Height | 288 mm |
| Width | 840 mm |
| Depth | 840 mm |
SPECIFICATIONS
| Accessories | |
| Central controller | Optional |
| IR Controller | Optional |
| Capacity | |
| Cooling capacity (kW) | 12kW |
| Heating capacity (kW) | 13kW |
| Consumption | |
| COP | 3.21 |
| EER | 3.13 |
| Features | |
| 24 Hour timer | • |
| 360° airflow | • |
| Auto restart | • |
| Blue fin coils | • |
| Condensate pump | • |
| DC inverter | 180° sine wave |
| DRED (Demand Response) ready | • |
| Fresh air connection | • |
| MEPS approved | • |
| Motor type | DC motor |
| Self diagnostics | • |
| Sensor panel | PB-950MB |
| Sleep mode | • |
| Standard controller | YR-HBS01 |
| Standard panel | PB-950KB |
| Wi-Fi controller compatible | • |
| Performance | |
| Airflow | 540l/s |
| DC inverter | 180° sine wave |
| Sound power | 64dBA |
| Sound pressure | 47dBA |
| Power Requirements | |
| Supply frequency | 50/60Hz |
| Product dimensions | |
| Depth | 840 mm |
| Height | 288 mm |
| Net weight | 32kg mm |
| Width | 840 mm |
| Warranty | |
| Parts and labour | 5 years |
| SKU | 51684 |
The product dimensions and specifications in this page apply to the specific product and model.Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? 2020 Haier Inc. All rights reserved.
