PARTNERS choice GKH18-5.3-FMK4DH Cassette Type Indoor Unit

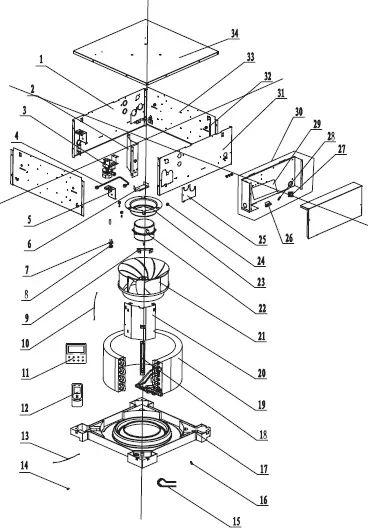

REPLACEMENT PARTS LIST
| ITEM # | COMPONENT |
| 1 | FRONT SIDE PLATE |
| 2 | RIGHT BAFFLE ASSY |
| 3 | WATER PUMP |
| 4 | PUMP DRAINPIPE |
| 5 | BODY INSTALLING SUPPORT |
| 6 | LIQUID LEVEL SWITCH SUPPORT |
| 7 | PUMP SUPPORT ASSY |
| 8 | WATER LEVEL SWITCH |
| 9 | WATER TRAY SUPPORT |
| 10 | TEMPERATURE SENSOR |
| 11 | DISPLAY BOARD |
| 12 | REMOTE CONTROLLER |
| 13 | AMBIENT TEMPERATURE SENSOR |
| 14 | FILTER SUB-ASSY |
| 15 | WIRE CLAMP(BIG) |
| 16 | FILTER SUB-ASSY |
| 17 | WATER TRAY ASSY |
| 18 | EVAPORATOR SUPPORT |
| 19 | EVAPORATOR ASSY |
| 20 | EVAPORATOR CONNECTION BOARD |
| 21 | CENTRIFUGAL FAN |
| 22 | FAN MOTOR |
| 23 | MOTOR SUPPORT |
| 24 | MOTOR GASKET |
| 25 | TUBE EXIT PLATE ASSY |
| 26 | TRANSFORMER |
| 27 | TERMINAL BOARD |
| 28 | CAPACITOR CBB61 |
| 29 | MAIN BOARD |
| 30 | ELECTRIC BOX ASSY |
| 31 | FRONT SIDE PLATE |
| 32 | PASS WIREPLATE |
| 33 | RIGHT SIDE PLATE SUB-ASSY |
| 34 | SEAT BOARD SUB-ASSY |
GKH18(5.3)FMK4DH
| PART DESCRIPTION | PART CODE | NORTEK PART NUMBER | |
| 1 | Front Side Plate | 01314211 | 1044843 |
| 2 | Right Baffle Assy | 01362704 | 1044853 |
| 3 | Water Pump | 43130320 | 1003124 |
| 4 | Pump Drainpipe | 05232722 | 1017070 |
| 5 | Body Installing Support | 01332705 | 1044327 |
| 6 | Liquid Level Switch Support | 24212705 | 1003132 |
| 7 | Pump Support Assy | 01332708 | 1044852 |
| 8 | Water Level Switch | 450127011 | 1003131 |
| 9 | Water Tray Support | 01332706 | 1044851 |
| 10 | Temperature Sensor | 390001982G | 1008315 |
| 11 | Display Board (Wired Controller) | 300001060284 | 1028712 |
| 12 | Remote Controller | 305100491 | 1007703 |
| 13 | Ambient Temperature Sensor | 3900019813 | 1008314 |
| 14 | Filter Sub-Assy | NONE | |
| 15 | Wire Clamp (Big) | 71010252 | 1044850 |
| 16 | Filter Sub-Assy (Refrigerant Filter) | 11120012 | 1044935 |
| 17 | Water Tray Assy (Drain Pan) | 20182704 | 1044849 |
| 18 | Evaporator Support | 01072714 | 1044848 |
| 19 | Evaporator Assy | 0102430701 | 1032323 |
| 20 | Evaporator Connection Board | 01072713 | 1044847 |
| 21 | Centrifugal Fan (Blower Wheel) | 10312702 | 1003118 |
| 22 | Fan Motor (Blower Motor) | 1570411401 | 1008310 |
| 23 | Motor Support | 01702702 | 1044846 |
| 24 | Motor Gasket | 76712705 | 1044845 |
| 25 | Tube Exit Plate Assy | 01382719 | 1044844 |
| 26 | Transformer | 43110257 | 1032745 |
| 27 | Terminal Block | 420111041 | 1032562 |
| 28 | Capacitor CBB61 | 33010089 | 1044886 |
| 29 | Main Board | 30226354 | 1008312 |
| 30 | Electric Box Assy | 01399536 | 1032752 |
| 31 | Front Side Plate | 01302741 | 1044854 |
| 32 | Pass WirePlate | 01362701 | 1044842 |
| 33 | Right Side Plate Sub-Assy | 01302743 | 1044841 |
| 34 | Seat Board Sub-Assy | 01222712 | 1044840 |
| Wireless Remote WLRC3 (Not Shown) | 305100491-L46037 | 1007703 | |
| Face Frame Panel TA03 (Grille) (Not Shown) | TA03 | 1013787 |
