Beko Efe7030w Air Cooler User Manual

EFE7030W Air Cooler
User Manual
EFE7030W
01M-8837503200-4720-01

EFE7030W Air Cooler

Please read this user manual first!
Dear Customer,
Thank you for preferring a Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of­ the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual.

Meanings of the symbols
Following symbols are used in the various section of this manual:

Important information or useful hints about usage.
Warning for hazardous situations with regard to life and property.
Warning to actions that must never perform.
Warning for electric shock.
Warning for danger of fire.
Warning for hot surfaces.

This product has been produced in environmentally friendly, modern facilities
Complies with the WEEE Regulation.

Safety instructions

Warning
Read rules for safe operation and instructions carefully.

• If the supply cord is damaged, it must be replaced by manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
• Household Indoor use only.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.Young children should be supervised to ensure that they do not play with the appliance.
• Unplug the appliance during filling and cleaning.
• Prior to cleaning or other maintenance, the appliance must be disconnected from the supply mains.
• Correct disposal of this product
• this symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

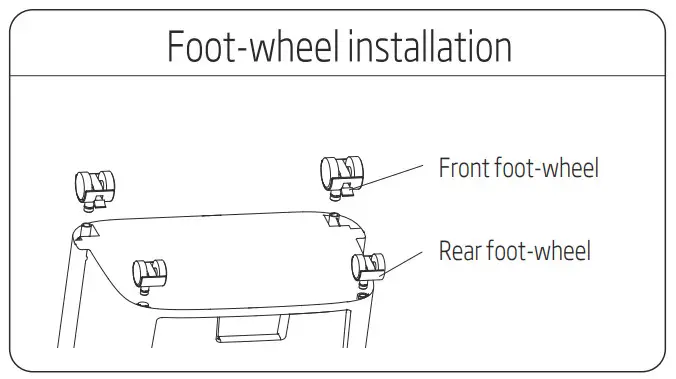

Installation instructions

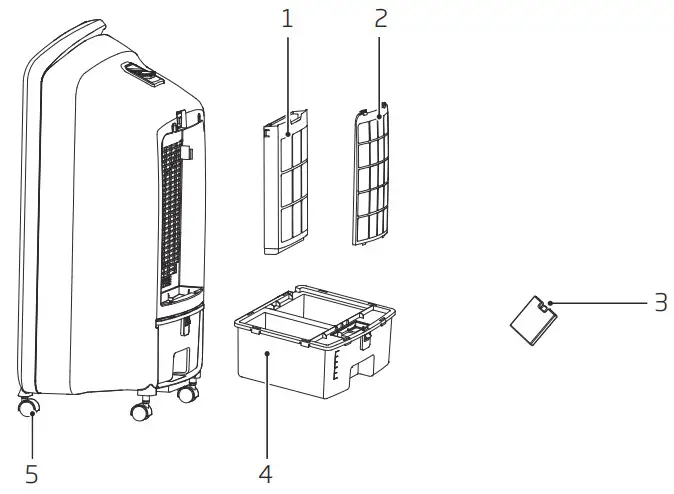

2.1 Name of components

1. Honeycomb filter frame
2. Pre-filter
3. Ice box
4. Water tank
5. Wheel

Instructions for use

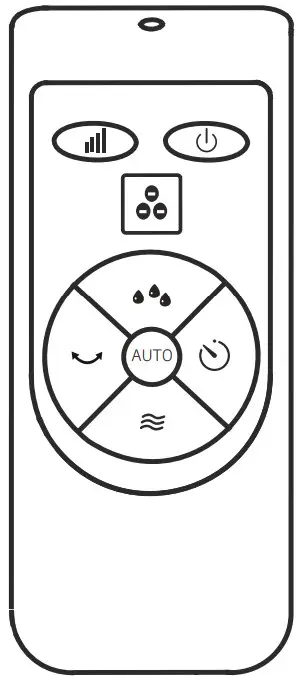

3.1 Instructions for key of remote controller

Model < IEO: CR2032
Voltage <V:3
Dimension<mm; 0203.2
Capacity < mAh; 210
Type : button battery
Meterial: Lithium manganese

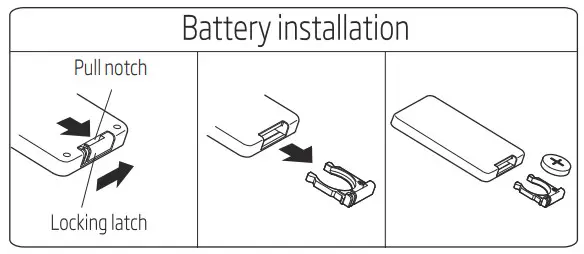

Considerate hint:

1. Install the battery with positive side facing up.
2. Effective range of remote control: within Sm distance and 30-degree deflection in front of product.

Instructions for use

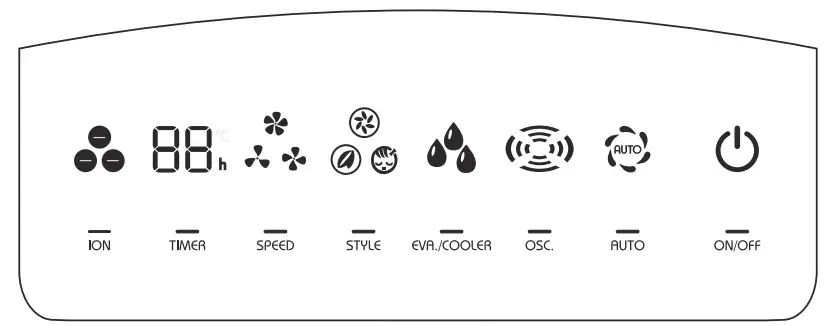

3.2 Instructions for operation of body

Press a key on the unit to activate a corresponding function.
For instance:

• Press [OSC] key to activate or deactivate swing function.
• Press [Speed] key to adjust 3 speeds of air flow.
• Press [Style] key to switch between normal, natural and sleep functions.
• Press [Timer] key to set 1-12 hour timer setting.
• Press [Ion] key to activate or deactivate negative Ion function.
• When [Eva./Cooler] key is pressed, the indicator lights up constantly if the operation is normal; when the indicator flashes, it denotes a water shortage, please add water immediately.

Considerate hint:
Push buttons on the unit may differ based on the actual product model. Considerate hint:

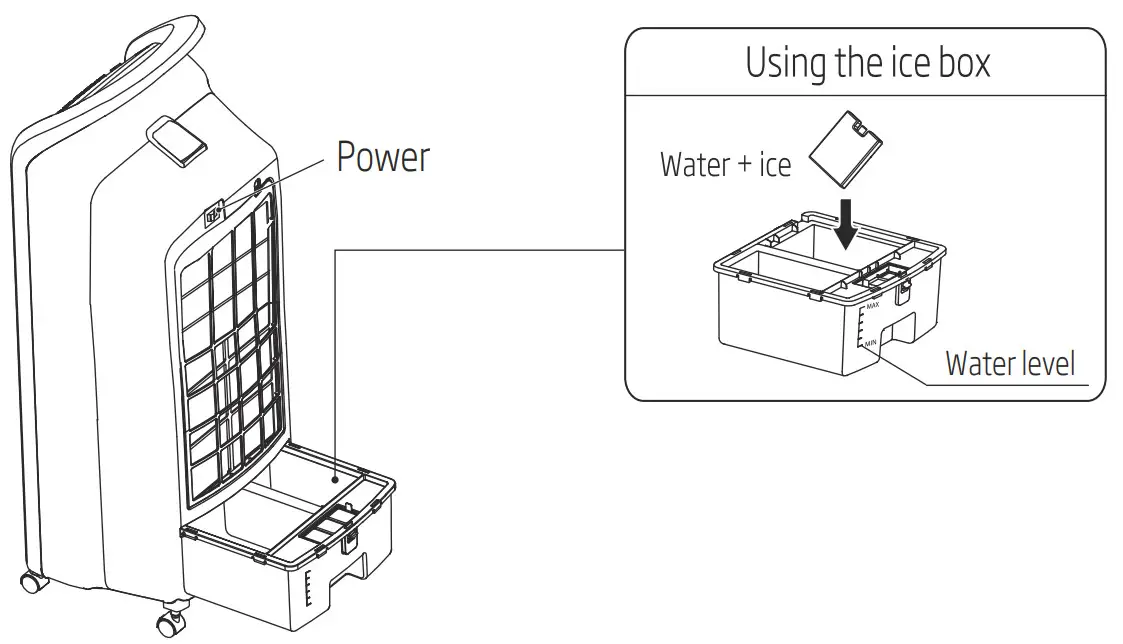

When humidifying, water level in the water tank must remain under max indication:
replenish water if level gets lower than min indication.

Other

4.1 Maintenance instruction
The fan requires little maintenance. Do not try to fix it by yourself. Refer it to qualified service personnel if service is needed.

1. Before cleaning and assembling, fan must be unplugged.
2. To ensure adequate air circulation to the motor, keep vents at the rear of the motor free of dust.
   Do not disassemble the fan to remove dust
3. Please wipe the exterior parts with a soft cloth soaking a mild detergent.
4. Do not use any abrasive detergent or solvents to avoid scratching the surface. Do not use any of the following as a cleaner: gasoline, thinner.
5. Do not allow water or any other liquid into the motor housing or interior parts.

4.2 Cleaning

1. Be sure to unplug from the electrical supply source before cleaning.
2. Plastic parts should be cleaned with a soft cloth moisten with mild soap. Thoroughly remove soap film with dry cloth.

4.3 Technical data
Power supply: 220-240V, 50Hz
Technical and design modifications reserved.

www.beko.com
