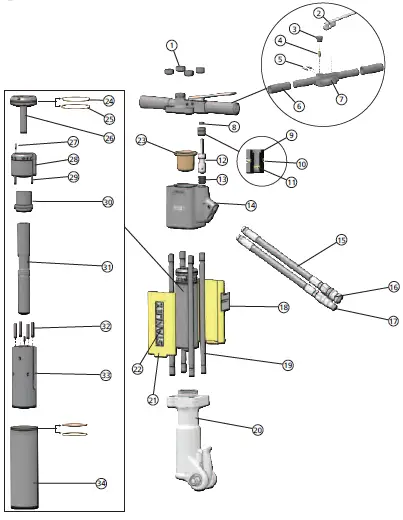

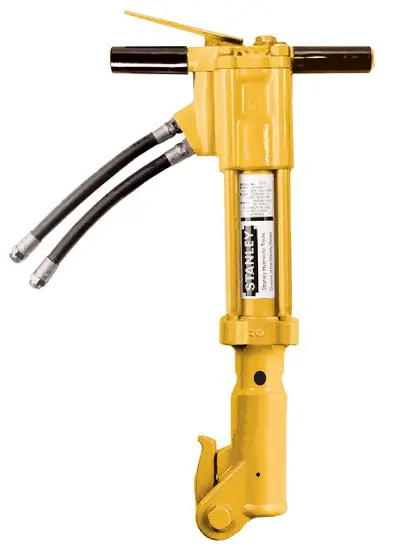

T-Handle Parts Illustration – Detail E
ITEM	P/N	DESCRIPTION
1	04374	Hex Nut
2	04371	Trigger
3	07493	O-ring Plug
4	20499	Charge Valve
5	07492	Roll Pin
6	02494	Handle Grip
7	07483	Handle
8	04056	Rod Wiper*
9	04057	Bushing
10	00293	O-ring*
11	01362	O-ring*
12	04077	Valve Spool
13	04058	Compression Spring
14	11588	Accumulator Valve Block
15	01652	Hose Whip, 12 in.
16	03972	Coupler, Female
17	03973	Coupler, Male
18	74664	Name Tag (8 GPM models)
	74660	Name Tag (5 GPM models)
	74669	Name Tag (Underwater models)
19	04373	Side Rod
20	Depends on model	Breaker Foot, see detail G & H.
21	72919	Snap-On Filler
22	74832	STANLEY Logo Sticker (Black)
	74770	STANLEY Logo Sticker (Yellow)
23	07479	Accumulator Diaphragm
24	04381	Back-up Ring*
25	04379	O-ring*
26	04378	Porting Block
27	02900	Roll Pin
28	07480	Automatic Valve Body
29	04571	Push Pin
30	04382	Automatic Valve
31	07481	Piston
	12833	Piston (BR45550 Only)
32	04605	Push Pin
33	07485	Flow Sleeve
34	04383	Flow Sleeve Tube
35	04595	Seal Kit (*In seal kit)

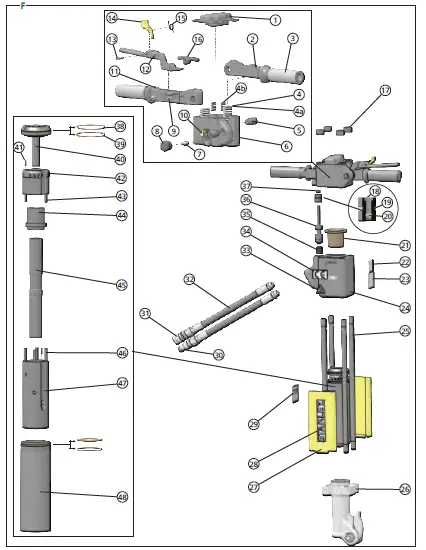

Anti-Vibration Parts Illustration – Detail F
ITEM	P/N	DESCRIPTION
1	28494	Top Plate
2	28369	Guarded Handle
3	02494	Handle Grip
4	20498	Spring
4a	20540	Springs – Models BR45125S, BR45135S, BR4513516, BR45158, BR45158BN
4b	20541
5	20508	Pivot Screw

Anti-Vibration Parts Illustration – Detail F
ITEM	P/N	DESCRIPTION
6	20505	Handle Pivot Block
7	20499	Charge Valve
8	07493	Plug
9	20500	Roll Pin
10	10180	Caution N2 Gas Sticker
11	58529	Trigger Handle
12	58526	Trigger
13	07624	Roll Pin
14	58527	Trigger Lock
15	66828	Torsion Spring
16	20511	Lever
17	04374	Hex Nut
18	07699	Bushing Assembly
19	00293	O-ring*
20	01362	O-ring*
21	07479	Accumulator Diaphragm
22	58601	Sound Power Level Sticker
23	28409	Composite Sticker
24	11588	Accumulator Valve Block
25	20517	Side Rod
26	Depends on model	Breaker Foot, see detail G & H.
27	72919	Snap-On Filler
28	74832	STANLEY Logo Sticker (Black)
	74770	STANLEY Logo Sticker (Yellow)
29	74663	Name Tag (8 GPM Models)
	74659	Name Tag (5 GPM Models)
30	03973	Coupler, Male
31	03972	Coupler, Female
32	01652	Hose Whip, 12 in.
	56725	Hose Whip, 18 in. (Model BR45158)
	66727	Hose Whip (Model BR45158BN)
33	11207	Circuit Type “D” Sticker
34	28322	CE Sticker
35	04058	Compression Coil Spring
36	20515	Valve Spool
37	04056	Rod Wiper*
38	04381	Back-up Ring*
39	04379	O-ring*
40	04378	Porting Block
41	02900	Roll Pin
42	07480	Automatic Valve Body
43	04571	Push Pin
44	04382	Automatic Valve
45	07481	Piston
	12833	Piston (Model BR4556801)
46	04605	Push Pin
47	07485	Flow Sleeve
48	04383	Flow Sleeve Tube

Breaker Foot Assembly – Detail G
			MODEL
ITEM	DESCRIPTION	QTY	BR4516801, BR4516807,BR4516807A, BR4556801	BR45150, BR45158, BR45158BN, BR45550	BR45350	BR4514801	BR45110
1	Cup Seal	1	04386
2	Back-up Washer	1	04780
3	Rod Wiper	1	04387
4	O-ring	1	02022
5	Breaker Foot	1	07510	07489	08856	07694	07899
6	Hex Bushing	1	07510	07489	08856	07694	07899
7	Latch	1	04394
8	Hex Nut	1	04374
9	Spring Washer	2	04716
10	Taper Sleeve	2	04715
11	Spring	1	04392
12	Detent	1	04393
13	Latch Bolt	1	04717

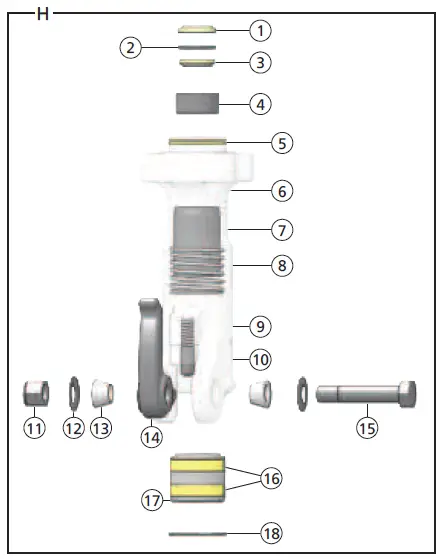

Breaker Foot Assembly – Detail H
			MODEL
ITEM	DESCRIPTION	QTY	BR45120, BR45120D	BR45130	BR45130E, BR45130EL, BR45135S	BR45120E, BR45125S
1	Cup Seal	1	04386
2	Back-up Washer	1	04780
3	Rod Wiper	1	04387
4	Insert	1	62334	72931	08081	08154
5	O-ring	1	02022
6	Breaker Foot	1	62334	72931	08081	08154
7	Hex Bushing	1	62334	72931	08081	08154
8	Compression Coil	1	—		81197
9	Spring	2	01744
10	Detent	1	08411
11	Hex Nut	1	04984
12	Spring Washer	2	04985
13	Taper Sleeve	2	01269
14	Latch	1	01837
15	Latch Bolt	1	04983
16	Wear Ring	2	—		07516
17	Collar Support	1	—		08116	08115
18	Retaining Ring	1	—		07522
