Ggm Gastro Rtk7 Planetary Mixer User Manual

ggm gastro RTK7 Planetary Mixer

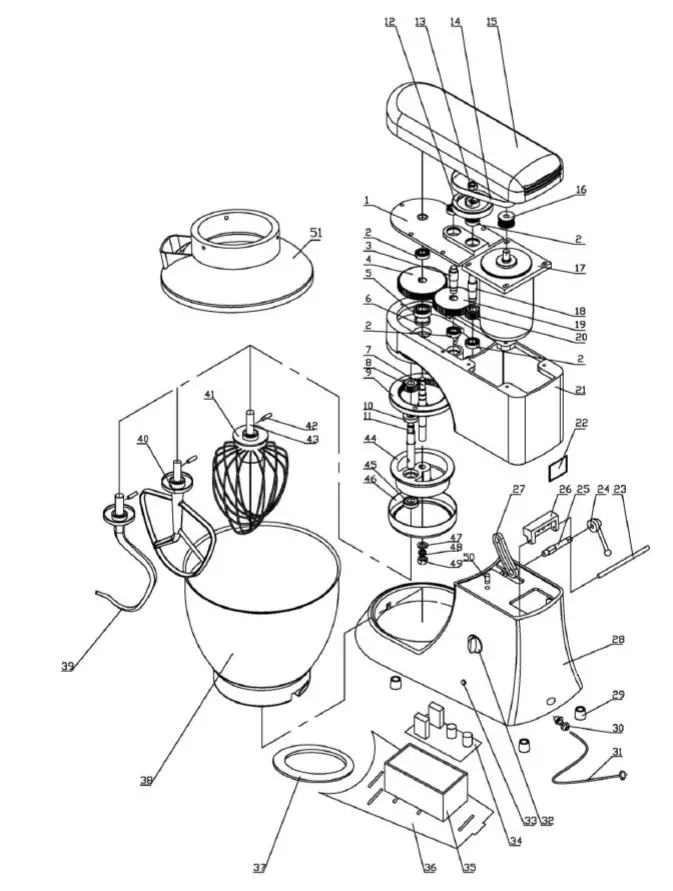

Machine Illustration Diagram

7LFOODSTUFF MIXER PARTS LIST

Function Features

As the mixer uses variable speed and planetary gear technologies, it has a broad speed range which makes it easy and convenient to operate. It can mix the dough, dumpling stuffing, circumrotates eggs, and cream mixture. It is very good for use in a western food kitchen, bread-room, bars, restaurants as well as at home.

Assembly

1. The mixer should be put on a stable and flat plane. Recommended height of the plane is 650mm-750mm. Please leave 150mm-space distance at the front and rear of the machine and 300mm at the left and right.
2. The connection of the machine to the power supply should be done by a qualified electrician.
3. The power must be used with a separate electronic socket with fuse device protection. The rated voltage is 220V and Frequency is 50Hz.
4. The electronic socket should have a ground connection. The resistance must be less than 0.1-ohm. 2.5 There is a ground connection point at bottom of the mixer. The resistance must be less than 0.1-ohm.

Operation

Assemble and disassemble

Shut off the machine; turn the handle clockwise to a horizontal position using your left hand. The head of the machine will rise automatically. To release the handle rise the head ”A” to 45°, the head will be locked and the handle will leap back to a vertical position. Along a key of the mixer axle, insert the mixing agitator ”D” to a hole in the axle of mixer ”C” lightly, and turn left to the” stop point” to assemble the mixing agitator. Reverse the process to disassemble the mixing agitator. To set the mixer is working position rotate the handle to a horizontal position by the left hand, the head will fall down; push the head down to lock. It is now in a working position. The handle will leap back to the horizontal position.

Drawing 1

• Head of mixer
• Interception
• Axle of mixing
• Agitator of mixing
• Handle
• Bowl of mixing
• Base plane
• Speed adjusting
• Switch

Choosing the suitable mixer agitator.

There are three kinds of shapes of mixing agitators to choose.

1. Hook shape mixing agitator is for large, sticky and thick things such as dough, etc.
2. Racket shape mixing agitator is for bulking things such as meat dumpling stuffing, etc.
3. Netted shape mixing agitator is for unstuck or just a little stockless thing such as eggs and creams.

Note: It’s important to choose the correct agitator. Always use the proper one. Otherwise, the machine won’t work, can be damaged or even broken. Please select item accordingly to the viscidity of the mixing material.

How to assemble and disassemble the Bowl.
Shut off the machine; raise the head of the mixer ”A”. Hold the tight stainless steel body of the bowl with two hands, turn it clockwise till the it stops, now it’s fixed and ready to operate.
Reverse the process to disassemble the bowl.

Adjusting speed

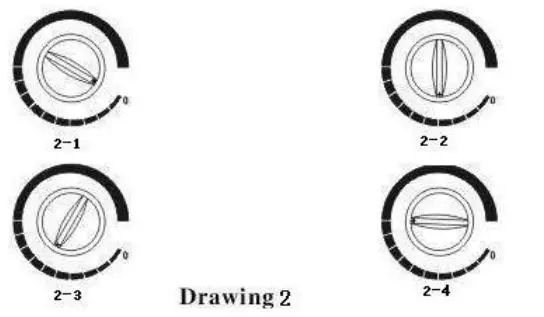

Set the speed button to “O” position (Drawing2-1), connect the electric power, indicator light turns on. Start the machine by pushing power switch. Speed can be adjusted according to the requirements of mixing materials (see drawings above):

• Drawing 2-2: the mixer is at low speed, it is good for dough.
• Drawing 2-3, the mixer is middle speed; it is good for meat dumpling stuffing.
• Drawing 2-4, the mixer is high speed; it is good for beating eggs.

This mixer has no fixed speed – it changes constantly – turning the regulator clockwise increases the speed, user can choose bests speed for you job.
Note: Always follow the rules of choosing a proper agitator. Otherwise, the machine’s working efficiency will be reduced; it may even lead to serious malfunctions and damages to mixer mechanism.

Adjusting the height of the mixing agitator
Sometimes, the distance between the bottom of the mixing agitator to the bowl is too short or too big, in such case adjusting the height of mixing agitator is necessary. Details are as follows (drawing3):

After finishing the procedure shown above, please return back the speed button to the “O” position, then turn off the machine, and cut off the power.

Safety

1. Before removing the machine, power must be cut off. While disassembling the mixing agitator, the mixing bowl must be turned off.
2. Always keep your hands dry while operating the machine.
3. Don’t water the machine, don’t put it in water.
4. If any parts are broken or under abnormal conditions, the machine must be stopped， and call technician to fix it.
5. Don’t put your fingers in the bowl while it is working.
6. Keep away children from the machine.
7. When it is working or the head is raising, the handle ”e” must be a vertical position.
8. When the head is rising, don’t put any fingers on the link parts between the head and the stand of the machine to avoid injury.
9. There is a ground point (Mark ) in the back of the stand, please keep them in the original position after each maintenance.

Maintenance

1. It is a food processing machine, so all parts that have been in contact with food have to be removed and washed every day after work. Don’t use cleaning pharmaceuticals that may injure persons.
2. Don’t turn on the mixer if the bowl is empty.
3. When mixing the agitator beats the stainless steel bowl, stop work immediately, correct the space or change the agitator or bowl if necessary.
4. After one year, please contact with the supplier to maintain and check the machine.

Potential Troubles and Solutions

Note: Please change the carbon brush of electronic motor when it stops working for a long time.

Technical Specification

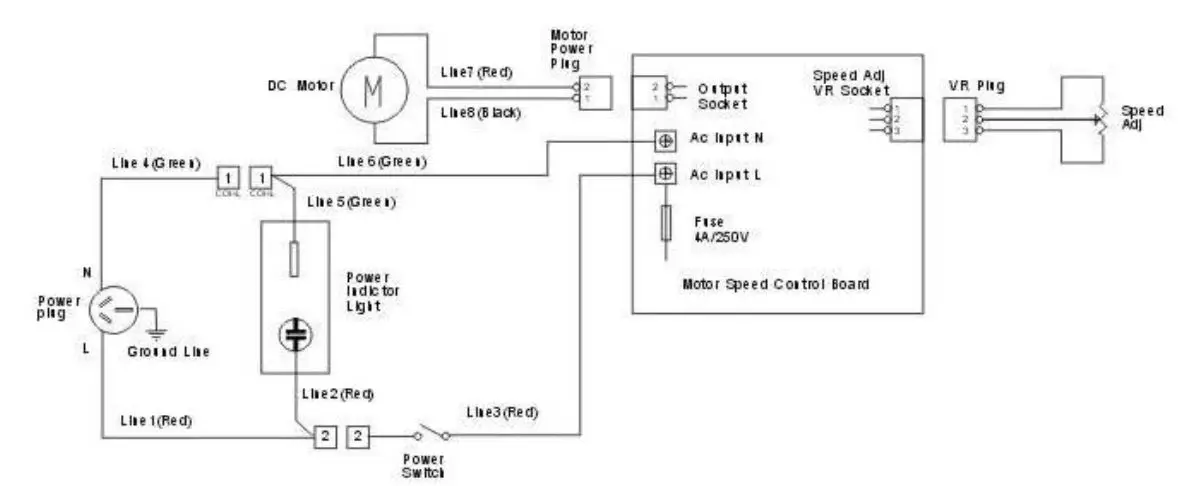

Electronic Drawing
