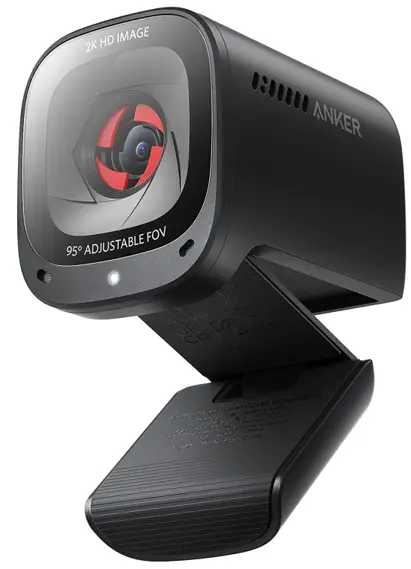

Anker PowerConf C200
USER MANUAL

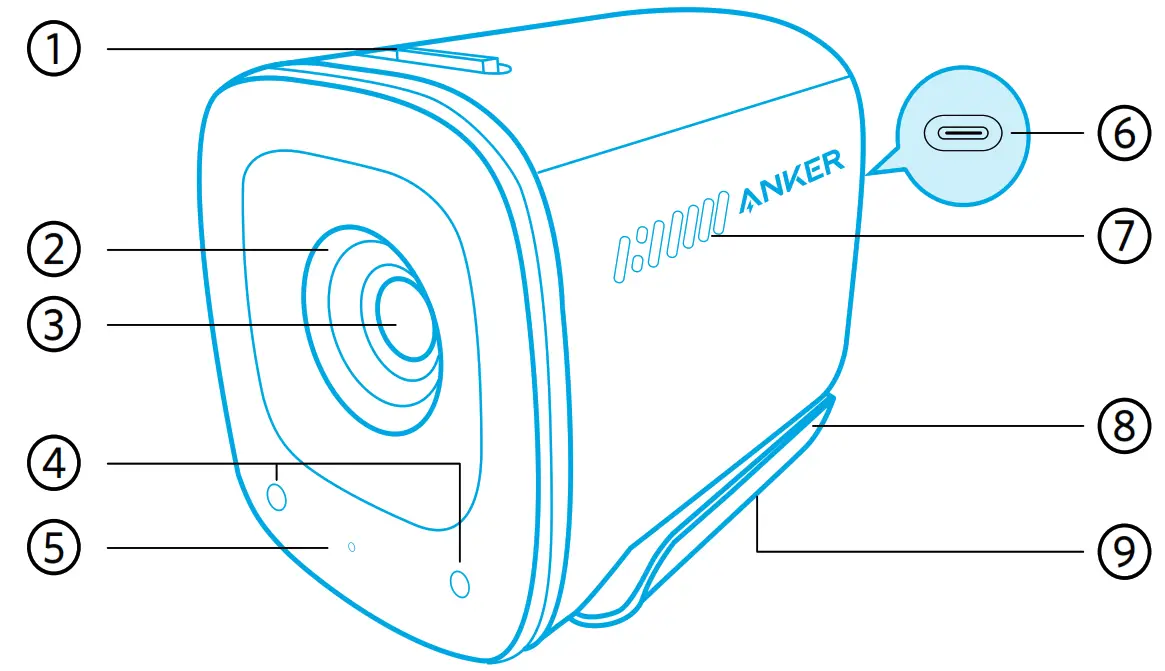

At a Glance
- Privacy cover switch
- Privacy cover
- Autofocus 2K HD lens
- Microphones
- LED light
- USB-C port
- Air vents
- Adjustable clip/stand
- Tripod thread
Mounting
Option A: On Top of Your Monitor
- Unfold the clip so it fits over the top of your monitor or laptop screen. For a secure fit, adjust the clip by pressing it against the back of your device.
- Adjust the webcam up and down for the optimal position to frame.

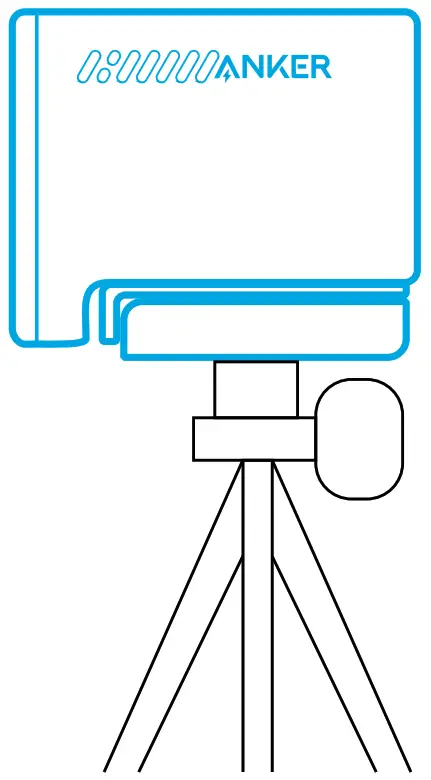

Option B: On a Tripod on Your Desk
With the clip folded in, mount the webcam onto a tripod (not provided) with the ¼ inch thread.

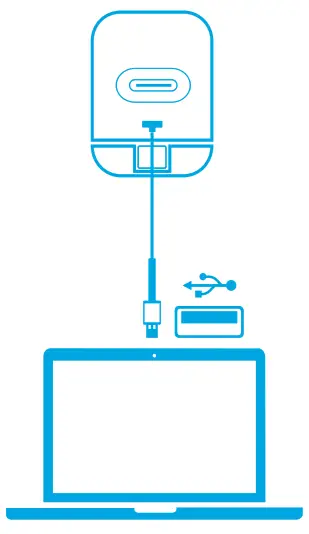

Connecting
- Plug the USB-C connector on the provided cable into the USB-C port on the webcam.
- Plug the USB-A connector into an available port on your computer.
• Plug-and-play support will let your computer instantly recognize the webcam.
• If your computer does not instantly recognize the webcam, try plugging into a different USB port or restart the computer. - Open the app you want to use with the webcam.
• The LED light will light up white when the webcam is in use by an app.
You may need to manually select this webcam and its built-in microphones for your PC system or software.
A) Windows
- Go to Settings > Privacy > Camera and turn on “Allow apps to access your camera”.
- Turn on each of the listed apps where you want to use the camera. After you open the Camera app, you may need to switch to the Full HD Camera.
B) macOS
- Go to the Apple menu > System Preferences > Security & Privacy, then choose Camera from the list on the left side.
- Locate the app(s) you want to enable camera access for and check the box alongside that app name to enable camera access for that application.
C) Software (Zoom or more)
Go to Settings > Video > Camera and choose this webcam.
Controls

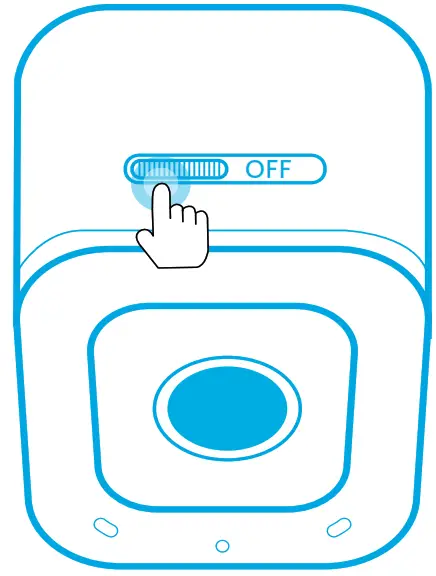

Slide to cover the camera lens for privacy. The camera will turn off automatically when blocked by the privacy cover.
Using AnkerWork Software
Download the AnkerWork Software from
software.ankerwork.com

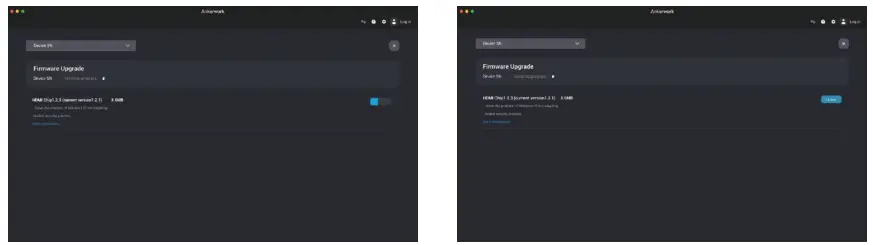

Download and install the AnkerWork software on your PC to update firmware and adjust settings.
Specifications
Specifications are subject to change without notice.
| Input | 5V  1 A |
| Resolution | 2K@30fps; 1080P@30fps; 720P@30fps; 320×240@30fps |
| Field of View (FOV) | 65°, 78°, 95° |
| Focus Type | Automatic focus |
| Sensor | 5 MP CMOS (1 / 2.7 in.) |
| Focus Distance | 15 cm to 3 m |
| Maximum Video Frame Rate | 2K video capture @ 30fps |
| Video Codec | MJPEG, YUV |
| Supported Operating Systems or Software | Windows® 7 or later; macOS® 10.11 or later; Skype for Business; Zoom; Google Meet; BlueJeans; Cisco Webex; WeChat; Microsoft Teams; FaceTime; YouTube; XSplit; OBS; Twitch; Facebook Messenger; Twitter; Mixer |
| Microphone | Dual stereo microphones |
| Voice Algorithm | AGC (Auto Gain Control), ANC (Auto Noise Cancellation) |
| Voice Pickup Distance | 3 m |
AnkerWork Software Download Center
