C2107-THS1314
Temp. & Humidity-THS13/14
Temperature & Humidity Transmitter for Wall type/ Duct type
www.eyc-tech.com
Features
- Compact design, good look and easy to install
- An economical choice, high C/P ratio
- High-Tech sensor component with high accuracy and long-term stability
Applications
Monitoring for HVAC process / Air conditioning / Environmental ventilation control /
Environmental monitoring for building / Factory / Clean room / Lab. /
Monitoring for storeroom / Crisper / Agriculture / Food industry
Specification
Input
| Input type | Capacitive humidity sensor & Pt1000 |
Measuring range
| Temperature | 0 … 50°C， Suggestion：15 … 35°C |
| Humidity | 0 … 100 %RH(Non-condensing) Suggestion：20 … 80%RH |
Accuracy (at 25°C)
| Temperature | 0.3°C+0.002°C x tactual |
| Humidity | ±3%RH(30…80%RH) |
Output
| Output | 4 … 20 mA |
| Signal connection | 2-wire |
| Warm-up time | ＜2 min., stable time 20 mins. |
| Response time | t63(15 … 45°C / 33 … 75 % RH)≦10 sec. t90(at +25°C)＜20 sec. |
| Sampling time | about 3 sec. |
| Temperature influence | 0.2%RH / °C |
| Load resistance | 2-wire current :＜(V-10) / 0.02＜500 Ω |
| Output calibration(ZERO &SPAN) | adjustment range |
| 10% of zero-point and full-range | |
Environment
| Medium | Air |
| Operating Temp. | 0 … +50°C |
| Storage Temp. | -25 … +60°C |
Electrical
| Power supply | 2-wire： DC 11 … 35 V |
| Current consumption | 2-wire： DC：41 mA |
| Electrical connection | 2-wire：3P connection |
Installation
| Installation | Wall type / Duct type |
Protection
| IP Rating | IP54(Sensor： IP20) |
| Electric protection | ■ Polarity protection ■ Over-voltage ■ Short circuit |
| Certification | |
| Certification | CE |
| Material | |
| Housing | PC fire-proof class(PC-110)(UL94V-2) |
| Weight | THS13：132 g / THS14：157 g |

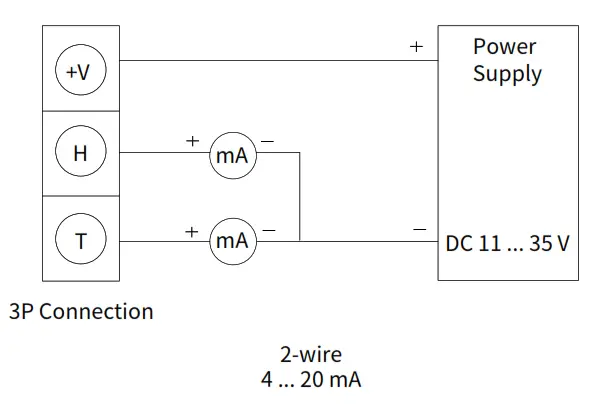

Diagram

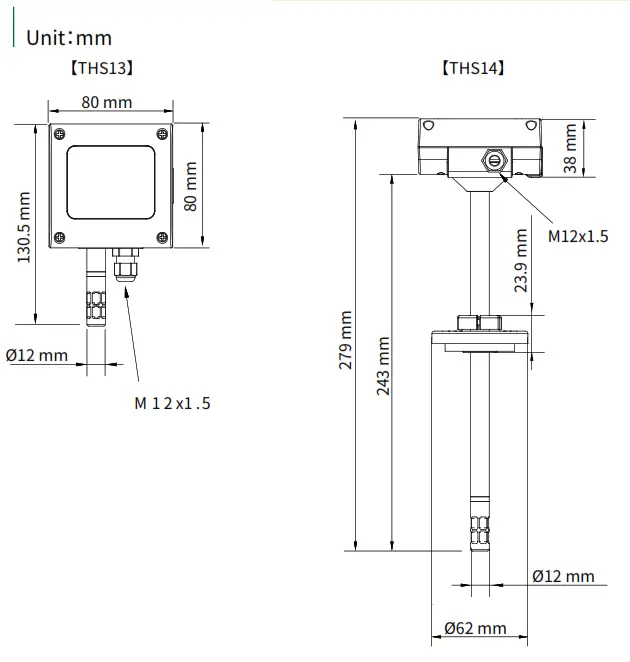

Dimension

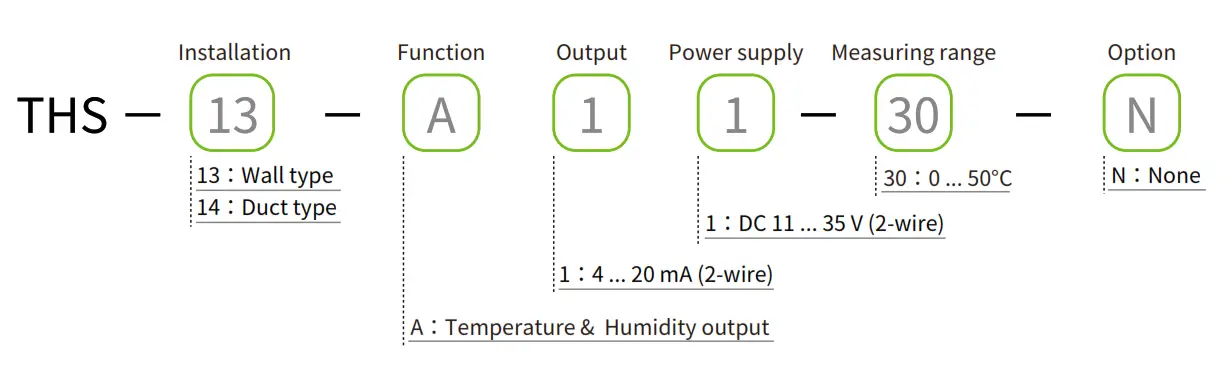

Ordering Guide
Additional Option Test Report
For more detailed information please contact us.
ILAC / TAF
YUDEN-TECH CO.,LTD. Calibration Laboratory – ( ILAC / TAF ) Test report.
(TAF accreditation：3032, complying with ISO / IEC 17025 ) TAF has mutual recognition arrangement with ILAC MRA
| Project | Measurand level or range |
| Hygrometer | Temperature：0°C … 69.5°C |
| Humidity：10% … 95% | |
| RTD / Thermocouple | Resistance thermometer：-40°C … +300°C |
| Thermocouple thermometer：-20°C … +300°C |
