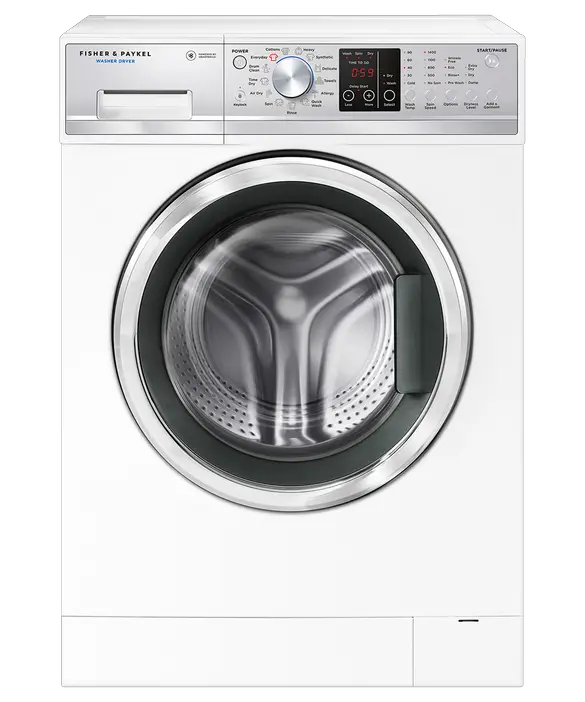

FISHER PAYKEL WH8560P/F/J Front Load Washers/Dryers/ Washer Dryer Combos

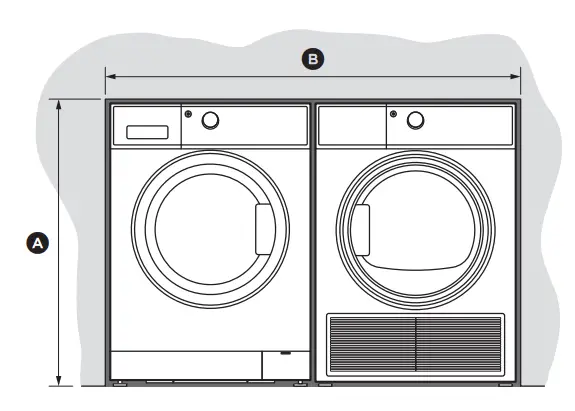

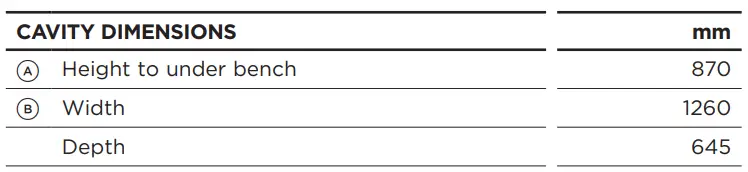

UNDER BENCH WASHER AND CONDENSING DRYER
Washer: WH8560P/J/F, WH7560P/J, WH8060P/F, WH1060P, WH1260P/F
Dryer: DE8060P, DH8060P/C, DC8060P, DH9060P/C
Cut-out dimensions above are to be used as minimum dimensions. Note: Power plug must be accessible.
UNDER BENCH WASHER AND VENTED DRYER
Washer: WH8560P/J/F, WH7560P/J, WH8060P/F, WH1060P, WH1260P/F
Dryer: DE7060P/G, DE6060M, DE5060M, DE4560M
| CAVITY DIMENSIONS | mm | ||
| A Height to under bench | 870 | ||
| B Width | 1260 | ||
| Depth | 650 |
Cut out dimensions above are to be used as minimum dimensions.
Note: Power plug must be accessible.
Note: Riser height 20mm (to be manufactured and fitted by a cabinetmaker)

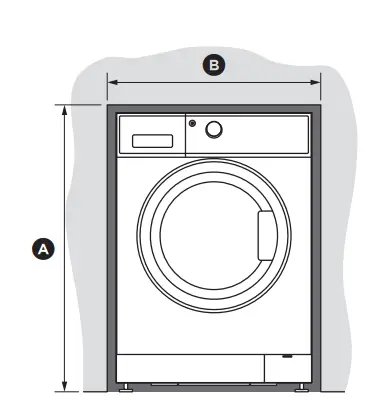

UNDER BENCH WASHER OR WASHER DRYER COMBO
Washer: WH8560P/J/F, WH7560P/J, WH8060P/F, WH1060P, WH1260P/F
Washer Dryer Combo: WD8560F, WD7560P
|
CAVITY DIMENSIONS | WH1260P/F WD8560F mm | WH7560P/J WD7560P mm | ||
| A Height to under bench | 870 | 870 | ||
| B Width | 640 | 640 | ||
| Depth | 645 | 590 |
Cut out dimensions above are to be used as minimum dimensions.
Note: Power plug must be accessible.

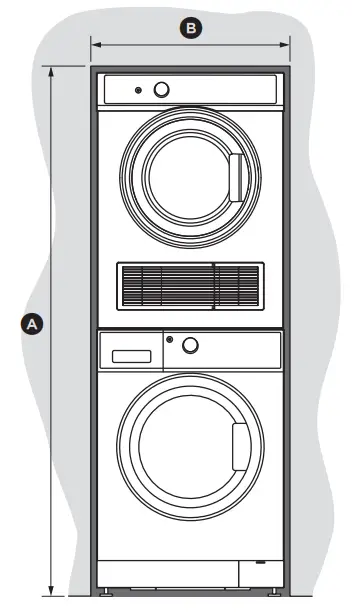

STACKED WASHER AND CONDENSING DRYER
Washer: WH8560P/J/F, WH8060P/F, WH7560P/J
Dryer: DE8060P/DH8060P/DC8060P/DH8060C/DH9060P/C
Stacking Kit Part No. 428122 428159 WH1060P, WH1260P/F
| CAVITY DIMENSIONS | mm | |
| A Height to under cabinet | 1760 | |
| B Width | 640 | |
| Depth | 645 |
Cut out dimensions above are to be used as minimum dimensions.
Note: Power plug must be accessible.

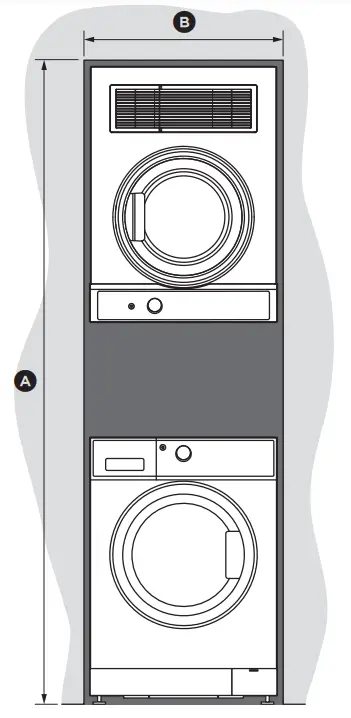

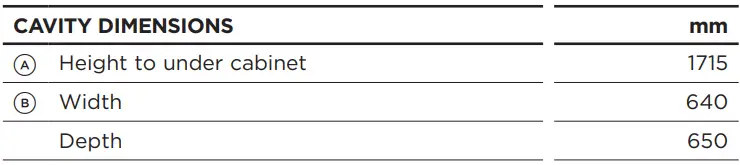

STACKED WASHER AND VENTED DRYER
Washer: WH8560P/J/F, WH7560P/J, WH8060P/F
Dryer: DE7060P/G, DE6060M, DE5060M, DE4560M
Stacking Kit Part No. 428069
Cut out dimensions above are to be used as minimum dimensions.
Note: Power plug must be accessible.
OVERHEAD INVERT WASHER AND VENTED DRYER
Washer: WH8560P/J/F, WH8060P/F, WH7560P/J, WH1060P, WH1260P/F
Dryer: DE7060P/G, DE6060M, DE5060M, DE4560M
| CAVITY DIMENSIONS | mm | |
| A Height to under cabinet | 2280 | |
| B Width | 640 | |
| Depth | 650 |
Cut out dimensions above are to be used as minimum dimensions.
Note: Power plug must be accessible.
The models shown in this document may not be available in all markets and are subject to change at any time. For current details about model and specification availability in your country, go to our website fisherpaykel.com or contact your local Fisher & Paykel dealer.
