FRONT LOADER WASHING MACHINE & DRYER
PAIRING GUIDE
INSTALLATION GUIDE
UK IE
SIDE BY SIDE INSTALL – PAIRING MATRIX
| DRYERS | |||||||||||
| WASHERS | MODELS | DE8060P2 | DE8060P3 | DH8060P1 | DH8060P3 | DH9060P1 | DH9060P2 | DH9060PG2 | DH9060C1 | DH9060FS1 | DH9060FSG1 |
| WH1260F* | • | • | • | • | |||||||
| WH1160F2 | • | • | • | • | |||||||
| WH1160FG2 | • | • | |||||||||
| WH1060S1 | • | • | • | • | |||||||
| WH1160S1 | • | • | • | • | |||||||
| WH1060SG1 | • | • | |||||||||
| WH1160P3 | • | • | • | • | |||||||
| WH1060P1 | • | • | • | • | |||||||
| WH1260P1 | • | • | • | • | |||||||
| WH7560P2 | • | • | |||||||||
| WH7560J3 | • | • | |||||||||
| WH8060J3 | • | • | |||||||||
| WH8560F1 | • | • | |||||||||
| WH8060P2 | • | • | |||||||||
| WH8560P2 | • | • | |||||||||
| WH9060J3 | • | • | |||||||||
| WH8560J3 | • | • | |||||||||
| WH8060P1 | • | • | |||||||||
| WH9060P3 | • | • | |||||||||
| WH1060P3 | • | • | |||||||||
| WH8560P3 | • | • | |||||||||
| WH8060P3 | • | • | |||||||||
Perfect Pair – Recommended pairing. Designed to compliment each other visually and mirror performance quality.
Compatible: Products are compatible overall, have subtle differences in visual and user experience
Matched Pair – Designed to compliment each other visually.
| DRYERS | |||||||||||
| WASHERS | MODELS | DE8060P2 | DE8060P3 | DH8060P1 | DH8060P3 | DH9060P1 | DH9060P2 | DH9060PG2 | DH9060C1 | DH9060FS1 | DH9060FSG1 |
| STACKING KIT 428122 | STACKING KIT 428159 | STACKING KIT 99373 | STACKING KIT 428159 | STACKING KIT 99373 | |||||||
| WH1260F* | • | • | • | • | |||||||
| WH1160F2 | • | • | • | • | |||||||
| WH1160FG2 | • | • | |||||||||
| WH1060S1 | • | • | • | • | |||||||
| WH1160S1 | • | • | • | • | |||||||
| WH1060SG1 | • | • | |||||||||
| WH1160P3 | • | • | • | • | |||||||
| WH1060P1 | • | • | • | • | |||||||
| WH1260P1 | • | • | • | • | |||||||
| WH7560P2 | • | • | X | X | X | X | X | X | |||
| WH7560J3 | • | • | X | X | X | X | X | X | |||
| WH8060J3 | • | • | X | X | X | X | X | X | |||
| WH8560F1 | • | • | |||||||||
| WH8060P2 | • | • | |||||||||
| WH8560P2 | • | • | |||||||||
| WH9060J3 | • | • | |||||||||
| WH8560J3 | • | • | |||||||||
| WH8060P1 | • | • | |||||||||
| WH9060P3 | • | • | |||||||||
| WH1060P3 | • | • | |||||||||
| WH8560P3 | • | • | |||||||||
| WH8060P3 | • | • | |||||||||
Perfect Pair – Recommended pairing. Designed to compliment each other visually and mirror performance quality.
X Not suitable for stacked install – Potential safety risk
Matched Pair – Designed to compliment each other visually.
Compatible: Products are compatible overall, have subtle differences in visual and user experience

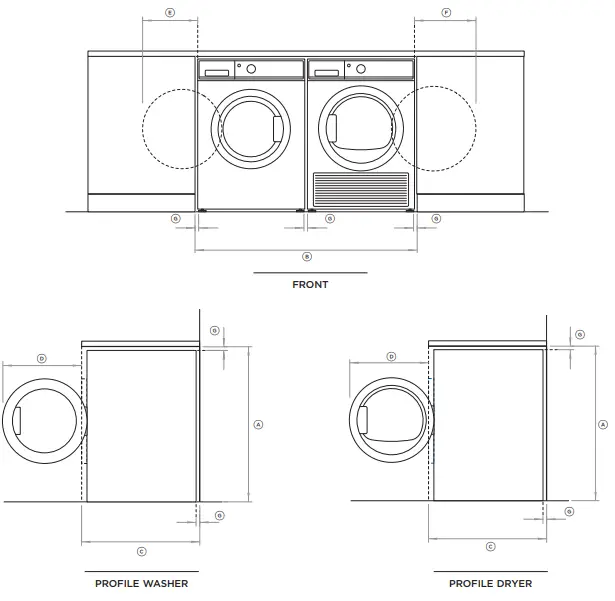

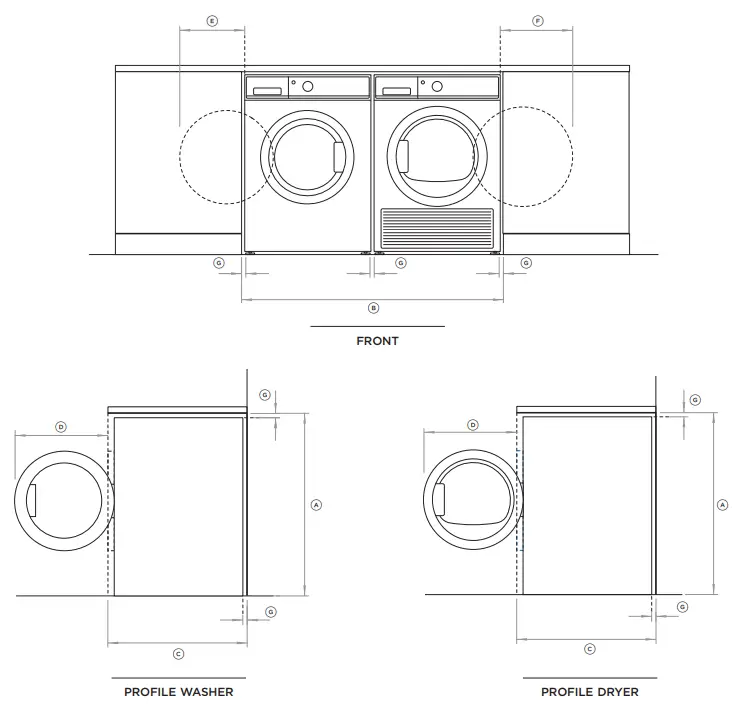

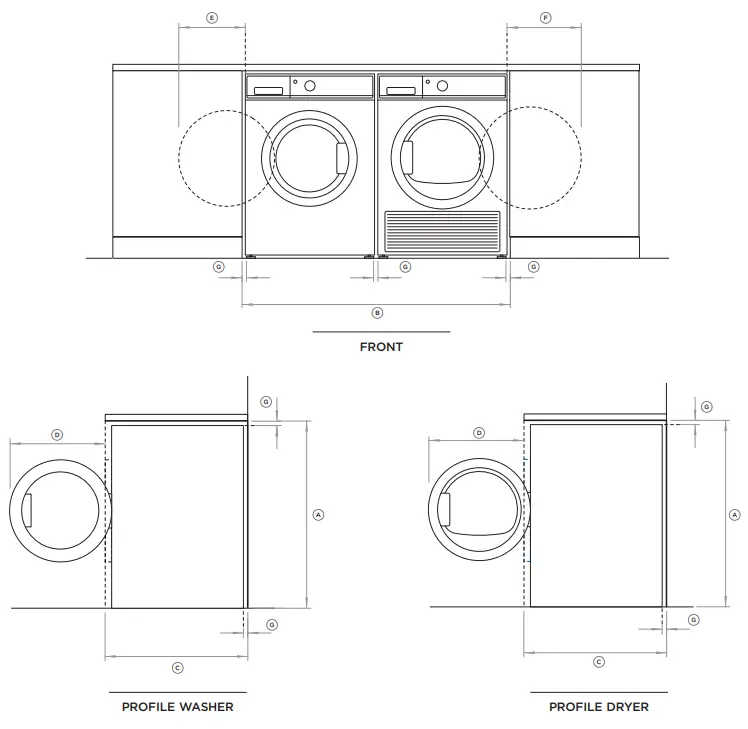

SIDE BY SIDE INSTALL – CLEARANCE & CAVITY DIMENSIONS
Front Loading Washer
WH1260, WH1160, WH1060P1,
WH1060S
Heat Pump or Condensing Dryer
DH9060, DE8060, DH8060
| CAVITY DIMENSIONS | MM |
| A Minimum cavity height | 870 |
| B Minimum cavity width | 1260 |
| C Minimum cavity depth | 655 |

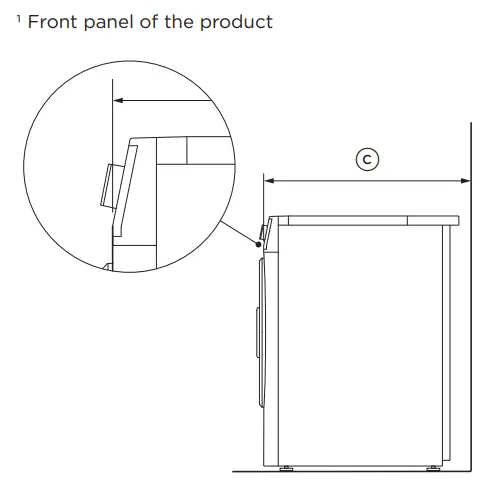

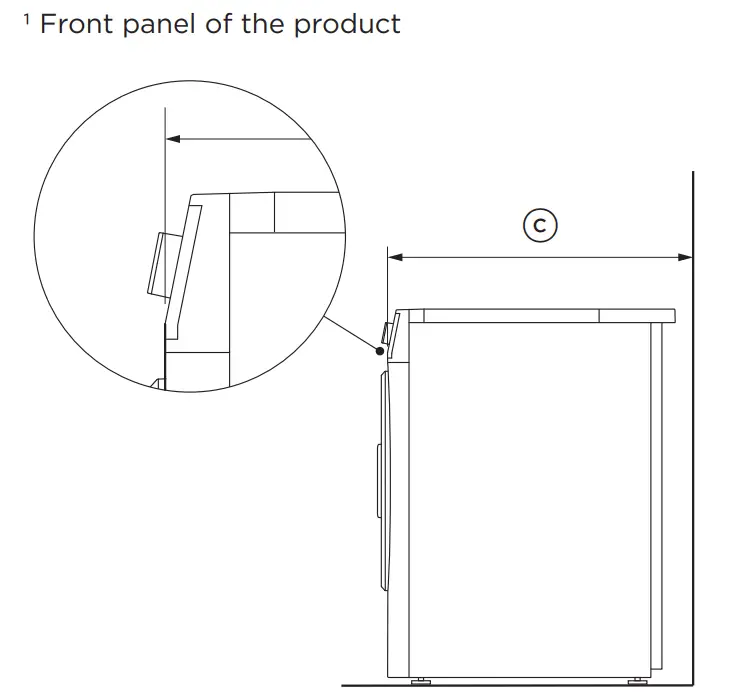

| • Flush with front panel of the product • In cupboard | 715 |
| CLEARANCE DIMENSIONS | MM |
| D Depth of door (widest opening, deepest product) | 450 |
| E Minimum washer door clearance to adjacent wall | 355 |
| F Minimum dryer door clearance to adjacent wall | 335 |
| G Minimum gap clearance to adjacent product or cabinetry2 | 20 |
²Applies to sides, top, rear and between products

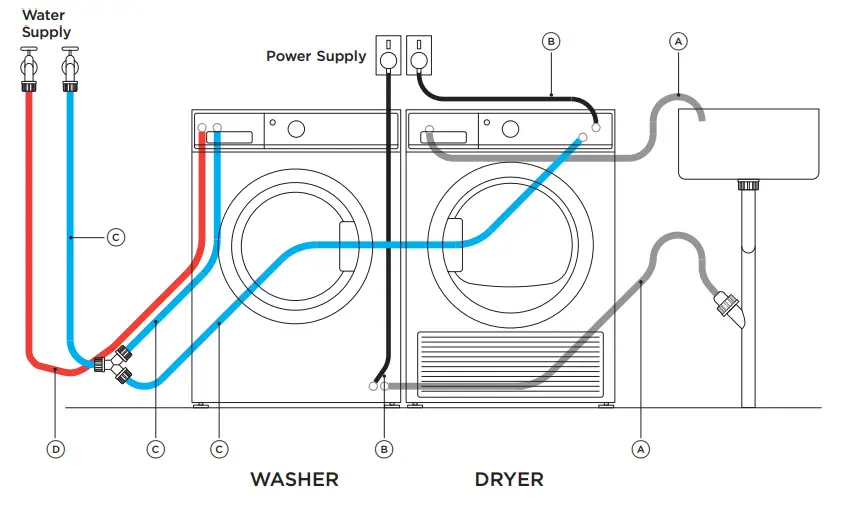

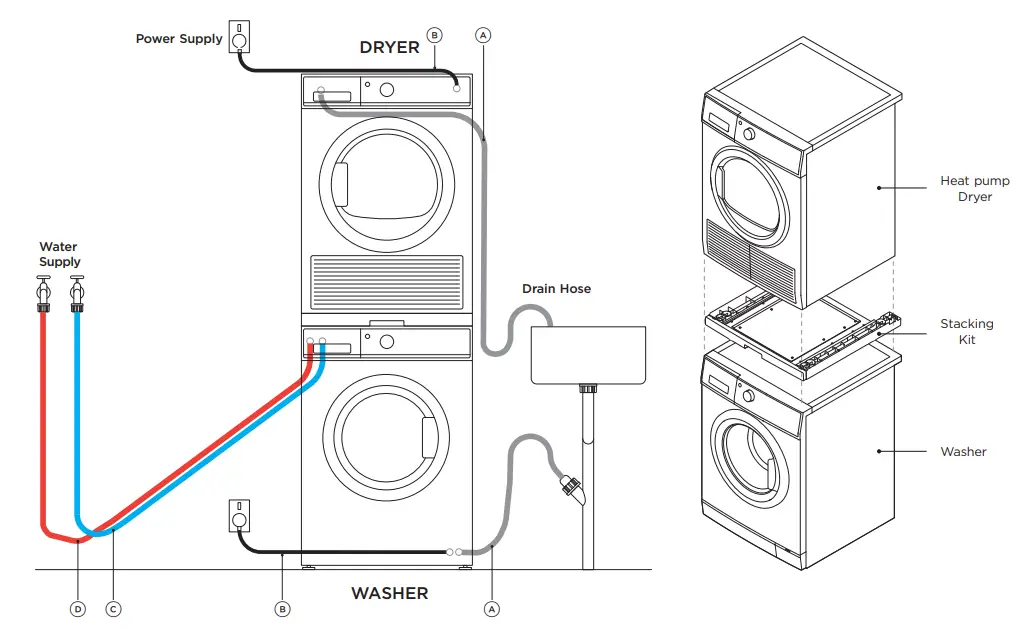

SIDE BY SIDE INSTALL – PLUMBING & ELECTRICIAL
SERVICE DIMENSION
| WASHER | DRYER | |
| SERVICE DIMENSION | MM | MM |
| A Length of drain hoses | 1600 | 1300 |
| B Length of power cord | 2000 | 1500 |
| C Length of cold water inlet hose1 | 1500 | 650* |
| D Length of hot water inlet hose | 1500 | n/a |
SPECIFICATIONS
ELECTRICAL
| Supply | 220 – 240 V, 50 Hz |
| Service | 10 amp circuit |
| PLUMBING | |
| Pressure | max 1 MPa (150psi) min 30 kPa (4.5psi) min 50 kPa (7.3psi)1 |
| Flow rate at tap | min. 6 litres/minute |
| Cold water temp | max 35°C |
| Hot water temp | max 65°C |
Hot water inlet may not be an option for your washer model, refer to your washer installation guide.
¹WH1260F, WH1160F, WH1160S, WH1060S

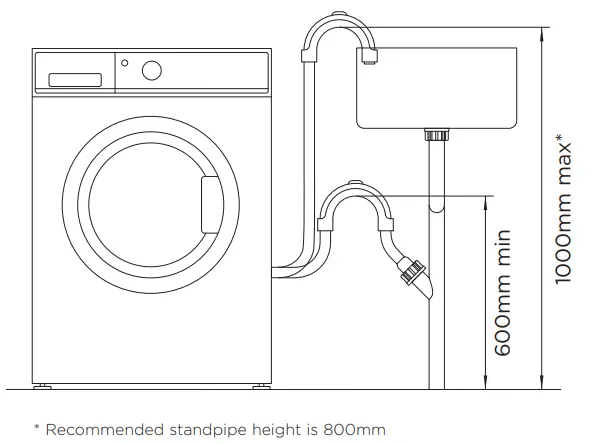

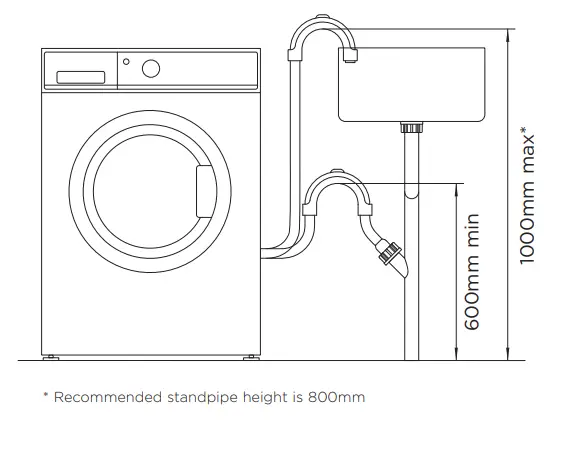

WASHER DRAINAGE HEIGHTS
SIDE BY SIDE INSTALL – CLEARANCE & CAVITY DIMENSIONS
| CAVITY DIMENSIONS | MM |
| A Minimum cavity height | 870 |
| B Minimum cavity width | 1260 |

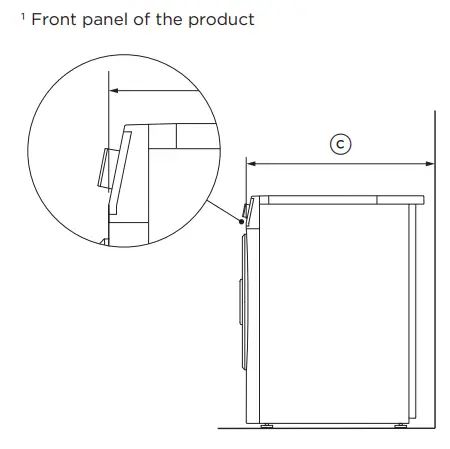

| C Minimum cavity depth Flush with front panel of the product In cupboard | 640 705 |
| CLEARANCE DIMENSIONS | MM |
| D Depth of door (widest opening, deepest product) | 450 |
| E Minimum washer door clearance to adjacent wall | 355 |
| F Minimum dryer door clearance to adjacent wall | 335 |
| G Minimum gap clearance to adjacent product or cabinetry2 | 20 |
²Applies to sides, top, rear and between products

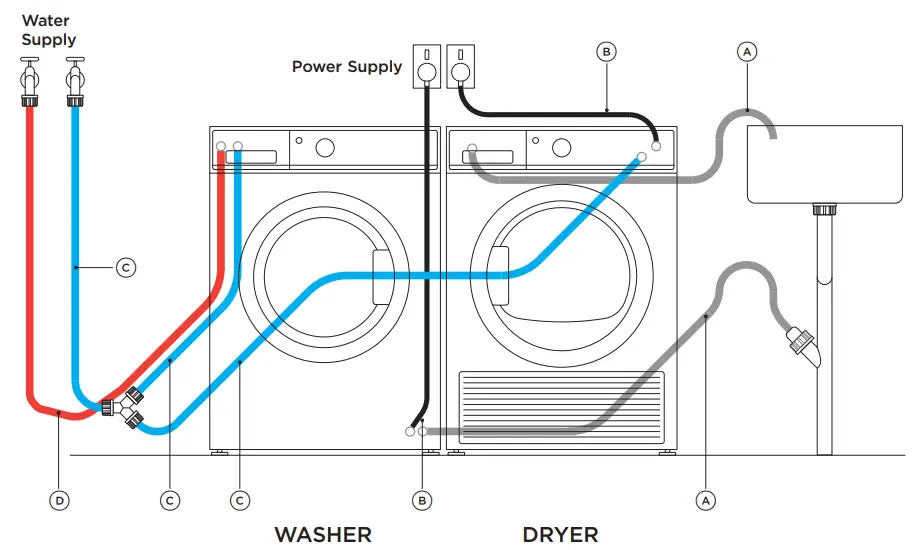

SIDE BY SIDE INSTALL – PLUMBING & ELECTRICIAL
| WASHER | DRYER | |
| SERVICE DIMENSION | MM | MM |
| A Length of drain hoses | 1600 | 1300 |
| B Length of power cord | 1500 | 1500 |
| C Length of cold water inlet hose1 | 1500 | 650* |
| D Length of hot water inlet hose2 | 1500 | n/a |
1 Only present for DH9060FS model dryers
2 Only present for WH7560P2 model washers
* Cold water inlet hoses can be interchanged between washer and dryer
SPECIFICATIONS
ELECTRICAL
| Supply | 220 – 240 V, 50 Hz |
| Service | 10 amp circuit |
| PLUMBING | |
| Pressure | max 1 MPa (150psi) min 30 kPa (4.5psi) |
| Flow rate at tap | min. 6 litres/minute |
| Cold water temp | max 35°C |
| Hot water temp | max 65°C |
Hot water inlet may not be an option for your washer model, refer to your washer installation guide.

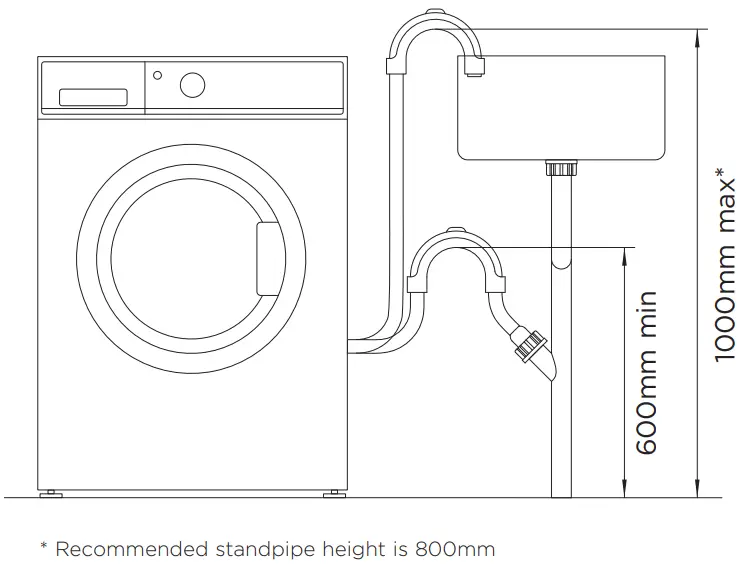

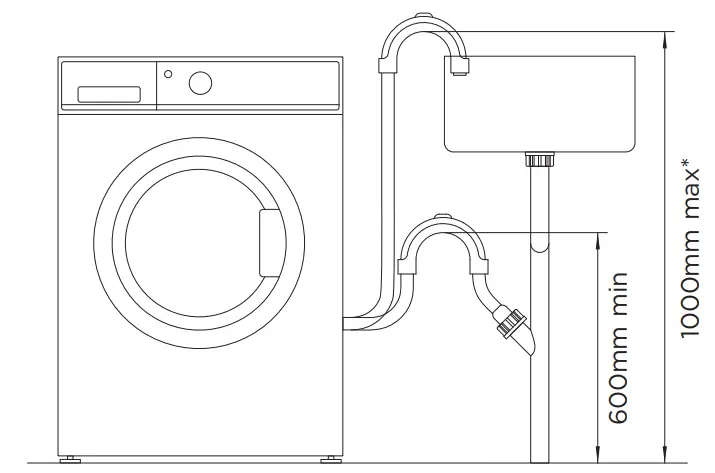

WASHER DRAINAGE HEIGHTS
SIDE BY SIDE INSTALL – CLEARANCE & CAVITY DIMENSIONS
| CAVITY DIMENSIONS | MM |
| A Minimum cavity height | 870 |
| B Minimum cavity width | 1260 |

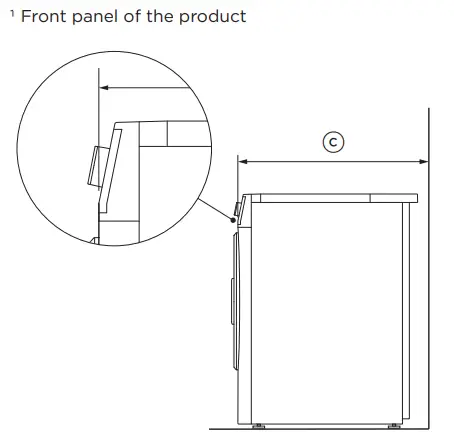

| C Minimum cavity depth Flush with front panel of the product1 In cupboard | 650 705 |
| CLEARANCE DIMENSIONS | MM |
| D Depth of door (widest opening, deepest product) | 450 |
| E Minimum washer door clearance to adjacent wall | 355 |
| F Minimum dryer door clearance to adjacent wall | 335 |
| G Minimum gap clearance to adjacent product or cabinetry2 | 20 |
²Applies to sides, top, rear and between products

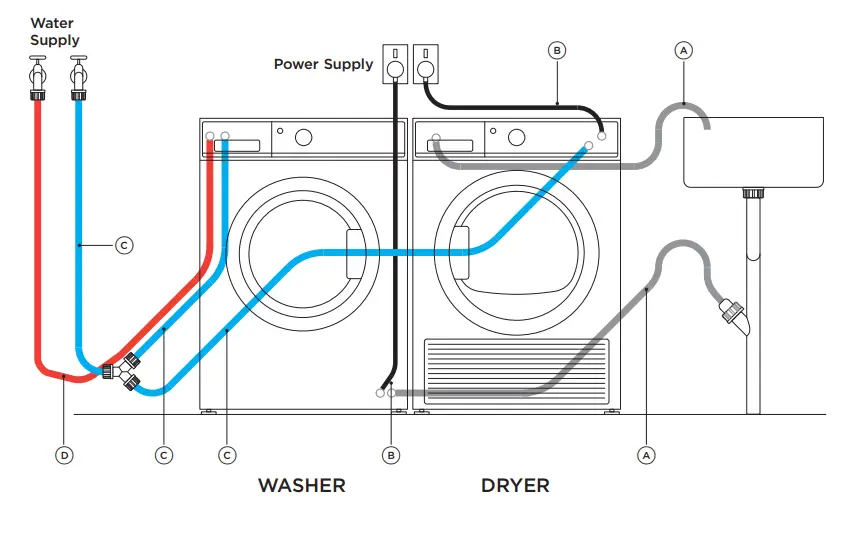

| WASHER | DRYER | |
| SERVICE DIMENSION | MM | MM |
| A Length of drain hoses | 1500 | 1300 |
| B Length of power cord | 1500 | 1500 |
| C Length of cold water inlet hose1 | 1500 | 650* |
| D Length of hot water inlet hose2 | 1500 | n/a |
1 Only present for DH9060FS model dryers
2 Only present for WH8060
* Cold water inlet hoses can be interchanged between washer and dryer
ELECTRICAL
| Supply | 220 – 240 V, 50 Hz |
| Service | 10 amp circuit |
| PLUMBING | |
| Pressure | max 1 MPa (150psi) min 30 kPa (4.5psi) |
| Flow rate at tap | Min. 6 litres/minute |
| Cold water temp | max 35°C |
| Hot water temp | max 65°C |
Hot water inlet may not be an option for your washer model, refer to your washer installation guide.

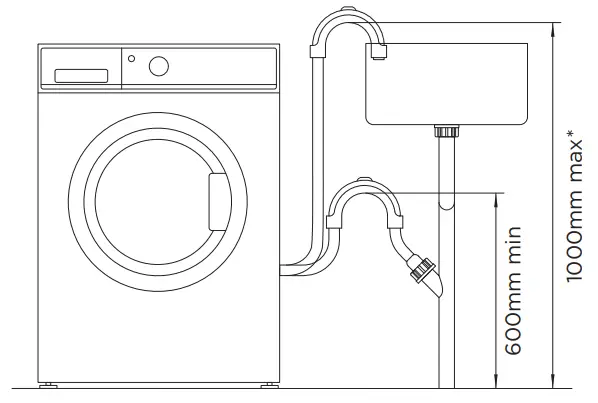

WASHER DRAINAGE HEIGHTS
* Recommended standpipe height is 800mm

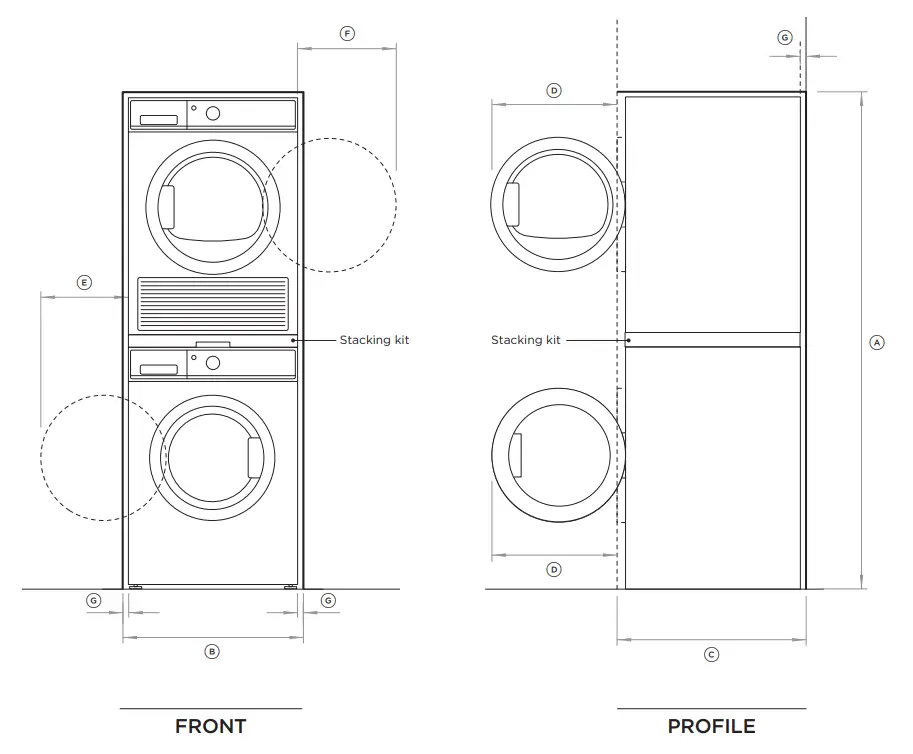

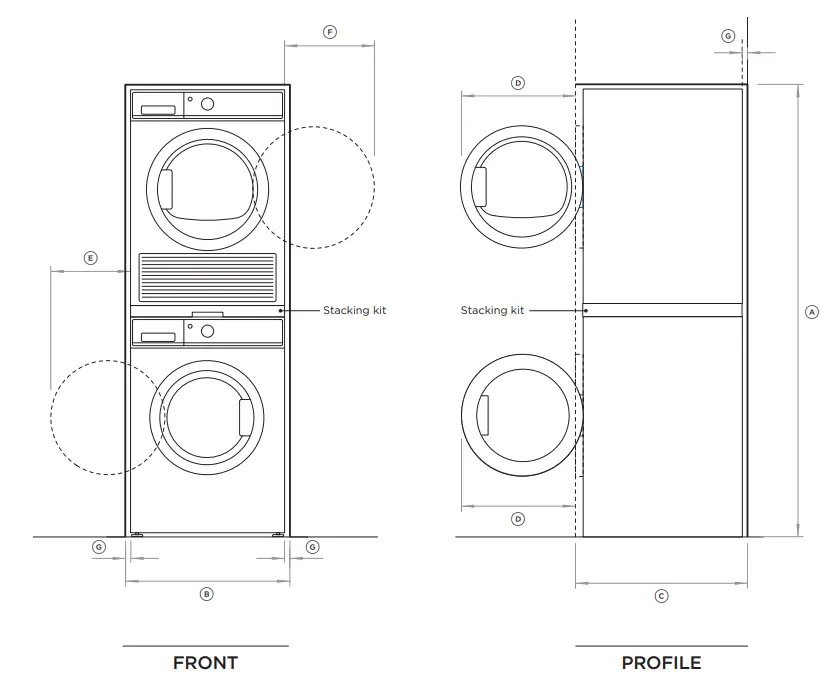

STACKED INSTALL – CLEARANCE & CAVITY DIMENSIONS
| CAVITY DIMENSIONS | MM |
| A Minimum cavity height | 1750 |
| B Minimum cavity width | 640 |

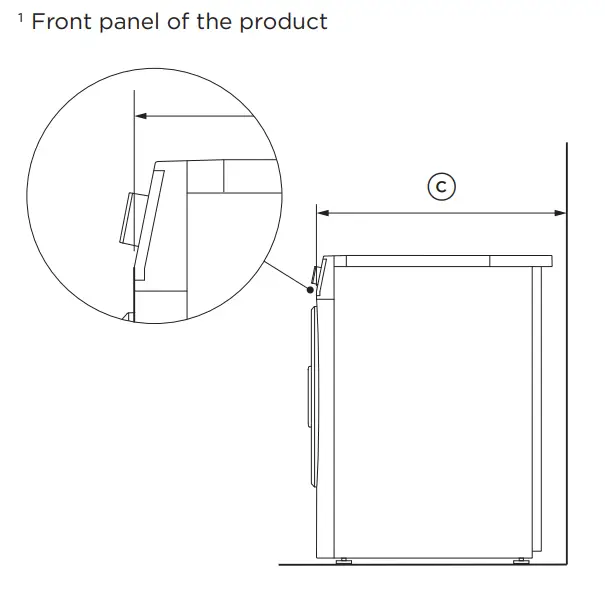

| C Minimum cavity depth Flush with front panel of the product1 In cupboard | 655 715 |
| CLEARANCE DIMENSIONS | MM |
| D Depth of door (widest opening, deepest product) | 450 |
| E Minimum washer door clearance to adjacent wall | 355 |
| F Minimum dryer door clearance to adjacent wall | 335 |
| G Minimum gap clearance to adjacent product or cabinetry2 | 20 |
²Applies to sides, top, rear and between products

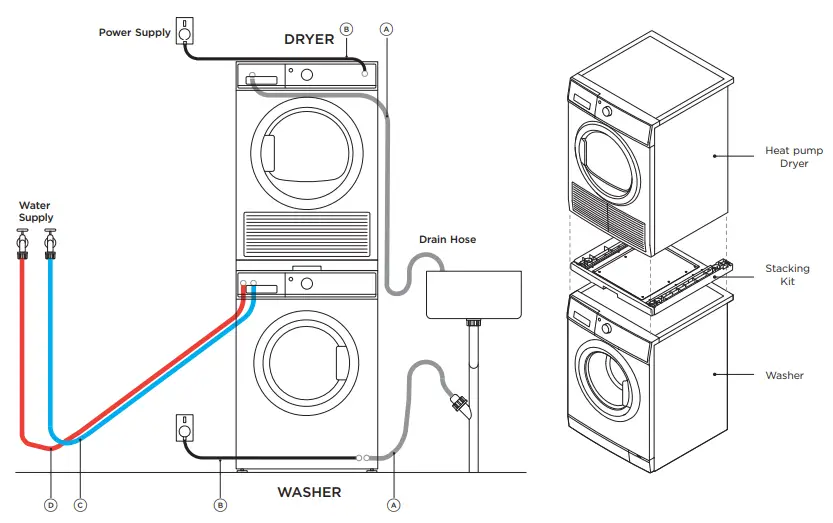

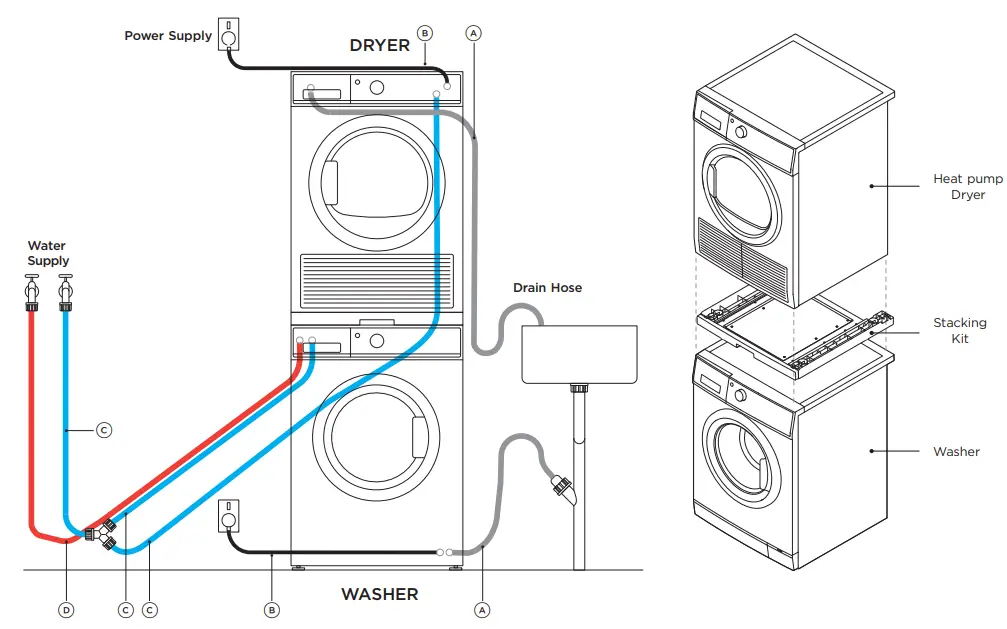

| WASHER | DRYER | |
| SERVICE DIMENSION | MM | MM |
| A Length of drain hoses | 1600 | 1300 |
| B Length of power cord | 2000 | 1500 |
| C Length of cold water inlet hose1 | 1500 | 650* |
| D Length of hot water inlet hose | 1500 | n/a |
1 Only present for DH9060FS model dryers
* Cold water inlet hoses can be interchanged between washer and dryer
ELECTRICAL
| Supply | 220 – 240 V, 50 Hz |
| Service | 10 amp circuit |
| PLUMBING | |
| Pressure | max 1 MPa (150psi) min 30 kPa (4.5psi) min 50 kPa (7.3psi)1 |
| Flow rate at tap | min. 6 litres/minute |
| Cold water temp | max 35°C |
| Hot water temp | max 65°C |
Hot water inlet may not be an option for your washer model, refer to your washer installation guide.
¹WH1260F, WH1160F, WH1160S, WH1060S

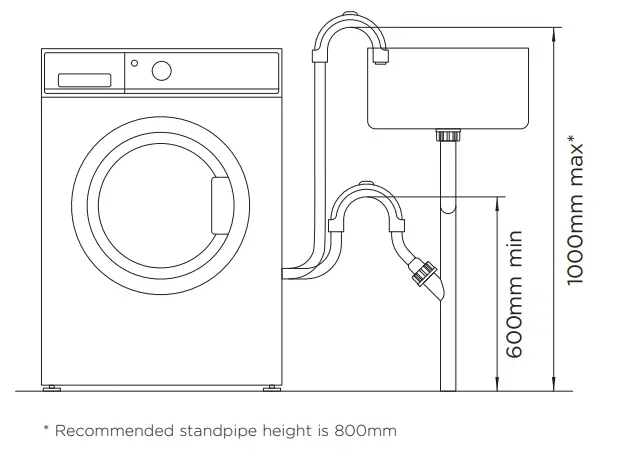

WASHER DRAINAGE HEIGHTS

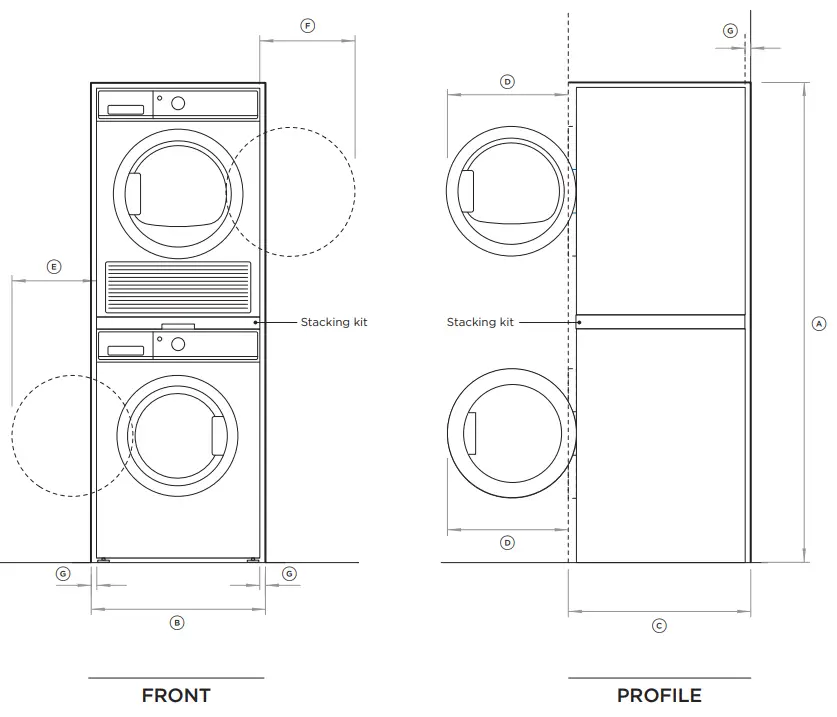

| CAVITY DIMENSIONS | MM |
| A Minimum cavity height | 1750 |
| B Minimum cavity width | 640 |
| C Minimum cavity depth Flush with front panel of the product1 In cupboard | 635 685 |
| CLEARANCE DIMENSIONS | MM |
| D Depth of door (widest opening, deepest product) | 450 |
| E Minimum washer door clearance to adjacent wall | 355 |
| F Minimum dryer door clearance to adjacent wall | 335 |
| G Minimum gap clearance to adjacent product or cabinetry2 | 20 |
²Applies to sides, top, rear and between products
| WASHER | DRYER | |
| SERVICE DIMENSION | MM | MM |
| A Length of drain hoses | 1600 | 1300 |
| B Length of power cord | 1500 | 1500 |
| C Length of cold water inlet hose1 | 1500 | n/a |
| D Length of hot water inlet hose2 | 1500 | n/a |
¹Only present for DH9060FS model dryers
²Only present for WH7560P2 model washers
ELECTRICAL
| Supply | 220 – 240 V, 50 Hz |
| Service | 10 amp circuit |
| PLUMBING | |
| Pressure | max 1 MPa (150psi) min 30 kPa (4.5psi) |
| Flow rate at tap | min. 6 litres/minute |
| Cold water temp | max 35°C |
| Hot water temp | max 65°C |
* Recommended standpipe height is 800mm
Front Loading Washer
WH1060P3, WH9060
WH8560, WH8060P
Heat Pump or Condensing Dryer
DE8060, DH8060P
Stacking kit
428122
| CAVITY DIMENSIONS | MM |
| A Minimum cavity height | 1750 |
| B Minimum cavity width | 640 |
| C Minimum cavity depth Flush with front panel of the product 1 In cupboard | 650 695 |
| CLEARANCE DIMENSIONS | MM |
| D Depth of door (widest opening, deepest product) | 450 |
| E Minimum washer door clearance to adjacent wall | 355 |
| F Minimum dryer door clearance to adjacent wall | 335 |
| G Minimum gap clearance to adjacent product or cabinetry2 | 20 |
²Applies to sides, top, rear and between products
| WASHER | DRYER | |
| SERVICE DIMENSION | MM | MM |
| A Length of drain hoses | 1500 | 1300 |
| B Length of power cord | 1500 | 1500 |
| C Length of cold water inlet hose1 | 1500 | n/a |
| D Length of hot water inlet hose2 | 1500 | n/a |
¹Only present for DH9060FS model dryers
²Some models of washer only
ELECTRICAL
| Supply | 220 -240 V, 50 Hz |
| Service | 10 amp circuit |
| PLUMBING | |
| Pressure | max 1 MPa (150psi) min 30 kPa (4.5psi) |
| Flow rate at tap | min. 6 litres/minute |
| Cold water temp | max 35°C |
| Hot water temp | max 65°C |
WASHER DRAINAGE HEIGHTS
FISHERPAYKEL.COM
© Fisher & Paykel Appliances 2022. All rights reserved.
The models shown in this guide may not be available in all markets and are subject to change at any time.
The product specifications in this guide apply to the specific products and models described at the date of issue.
Under our policy of continuous product improvement, these specifications may change at any time.
For current details about model and specification availability in your country, please go to our website or contact your local Fisher & Paykel dealer.
428281C 11.22
