REF24RCPIXR23 Built In Refrigerator Column
Owner’s Manual

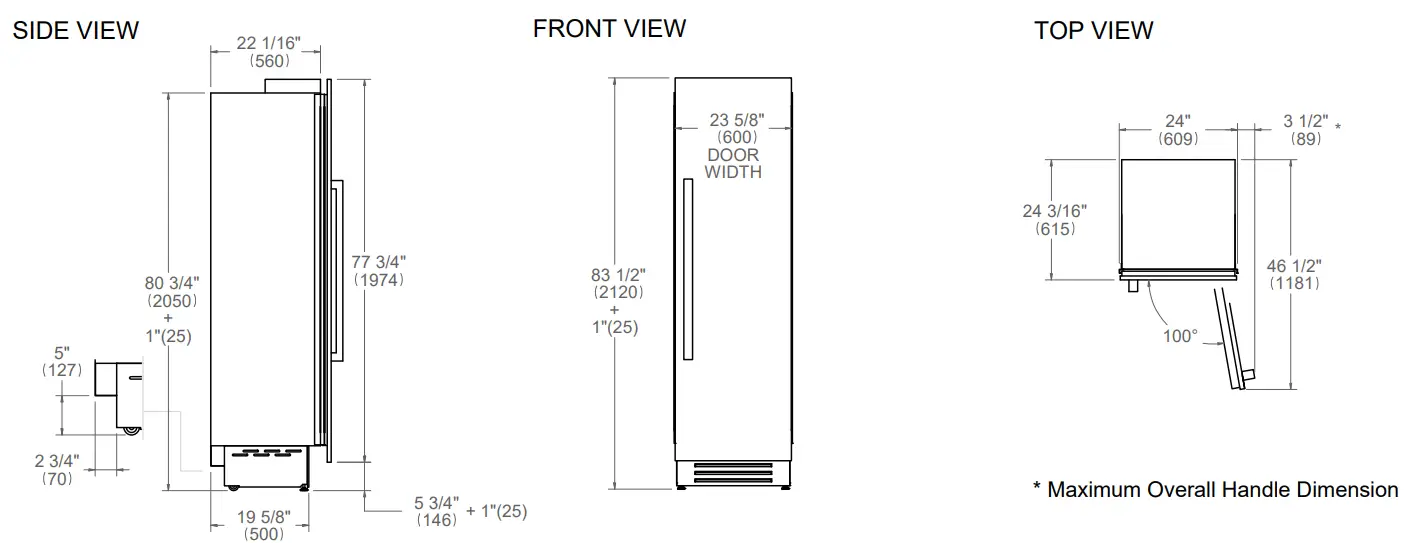

PRODUCT DIMENSIONS

CUTOUT DIMENSIONS

(a) Area to be left clear for the anti-tipping brackets 3”1/2×5” (82x127mm)

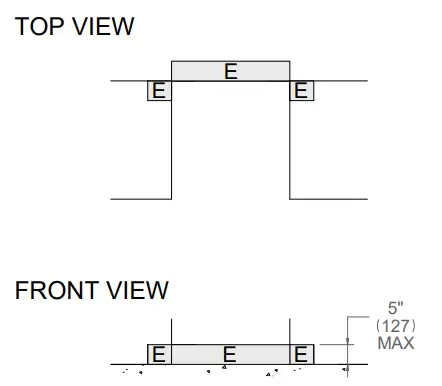

ELECTRICAL CONNECTION
A properly-grounded, horizontally-mounted electrical receptacle should be installed according to this drawing.
Connection(s) placement within theopening may require additional cabinet depth.

A separate circuit breaker servicing only this appliance is recommended.
For installation of multiple products in combination, refer to the Built-in Food Preservation Design Guide.
Dimensions in parentheses are millimeters unless otherwise specified.
INSTALLATION REQUIREMENTS
If the appliance(s) is not connected through the side profile trims to secured cabinetry anti-tip brackets must be installed.
