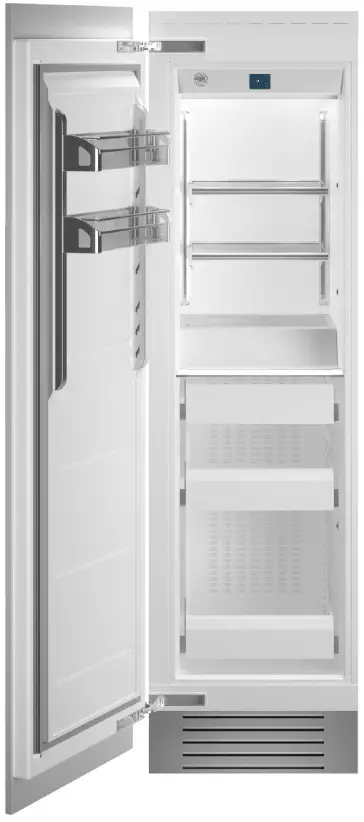

Bertazzoni REF24FCIPRL23 Built In Freezer Column

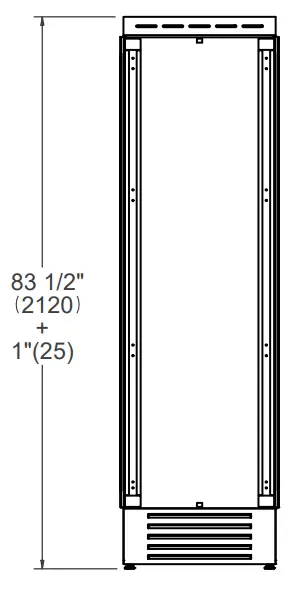

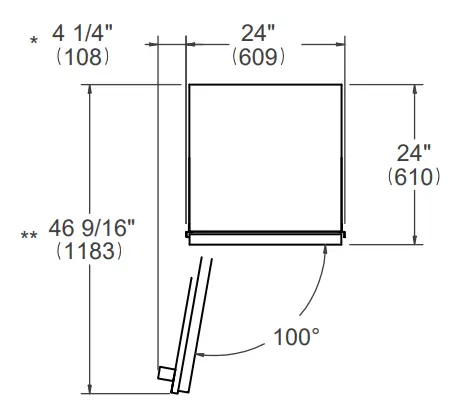

PRODUCT DIMENSIONS
- SIDE VIEW
- FRONT VIEW
- TOP VIEW
* Maximum Overall Handle Dimension
** Width of 3/4” (19mm) Door Panel

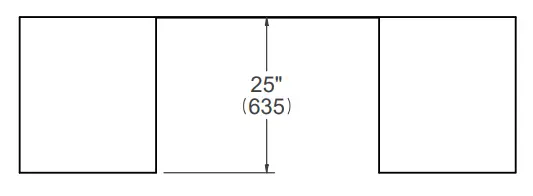

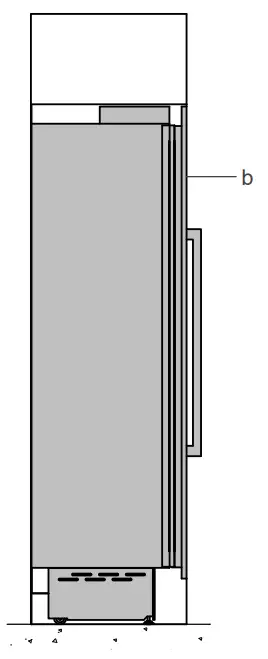

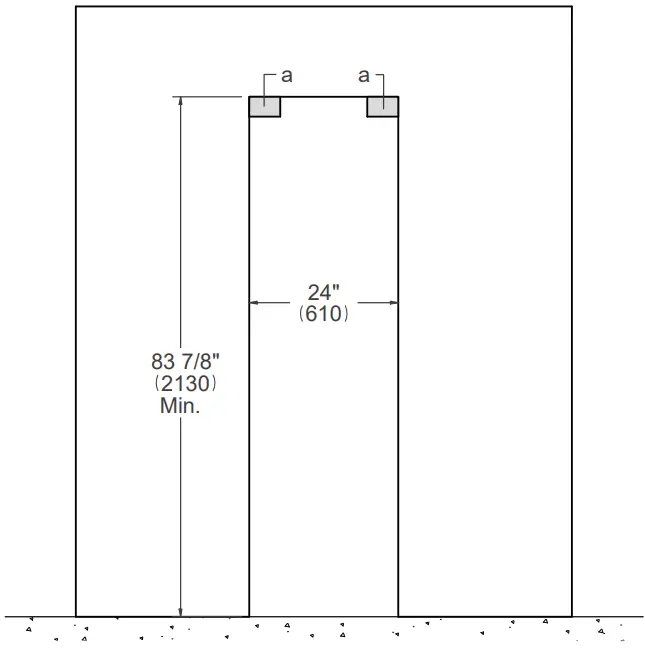

CUTOUT DIMENSIONS
- SIDE VIEW
- FRONT VIEW
- TOP VIEW
- (a) Area to be left clear for the anti-tipping brackets 3”1/2×5” (82x127mm)
(b) Panel dimensions available on Built-in Food Preservation Design Guide or Installation Manual

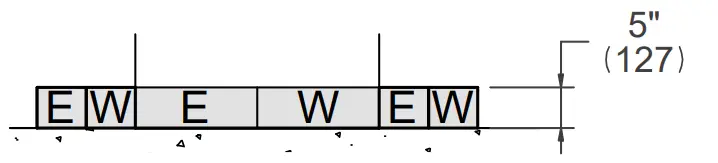

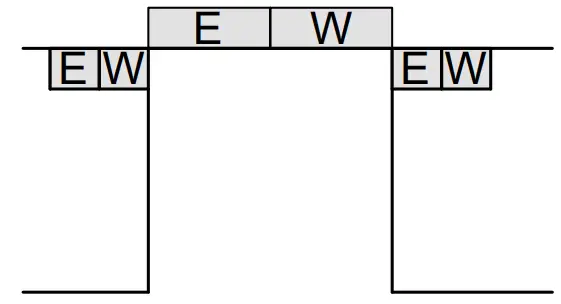

ELECTRICAL & WATER CONNECTION
A properly-grounded, horizontally-mounted electrical receptacle should be installed according to this drawing.
To connect to the water supply system, a 1/4” NPT waterline with accessible shut-off valve must be supplied.
Connection(s) placement within the opening may require additional cabinet depth.
A separate circuit breaker servicing only this appliance is recommended.
For installation of multiple products in combination, refer to the Built-in Food Preservation Design Guide.
Dimensions in parentheses are millimeters unless otherwise specified.
- TOP VIEW
- FRONT VIEW
INSTALLATION REQUIREMENTS
If the appliance(s) is not connected through the side profile trims to secured cabinetry anti-tip brackets must be installed.
