CORNING 288EPG ALTOS Loose Tube Dielectric Armor Outdoor Cable User Manual
Corning glass-yarn armored loose tube cables are designed for outdoor use for campus, city and intercity backbones in duct installations.
The loose -tube cable construction, by isolating the fibres from installations and environmental rigors, provides stable and highly reliable transmission parameters. The 2.0 mm buffer tubes and fibers in each tube are color -coded for quick and easy identification.
The SZ -stranded construction further reduces installation and environmental influences on the transmission
parameters and allows mid -span access.
These slim and lightweight cables are designed with a 1.1mm HDPE outher jacket for easy installation in conduits and ducts.
Features and Benefits
Laminated glass yarns
Improved rodent resistance
All-dielectric construction
Requires no grounding or bonding
UV and microbe resistant
Can be installed in ducts
Waterblocking technology
OSP (outdoor) applications
Fibres/buffer tubes colour coded to Telcordia-Bellcore
Easy identification of the individual tubes and fibres
Dry cable core by means of water-swellable tape and elements
Allows efficient and craft-friendly cable preparation in outdoor or indoor/outdoor applications

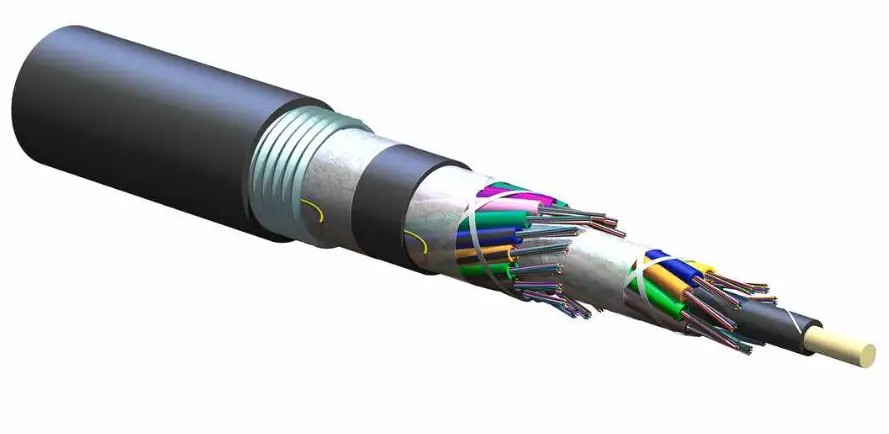

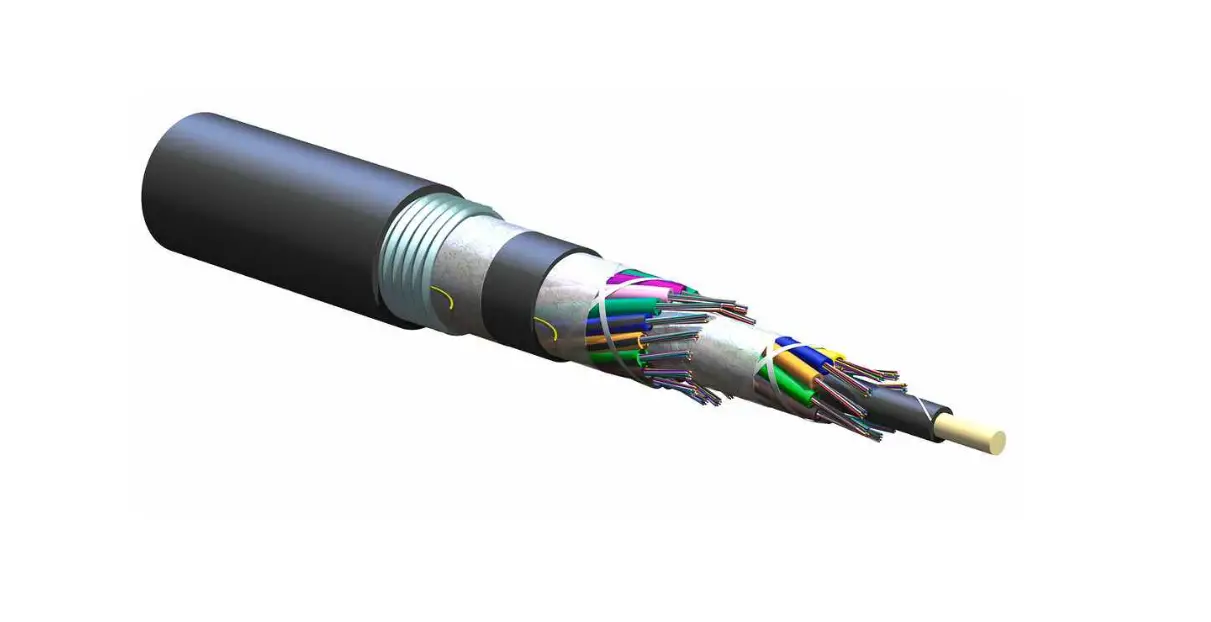

ALTOS® Loose Tube Dielectric Armor Outdoor Cable LT 2.0 HDPE 24×12 E9 SMF-28e+® ITU G652.D
Specifications
| Mechanical Specifications | |
| Crush Resistance | 1500 N/10 cm |
| Min. Bend Radius Installation | 296 mm |
| Min. Bend Radius Operation | 148 mm |
| Nominal Outer Diameter | 14.8 mm |
| Cable Design | |
| Cable Marking | Meter – Handset – Sine – CORNING – Year – ALTOS (R) A- DQ(ZN)B2Y 24X12 E9 LT 2.0 |
| Central Element | Jacketed GRP |
| Fiber Count | 288 |
| Number of Ripcords | 2 |
| Buffer Tube Color Coding, Layer 1 | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow |
| Outer Jacket Color | Black |
| Outer Jacket Material | High Density Polyethylene (HDPE) |
| Outer Jacket Minimum Thickness | 1.1 mm |
| Buffer Tube Diameter | 2 mm |
| Central Element Diameter | 4 mm |
| Number of Active Tubes | 24 |
| Number of Tube Positions | 24 |
| Tape, Layer 1 | Water-swellable |
| Tape, Layer 2 | Water-swellable |
| Tensile Strength Elements and/or Armoring | Laminated glass yarn armor |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Fibers per Tube | 12 |
| Environmental Conditions | |
| Temperature Range, Installation | -5 °C to 70 °C |
| Temperature Range, Operation | -30 °C to 70 °C |
| Temperature Range, Storage | -40 °C to 70 °C |
| General Specifications | |
| Environment | Outdoor |
| Cable Type | Loose Tube |
| Product Type | Dielectric armor |
| Fiber Category | Single-mode (OS2) |
| Coding according to EN 60794-1-1 (DIN VDE 0888-100-1) | A-DQ(ZN)B2Y |
| Application | Duct |
| Ordering Information | |
| Product Number | 288EPG-T3122P20 |
| Weight | 173 kg/km |
| Standards | |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | IEC 60794-3-10 |
| Waterblocking | IEC 60794-1-2 F5 |
Standards
Fiber Standards : TIA/EIA-492CAAB, IEC 60793-2-50 Type B1.3, ITU-T
G.652.D, ISO/IEC 11801 Ed.2.2
| Optical Characteristics | |
| Cable cutoff wavelength | 1260 nm |
| Fiber Code | E |
| Fiber Name | E9/125 SMF28e+® |
| Fiber Type | Single-mode |
| Fiber Core Diameter | 8.2 µm |
| Maximum Attenuation | 0.36 dB/km / 0.36 dB/km / 0.22 dB/km |
| Serial 1 Gigabit Ethernet | 5000 MHz*km / – / – |
| Serial 10 Gigabit Ethernet | 10000 MHz*km / – / 40000 MHz*km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | OS2 |
