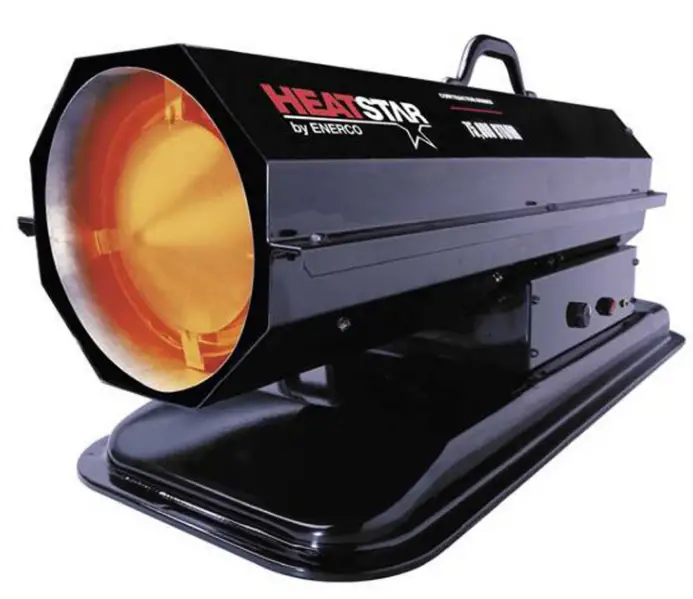

INSTRUCTIONS

READ INSTRUCTIONS CAREFULLY: Read and follow all instructions. Place instructions in a safe place for future reference. Do not allow anyone who has not read these instructions to assemble, light, adjust or operate the heater.

WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life.

  • Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
  • Service must be performed by a qualified service agency.

This is an unvented portable heater. It uses air (oxygen) from the area in which it is used. Adequate combustion and ventilation air must be provided. Refer to page 3.

NEVER LEAVE THE HEATER UNATTENDED WHILE BURNING!

WARNING:
YOUR SAFETY IS IMPORTANT TO YOU AND TO OTHERS, SO PLEASE READ THESE INSTRUCTIONS BEFORE YOU OPERATE THIS HEATER.

GENERAL HAZARD WARNING:
FAILURE TO COMPLY WITH THE PRECAUTIONS AND INSTRUCTIONS PROVIDED WITH THIS HEATER, CAN RESULT IN DEATH, SERIOUS BODILY INJURY AND PROPERTY LOSS OR DAMAGE FROM HAZARDS OF FIRE, EXPLOSION, BURN, ASPHYXIATION, CARBON MONOXIDE POISONING, AND/OR ELECTRICAL SHOCK. ONLY PERSONS WHO CAN UNDERSTAND AND FOLLOW THE INSTRUCTIONS SHOULD USE OR SERVICE THIS HEATER.
IF YOU NEED ASSISTANCE OR HEATER INFORMATION SUCH AS AN INSTRUCTIONS MANUAL, LABELS, ETC. CONTACT THE MANUFACTURER.

WARNING:

  • CARBON MONOXIDE CAN KILL YOU USING A PORTABLE HEATER IN AN ENCLOSED AREA CAN PRODUCE DEADLY CARBON MONOXIDE.
  • NOT FOR HOME OR RECREATIONAL VEHICLE USE
  • FIRE, BURN, INHALATION, AND EXPLOSION HAZARD. KEEP SOLID COMBUSTIBLES, SUCH AS BUILDING MATERIALS, PAPER OR CARDBOARD, A SAFE DISTANCE AWAY FROM THE HEATER AS RECOMMENDED BY THE INSTRUCTIONS NEVER USE THE HEATER IN SPACES THAT DO OR MAY CONTAIN VOLATILE OR AIRBORNE COMBUSTIBLES, OR PRODUCTS SUCH AS GASOLINE, SOLVENTS, PAINT THINNER, DUST PARTICLES OR UNKNOWN CHEMICALS.
  • THE STATE OF CALIFORNIA REQUIRES THE FOLLOWING
  • COMBUSTION BY-PRODUCTS PRODUCED WHEN USING THIS PRODUCT CONTAIN CARBON MONOXIDE, A CHEMICAL KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND BIRTH DEFECTS (OR OTHER REPRODUCTIVE HARM). THIS PRODUCT CONTAINS CHEMICALS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM.
  • DO NOT USE GASOLINE, NAPHTHA OR VOLATILE FUELS.
  • STOP HEATER BEFORE ADDING FUELS.
  • ALWAYS FILL OUTDOORS AWAY FROM OPEN FLAME
  • DO NOT USE EXTERNAL FUEL SOURCES.
  • DO NOT OPERATE THE HEATER WHERE FLAMMABLE LIQUIDS OR VAPORS MAY BE PRESENT.
  • DO NOT START THE HEATER WHEN CHAMBER IS HOT
  • DO NOT START THE HEATER WHEN EXCESS FUEL HAS ACCUMULATED IN THE CHAMBER.
  • DO NOT PLACE COOKING UTENSILS ON TOP OF THE HEATER.
  • PLUG THE ELECTRICAL CORD INTO A PROPERLY GROUNDED THREE-PRONG RECEPTACLE.

SPECIFICATIONS

CAUTION: CSA is certified for use with only No. 1-K kerosene fuel.
Factory Tested: Kerosene, Diesel #1 and #2, Fuel Oil #1 and #2, JP8 (Jet A Fuel)

ModelHS50KHS75KTHS125KTHS175KTHS210KT
Burn Rate:50,000 Btu/hr (14.7 kW)75,000 Btu/hr (22 kW)125,000 Btu/hr (37 kW)175,000 Btu/hr (51 kW)210,000 Btu/hr (61.5 kW)
Fuel Rate:0.37 gal/hr (1.4 L/hr)0.55 gal/hr (2.1 L/hr)0.96 gal./hr (3.5 L/hr)1.3 gal/hr (5.0 L/hr)1.6 gal/hr (6.0 L/hr)
Electrical Input:115V, 60Hz, 3.5a115V, 60Hz, 4a115V, 60Hz, 5.5a115V, 60Hz, 5.5a115V, 60Hz, 5.5a
Line Protection:10 amps10 amps20 amps20 amps20 amps
Min. Operating Voltage:110V110V110V110V110V
Pressure Setting:3.8 psig (26.2 kPa)4.2 psig (29 kPa)5.1 psig (35.2 kPa)6.8 psig (46.9 kPa)8.2 psig (56.5 kPa)
Max. Outlet Temperature:1300oF (704oC)1300oF (704oC)1300oF (704oC)1300oF (704oC)1300oF (704oC)
Fuel Tank Capacity:4 gallons (15.1 L)6 gallons (22.7 L)14 gallons (53 L)14 gallons (53 L)14 gallons (53 L)
Ignition:Direct Spark, ContinuousDirect Spark, ContinuousDirect Spark, ContinuousDirect Spark, ContinuousDirect Spark, Continuous
Spark Generator:Igniter 13 kV, 10maIgniter 13 kV, 10maIgniter 13 kV, 10maIgniter 13 kV, 10maIgniter 13 kV, 10ma
Primary Safety Control:Solid State ControlSolid State ControlSolid State ControlSolid State ControlSolid State Control
Certification:

OPERATING PRECAUTIONS

This is a kerosene, direct-fired, forced air heater. It’s intended use is primarily temporary heating of buildings under construction, alteration or repair.
Direct-Fired means that all of the combustion products enter the heated space. Even though this heater operates very close to 100 percent combustion efficiency, it still produces small amounts of carbon monoxide. Carbon monoxide (called CO) is toxic. CO can build up in a heated space and failure to provide adequate ventilation could result in death. The symptoms of inadequate ventilation are:

  • headache
  • dizziness
  • burning eyes and nose
  • nausea
  • dry mouth or sore throat

Be sure to follow advice about ventilation in the Safety Precautions section.
Forced Air means that a blower or fan pushes the air through the heater. Proper combustion depends upon this air flow; therefore, the heater must not be revised, modified or operated with parts removed or missing. Likewise, safety systems must not be circumvented or modified in order to operate the heater. When the heater is to be operated in the presence of other people the user is responsible for properly acquainting those present with the safety precautions and instructions, and of the hazards involved.

SAFETY PRECAUTIONS

  1. Recommended for use with No.1-K kerosene fuel. Factory tested for use with No.2-K kerosene, No.1 or No.2 Diesel, No.1 or No.2 fuel oil or JP8 Jet A fuel and these fuels may be used as well. Never use gasoline, oil drained from crank cases, naphtha, paint thinners, alcohol or any other highly flammable fuels.
  2. Check the heater thoroughly for damage. DO NOT operate a damaged heater.
  3. DO NOT modify the heater or operate a heater which has been modified from its original condition.
  4. Suitable for outdoor use. For either outdoor or indoor use where adequate ventilation is provided. Never use in areas normally for habitation. Not for use where exposed to the weather.
  5. Use in well-ventilated areas, provide at least 2 sq. ft. (0.19 sq. m.) of opening near the floor and 2 sq. ft. (0.19 sq. m.) near the ceiling directly to outdoors. Increase air openings as marked for each additional heater.
  6. Always keep combustibles, like paper and wood at least 8 ft. (2.4 m) from the heater outlet and 3 ft. (1.0 m) from the top, sides and inlet. Locate 10 ft. (3.0 m) from canvas or plastic coverings and secure them to prevent flapping movement.
  7. Caution: Due to the high surface and exhaust temperatures, adults and children must observe clearances to avoid burns or clothing ignition. Do Not Touch. Keep children, clothing, and combustible away.
  8. Install the heater such that it is not directly exposed to water spray, rain and / or water.
  9. Never use in areas normally for habitation and /or where children may be present.
  10. Operate only on a stable, level surface. (HS50K & HS75KT – See wood floor warning).
  11. Do not use with duct work. Do not restrict inlet or exit.
  12. Use only with electrical power specified. The electrical connection and grounding must comply with National Electrical Code – ANSI/NFPA 70 (USA) and CSA C22.1 Canadian Electrical Code, Part 1 (Canada).
  13. Use only a properly grounded 3-prong receptacle or
    extension cord.
  14. Do not move, handle, or service while hot or in operation.
  15. Use only in accordance with local, state (provincial) or national requirements, ordinances and codes.

OPERATING INSTRUCTIONS

UNPACKING

  1. Remove heater from carton.
  2. Remove all protective material which may have been applied to the heater for shipment.
  3. Check the heater for possible shipping damage. If any damage is found immediately contact the manufacturer at 866-447-2194.

ASSEMBLY (For 125,000, 175,000 and 210,000 BTU/hr models only, see figure 1, page 8.)
Wheels and handles are found in the shipping carton along with mounting hardware. The wheels, axle and mounting hardware are in a package. Tools required are a 5/16” nut driver, 3/8” open or adjustable wrench and standard pliers.

  1. Assemble the wheels onto the wheel support frame as follows:
    • Install one of the cotter pins into the hole on one end of axle.
    • Slide the large washer, then wheel onto the axle next to the cotter pin.
    • Slide the spacer onto the axle next to the wheel.
    • Slide the partially assembled axle through the wheel support frame.
    • Slide the spacer onto the axle next to the wheel support.
    • Slide the wheel then large washer onto the axle and hold in place with the remaining cotter pin.
    • Install the caps over the larger washers to finish the wheel assembly.
  2. Position the heater on the wheel support frame assembly with the exit opposite the wheels.
  3. Use eight screws and nuts to attach the handles to the top of the tank flange. The screws will go through the handles, tank flange and wheel support frame. Install the nuts and finger tight only until all nuts are installed.
  4.  Tighten all the nuts.
  5. Attach cord caddies to handles using No. (4) & No. (5) screws and nuts.

PREPARING FOR OPERATION

  1. Check the heater for possible shipping damage. If any is found, immediately contact the manufacturer at 866-447-2194.
  2. Follow all of the “Precautions”.
  3. Fill the fuel tank with clean kerosene. In extremely cold weather, condensation may develop in the tank and it is recommended that a tablespoon of de-icer be added for each gallon (4 liters) of fuel in the tank. When filling the heater, use at least 2 gallons (8 liters) of fuel. Be sure heater is level and do not overfill. Use a funnel or can with a long fill spout.
    IMPORTANT: Before filling fuel tank the first time or after extended storage periods, drain the fuel tank of any moisture or condensation.
  4. Locate heater at a safe distance from combustible materials. Models 50 & 75 are not suitable for use on wood floors or other combustible materials. When used, the heater should rest on suitable insulating material at least 1 inch thick and extending 3 ft. or more beyond the heater in all directions.

HEATER START UP

  1. HS50K: Plug the heater into a grounded 115V, 60 Hz, 1 Ø outlet.
    HS75KT, HS125KT, HS175KT & HS210KT: Turn the thermostat to the lowest setting, make sure “On/Off” switch is “Off”. Plug the heater into a grounded 115V, 60 Hz, 1 Ø outlet. Turn the thermostat to highest setting. Start the heater by pushing the toggle switch to the “On” position (light signifies switch is in “ON” position). Adjust the thermostat to the desired setting. Heater will cycle on/off as heat is required.
    EXTENSION CORD REQUIREMENTS: Up to 100’ (30.5m) use 16 awg. conductor. 101’ – 200’ (30.5 – 61.0m) use 14 awg. conductor.

For all models:
In cold weather (below 10° F), starting may be improved by holding a finger over the vent hole of the pump adjustment screw until the heater starts.
This unit is equipped with an interrupt circuit. The reset is integrated into the “On/Off” switch. If the unit does not start, toggle the switch to “Off”, wait 5 min. and toggle the switch to “On”.
HEATER SHUT DOWN

  1. HS50K: Unplug heater from power source.
    HS75KT, HS125KT, HS175KT & HS210KT: Push “On/Off” switch to “Off” position. For extended shutdown, unplug heater from power source.
  2. RESTART AFTER SAFETY SHUTDOWN (HS50K, HS75KT, HS125KT, HS175KT & HS210KT) See page 6.
    HS50K – Unplug unit. Wait 5 minutes. Plug back in. HS75KT, HS125KT, HS175KT & HS210KT – Toggle switch to “OFF” position, wait 5 minutes. Restart.

MAINTENANCE AND STORAGE

WARNING. To prevent personal injury, unplug the heater from the wall outlet before servicing.
For maximum efficiency and trouble-free service, make the following periodic maintenance, cleaning and inspections.
ADJUSTING PUMP PRESSURE
Due to varying fuel viscosities and normal component wear the pump pressure on this heater may need to be adjusted.
ADJUSTMENT PROCEDURE:

  1. Fill fuel tank.
  2. Start heater.
  3. Locate the fuel pressure adjustment screw (reference #26). The pressure adjustment screw is located at the rear of the heater, in the air filter housing cover (slotted adjustment screw approx.10 o’clock position).
  4. The plug directly under the adjustment screw can be used to install a pressure gauge. It is not a second adjustment screw.
  5. Using a flat-bladed screw driver, turn the pump pressure adjustment screw clockwise to increase pump pressure and/ or counter-clockwise to decrease pump pressure. Base pump pressures can be found in the specifications chart on page 3 of the “Operating Instructions and Owners’ Manual”.
  6. For best results, the nose cone in the combustion chamber should be cherry red with no dark spots and the flame should not extend beyond the nose cone.
    IMPROPER PRESSURE ADJUSTMENT
    Problem: The heater does not have a strong consistent flame.
    Heater smokes and spits raw fuel.
    Nose cone does not get cherry red.
    Adjustment: Pump pressure is too low.
    Turn adjustment screw clockwise to increase pump pressure.
    Problem: Flame extends beyond the end of the heater.
    Adjustment: Pump pressure is too high.
    Turn the adjustment screw counter clockwise to decrease pump pressure.

DAILY SCHEDULE

  1. GENERAL. Make general visual inspection of heater for loose or damaged parts. Check nuts and bolts to insure against looseness caused by vibration or rough handling. Damaged parts should be repaired or replaced before using heater again. Check heater operation to be sure it is operating normally (See “Servicing” section for description of normal operation).
  2. FILTERS. Dirty air or fuel filters will cause an imbalance in the air-fuel mixture. The best indication that this condition exists is an increase in odors or difficulty getting your heater to ignite. This heater should never be operated without the filters in place. If required, clean filters as described under “500 Hours” and “Annual Schedules”.

500 HOUR SCHEDULE

  1. AIR INTAKE FILTER. Remove and wash the filter element with a mild detergent, dry thoroughly and replace. Do not oil the filter element. If your heater is used where there is considerable dust or dirt, clean as often as necessary (approximately every 50 hrs.).
  2. REMOVE DUST. Clean heater twice a season (more often under dusty conditions). Remove accumulated dust from the transformer, burner, motor and fan blades with compressed air. Wipe area clean with a clean dry cloth. Inspect area to insure all foreign materials are removed, especially around the burner and combustion area.
  3. CAD CELL. Clean the glass portion of the cad cell with a soft dry cloth.
  4. NOZZLE. Accumulation of dirt from fuel and carbon from the compressor vanes will eventually fill up the passages in the nozzle, resulting in reduction of fuel and air flow.
    Pressure will gradually increase giving improper fuel-air mixture and excess odor and smoke. If this occurs, replace the fuel nozzle.
  5. FUEL TANK. Clean twice a season (during frequently used periods, clean twice a month). Drain and flush the fuel tank with clean fuel oil.

ANNUAL SCHEDULE

  1. AIR OUTPUT FILTER. Remove the air output filter and tap the contaminated side gently on a solid object to remove contaminates. Compressed air or liquids should not be used to clean this filter. Reinstall cleaned filter in filter body in the same position as it was when removed. If the filter appears extremely dirty, replace it with a new filter of the same type. When replacing the filter cover, be sure the gasket is firmly in place and the screws in the filter cover are tight to prevent air leaks.
  2. FUEL FILTER. Remove the fuel filter from fuel line and direct compressed air through the filter in the opposite direction of fuel flow. Safety glasses should be worn when using compressed air.
  3. AIR AND FUEL LINES. If the air or fuel lines are removed during cleaning, be sure all connections are tight before operating unit.

STORAGE
Store the heater in a dry location free from fumes or dust. At the end of each heating season, clean the heater as described in the MAINTENANCE section. Drain and flush the fuel tank with clean fuel. The manufacturer recommends completely filling the tank with fuel for extended storage to minimize condensation inside the tank.
It is recommended to only store kerosene in containers that are marked “KEROSENE”.

SERVICING

A hazardous condition may result if a heater is used that has been modified or is not functioning properly.
When the heater is working normally:

  • The flame is contained within the heater.
  • The flame is essentially yellow.
  • There is no strong disagreeable odor, eye burning or other physical discomfort.
  • There is no smoke or soot internal or external to the heater.
  • There are no unplanned or unexplained shut downs of the heater.

DIAGNOSTIC SAFETY SHUTDOWN AND TROUBLESHOOTING

SYMPTOM



SHOOTING

TROUBLE
High limit switch Open Circuit1)        Make sure heater is cooled off, toggle switch to “OFF” position, wait 5 minutes and retry.
Sparks, calling for flame, but no or slow motor operation1)            Check wiring to motor (per wiring schematic in manual).



2)            Make sure that the gauge plug is in place and not damaged.

3)            Adjust pressure for proper heater operation per manual.

4)            With heater disconnected from AC source, rotate fan clockwise to verify motor is free.

5)            Remove air filter housing from motor and inspect the pump rotor for damage. If damaged, replace rotor assembly.

6)            If wiring is correct, pump rotor is okay, and motor is not rotating freely, replace motor or power-pack assembly.

7)            If problem persists, replace oil flame control assembly.

8)            Check for spark arching from the electrode assembly, to the combustion cylinder.

9)            Check the cad cell for continuity.

No Spark1)            Check length and gage of extension cord for proper amp. draw. (Check requirements on page 4.)



2)            Check wiring to igniter (per wiring schematic in manual).

3)            Check gap between electrode probes (2.3 – 3 mm).

4)            Still no spark, replace igniter assembly.

5)            Replace oil flame control assembly.

Abnormal Motor Operation – Motor overheats or Stops1)            Motor speed too low (Motor should operate at 3450rpm) – Replace motor.



2)            With heater disconnected from AC source, rotate fan clockwise to verify motor is free.

3)            Remove air filter housing from motor and inspect the pump rotor for damage. If damaged, replace rotor assembly.

4)            If wiring is correct, pump rotor is okay, and motor is not rotating freely, replace motor or power-pack assembly.

5)            Replace oil flame control assembly.

Unable to Detect Flame1)Check wiring to cad cell (per wiring schematic in manual
2)Clean cad cell photo cell.
Slide cad cell out of cad cell holder.
Push the photo cell out of the black rubber cad cell housing by pushing on the 2 purple wires.
Clean the photo cell with a soft cloth and rubbing alcohol.
Pull the photo cell back into the cad cell housing and reinstall into holder.
Test heater.
3)If the heater still does not operate, replace cad cell.
)Replace oil flame control assembly.
Flame Control Failure

1) Check wiring in heater (per wiring schematic in manual).

2) Replace oil flame control assembly.

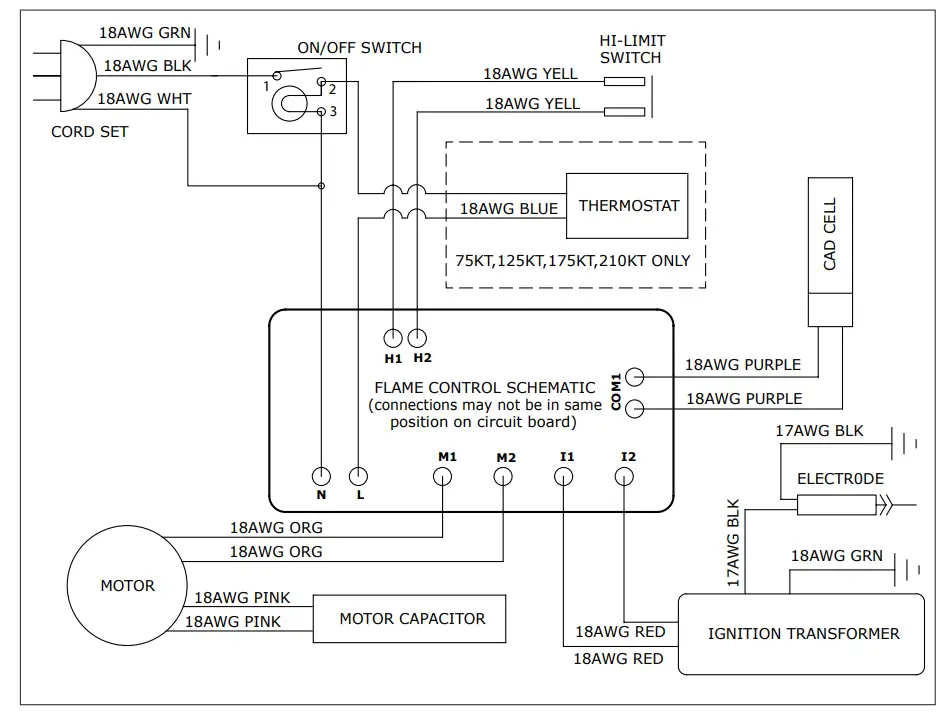

WIRING DIAGRAMHeatstar By Enerco F170275 Forced Air Kerosene Heater-1

The parts lists and wiring diagram show the heater as it was constructed. Do not use a heater which is different from that shown. Heater performance is effected by air pressure setting. If there is any uncertainty about the air pressure setting, have it checked. A heater which is not working right must be repaired, but only by a trained, experienced service person.

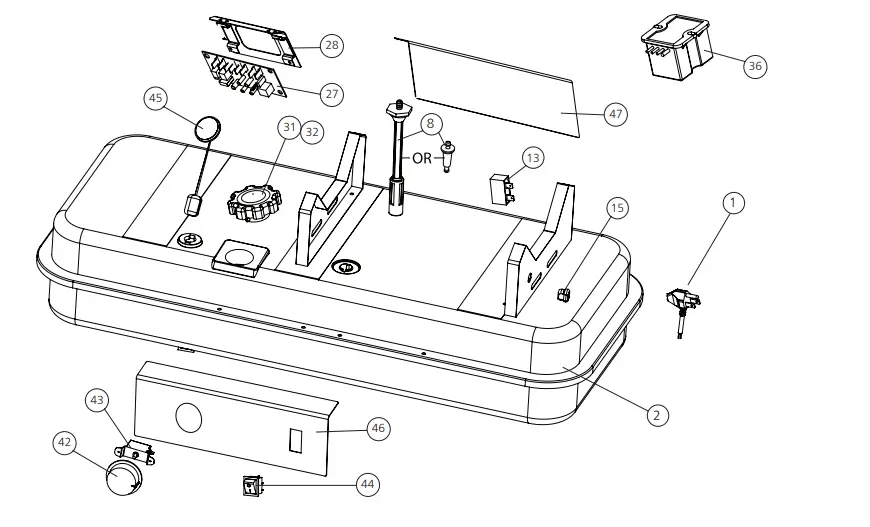

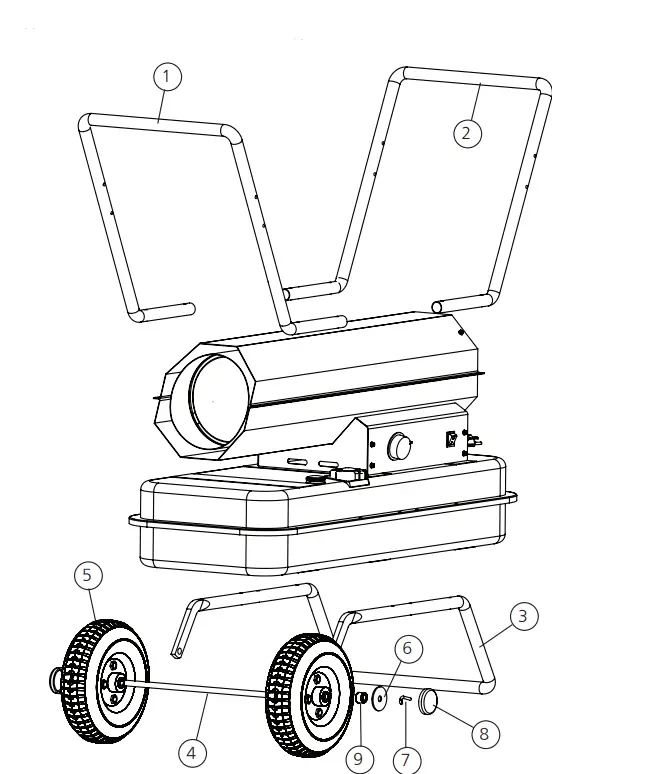

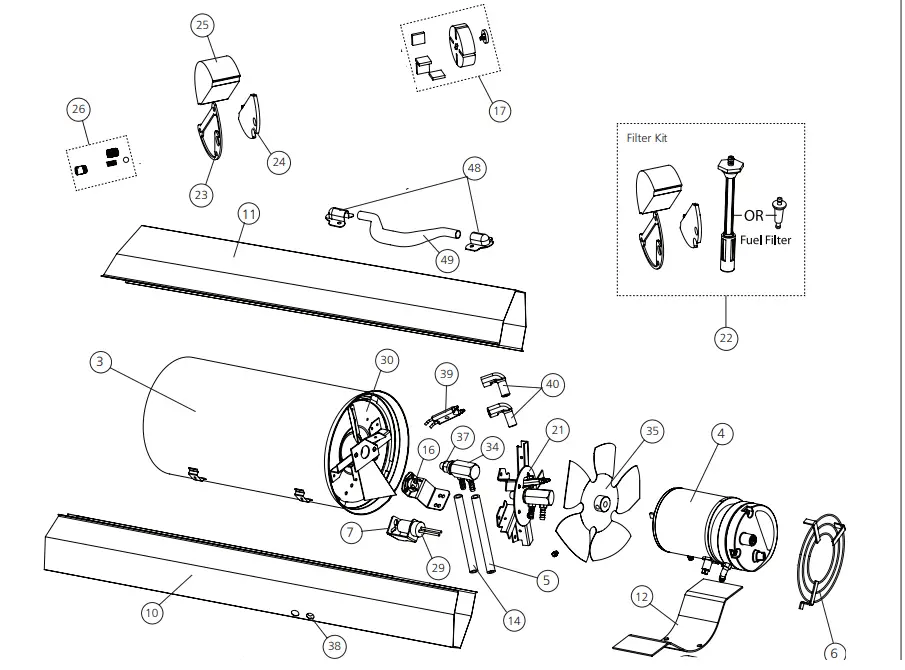

PARTS LISTHeatstar By Enerco F170275 Forced Air Kerosene Heater-3Heatstar By Enerco F170275 Forced Air Kerosene Heater-4

PARTS LIST
Ref.Item #Item #Item #  Item #  Item #DescriptionRef. Item #  Item #  Item #  Item #  Item #Description
 HS50KHS75KTHS125KT HS175KT HS210KT HS50K  HS75KT HS125KT HS175KT HS210KT
1



2

3

4

* 5

6

7

8

10

11

12

13

14

15

16

17



21

22

23

24

25

26

27145



21676

**** 21807

21818

21686

21685

24011

28779

21050

22050

23704

**** 23725

26225

21794

F226831



**** F221887 21813

21814

21815

F266842

27145



22213

**** 26967

21818

24343

28734

24011

28779

21075

22075

24332

28788

23725

26225

21794

F226831



**** F221887 21813

21814

21815

F266842

27145     27145     27145



22214     22214     22214

22216     21783     22099

26975     26975     26975

21818     21818     21818

24346     24346     24346

21771     21768     21771

24011     24011     24011

28780     28780     28780

21125     21175     22127

22125     22175     22102

24333     24333     24333

28735     28735     28735

24345     24345     24345

26225     26225     26225

26901     22105     22105

F226831 F226831 F226831



22257     22257     22257

F221887 F221887 F221887 21813     21813     21813

21814     21814     21814

21815     21815     21815

F266842 F266842 F266842

Power Cord



Fuel Tank Assembly Radiation Shield Ass’y Power Pac Ass’y Motor

Fuel Tube Grille Assembly

Oil cad cell Bracket Fuel Filter

Bottom Shell Top Shell

Motor Mounting Brkt Start Capacitor

Air Tube Snap Bushing

High Limit Control Kit, Rotor

– Air Pump Rotor w/Vanes

– Nylon Air Pump Insert

Burner Head Ass’y Kit, Filter

Gasket, Outlet Filter Outlet Filter

Inlet Filter

Kit, Pump Adjustment

– Nylon Pipe Plug

– Pump Adj. Screw Cap

– Ball,. Pressure adj.

– Spring, Pressure adj.

31     26959     26959     26959     26959     26959



32     26910     26910     26910     26910     26910

34     27790     27790     28739     28739     28739

35     27421     28740     26885     26866     26866

36     22142     22142     22142     22142     22142

37     F227416 F221878 F221879 F221889 F221891

38     26223     26223     26223     26223     26223

39     F221857 F221857 F221857 F221857 F221857

40     21820     21820     21820     21820     21820

42     ****        21823     21823     21823     21823

43     ****        21734     21734     21734     21734

44     21872     21872     21872     21872     21872

45     ****        28791     28778     28778     28778

46     21829     21889     21825     21825     21825

47     26887     26887     26888     26888     26888

48     27094     27094     ****        ****        ****

49     27095     27095     ****        ****        ****

*       24171     24171     ****        ****        ****

*                                  26227     26227     26227

*       27429     27429     27429     27429     27429



*       28745     28745     ****        ****        ****

*       ****        22146     22146     22146     22146

*       ****        26070     26070     26070     26070





*       Not shown in the drawing

Fuel Cap



Fuel Cap Gasket Nozzle Adapter Fan

Igniter Assembly Fuel Air Aspir. Nozzle Strain Relief Bushing Electrode Assembly

Electrode Insulated Cover Thermostat Knob Thermostat Assembly ON/OFF Switch

Fuel Gauge Control Panel Control Panel Back Clip Hanle Mtg.

Handle

Nozzle mtg. plate Snap Bushing

Nozzle Extrnl. Retaining Ring

Fuel Line Bushing Bracket Thermostat Mtg. Clamp Loop

27



28

29

30

21866



21816

F226865 22215

21866



21816

F226865 22215

21866     21866     21866



21816     21816     21816

F226865 F226865 F226865 22233     22234     22107

Flame Control Ass’y Flame Control Bracket cad cell Flame Sensor Comb.Chamber Cyl. Ass’y
PARTS LISTHandle and wheel assembly for HS125KT, HS175KT & HS210KT only.
Ref.        Item #Item #       Item #     Description
HS125KTHS175KT HS210KT
1             2187321873        21873       Handle, Front
2             2187421874        21874       Handle, Rear
3             2187521875        21875       Wheel Support Frame
4             2219122191        22191       Axle
5             4098140981        40981       Wheel Ass’y
6             2874928749        28749       Large Retainer Washer
7             2875028750        28750       Cotter Pin
8             2875128751        28751       Hub Cap
9             2189721897        21897       Wheel Spacer
*              2878728787        28787       Hardware Kit




* Not shown in the drawing

Heatstar By Enerco F170275 Forced Air Kerosene Heater-2

WARNING:
USE ONLY THE MANUFACTURER’S REPLACEMENT PARTS. USE OF ANY OTHER PARTS COULD CAUSE INJURY OR DEATH. REPLACEMENT PARTS ARE ONLY AVAILABLE DIRECT FROM THE FACTORY AND MUST BE INSTALLED BY A QUALIFIED SERVICE AGENCY.
PARTS ORDERING INFORMATION:
PURCHASING: Accessories may be purchased at any HEATSTAR by ENERCO local dealer or direct from the factory
FOR INFORMATION REGARDING SERVICE
Please call Toll-Free 866-447-2194
www.heatstarbyenerco.com
Our office hours are 8:00 AM – 5:00 PM, EST, Monday through Friday.
Please include the model number, date of purchase, and description of problem in all communication.

LIMITED WARRANTY

Enerco Technical Products, Inc. warrants its heaters and accessories to be free from defects in material and workmanship for a period of 1 year from date of purchase. Enerco Technical Products, Inc. will repair or replace this product free of charge if it has been proven to be defective within the 1-year period, and is returned at customer expense with proof of purchase to Enerco Technical Products, Inc. within the warranty period.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This Warranty gives you specific legal rights, and you may have other rights which vary from state to state.
Heatstar Products, Inc. reserves the right to make changes at any time, without notice or obligation, in colors, specifications, accessories, materials and models.
PRODUCT REGISTRATION: Thank you for your purchase.
Please log in to http://www.egiregistration.com to register your product.

HEATSTAR by ENERCO, 4560 W. 160TH ST., CLEVELAND, OHIO 44135
866-447-2194
© 2020, Enerco Technical Products, Inc. All rights reserved

FAQS

Can I use this to heat a room to 140 degree plus?

Mine barely heats a closed area of 6 x 10 in a garage to 65 degrees. Mine does not work well with No.
1 diesel and the wicks char quickly. Kerosene is out of the question. Bought two and two have failed for garage use.

Is this unit safe for indoor residential use?

This unit is not for residential use.

I purchased this last December 2016, awesome heater by the way. Unfortunately it won’t ignite, just
pisses fuel. Is this product under warranty?

There is a port on fan that you can plug with finger when starting. Also you can take cover off see if it’s igniting

Does this have to be plugged into a 110 outlet you run? Or is it just off diesel

Yes it has to be plugged into outlet

Will this run on any ethanol?

no

Can you use military-grade F-24 fuel in these

This heater runs on Kerosene, diesel, and jet A fuel. Not fimiliar with f-24 fuel, but if it is classified as a jet A fuel then it will work.

if it operates with a thermostat will it turn itself off and restart

Yes

what do I need to fix that it throws smoke so often?

If your unit is not too old then I would insure two things, 1. That your fuel is fresh and 2. that the pump pressure is set according to the fuel you are using. It may require the purchase of a pressure gauge that reads in the range of 0-10 psi. with an 1/8″ pipe nipple you can thread it directly to the small fitting on the pump housing to read the pressure. from there you adjust the pressure to accomodate the fuel you are using. K1 kerosene burns cleanest. Set the unit and stick with one fuel type. The pressure needs to set to any such fuel type so dont switch back and forth if you can help it. I’m not an expert on these units but I learned alot searching the internet for clues. I also recieved adequate info with packaging upon arrival. owners manuals can also be located online but I dont have a link for you.

Runs on diesel??

Yes it runs on diesel

OK it says on a full tank it will run approximately 10 hours the question I have is how many gallons is the tank?

the HS175KT 175K has a 10 gallon / 53 L tank. This is for the 175,000 Btu/hr (51 kW) model.

What is the BTU output?

It looks as though that model is 190,000 BTU but mine is only 175,000 BTU.

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.


Related Manuals
