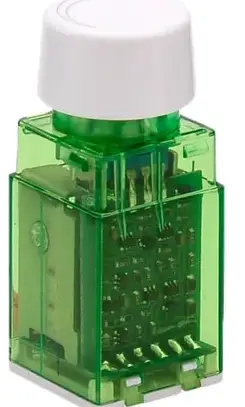

ELCOP RD350VA Rotary Dimmer Switch
TECNICAL DATA
| Operating Voltage | 220-240 V～ |
| Frequency | 50 Hz |
| Maximum Load | 350 W |
| Minimum Load | 10 W |
| Dimming Mode | Trailing-Edge |
| Control Method | Two way |
| Dimmable LED lamps | 10-150W |
| LV Halogen lighting with electronic transformers | 10-350VA |
| Incandescent lighting, MV Halogen lamps | 10-350VA |
Features and Installation
Features and InstallationThe installation must be carried out by an electrician.
PLEASE READ INSTRUCTION BEFORE COMMENCING INSTALLATION AND RETAIN FOR FUTURE REFERENCES. Electrical products can cause death or injury, or damage to property. If in any doubt about the installation or use of this product, consult a competent electrician.
Features
- Suitable for both retrofit and new installations.
- Live Only two-wire connection – no neutral required.
- Soft-start for lamp and driver life.
- Inbuilt Overload, short-circuit, over-current, over-temperature protection.

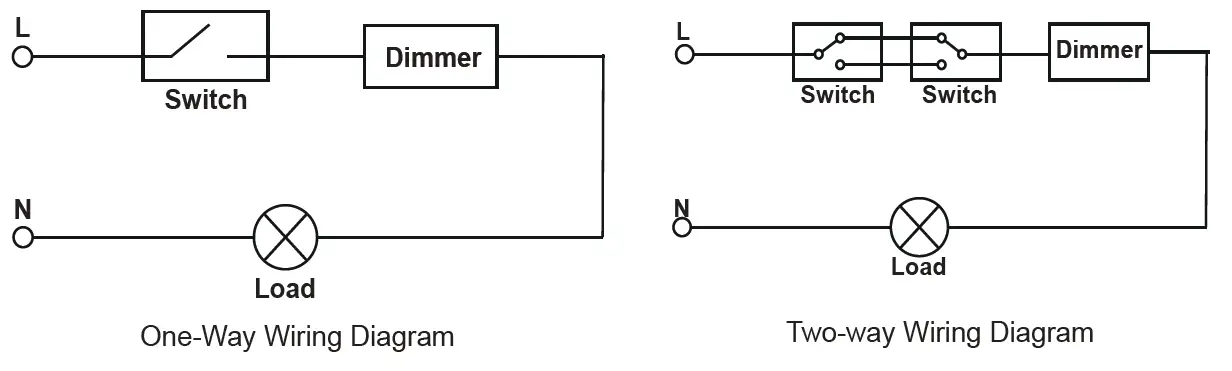

Wiring
NOTE:
- The LED dimmer series are designed for One-Way or Two-Way operation as above diagrams.
- More than one dimmers cannot be connected in parallel or series to control the same load from two different locations.
- Dimmer Mechanism wiring is NOT polarity sensitive.
