QUICK INSTALLATION GUIDE
3DP-PEND-01

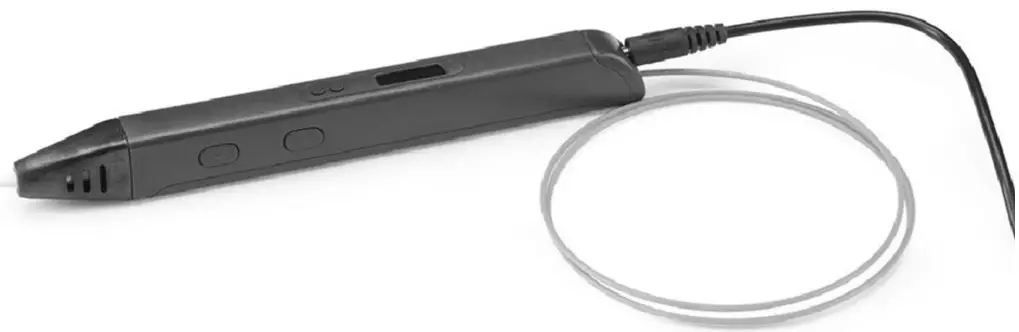

FREEFORM 3D PRINTING PEN FOR ABS/PLA FILAMENT, OLED DISPLAY
 | ONLINE MANUALS Detailed step-by-step installation guides are available in several languages on www.gembird.nl |

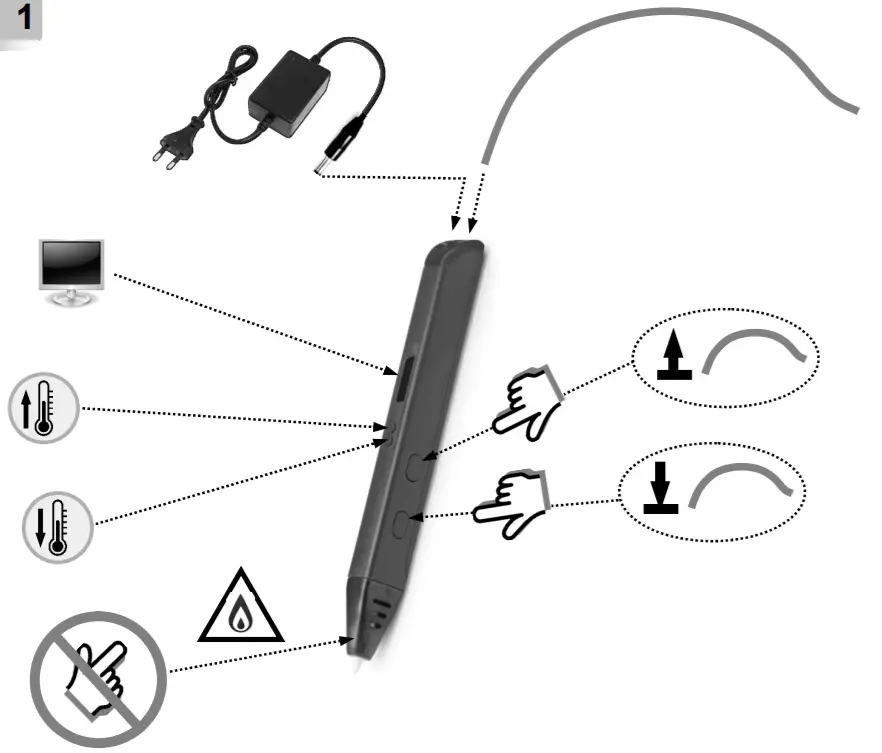

Features
- Freeform 3D printing pen
- OLED display: shows temperature and filament type indication
- Suitable for use with ABS and PLA filament of 1.75 mm diameter
Specifications
- Case material: plastic, purple
- Model build size: free form
- Filament: ABS, PLA, 1.75mm
- Nozzle diameter: 0.60 mm
- Extruder temperature: 130 – 230 C
- Power consumption: 5 VDC up to 2A
- Net weight: 40 g
- Dimensions: 175 x 17 x 20 mm
 |
 |
 |
Declaration of conformity
This product is tested and complies with the essential requirements of the laws of member states concerning LVD (2014/35/EU ), EMC(2014/30/EU), RoHS (2011/65/EU ). The CE declaration can be found under www.gembird.eu
Waste disposal:
Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.
WARRANTY CONDITIONS
The receipt must clearly list the date of purchase and the part number, in addition, it should be printed. Keep the receipt for the entire warranty period since it is required for all warranty claims.
During the warranty period, the defective items will be credited, repaired, or replaced at the manufacturer’s expense. Work carried out under the warranty neither extends the warranty period nor is a new warranty period. The manufacturer reserves the right to void any warranty claim for damages or defects due to misuse, abuse, or external impact dust, contamination, or break (falling down, impact, ingress of water, ). Wearing parts
(e.g. rechargeable batteries ) are excluded from the warranty. Upon receipt of the RMA goods, Gembird Europe B.V. reserves the right to choose
between replacement of defective goods or issuing a credit note. The credit note amount will always be calculated on the basis of the current market value of the defective products.
Gembird Europe B.V. Wittevrouwen 56, 1358CD Almere, The Netherlands www.gembird.nl/service [email protected]
