Anker 100W Charging Base for Anker Prime Power Bank
QUICK START GUIDE

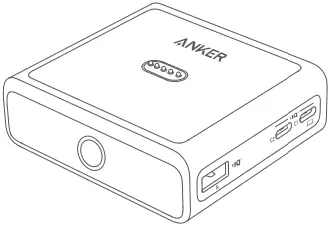

Product Overview
- Pogo Pin
- USB-C1
- USB-C2
- USB-A
- LED Indicator
- AC Input Port

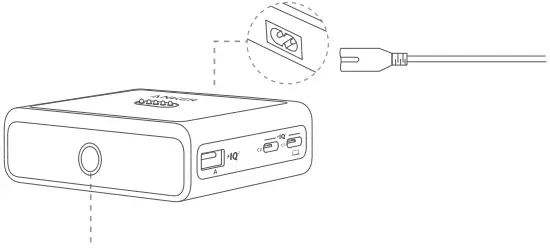

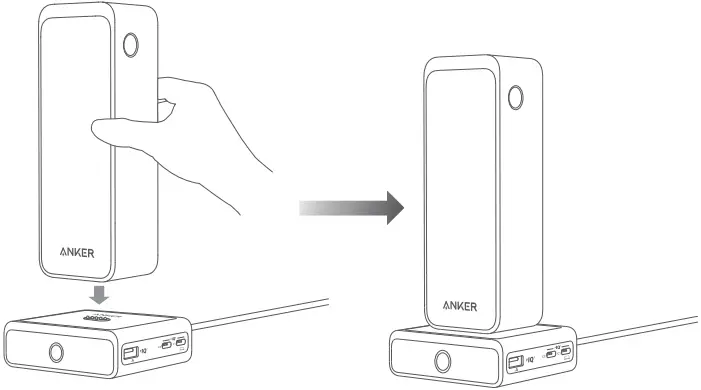

Charging Your Power Bank
(1)
• Pulsing White Light: Power Bank is Charging
• Solid White Light: Power Bank is Fully Charged
• Rapid Pulsing White Light: AC Power is On
(2)
Note: The power bank cannot provide output while it is recharging on the stand.

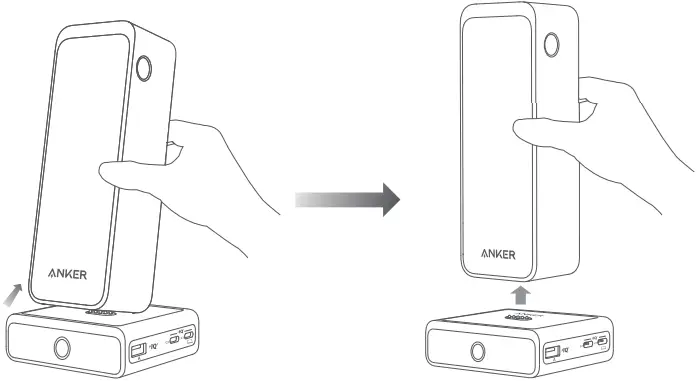

Picking Up the Power Bank

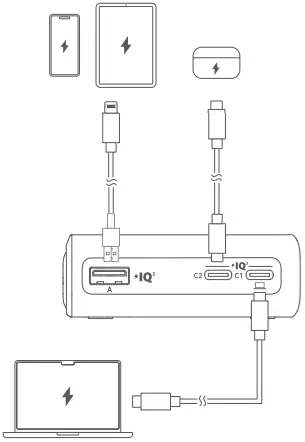

Charging Your Devices
Specifications
| Input | 100-240V~2A 50-60Hz |
| USB-C1 Output | 5V ⎓ 3A / 9V⎓ 3A 12V ⎓ 1.5A / 15V⎓ 3A / 20V⎓ 5A |
| USB-C2 Output | 5V ⎓ 3A / 9V ⎓ 3A 12V ⎓ 1.5A / 15V ⎓ 2A / 20V⎓ 1.5A |
| USB-A Output | 5V ⎓ 3A / 9V ⎓ 2A 12V ⎓ 1.5A |
| Pogo Pin Output | 21.5V ⎓ 4.65A |
| PPS | Supports PPS |
| Average Active Efficiency | 81.06% |
| Efficiency at Low Load (10%) | 68.53% |
| No-Load Power Consumption | 0.267W |
| Operating Temperature | 0° – 25°C / 32°F – 77°F |
| Note: To ensure electrical safety and product performance, the output power may fluctuate based on the ActiveShield™* safety mechanism when the ambient temperature is between 26 – 35°C (78.8 – 95°F) with a high output load. *ActiveShield™ enhances protection by intelligently monitoring temperature and adjusting power output to safeguard your connected devices. | |
For tutorial videos, FAQs, manuals, and more information, please visit:
https://support.anker.com
Or scan the QR code below:
@Anker Deutschland
@Anker Japan
@Anker
@AnkerOfficial
@Anker_JP
PAP 22 Raccolta Carta
Product Number: A1902
51005004003 V02
