GFW148SSMWW
GE® 2.4 DOE Cu. Ft. ENERGY STAR® Front Load Washer with Steam

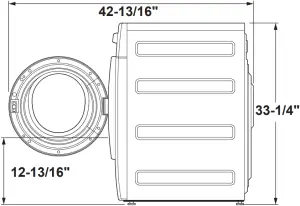

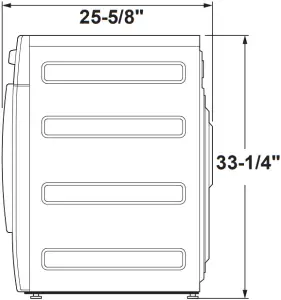

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
INSTALLATION INFORMATION: For complete information, see installation instructions packed with your washer.
For answers to your Monogram, GE Café™, GE Profile™ or GE Appliances product questions, visit our website at geappliances.com or call GE Answer Center® Service, 800.626.2000.
Specification Revised 1/21
SPECIAL INSTALLATION REQUIREMENTS

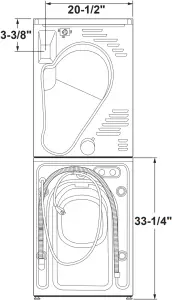

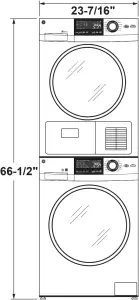

STACKED DIMENSIONS (IN INCHES)
ADA COMPLIANCE:
– 4″ ADA riser and drip pan for 24″ Front Load model: GAF140SSNWW
STACKED INSTALLATION:
– Kit for stacking dryer over washer is not included with the washer.
Order part no. GFA24KITL
ALCOVE OR CLOSET INSTALLATION:
– If your dryer is approved for installation in an alcove or closet, it will be stated on a label on the dryer back.
– The dryer MUST be exhausted to the outside with the exception of the condensing dryer.
– Minimum clearances between dryer cabinet and adjacent walls or other surfaces are: 1″ left and right sides, 1″ top, 3″ front and rear.
– Minimum clearances between washer cabinet and adjacent walls or other surfaces are: 1″ left and right sides, 1″ top, 1″ front and rear.
– Closet doors must be louvered or otherwise ventilated and must contain a minimum of 60 sq. in. of open area equally distributed. If this closet contains both a washer and a dryer, doors must contain a minimum of 120 sq. in. of open area equally distributed.
– No other fuel-burning appliance shall be installed in the same closet with a gas dryer.
BATHROOM OR BEDROOM INSTALLATION:
– The dryer MUST be exhausted to the outdoors with the exception of the condensing dryer.
– The installation must conform with the local codes, or in the absence of local codes, with the National Electric Code and National Fuel Gas Code, ANSI Z223 for gas dryers.
MINIMUM CLEARANCE OTHER THAN ALCOVE OR CLOSET INSTALLATIONS:
– Minimum clearances to combustible surfaces 0″ both sides, 3″ rear.
FOR MORE INFORMATION ON VENTING KITS AND ACCESSORIES, PLEASE CALL 1-800-GE-CARES.

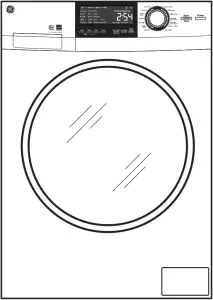

FEATURES AND BENEFITS
Plugs into Dryer or Wall - Washer plugs into GE Condenser dryer or properly installed 120-Volt wall receptacle for easy installation
Stainless steel basket - Long-lasting stainless steel finish resists rust and won’t chip, peel or snag clothes
Steam - Penetrates deep into fabric fibers, loosening stains like tomato and grass, yet protects your fabrics
ENERGY STAR® qualified - Meets or exceeds federal guidelines for energy efficiency for year-round energy and money savings
Electronic touch controls - Enjoy easy operation and cleanability with streamlined controls
14 wash cycles - Multiple cycles are designed to specifically handle various fabrics and soils
1400 RPM spin speed - Fast spin speeds remove water efficiently and minimize dry time
Inlet fill hoses included
Quick Wash - Provides a quick wash for lightly soiled items that are needed in a hurry
Internal water heater - Increases wash temperature to reduce bacteria and provide better cleaning for the really tough stains
Model GFW148SSMWW - White on white
Specification Revised 1/21
