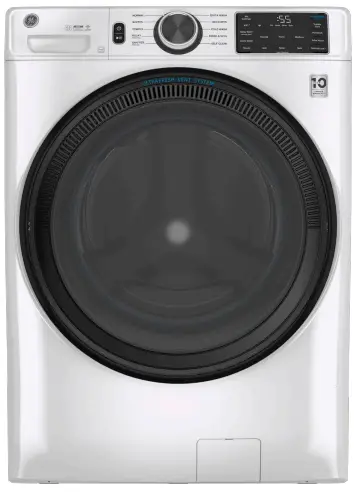

GE APPLIANCES GFW510SCN 4.5 cu. ft. Capacity Front Load ENERGY STAR Washer
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
ELECTRIC RATING
- 120V 11.0A, 60Hz
INSTALLATION INFORMATION:
For complete information, see installation instructions packed with your washer.
*With leveling leg adjust.
For answers to your Monogram, GE Café™,
GE Profile™ or GE Appliances product questions, visit our website at geappliances.com or call GE Answer Center® Service, 800.626.2000.
SPECIAL INSTALLATION REQUIREMENTS:
- STACKED INSTALLATION:
– Brackets for stacking dryer over washer are not included with
the washer. Order part no. GFA28KITN. - ALCOVE OR CLOSET INSTALLATION:
- If your dryer is approved for installation in an alcove or closet, it will be stated on a label on the dryer back.
- The dryer MUST be exhausted to the outside.
- Minimum clearances between dryer cabinet and adjacent walls or other surfaces are: 0″ all sides and top.*
- Closet doors must be louvered or otherwise ventilated and must contain a minimum of 60 sq. in. of open area equally distributed.
- If this closet contains both a washer and a dryer, doors must contain a minimum of 120 sq. in. of open area equally distributed.
- No other fuel-burning appliance shall be installed in the same closet with a gas dryer.
- BATHROOM OR BEDROOM INSTALLATION:
- The dryer MUST be exhausted to the outdoors.
- The installation must conform with the local codes, or in the absence of local codes, with the National Electric Code and National Fuel Gas Code, ANSI Z223.
- MINIMUM CLEARANCE OTHER THAN ALCOVE OR CLOSET INSTALLATIONS:
Minimum clearances to combustible surfaces 0″ all sides and top.* - FOR MORE INFORMATION ON VENTING KITS AND ACCESSORIES, PLEASE CALL 1-800-GE-CARES.
*For improved performance, a 1/2″ clearance is suggested on each side.

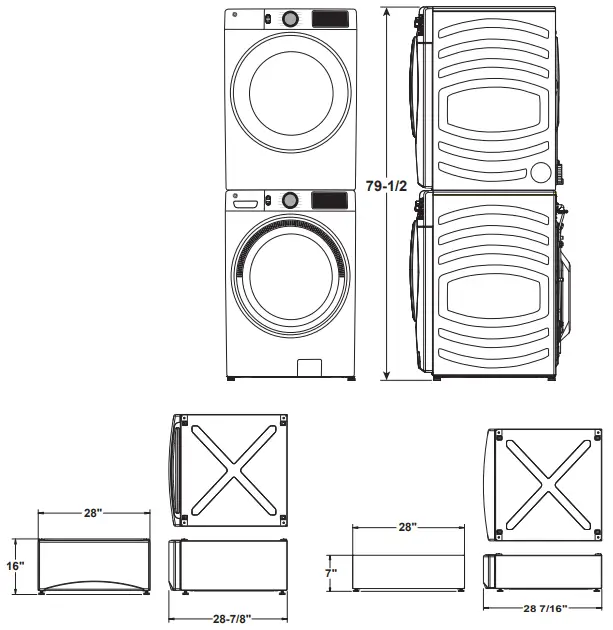

STACKED DIMENSIONS (IN INCHES)
PEDESTAL DIMENSIONS (IN INCHES)
GFP1528SNWW – WHITE This optional 16″ pedestal raises the door opening and height of the washer or dryer.
RISER DIMENSIONS (IN INCHES)
GFR0728SNWW – WHITE
This optional 7″ riser raises the door opening and height of the washer or dryer while remaining ADA compliant.
FEATURES AND BENEFITS
- UltraFresh Vent System With OdorBlock™ – The first and only UltraFresh Vent System with OdorBlock™ eliminates excess moisture to help prevent odors ensuring your washer stays fresh and clean.
- Microban® antimicrobial technology – Built into components including the gasket, dispenser and draining system delivers protection that lives on load after load.
Built-in WiFi – Start, stop and monitor your laundry from anywhere while receiving real-time notifications and updates. - Dynamic Balancing Technology (dBT™) – Our patented, time-saving technology senses and re-balances uneven loads during the spin cycle, providing a quiet wash.
- Reversible door – Easily reverse your washer and dryer door for superior installation flexibility.
- 32-In Depth – Fits into more homes, with no additional installation space required.
- Quick Wash Cycle – Provides a fast 20-minute wash for lightly soiled items.
- 10-year Limited Warranty – Rest assured knowing your washer is backed by a 10-year warranty.
- Sanitize with Oxi – Remove 99% of bacteria with a dedicated cycle that uses an Oxi additive to boost your detergent’s cleaning power, while keeping fabrics looking and
feeling their best. - Model GFW510SCNWW – White
For answers to your Monogram, GE Café™,
GE Profile™ or GE Appliances product questions, visit our website at geappliances.com or call GE Answer Center® Service, 800.626.2000.
