500L PLUMBING Electric Hot Water Cylinders
Owner’s Manual
Hot Water Cylinders
135L, 180L, 250L, 300L,400L, 500L

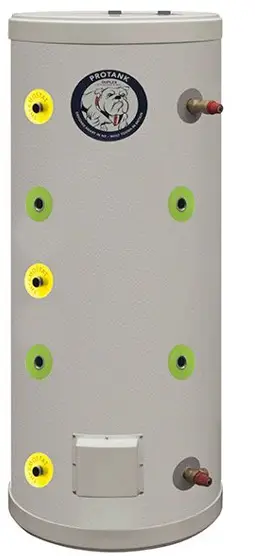

Protank hot water cylinders are designed for indoor installation mains pressure domestic hot water systems.
DESIGNED SMART IN NEW ZEALAND – BUILT TOUGH IN BRITAIN.

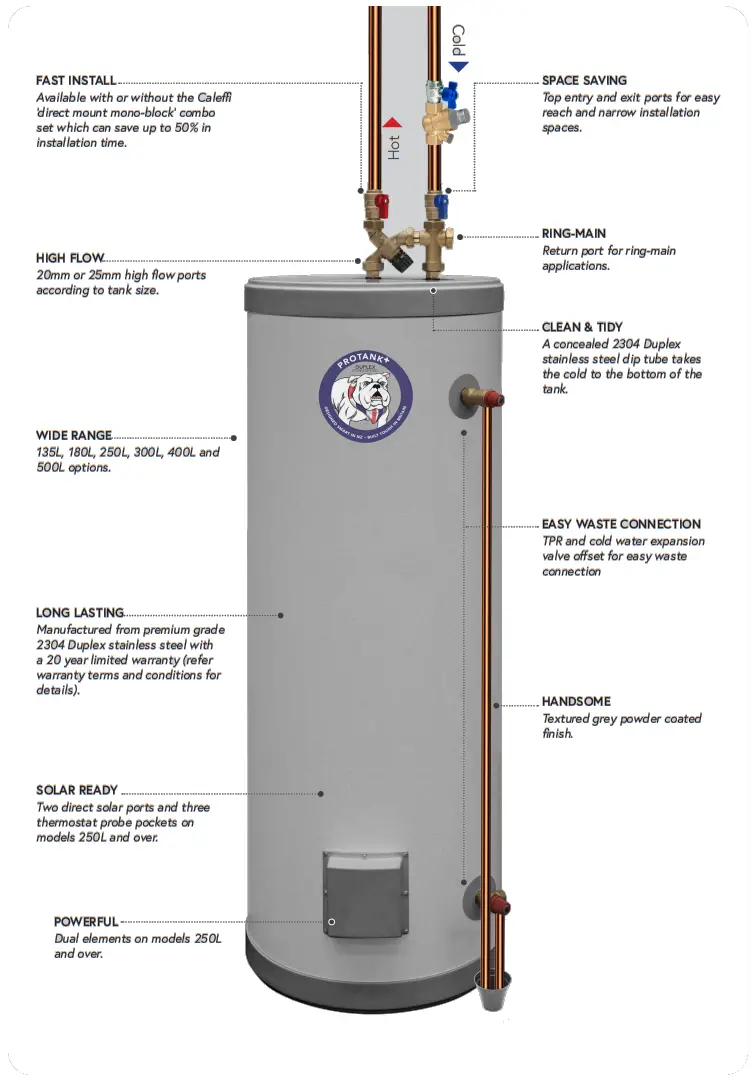

Protank has been developed to meet the needs of those home owners wanting a high-capacity, high-pressure hot water system that is going to last. The internal tank and fittings are crafted from the highest possible spec ‘Duplex’ 2304 stainless steel and performance matched to Caleffi’s latest high flow valve set.
MODEL RANGE
| IncludingValve Set | CylinderOnly | Description | Height x Ø |
| PTPC135 | PTP135 | 135L, 3kW | 1380mm x 475mm |
| PTPC180 | PTP180 | 180L, 3kW | 1780mm x 475mm |
| PTPC250D | PTP250D | 250L, 3+3kW, solar ports | 1780mm x 550mm |
| PTPC300D | PTP300D | 300L, 3+3kW, solar ports | 2000mm x 550mm |
| PTPC400D | PTP400D | 400L, 3+3kW, solar ports | 1550mm x 710mm |
| PTPC500D | PTP500D | 500L, 3+3+3kW, solar ports | 1800mm x 710mm |
Models with valve sets include:
- Protank hot water cylinder
- Caleffi’s direct mount mono-block combo set

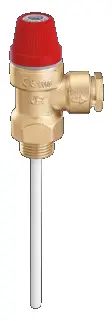

- Caleffi TPR valve
- Heatrod element(s) and thermostat
Models without valve set include:
- Protank hot water cylinder
- Caleffi TPR valve
- Heatrod element(s) and thermostat

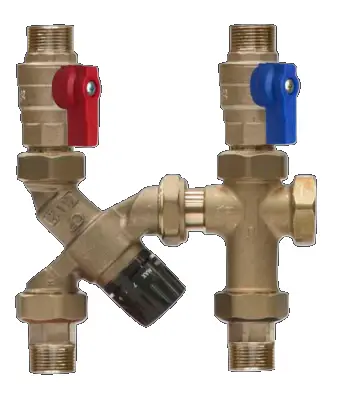

CALEFFI DIRECT MOUNT COMBO SET
20mm COMBO2015PRO (135L and 180L models)
20mm COMBO2020PRO (250L and 300L models)
25mm COMBO2520PRO (400 and 500L models)

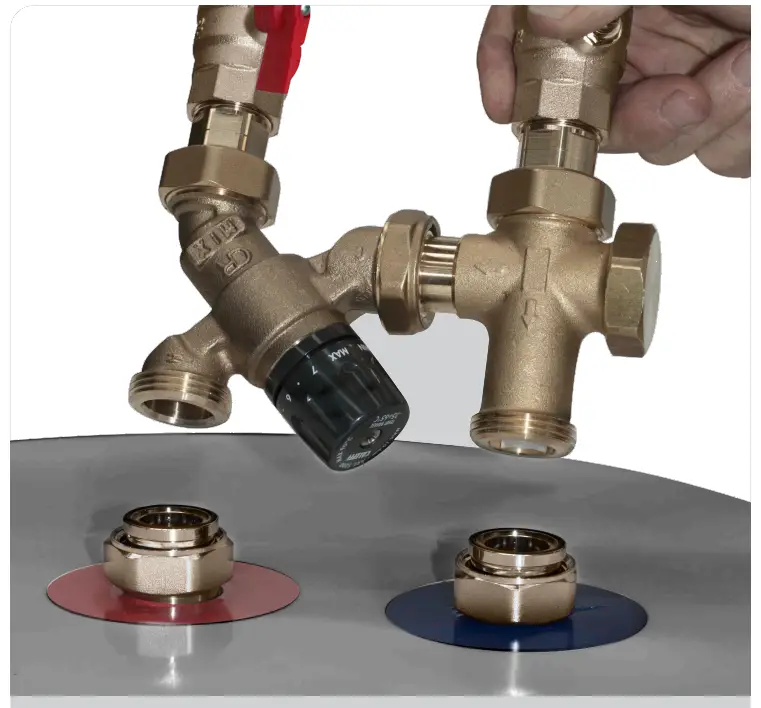

Pro tanks are available with or without the Caleffi direct mount mono-block combo set which can save up to 50% in installation time when compared to installing a traditional hot water cylinder with 3rd party valves and components. It connects to the cold and hot connections via Caleffi’s full-proof o-ring sealed union connections.
The Caleffi direct mount combo sets include every primary valve required to complete an installation:
- 1 x mono-block tempering inlet valve and isolators
- 1 x adjustable pressure limiting valve with strainer
- 1 x cold water expansion valve
- 1 x ball valve
 | TV520150 20mm (135L, 180L, 250L and 300L) TV520160 25mm (400 and 500L) |
 | PR533056 20mm (120L, 180L, 250Land 300L) PR533565 25mm (400L and 500L) |
 | TPR310400 15mm (120L, 180L, 250Land 300L) TPR309570 20mm (400L and 500L) |
 | BV20M 20mm (120L, 180L, 250Land 300L) BV25 25mm (400L and 500L) |
 | DSV312460 15mm (135 and 180L) DSV311560 20mm (250L, 300L, 400L and 500L) |
RECIRCULATING SYSTEMS
The mono-block manifold has a blanking cap which when removed acts as a return port for a recirculating ring main. Contact us for ring main setup or design advice.
DIRECT MOUNTING OF THE TEMPERING VALVE
Notwithstanding acceptable methods detailed in G12, the manufacturer Caleffi has specifically engineered this tempering control valve to directly mount onto the hot water cylinder with no minimum pipe length isolation requirement as an alternative method of achieving compliance.
SPECIFICATIONS
General Specification
| Manufactured by | Whitewolf |
| Country of origin | UK |
Pressure Ratings
| TPR Setting | 700 kPa |
| Cold water expansion setting | 600 kPa |
| Maximum supply setting | 500 kPa |
| Factory supply set point | 300 kPa |
Electrical
| Cable / Sheath size | 3×1.5mm / 8mm |
| Terminals | Screw type, 4 mm |
| Thermostat supplier | Herod |
| Thermostat model | SH314C-CAICAI-STROM |
| Thermostat approval number | EQ739-DAT9900155 |
| Thermostat set point range | 30 ºC-70 ºC |
| Thermostat factory set point | 62 ºC |
| Thermal cutout set point | 90 ºC |
| Thermal cutout reset | Manual |
| Heating element supplier | Herod |
| Heating element mount | 1&3/4” Female threaded |
| Heating element sheath material | Titanium |
| Heating element resistance | 19.2 ohm |
| Heating element power density | 9.6 w/cm² |
Shell Construction
| Shell type | Single skin |
| Shell material | 2304 Duplex SS |
| Thickness | 1 mm |
| Circumferential joint | Tig butt weld |
| Longitudinal joint | Tig butt weld |
Case Construction
| End material | Polypropylene |
| End thickness | 2 mm |
| Wall material | Painted Galvanized steel |
| Wall thickness | 0.45 mm |
| End joint | Press fit |
| Wall joint | Lock form joint |
Thermal Insulation
| Insulation specification | EPC/IsoPMDI |
| Wall thickness | 50 mm |
| Base thickness | 10 mm |
| Top Thickness | 50 mm |
Technical Specification
| Capacity | 135L | 180L | 250L | 300L | 400L | 500L |
| Inlet / Outlet ports | 20mm | 20mm | 20mm | 20mm | 25mm | 25mm |
| TPR / CWE ports | 15mm | 15mm | 15mm | 15mm | 20mm | 20mm |
| Solar ports (qty x Ø) | none | none | 2x20mm | 2x20mm | 2x20mm | 2x20mm |
| Dry stat pockets (qty x Ø) | none | none | 3x22mm | 3x22mm | 3x22mm | 3x22mm |
| Heating element | 3kW | 3kW | 3+3kW | 3+3kW | 3+3kW | 3+3+3kW |
| Overall (Height x Ø) | 1380 x 475mm | 1780 x 475mm | 1785 x 550mm | 2000 x 550mm | 1550 x 710mm | 1800 x 710mm |
| Internal shell (Height x Ø) | 1350 x 375mm | 1750 x 375mm | 1750 x 445mm | 1950 x 445mm | 1520 x 590mm | 1750 x 590mm |
| Weight full | 157kg | 210kg | 287kg | 344kg | 470kg | 580kg |
| Weight empty | 22kg | 30kg | 37kg | 44kg | 70kg | 80kg |

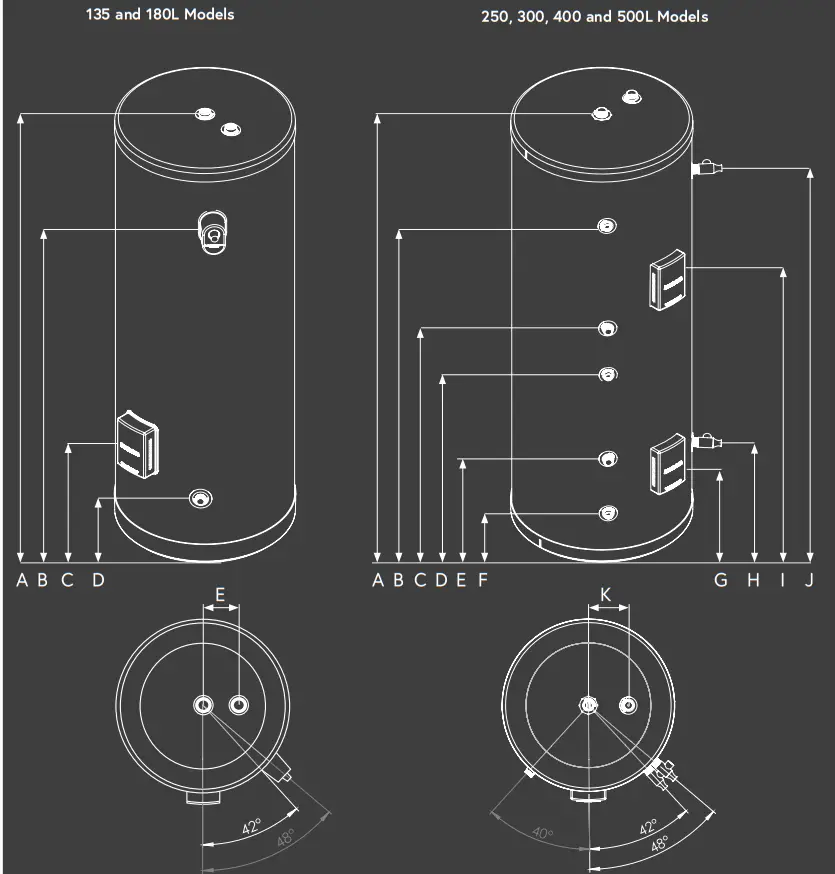

PORT LAYOUT
| Model | 135L | 180L |
| A. Inlet/Outlet height | 1380mm | 1780mm |
| B. TPR Valve | 1150mm | 1550mm |
| C. Element | 260mm | 260mm |
| D. CWE Valve | 215mm | 215mm |
| E. Inlet/Outlet centres | 110mm | 110mm |
| Model | 250L | 300L | 400L | 500L |
| A. Inlet/Outlet height | 1780mm 2000mm | 2000mm | 1550mm | 1800mm |
| B. Upper Stat | 1500mm | 1760mm | 1250mm | 1550mm |
| C. Middle Stat | 600mm | 600mm | 600mm | 600mm |
| D. Upper Solar | 900mm | 900mm | 900mm | 900mm |
| E. Lower Stat | 215mm | 215mm | 215mm | 215mm |
| F. Lower Solar | 175mm | 175mm | 175mm | 175mm |
| G. Lower Element | 260mm | 260mm | 260mm | 260mm |
| H. CWE Valve | 215mm | 215mm | 215mm | 215mm |
| I. Upper Element | 1270mm | 1430mm | 1200mm | 1285mm |
| J. TPR Valve | 1500mm | 1760mm | 1250mm | 1550mm |
| K. Inlet/Outlet centers | 110mm | 110mm | 135mm | 135mm |
PROTANK 20-YEAR LIMITED WARRANTY
All terms of the warranty, subject to the conditions below, are effective from the date of installation if proof of installation date can be provided. Where the date of installation is ot known or cannot be proven, the warranty will commence one month after the proof of purchase date.
Single Residential Domestic Warranty
A single residential domestic installation is defined as an installation where the hot water cylinder with a factory-set thermostat delivers hot water to a privately owned single-family residential dwelling that is not used for commercial purposes.
Protank Excluding Valves and Element
5 YEARS FREE PARTS and LABOUR costs to replace or repair the cylinder if it fails due to manufacturing defect.
Followed by; 5 YEARS FREE PARTS ONLY costs (excluding labor) to replace or repair the cylinder if it fails due to manufacturing defect.
Followed by;10 YEARS *PRO-RATA PARTS ONLY reducing costs (excluding labor) according to the below formula, to replace or repair the cylinder if it fails due to manufacturing defect. *Pro-Rata Formula = Original purchase price x remaining warranty in years ÷ total warranty period of the cylinder.
Caleffi Valves (excluding any 3rd party valves)
5 YEARS FREE PARTS and LABOUR costs to replace or repair any valve that fails due to manufacturing defect.
Protank Element Only; 12 MONTHS FREE PARTS and LABOUR costs to replace or repair the element if it fails due to manufacturing defect.
Commercial Applications Warranty
Any installation not considered to be a single residential domestic type.
Protank and Caleffi Valves Excluding Element
5 YEARS FREE PARTS and LABOUR costs to replace or repair the cylinder or valves if failure is due to a manufacturing defect.
Protank Element Only;
12 MONTHS FREE PARTS and LABOUR costs to replace or repair the element if it fails due to manufacturing defect. Refer to full terms, conditions, and exclusions in the installation/owner manual
waterware.co.nz
[email protected]
ph +64 9 273 9191
