6L80-VBPLUGS
Valve Body Bore End Plugs
Fits: 6L45, 6L50, 6L80, 6L90 2007-on
Instructions
6L Series Valve Body End Plugs
Corrects/Prevents/Reduces Pressure loss due to end plug wear at the clutch solenoid oil circuits, burnt clutches, and common shift complaints.

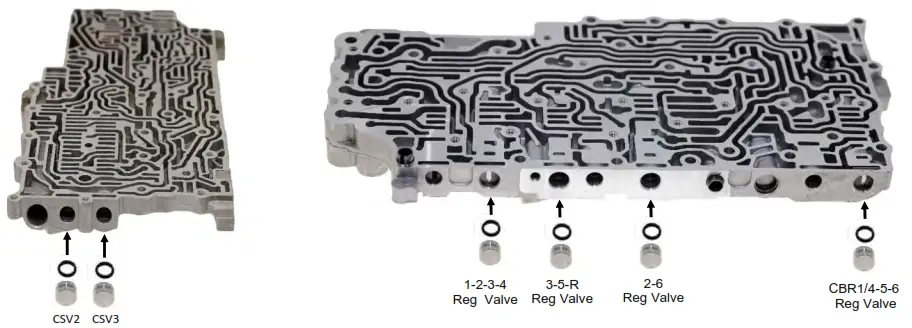

Step 1. Remove and discard the following (6) end plugs:
- 1-2-3-4 Reg valve end plug
- 3-5-R Reg valve end plug
- 4-5-6 Reg valve end plug
- 2-6 Reg valve end plug
- CSV2 Valve end plug
- CSV3 Valve end plug
Step 2. Install O-rings on new end plugs and install them into the bore.
