Sealey Vs8623 Service Reset Tool With Oil Degradation Function Instructions

SEALEY VS8623 Service Reset Tool with Oil Degradation Function

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.

TECHNICAL HELPLINE NO. 01284 757505
Please register your product with Sealey by completing the registration form on-line at www.sealey.co.uk
Navigate to Register Product. By registering your product you can take advantage of Sealey product and technical updates via email.

SAFETY

WARNING! Wear appropriate Personal Protective Equipment. A full range of Personal Protective Equipment is available from your Sealey dealer.
WARNING! Ensure that Health & Safety, Local Authority Regulations and general workshop practice Regulations are adhered to when using tools.

• DO NOT use tools if damaged.
• Maintain tools to ensure that they are in an adequate condition for safe use and optimum performance.
• Ensure that a vehicle that has been raised by a jack is adequately supported. Use axle stands.
• Wear suitable clothing to avoid snagging. DO NOT wear jewellery. Tie back long hair.
• Account for all tools, parts and components being used. DO NOT leave these in or near the engine. Return tools to suitable storage after use.
• When not in use, store in a safe, dry childproof place.
• Keep children and unauthorised persons away from the work area.
  IMPORTANT! These instructions are provided as a guide only. Always refer to the vehicle manufacturer’s service instructions or a proprietary manual to establish the correct procedure and data.
• WARNING! The warnings, cautions and instructions in this manual cannot cover all possible conditions and situations. The Operator / user must apply caution and common sense (good practical sense).

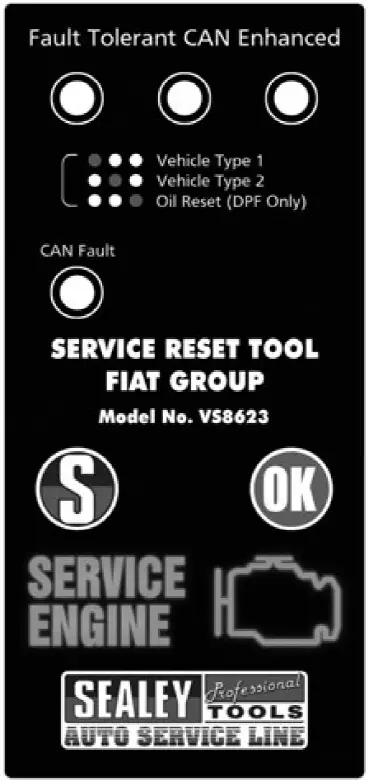

INTRODUCTION

Alfa Romeo, Fiat and Lancia oil service and oil degradation reset tool. Compatible with the latest Fault Tolerant CAN vehicles. Designed to extinguish the oil service light and to show if there is a fault on the CAN bus which is a common problem with some vehicles.

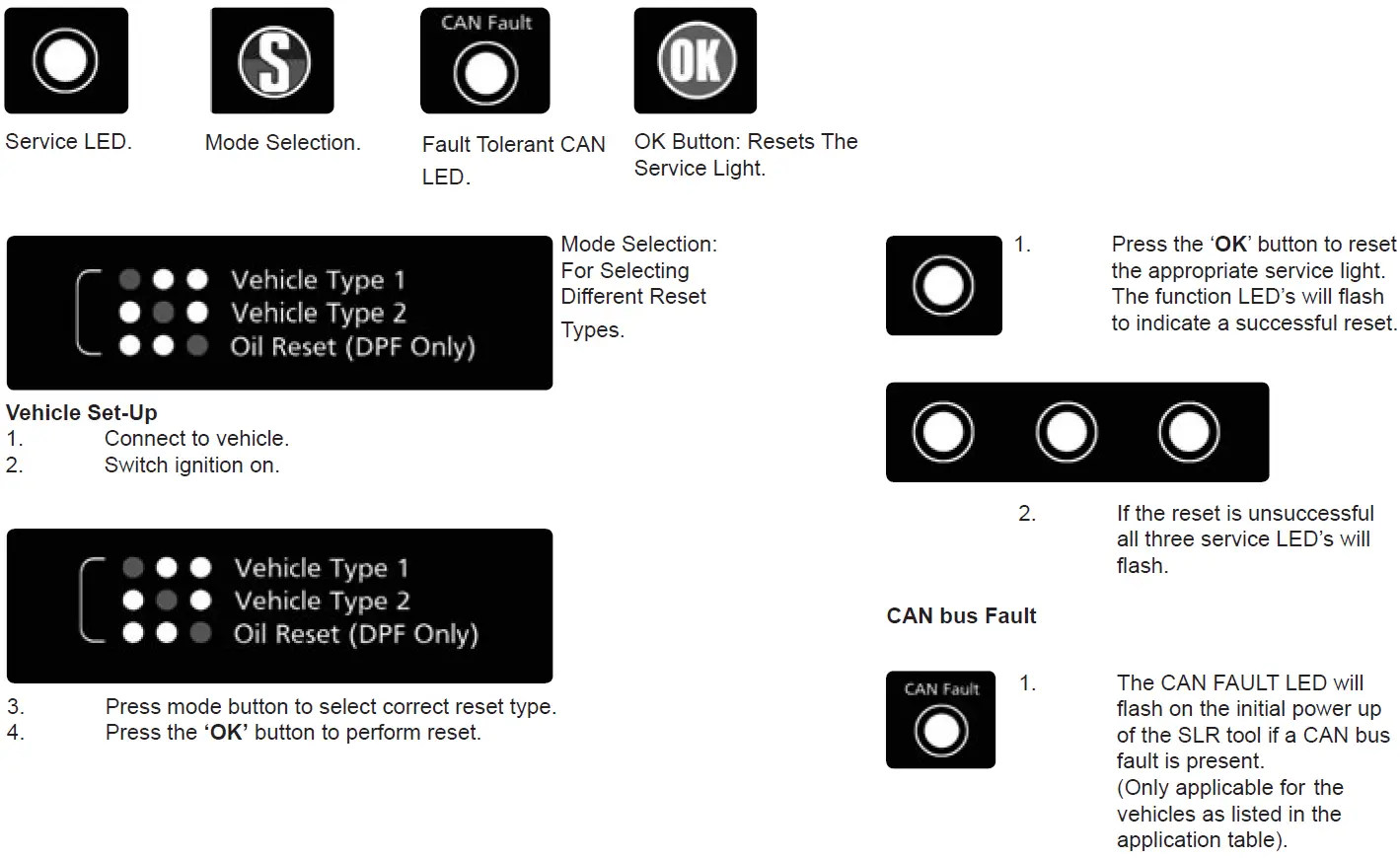

OPERATION

• Compatible with latest Fault Tolerant CAN vehicles.
• CAN BUS Fault indicator.
  The new FIAT service reset tool has been designed to extinguish service lights for the latest FIAT Fault Tolerant CAN vehicles.
  In addition to service reset, the tool has been designed to display a warning lamp when a fault on the CAN bus is present, thus serving as a useful diagnostic aid for all vehicle systems.

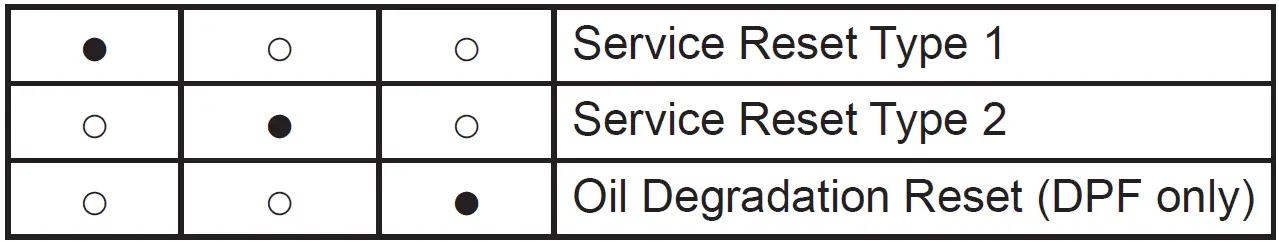

  Service Reset Type 1 – Will reset the service dependent on the service schedule for vehicles labelled Type 1.
  Service Reset Type 2 – Will reset the service dependent on the service schedule for vehicles labelled Type 2.
  Oil Light Reset – Resets the Oil Degradation indicator. Only on models with Diesel Particulate Filter (DPF).
  The ’CAN FAULT’ LED will flash on initial power up of the SLR tool if a CAN Bus fault is present.

Vehicle Set-Up.

1. Connect to vehicle.
2. Switch ignition on.
3. Press mode button to select correct reset type.
4. Press the ‘OK’ button to perform reset.

APPLICATIONS

Environmental Protection
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to a recycling centre and disposed of in a manner which is compatible with the environment.
When the product becomes completely unserviceable and requires disposal, drain off any fluids (if applicable) into approved containers and dispose of the product and the fluids according to local regulations.

WEEE Regulations
Dispose of this product at the end of its working life in compliance with the EU Directive on
Waste Electrical and Electronic Equipment (WEEE). When the product is no longer required, it must be disposed of in an environmentally protective way. Contact your local solid waste authority for recycling information.

NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice. IMPORTANT: No liability is accepted for incorrect use of this product.
WARRANTY: Guarantee is 12 months from purchase date, proof of which will be required for any claim.

Sole UK Distributor, Sealey Group, Kempson Way, Suffolk Business Park, Bury St. Edmunds, Suffolk,
IP32 7AR
01284 757500
01284 703534
www.sealey.co.uk
[email protected]

© Jack Sealey Limited Original Language Version VS8623 Issue: 2(I) – 21/11/14
