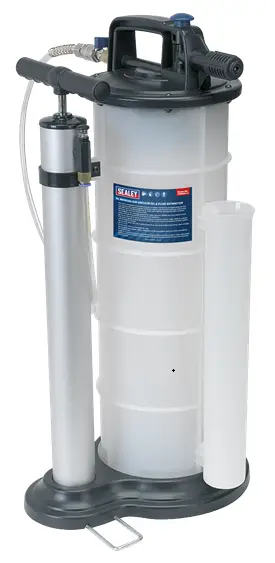

SEALEY TP6904.V2 9L Manual Air Vacuum Oil and Fluid Extractor
Parts
NOTE:
It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice. There may be alternative versions of this product, please contact us should you require this information.
IMPORTANT:
No liability is accepted for incorrect use of the product. Spare parts must be fitted by a competent person
WARRANTY:
The guarantee is 12 months from the purchase date, proof of which will be required for any claim.

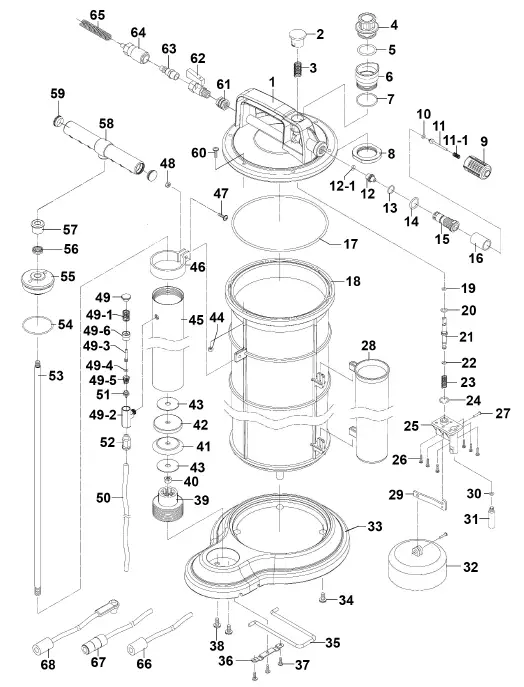

Parts Information
| Item | Part No. | Description | Item | Part No. | Description | ||
| 1 | TP6903.V2-01 | Cover Housing | 38 | SS816.S | Hex Head Set Screw M8 X 16 Zinc | ||
| 2 | TP6903.V2-02 | Push Button | 39 | TP6901.V2-39 | Aluminum Tube Base | ||
| 3 | TP6903.V2-03 | Spring Dia 12.9mm | 40 | SN8.S | Steel Nut M8 Zinc | ||
| 4 | TP6904.V2-04 | Fluid Inlet Coupler | 41 | TP6901.V2-35 | Piston | ||
| 5 | TP6901.V2-05 | O-Ring, (Ex: 29.26 In: 26.64 Cs: 2.62) | 42 | TP6901.V2-34 | Piston Spacer | ||
| 6 | TP6901.V2-06 | Fluid Outlet Housing | 43 | TP6901.V2-33 | Flat Washer M8x40 Black | ||
| 7 | TP6901.V2-07 | O-Ring, (Ex: 28.71 In: 25.15 Cs: 1.54) | 44 | SN5.S | Steel Nut M5 Zinc | ||
| 8 | TP6901.V2-08 | Lock Nut | 45 | TP6904.V2-45 | Aluminium Tube | ||
| 9 | TP6904.V2-09 | Muffler Body | 46 | TP6901.V2-37 | Holder | ||
| 10 | SA401.03 | O-Ring, (Ex: 6.46 In: 2.90 Cs: 1.78) | 47 | TP6901.V2-40 | Screw M5x16mm | ||
| 11 | TP6904.V2-11 | Adjustable Screw (C/w Spring Dia 5.9mm) | 48 | SN5.S | Steel Nut M5 Zinc | ||
| 11-1 | TP6904.V2-11A | Spring Dia 5.9mm | 49 | TP6901.V2-02 | Release Button | ||
| 12 | TP6903.V2-12 | Vacuum Valve | 49-1 | TP6901.V2-03 | Spring Dia 11.8mm | ||
| 12-1 | TP6903.V2-11 | O-Ring, (Ex: 8.51 In: 5.45 Cs: 1.53) | 49-2 | TP6904.V2-49B | Check Valve | ||
| 13 | TP6903.V2-13 | O-Ring, (Ex: 15.20 In: 11.14 Cs: 2.03) | 49-3 | TP6901.V2-10 | Shaft | ||
| 14 | VS3900.03 | O-Ring, (Ex: 17.56 In: 14 Cs: 1.78) | 49-4 | TP6904.V2-49D | O-Ring | ||
| 15 | TP6903.V2-15 | Vacuum Body | 49-5 | TP6901.V2-11 | Spring Conical | ||
| 16 | TP6904.V2-16 | Muffler Insert | 49-6 | TP6901.V2-09 | Locking Bushing | ||
| 17 | TP6901.V2-17 | O-Ring, (Ex: 159.05 In: 151.99 Cs: 3.53) | 50 | TP6904.V2-50 | Air Tube | ||
| 18 | TP6901.V2-18 | Reservoir Tank | 51 | TP6901.V2-12 | Check Valve | ||
| 19 | SA912.V2-04 | O-Ring, (Ex: 7.24 In: 3.68 Cs: 1.78) | 52 | TP6904.V2-52 | Quick Coupler | ||
| 20 | SA802.23 | O-Ring, (Ex: 9.63 In: 6.07 Cs: 1.78) | 53 | TP6901.V2-30 | Shaft | ||
| 21 | TP6903.V2-21 | Shaft | 54 | SA401.47 | O-Ring, (Ex: 50.91 In: 47.35 Cs: 1.78) | ||
| 22 | SA912.V2-04 | O-Ring, (Ex: 7.24 In: 3.68 Cs: 1.78) | 55 | TP6904.V2-55 | Aluminium Tube Cover | ||
| 23 | TP6903.V2-23 | Spring Dia 11.2mm | 56 | TP6901.V2-31 | Oil Seal | ||
| 24 | VS3900.03 | O-Ring, (Ex: 17.56 In: 14 Cs: 1.78) | 57 | TP6901.V2-32 | Holder | ||
| 25 | TP6903.V2-25 | Safety Valve Housing | 58 | TP6901.V2-42 | Handle | ||
| 26 | TP6901.V2-20 | Screw 3.8x10mm | 59 | TP6901.V2-43 | Cap | ||
| 27 | TP6901.V2-19 | Pin | 60 | MSP520.SB | Machine Screw Pan Head Phillips M5x20mm Black | ||
| 28 | TP6901.V2-22 | Tube Storage Unit | |||||
| 61 | TP6903.V2-01A | Insert Nut | |||||
| 29 | TP6903.V2-29 | Arm | |||||
| 62 | TP6903.V2-09 | Air Valve | |||||
| 30 | SA77S.V4-19 | O-Ring, (Ex: 8.03 In: 4.47 Cs: 1.78) | |||||
| 63 | TP6904.V2-63 | Nipple Ass’y | |||||
| 31 | TP6903.V2-31 | Safety Cup | |||||
| 64 | TP6904.V2-64 | Coupler | |||||
| 32 | TP6901.V2-21 | Float | |||||
| 65 | TP6904.V2-65 | Spring | |||||
| 33 | TP6901.V2-23 | Base | |||||
| 66 | TP6901.V2-45 | Main Suction Tube (C/w Adaptor)10mm x 1120mm | |||||
| 34 | TP6901.V2-24 | Rd Head S/T Screw M6 X 15 | |||||
| 35 | TP6901.V2-25 | Footboard | |||||
| 67 | TP6901.V2-46 | Extracting Tube (C/w Adaptor) 6mm x 1120mm | |||||
| 36 | TP6901.V2-26 | Fixed Strip | |||||
| 68 | TP6903.V2-37 | Brake Tube (c/w Rubber Fitting) | |||||
| 37 | TP6901.V2-27 | Rd Head S/T Screw M3.6 X 10 | |||||
