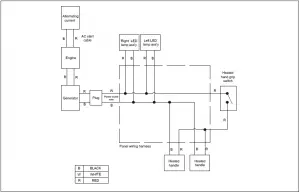

Yardworks 060-1314-4 Snowblower Instructions

#

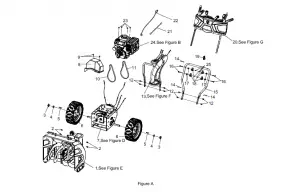

Part Number

Description

Qty.

1

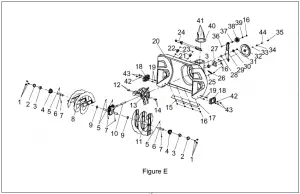

Figure E

Auger Assembly

1

2

30133020025000

Flange Triangle Self-tapping Screw, M10 × 18,  White Zinc

4

3

23012000105000A

Quick Clip, T=1 mm, Black

2

4

2301300006A

Wheel Shaft Washer, T=2, 16.2 × 36, Black

2

5

31013020015000

Thin Flat Key, B4 × 6 × 32, 45#, Black

2

6

2301600009B

Wheel Assembly, 15 × 5, Airless, Rubber

2

7

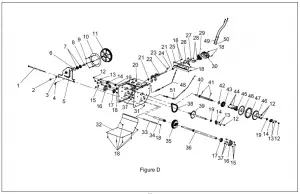

Figure D

Drivetrain Assembly

1

8

23041000530301A

Belt Protection Cover, Black

1

9

23033000485000A

Flange Triangle Self-tapping Screw, M6 × 16, White  Zinc

2

10

23016000135000A

Auger Belt Gates 5LXA935E (L × W × H = 935 ×  16.6 × 8.2)

1

11

2303600007A

Drive Belt Megadyne HTD 840-5M15

(L × W = 840 × 15 / Pitch = 5 mm)

1

12

30133020035000

Flange Triangle Self-tapping Bolt, M8 × 16, White  Zinc

8

13

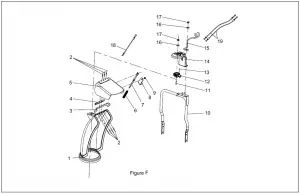

Figure F

Chute Assembly

1

14

2309900012

Nylon Cable Tie, 2.5×200

3

15

23062000780265B

Lower Handle, Black

1

16

30913090085000

Half-Round Head Square Neck Bolt, M8 × 50, Blue  White Zinc

4

17

21061000110301A

Curved Washer

4

18

21061000400301A

Rotating Knob, Black

4

19

23061000490301A

Cord Clamp, Black

1

20

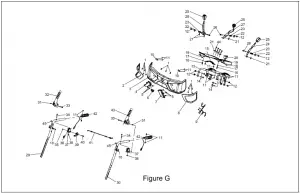

Figure G

Handle Assembly

1

#

Part Number

Description

Qty.

21

23089000025000A

Power Outlet Wire

1

22

23089000035000A

AC Start Line, 1830 mm

1

23

30323060035000

Flange Locking Nut, M8, Hexagon, Blue White Zinc

4

24

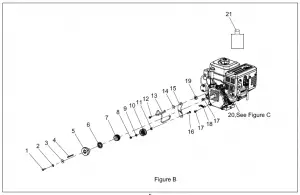

Figure B

Engine Assembly

1

25

30313060025000

Hexagon Nut, M8, Blue White Zinc

4

#

Part Number

Description

Qty.

1

30913040085000

Hexagon Bolt, M8 × 35, Blue White Zinc

1

2

3052301002

Spring Washer, Ø8, Black Zinc

1

3

23032000335000A

Thickened Big Washer, Ø8.2 × Ø30 × 3.7, White  Zinc

1

4

31013010065000

Flat Key, B4.7 × 4.7 × 70, Black

1

5

23033000415000A

Small Belt Pulley, Ø69.5 × 48, Black

1

6

23034000525000A

Small Synchronous Pulley Cover,

19 × 50 × 5.8

1

7

23034000075000A

Small Synchronous Pulley

1

8

30323060035000

Flange Locking Nut, M8, Hexagon, Blue White Zinc

1

9

23034000565000A

Shaft Sheath (Thin), Small Tension Pulley,  18 × 6

1

10

23034000665000A

Small Tension Pulley, Ø55 × 22.6

1

11

23034000575000A

Shaft Sheath, Small Tension Pulley, 18 × 16.5

1

12

23093000205000A

Hexagon Bolt, 30 mm, 5/16″ (24UNF-2A), White  Zinc

1

13

23033000075008B

Belt Lever, Ø6

1

14

30512050025000

Big Washer, Ø8, Blue White Zinc

1

15

23032001175000A

Small Tensioning Plate, T=3, 108.5 × 46.7, Black

1

16

30933010015000

Small Carriage Bolt, M8 × 40, Blue White Zinc

1

17

23093000175000A

Hexagon Flange Bolt, 20 mm, 5/16″ (24UNF-2A),  Black Zinc

2

18

2309800001A

Small Tension Pulley Spring,

Ø1.5 × Ø11.5 × 56.5, White Zinc

1

19

23034000595000A

Small Tensioning Plate Cushion, 308 × 8

1

20

2030100311A

Engine, R225S, 224CC

1

21

2309900008

Engine Oil

1

#

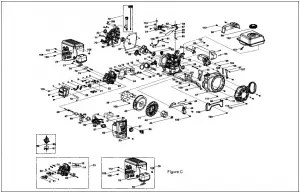

Part Number

Description

Qty.

1

12410-Z300120-0100

Cylinder Head Cover Subassembly, Blue White  Zinc

1

2

12004-Z010110-0001

Cylinder Head Cover Gasket

1

3

14314-Z010110-0000

Valve Adjusting Nut

2

4

14311-Z010110-0000

Valve Rocker

2

5

14313-Z010110-0000

Valve Adjusting Bolt

2

6

12003-Z010110-0000

Cylinder Head Bolt, M8 × 60, Blue White Zinc

4

7

12109-Z810110-0000

Valve Lock Clamp

4

8

12103-Z010110-0000

Valve Spring

2

9

12101-Z810210-0000

Seal Guide

1

10

30010-Z010110-0000

Spark Plug, F6RTC

1

11

12131-Z950110-00A0

Cylinder Head Gasket

1

12

12110-Z810120-0099

Valves Set

1

13

12121-Z810120-0000

Exhaust Valve

1

14

12111-Z810110-0000

Inlet Valve

1

15

13200-Z140210-00A9

Piston Rings Set

1

16

13122-Z510210-0000

Piston Pin Clip

2

17

13010-Z810210-00A0

Connecting Rod

1

18

90001-0632-0101

Hexagon Flange Bolt, M6 × 32, Blue White Zinc

1

19

17004-Z1S0111-0001

Breather Tube

1

20

14312-Z010110-0000

Valve Lock Nut

2

21

14090-Z010110-0000

Lifter Stopper Plate Subassembly, Blue White  Zinc

1

22

12112-Z810210-0000

Valve Spring Retainer

2

23

12140-Z810410-0BA0

Cylinder Head Subassembly

1

24

90502-1114-00

Pin, 11 × 14

2

25

14071-Z440110-0000

Valve Rod

2

26

14081-Z040110-0000

Valve Lifter

2

27

28

13111-Z810120-00A0

13121-Z810110-0000

Piston

Piston Pin, Ø13 × Ø45.9

1

1

#

Part Number

Description

Qty.

29

11310-Z1S0110-0BA0

Crankcase Subassembly

1

30

90682-Z1S0110-0001

Oil Seal, Ø25 × Ø41.25 × 6

2

31

90204-Z520110-0001

Stud, M6 × 92.8

1

32

19340-Z330110-0000

Lower Shield, Blue White Zinc

1

33

11011-Z1S0310-0100

Oil Drain Tube

1

34

90408-Z010510-0000

Washer, Ø10 × Ø15.8 × 1.5

1

35

11007-Z010110-0001

Drain Plug Bolt, M10 × 1.25 × 15, Blue White  Zinc

1

36

19304-Z010710-00A1

Cylinder Body Shroud, Blue White Zinc

1

37

28110-Z1S0210-HL00

Shroud

1

38

28200-Z1S0210-HL00

Recoil Starter Assembly

1

39

30140-Z051810-0001

Charging Coil

1

40

13510-Z050210-0000

Flywheel Subassembly

1

41

19352-Z010110-00A0

Impeller

1

42

28002-Z0L0110-0000

Starter Pulley, Blue White Zinc

1

43

13501-Z010110-0000

Flywheel Nut, M14 × 1.5, Blue White Zinc

1

44

30423-Z1S0210-00A0

Ignition Coil Stop Engine Wire

1

45

30400-Z330110-0001

Ignition Coil

1

46

90207-Z330120-0101

Stud, M6 × 105, Blue White Zinc

2

47

16002-Z050110-0000

Carburetor Insulator Gasket

1

48

16003-Z010110-0001

Carburetor Insulator Plate

1

49

16001-Z010110-0000

Carburetor Gasket

1

50

16100-Z1S0210-R901

Carburetor Assembly

1

51

17001-Z010210-0000

Air Cleaner Gasket

1

52

17100-Z1S0210-0001

Air Cleaner

1

53

90314-Z130210-0501

Nut, M6 × 17, Chrome Plated

2

54

30431-Z010110-0000

Rubber Jacket, Ø9.5 × Ø11 × 90, Black

1

55

90686-Z010710-0001

Fuel Pipe, Ø4.5 × Ø8.5 × 160

1

56

90740-Z010210-0001

Clamp, Ø7.5, Blue White Zinc

2

57

16210-Z330310-0001

Primer Bulb

1

#

Part Number

Description

Qty.

58

35540-Z1A0110-0000

Stop Engine Switch Subassembly

1

59

16112-Z010110-0000

Seal Ring, Float

1

60

16161-Z151310-0000

Main Jet, Standard

1

16161-Z151110-0000

Main Jet, Altitude 3000-6000 feet

/

16161-Z150910-0000

Main Jet, Altitude 6000-8000 feet

/

61

90681-Z010710-0000

Seal Ring

1

62

16400-Z810210-0000

Governor Gear Assembly

1

63

90547-0205-00

Bearing, 6205 P53

2

64

37060-Z010120-0001

Engine oil Sensor, W/O Nut

1

65

14200-Z1S0110-0009

Camshaft Assembly

1

66

13300-Z1S0110-0000

Crankshaft Assembly

1

67

11001-Z330120-0000

Crankcase Gasket

1

68

90502-0812-00

Pin, 8 × 12

2

69

11411-Z1S0110-0B00

Crankcase Cover

1

70

15030-Z010130-L400

Engine Oil Plug Subassembly

1

71

90001-0832-0101

Hexagon Flange Bolt, M8 × 32, Blue White Zinc

6

72

15010-Z1S0111-L400

Oil Dipstick Subassembly

1

73

CMP-QGT-003

Cylinder Head Assembly Kit

1

74

90203-Z010110-0301

Stud, M8 × 34

2

75

18001-Z010110-00A0

Exhaust Outlet Gasket

1

76

18100-Z1S0110-0000

Muffler Assembly

1

77

90303-0800-3101

Hexagon Flange Nut, M8, Blue White Zinc

2

78

18140-Z1S0410-HL00

Scald Resistant Cover

1

79

CMP-XSQ-004

Muffler Assembly Kit

1

80

90684-Z030210-0000

Clip

1

81

16520-Z1S0110-R902

Throttle Control Assembly, Blue White Zinc

1

82

16072-Z010110-0001

Governor Support Bolt, M6 × 21, Blue White Zinc

1

83

16063-Z1S0110-0101

Spring, Governor, Ø6 × Ø0.8 × 127, Blue White  Zinc

1

84

16062-Z010110-0001

Governor Rod, Blue White Zinc

1

85

16012-Z010110-0000

Throttle Valve Returning Spring

1

86

90305-0600-3101

Hexagon Flange Nut, M6, Blue White Zinc

3

#

Part Number

Description

Qty.

87

16070-Z010110-0001

Governor Support Subassembly, Blue White Zinc

1

88

90501-Z010110-0001

Pin, Blue White Zinc

1

89

90408-Z010210-0000

Washer, Ø6.2 × Ø15 × 0.6

1

90

16061-Z010110-0000

Governor Arm

1

91

90305-Z010210-0101

Hexagon Flange Nut, M10, Blue White Zinc

1

92

30360-Z330110-H301

Support Control Box Subassembly

1

93

30300-Z1S0110-0001

Starting Motor Assembly

1

94

90103-0455-5301

Screw, M4 × 55, Black Zinc

2

95

90502-0810-00

Pin, 8 x 10

2

96

90684-Z030120-00A0

Clip

1

97

37050-Z010210-0001

Oil Protector, Blue White Zinc

1

98

16667-Z330110-0001

Fuel Tank Decorated Plate

1

99

16730-Z1S0110-Q201

Fuel Tank Cover

1

100

16620-Z1S0110-HL03

Fuel Tank

1

101

16680-Z010110-0001

Fuel Tank Oil Outlet Subassembly

1

102

80057-Z1S0110-0001

Front Snow Guard

1

103

90314-0600-B101

Nut, M6, Blue White Zinc

1

104

90001-0635-01

Hexagon Flange Bolt, M6 × 35, Blue White Zinc

1

105

90001-0625-01

Hexagon Flange Bolt, M6 × 25, Blue White Zinc

5

106

90001-0614-0101

Hexagon Flange Bolt, M6 × 14, Blue White Zinc

5

107

90001-0514-0101

Hexagon Flange Bolt, M5 × 14, Blue White Zinc

1

108

90001-0616-0109

Hexagon Flange Bolt, M6 × 16, Blue White Zinc

1

109

90001-0610-0101

Hexagon Flange Bolt, M6 × 10, Blue White Zinc

1

110

90001-0612-0101

Hexagon Flange Bolt, M6 × 12, Blue White Zinc

9

111

90007-0612-A102

Hexagon Flange Bolt, M6 × 12, Blue White Zinc

6

112

90001-0816-0109

Hexagon Flange Bolt, M8 × 16, Blue White Zinc

1

113

90408-0600-E1

Washer

3

114

90001-0608-01

Hexagon Flange Bolt, M6 × 8, Blue White Zinc

3

#

Part Number

Description

Qty.

1

23033000385000A

Housing Connecting Shaft 2, 10 × 320, Black

1

2

30313090015000

Hexagon Locking Nut, M12, White Zinc

1

3

30512040015000

Flat Washer, 12, d14 × D24 × t2.6, Blue White Zinc

1

4

23038000125000C

Extension Spring, Ø8.5 × 44.9, 65Mn

1

5

23035000395000A

Friction Disc Bracket, T=2.5, 279 × 220.5, Black

1

6

30413010015000

Elastic Circlips, 40, Black

1

7

30613010075000

Bearing, 6203RS

2

8

23033000395000A

Large Synchronous Pulley Shaft, M12 × 44.2,  Black

1

9

30213010015000

Cross Recessed Countersunk Head Screw, M5 ×  12, Blue White Zinc

6

10

23032000795000A

Large Synchronous Pulley Side Plate, 197 × 8

1

11

23034000505000A

Large Synchronous Pulley, 197 × 21

1

12

30323060035000

Flange Locking Nut, M8, Hexagon, Blue White Zinc

7

13

30133020035000

Flange Triangle Self-tapping Screw, M8 × 16,  White Zinc

8

14

23052000205000A

Bearing Support, T=1.5, White Zinc

4

15

30313090035000

Hexagon Locking Nut, M6, Blue White Zinc

6

16

23052000105000A

Pressing Plate, Bearing, T=1.5 mm

2

17

A26800409101

Bearing, Ø25.4 × Ø52 × 15

2

18

23033000485000A

Flange Triangle Self-tapping Screw, M6 × 16,  White Zinc

14

19

3061301012

Bearing, Ø12 × Ø28 × 7

4

20

23035000290027B

Housing Assembly, 355 × 285 × 269

1

21

23031000210001A

Shift Fork Rod Bushing, PA6+GF30

2

22

23032000655000A

Gear Shift Fork Assembly, 267.5 × 134, White Zinc

1

23

23093000055000A

R Type Plug Pin, 2 × 26.2 × 7.9, White Zinc

1

24

30813010025000

Open Pin, 2 × 20,White Zinc

1

25

23032000590027A

Housing Fixed Plate, 282 × 85

1

26

23041000040001A

Waterproof Sheet, PA6+GF30, Black

1

#

Part Number

Description

Qty.

27

23032000615000B

Speed Adjustment Cable Support, T=3, 146.4 ×  45.5

1

28

A26800307801

Self-tapping Locking Screw, Trigonodont, M6 ×  12, Blue White Zinc

2

29

23061000470001A

Shift Fork Steering Unit, PA6+GF30

1

30

23041000520301A

Shift Fork Cover, HDPE

1

31

22698000065000A

B Pin, White Zinc

1

32

23032000510027A

Big Bottom Plate, 6 × 280 × 188

1

33

23063000455000A

Gear Box Locking Lever, 10 × 280, Zinc, Blue  White

1

34

2306200104A

Wheel Shaft Bushing Assembly, 180 × 25

1

35

23013000105000A

GT Differential Mechanism

1

36

2301300007A

Wheel Shaft, 591.4 × Ø17

1

37

30913050015000

Hexagon Flange Bolt, M6 × 12, Blue White Zinc

6

38

31119010015000

Chain, 085-1-32

1

39

23065000015000B

Sprocket Shaft Welded Assembly

1

40

23033000365000B

Wheeled Six Party Shaft, 19 × 323, 40Cr, Black

1

41

30823040015000

Elastic Column Pin, 3 × 30, Black

2

42

30423010065000

Shaft Elastic Circlip, 35, Black

1

43

2303200062A

Shifting Fork Riveting, 101 × 75 × 17

1

44

A26800600601

Hexagon Bolt, M8 x 22, Black Zinc

3

45

23032000965000B

Wheeled Six Party Sleeve, 35 × 42

1

46

23032000665000A

Friction Wheel Clamp, T=2, 136.5 × 10.2, White  Zinc

2

47

23036000225000A

Friction Wheel Rubber Ring, 147 × 17.2

1

48

23068000315000A

Driving Cable

1

49

2306800008B

Speed Adjustment Cable

1

50

2306800033A

Speed Adjustment Cable, 760 mm

1

51

23068000305000A

Auger Cable

1

#

Part Number

Description

Qty.

1

30913070185000

Hexagon Flange Bolt, M8 × 20, Blue White Zinc

6

2

2309100006A

Spherical Bearing Sheath

2

3

30693010055000

Outer Spherical Ball Bearing, 47 × 20 × 31

3

4

2309400003A

Spherical Bearing Support

2

5

23093000195000B

B Pin, White Zinc

4

6

23053000245000A

Auger Connecting Shaft, 100 × 25.4, Black

2

7

23053000055000A

Shear Pin, Ø8 × 42.5, Blue White Zinc

4

8

23055000190243A

Right Auger Assembly, 24″

1

9

23052000215000A

Auger Shaft Washer, 25.6 × 40 × 2

2

10

2300200033

Worm Gear Box Assembly

1

11

23055000180243A

Left Auger Assembly, 24″

1

12

30313030015000

Hexagon Locking Nut, M6, Black Zinc

2

13

23055000170243B

Fan Impeller Assembly, 35#

1

14

30223010055000

Hexagon Socket Head Cap Screw, M6 × 40,  Black Zinc

2

15

30913090015000

Half-round Head Square Neck Bolt, M8 × 16,  Blue White Zinc

4

16

30323060035000

Flange Locking Nut, M8, Hexagon, Blue White  Zinc

9

17

2303200141A

Snow Shovel Plate, 24″

1

18

23041000150243A

Skid Shoes

2

19

30913090045000

Half-round Head Square Neck Bolt, M8 × 25,  Blue White Zinc

4

20

23035000040027B

Auger Housing Assembly, 24″

1

21

30323060015000

Flange Locking Nut, M6, All Metal Hexagon,  Blue White Zinc

2

22

23092000075000A

Chute Tool Bracket, THK=1.2, 39.2 × 30.4 × 13,  White Zinc

2

23

30913090035000

Half-round Head Square Neck Bolt, M6 × 16,  Blue White Zinc

2

24

2304100024A

Chute Tool

1

#

Part Number

Description

Qty.

25

2303300002A

Bushing, Ø8 × Ø12 × 7, White Zinc

1

26

2303800001A

Tension Spring, Big Tension Pulley, White Zinc

1

27

23052000125000B

Pressing Plate, Bearing, THK=2, Ø95 × 8.5,  White Zinc

1

28

23032000675000A

Bushing, 10.5 × 35 × 1, Large Tension Board,  White Zinc

1

29

23032000635000A

Large Tension Board, 313.3 × 40, White Zinc

1

30

23034000535000A

Bushing, 35 × 6.1, Large Tension Board

1

31

A26800501201

Hexagon Locking Nut, M10, Blue White Zinc

1

32

23035000055000A

Big Auger Pulley, 14 × 189.2 × 21.5, Black

1

33

31013010015000

Flat Key, C6 × 20, Black

1

34

23032000335000A

Thickened Big Washer, Ø8.2 × Ø30 × 3.7, White  Zinc

1

35

30913040115000

Hexagon Bolt, M8 × 25, Blue White Zinc

1

36

30933010015000

Small Carriage Bolt, M8 × 40, Blue White Zinc

1

37

23034000555000A

Sheath, Large Tension Wheel

1

38

23032000105000C

Large Tension Pulley, Ø66.5 × 36.2, THK=1.5

1

39

23034000545000A

Sheath (Thin), Large Tension Wheel, 20 × 6.5

1

40

23071000230001A

Discharge Chute Antifriction Mat, Black

1

41

30733010025000

Self-plugging Rivet, 4 × 15

4

42

30512050025000

Big Washer, 8, Blue White Zinc

4

43

3031309010

Hexagon Locking Nut, M8, White Zinc

4

44

3052301002

Spring Washer, 8, Black Zinc

1

#

Part Number

Description

Qty.

1

23075000210027A

Chute Assembly, 453 × 167 × 137, Cool Gray

1

2

3073301003

Self-plugging Rivet, 4 × 10

7

3

23076000105000A

Chute Rubber

1

4

23092000205000A

Hinge, 85 × 22, White Zinc

1

5

23075000020027A

Discharge Chute Deflector

1

6

23068000185000A

Pressing Spring, Ø1.5

1

7

23073000145000A

Positioning Rod, Ø8, White Zinc

1

8

23072000105000A

Guy Wire Plate 1, T=3 mm, White Zinc

1

9

30333020025000

Cap Nut, M5, Blue White Zinc

1

10

23075000200265B

Chute Support Arm, 493 × 332 × 43

1

11

30913040175000

Hexagon Bolt, M10 × 40

1

12

23071000240001A

Chute Pivot, PA6+GF30

1

13

30823040035000

Elastic Column Pin, 1.5 × 16, Black

1

14

23072000140265B

Chute Pivot Cover, T=2.5, 181.5 × 136.5 × 118.9,  Black

1

15

23073000165000A

Chute Rotating Cable Support Rod, 208 × 58,  White Zinc

1

16

30512050045000

Big Washer, Ø10, Blue White Zinc

2

17

30313090085000

Hexagon Locking Nut, M10, Blue White Zinc

2

18

2306800007A

Discharge Chute Deflector Cable

1

19

23032000755000A

Chute Rotating Cable, 1203 mm

2

#

Part Number

Description

Qty.

1

30113010265000

Self-tapping Screw, ST4.2 × 8, Black Zinc

11

2

23041000090243A

Right Decorative Ring, ABS750SW

1

3

23041000060027A

Light Panel

1

4

2308900011A

LED Light Assembly, Right

1

5

30113010255000

Self-tapping Screw, ST4.2 × 16, Black Zinc

6

6

2304100022A

Badge, Chrome

1

7

2308900010A

LED Light Assembly, Left

1

8

23041000080243A

Left Decorative Ring

1

9

2308100003A

Panel Wiring Harness, 0.75mm2 × 100

1

10

2281100002B

Cable Pressing Plate

2

11

30113010095000

Self-tapping Screw, ST4.2 × 12, Black Zinc

14

12

30313090025000

Hexagon Locking Nut, M8, White Zinc

7

13

23065000260265A

Panel Fixed Plate Assembly, 463 × 166 × 210

1

14

30913090095000

Half-round Head Square Neck Bolt, M8 × 40, Blue  White Zinc

4

15

23062000830265A

Front Adjustment Plate,165 × 35

1

16

A26800104801

Self-tapping Screw, ST5 × 30, Blue White Zinc

2

17

30512050035000

Big Washer, 5, Blue White Zinc

2

18

30113010125000

Self-tapping Screw, ST4.8 × 12, Black Zinc

4

19

23041000070027A

Top Panel

1

20

20114000605000A

Rocker Switch, 125V, 20A

1

21

23093000195000B

B Pin, White Zinc

8

22

30512050025000

Big Washer, 8, Blue White Zinc

3

23

23068000135000B

Gear Pressing Spring, 14.5 × 33.75, White Zinc

3

24

23063000525000A

Left Adjustment Lever, T=3

1

25

23066000135000A

Handle, 41 × 41 × 63, Black

3

26

20313000995000A

Hexagon Flange Bolt, M8 × 50, Blue White Zinc

3

27

23032001045000A

Front Adjustment Lever, T=3

1

28

2306200087A

Right Adjustment Lever

1

29

23062000800265B

Right Upper Handle, 25 × 2.5

1

#

Part Number

Description

Qty.

30

23062000790265B

Left Upper Handle, 25 × 2.5

1

31

30313090055000

Hexagon Locking Nut, M5, Blue White Zinc

2

32

23062000820265A

Right Trigger, T=2, 220 × 89.5 × 42.5, Black

1

33

23063000075000A

Trigger Bolt, M5 × 45, White Zinc

2

34

30913070135000

Hexagon Flange Bolt, M6 × 55, Blue White Zinc

2

35

30423010095000

Shaft Elastic Circlip, 6, Black

1

36

23068000295000A

Self-locking Tension Spring, 1 × 28, White Zinc

1

37

23061000480301A

Handle Support Unit

2

38

30313090035000

Hexagon Locking Nut, M6, Blue White Zinc

2

39

23065000275000A

Self-locking Plate Assembly, Right Trigger, 62.5 ×  36 × 30, Black

1

40

23063000515000A

Self-locking Fixed Pin Shaft, 6 × 33, Black

1

41

23068000325000A

Self-locking Cable, 745 mm

1

42

23069000105015A

Handle, Heated, Ø34.5 × 132

2

43

23062000810265A

Left Trigger, T=2, 220 × 89.5 × 42.5, Black

1

44

23053000055000A

Shear Pin, Ø8 × 42.5, Blue White Zinc

4

45

2306600002

Silicon Tube, Ø9 × Ø12

2
