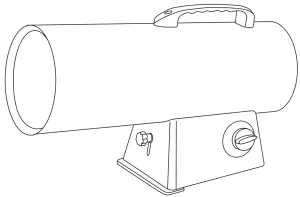

ULINE H-6512 Propane Heater 150000 BTU Instruction Manual

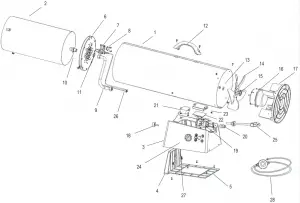

PARTS DESCRIPTION
# | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
1 | Outer Shell | 1 | ——— | 22-524-0077 |
2 | Inner Shell Assembly | 1 | ——— | 22-524-0005 |
3 | Base | 1 | ——— | 22-501-0002 |
4 | Height Controller | 1 | ——— | 22-512-0008 |
5 | Base Cover | 1 | ——— | 22-508-0002 |
6 | Inner Shell Cap | 1 | ——— | 22-505-0008 |
7 | Multi-Bracket Assembly | 1 | ——— | 22-504-0003 |
8 | Thermal Switch | 1 | ——— | 22-603-0001 |
9 | Tubing Assembly | 1 | ——— | 22-605-0003 |
10 | Nozzle | 1 | H-6512-NOZ | 22-081-0004 |
11 | Nozzle Nut | 1 | ——— | 22-518-0002 |
12 | Handle | 1 | ——— | 22-511-0004 |
13 | Flange Hex Nut | 1 | ——— | 22-518-0003 |
