Infaco E5000 12 V Battery Fixed Oil Harvester Instruction Manual

ORIGINAL INSTRUCTIONS
E5000 12 V

SAFETY INSTRUCTIONS

WARNING. Read all safety warnings and all instructions. Failure to abide by warnings and instructions could lead to an electric shock, fire and/or serious injury.
Keep all safety warnings and instructions so that you can refer to them at a later date.
The term “tool” in the warnings refers to your electrical tool running off the main supply (with a supply power cord) or your electrical battery-operated tool (without a supply power cord).

PERSONAL PROTECTIVE EQUIPMENT

	Read the user manual carefully, especially the safety instructions.
	You MUST wear a helmet, eye protection, and hearing protection.
	Hand protection, for work gloves..
	Foot protection by closed-toed shoes
	Face protection, or visor.
	Note: The extension poles are made of carbon, which conducts electricity. Do not use the extension poles near electricity supply points or electrical wires.

ENVIRONMENTAL PROTECTION

Follow the specific instructions for waste elimination in your country. Electrical appliances should not be thrown in the garbage.
The device, accessories, and packaging should be recycled. Ask your specialist INFACO retailer for the latest information on eco-compatible waste elimination.

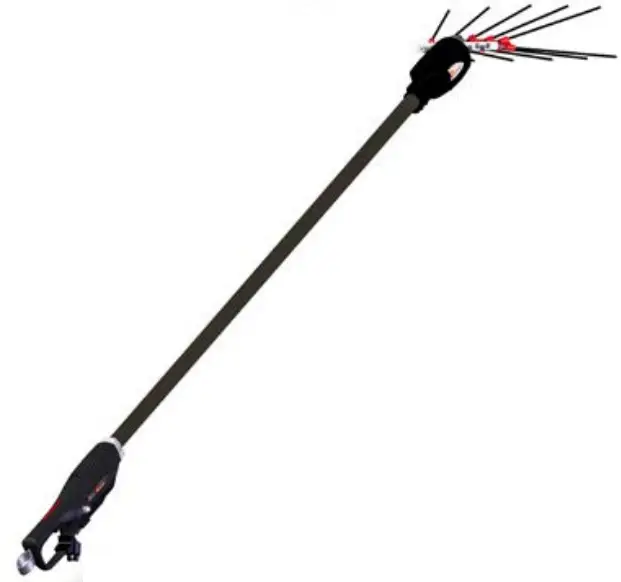

Product overview

Specifications

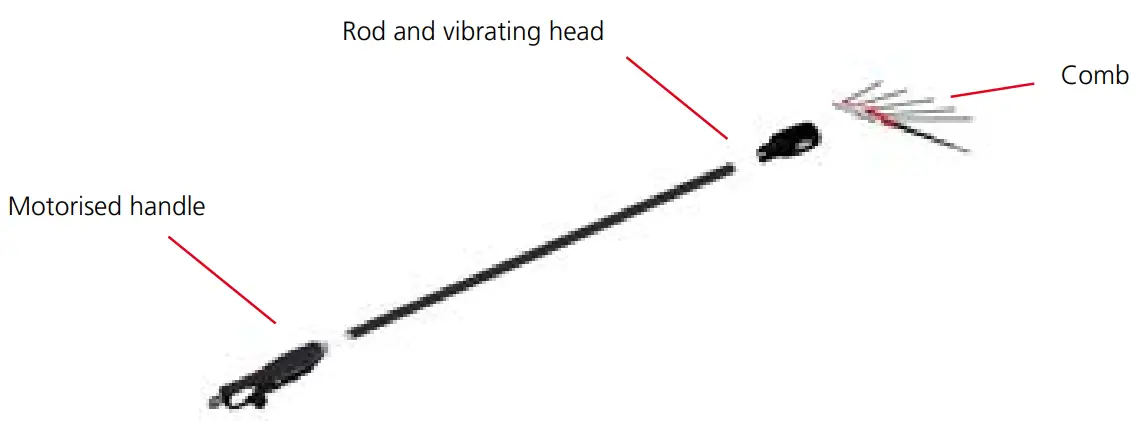

Views of the accessories :

USER GUIDE

Première mise en service
First use
The first time you use the equipment, we strongly recommend you to ask the advice of your dealer, who is qualified to give you all the advice you need for correct use and optimum performance. It is essential to carefully read the user manuals for the devices and accessories before handling or connecting the device.

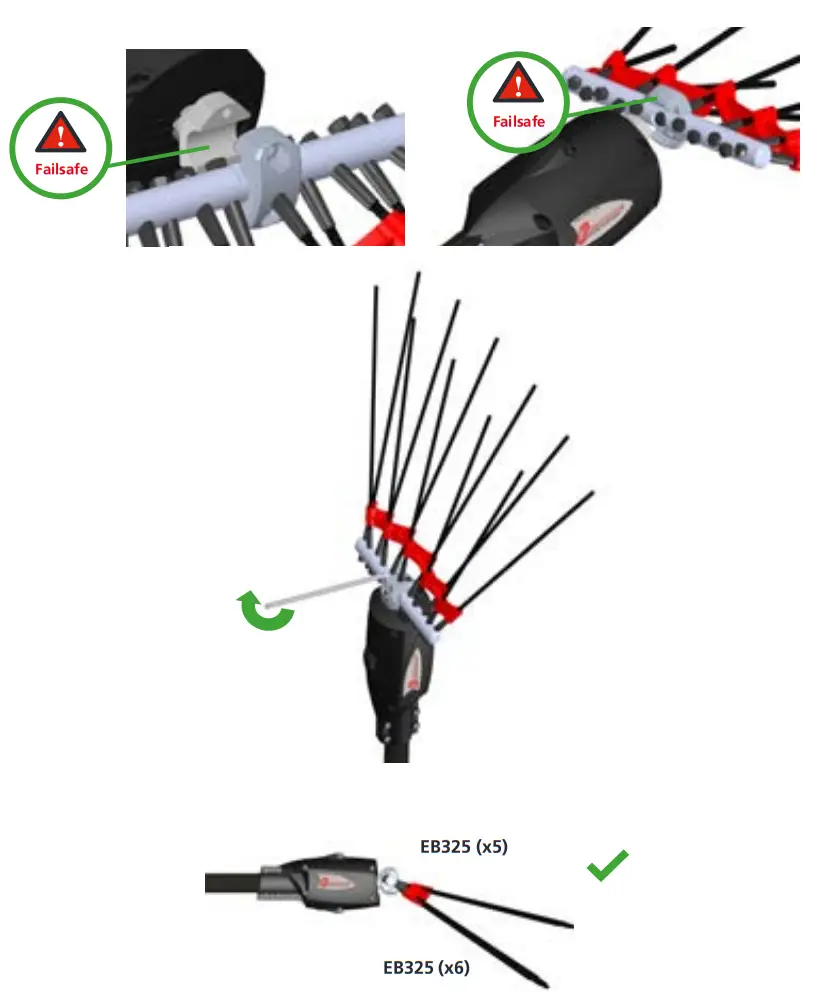

Fitting the comb

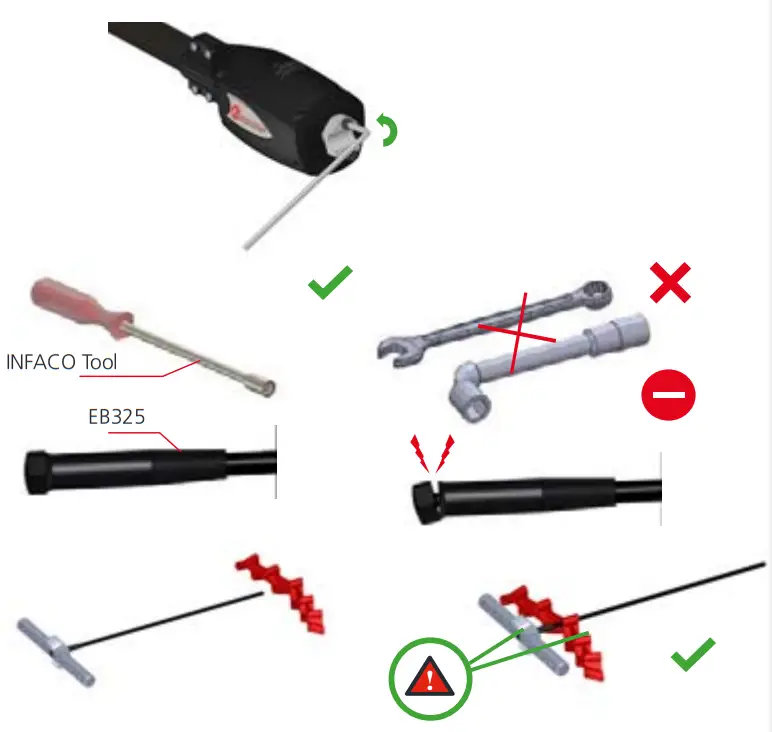

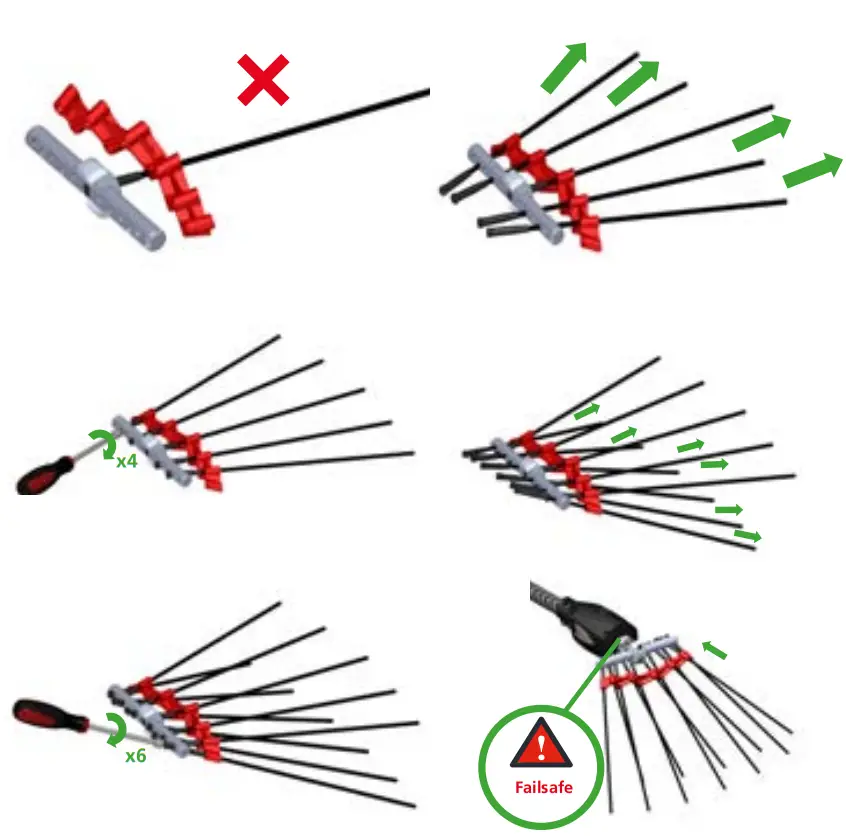

Fixing the comb

Installation and connection
It is essential to carefully read the user manuals for the devices and accessories before connecting them.
Using the machine

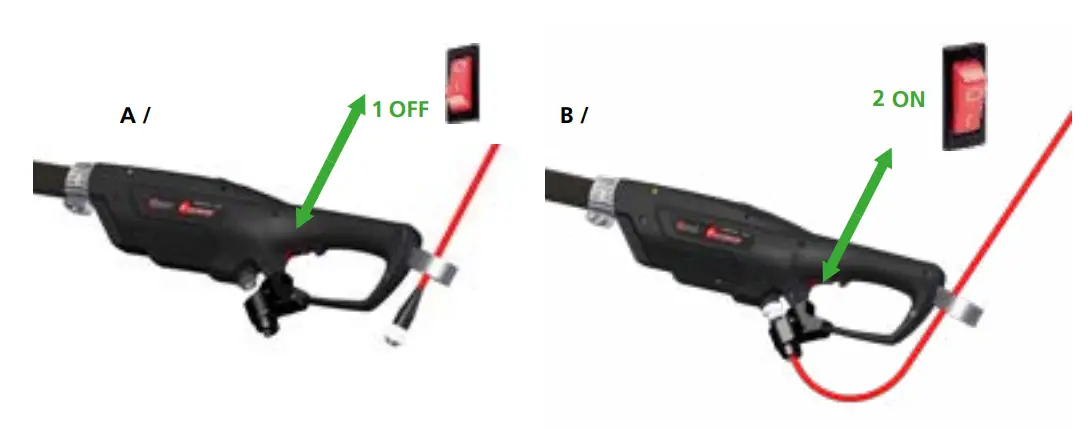

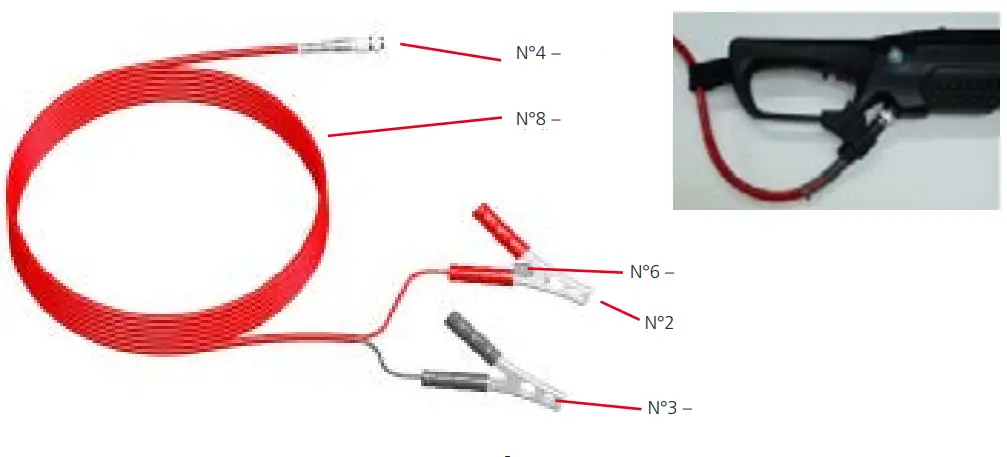

Electric connection 12v battery

Precautions for use and safety

The machine is fitted with an electronic board with thermal circuit-breaking. As soon as the head jams because of too strong resistance, the electronic board cuts the power to the motor and the red LED lights. To restart, place the switch in the “OFF” position, then switch it back to “ON”. When the motor temperature is too high, the board cuts the motor power supply. To restart, carry out the previous operation.
When the machine starts, if there is significant vibration, stop the machine immediately and check the comb fitting and tightening. If the significant vibration persists, stop the machine immediately and contact your nearest dealer.
We also recommend that you keep the machine protection packaging for possible returns to the factory for after-sales operations.
For transport, storage, servicing, machine maintenance, or any other operation not related to using the machine, it is imperative to disconnect the machine.

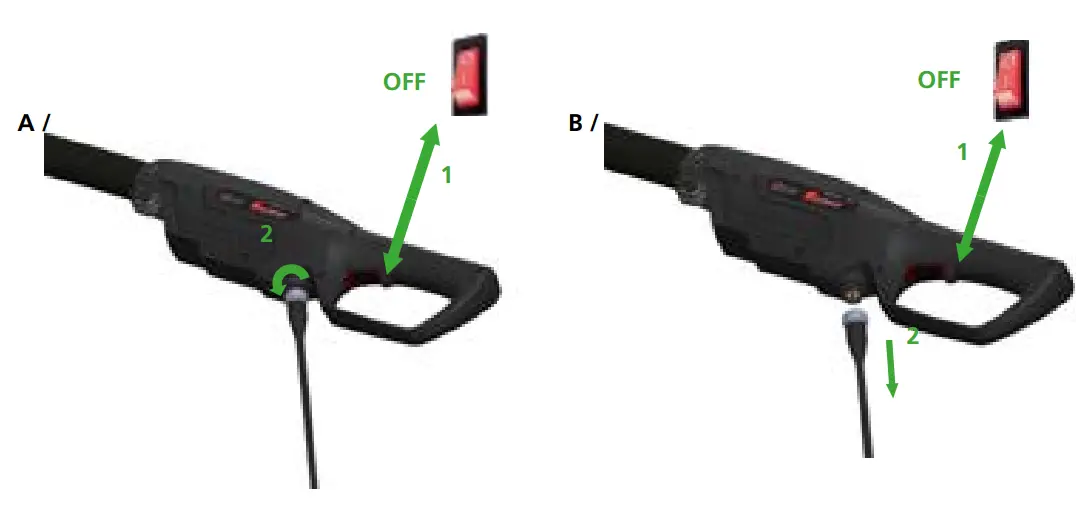

Electric connection 12v battery

Servicing AND MAINTENANCE

Lubrication
Grease the vibrating head at least once every day, in the morning before starting to work.

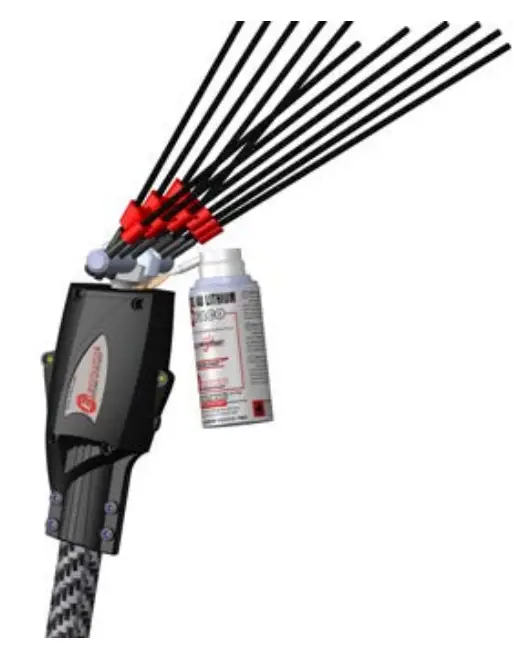

Position the spray nozzle towards the ball and socket. Hold the spray can upright and then press. Grease the vibrating head at least once per day (lubrication without removing any parts).

Safety instructions

CAUTION. In order to reduce the risk of electric shocks, injury, and fire when using electric tools, apply the fundamental safety measures given below. Read and follow these instructions before using the tool, and keep the safety instructions! For all handling other than harvesting operations, disconnect the plug. When not being used for harvesting, the ELECTRO’LIV must be stored in its packing tube and the battery holder vest must be placed in its transport case
It is imperative to disconnect the ELECTRO’LIV at the back plug level to carry out the following operations:
– Servicing.
– Recharging the battery
– Maintenance.
– Transport.
– Storage.
When the equipment is in use, always keep your hands well away from the Electro’liv head.
Do not use the machine if you are tired or feeling unwell.
Wear the specific recommended personal protection equipment for each accessory.
Keep the equipment out of the reach of children or visitors.
Do not use the equipment if there is a risk of fire or explosion, for example in the presence of inflammable liquids or gases. Never carry the charger by the cord, and do not pull on the cord to disconnect it from the socket.
Keep the cord away from heat, oil, and sharp edges.
Never use the equipment at night or in poor light without setting up additional lighting. When using the device, please keep both feet on the ground and keep as well-balanced as possible.
Caution, the rod is made from carbon, a conductor. Do not use near sources of electricity or electric wires.
Caution, carbon can cause allergic reactions, if this were to occur, get medical advice

Warranty terms and conditions

The ELECTRO’LIV E500 48V has a two-year warranty for defects and manufacturing defects. This warranty corresponds to normal use of the equipment and does not cover: – damage due to poor maintenance or lack of maintenance,
– damage due to incorrect use,
– worn parts,
– devices that have been dismantled by unauthorized repairers,
– external factors (fire, flood, lightning, etc.),
– impacts and their consequences,
– devices for which the warranty card was not returned at the time of purchase,
– devices used with a battery or charger of a brand other than INFO.
Under no circumstances shall the warranty entitle to compensation for any immobilization of the equipment during the time required for its repair. All work carried out by persons other than authorized INFACO agents will void the warranty for the equipment. In the event of a breakdown, we strongly recommend users of INFACO equipment to contact the dealer who sold them the equipment or our customer service department by dialing (+33) 05 63 33 91 49 (France).
To avoid all disputes, please note the following procedure:
– incoming equipment covered by the warranty, send it to us carriage paid and we will pay for the return,
– equipment not covered by the warranty, send it to us carriage paid and we will return it at your expense, C.O.D. If the cost of the repair were to exceed 80 excluding VAT, you will be supplied with a quote.

Advice

Keep your work area tidy.
Clutter in work areas increases risks of accidents.
Take the work environment into account.
Do not expose electric tools to rain. Do not use electric tools in a damp or wet environment. Make sure the work area is properly lit. Do not use electric tools near inflammable liquids or gases.
Protect yourself from electric shocks.
Avoid bodily contact with surfaces connected to the earth, such as battery chargers, electric multi-plugs, etc.
Keep away from children!
Do not allow third-parties to touch the tool or cable. Keep them away from your work area.
Store your tools in a secure location.
When not in use, tools must be stored in a dry, locked location in their original packaging and out of the reach of children.
Wear suitable work clothing.
Do not wear loose-fitting clothing or jewelry. It could be caught up in moving parts. When working in the open air, wearing rubber gloves and non-slip sole footwear is recommended. If your hair is long, wear a hairnet.
Wear protective eyewear.
Also wear a mask if the work being carried out generates dust.
Protect the power cord.
Do not carry the tool using its cord and do not pull on the cord to disconnect it from the socket. Protect the cord from heat, oil, and sharp edges.
Maintain your tools carefully.
Regularly check the plug and power cord condition and, if they are damaged, have them replaced by a recognized specialist. Keep the ELECTRO’LIV equipment dry and free of oil.
Remove the tool keys.
Before starting the machine, make sure the keys and adjustment tools have been removed.
Check if your device is damaged.
Before reusing the tool, carefully check that the safety systems or slightly damaged parts are in perfect working order.
Has your tool been repaired by a specialist?
This machine is compliant with applicable safety rules. All repairs must be carried out by a specialist and only using original parts, failure to do so could result in serious risks to user safety.

Troubleshooting

Dealer section

Section to be kept by the dealer

Month / Year of manufacture: ……………………………………………
Model: E5000 12V Surname: ……………………………………………
First Name: ………………………………………………………………………
Company name: ……………………………………………………….
Full address: …………………………………………………………..
Town : …………………………………………………………………….
Postcode: ………………………………………….
Phone number: ……………………………………………
Customer signature ………………………………………………
Purchase date: ………/………/………
Customer owner of ELECTROCOUP pruning shears:
Yes …………………….
No…………………………
If so, N° ……………………….
Comments:…………………………………………..

Card to return on the purchase of the device

To benefit from the full warranty, return this form correctly filled in IN BLOCK CAPITALS IMMEDIATELY.
Surname: ……………………………………………….
First name: ………………………………………………
Company name: ……………………………………….
Full address: ……………………………………………..
Postcode: ………………………………………….
Town : ……………………………………………….
Phone number: ………………………………
Fax: …………………………….
Mobile: ………………………………
E-mail: …………………………………….
Purchase date: ………/………/………
Month / Year of manufacture: ……………….
Serial N°: ………………………………………………..
Orchards Pruning
Dealer’s stamp
Model: E500 48VVine growing
Customer owner of ELECTROCOUP pruning shears: Parks & gardens
Yes……………….
No…………………
If so, N° ……………………….
Comments: ………………………………………. 17EQUIPMENT MADE IN FRANCE

Manufacturer: : INFACO S.A.S. – 81140 CAHUZAC-SUR-VÈRE (FRANCE)
Type : ELECTRO’LIV E500012V
Weight : Modèle fixe 2750g
Modèle télescopique 3250g
Maximum power : 200 W
Battery voltage: 12 Volts
These specifications are given as an indication only. Under no circumstances may they be considered contractually binding. They are subject to modification without prior notice in the interests of product development. Patented equipment.Technical information or After Sales Service:
IN FACT S.A.S. Bois de Roziès 81140 CAHUZAC-SUR-VÈRE (FRANCE)
Phone: (+33)05 63 33 91 49
– Fax: (+33)05 63 33 95 57
E-mail: [email protected]
Technical videos are available on the website: www.infaco.com
This user manual uses the following symbols:
Indicates a possible risk of injury, the danger of death or a risk of damage to the machine if the instructions in this manual are not followed.
Indicates the presence of voltage. Read these instructions carefully before using the machine. Make sure you know how the machine works and how to use it. Maintain the machine following the instructions so that it always runs correctly. Please keep these instructions and the accompanying documentation near the machine.

Complies with the provisions of the directives for:

“Appliances” (directive 2006/42/CEE)
Directive 200/14/EC « on the noise emission by equipment for use outdoors » (order of 18 march 2002) modified by the directive 2005/88/EC (order of 22 may 2006).
The person authorized to compile the technical file within the company INFACO is Mr. Gregory ALVAREZ.

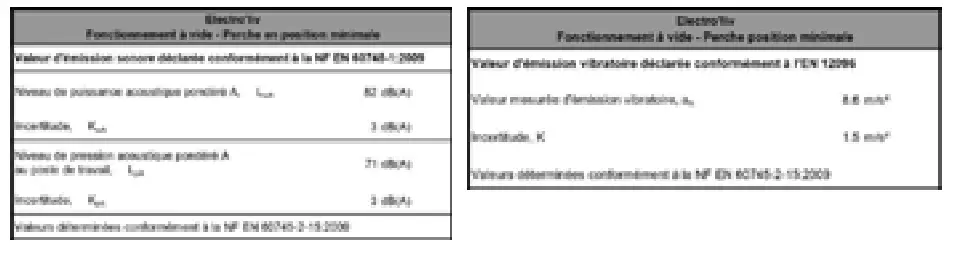

Acoustic power level, LwA 82 dB(A)
Sound pressure level, LpA 71 dB(A)
