Infaco Ec1700 Powercoup Instruction Manual

ORIGINAL INSTRUCTIONS
powercoup EC1700

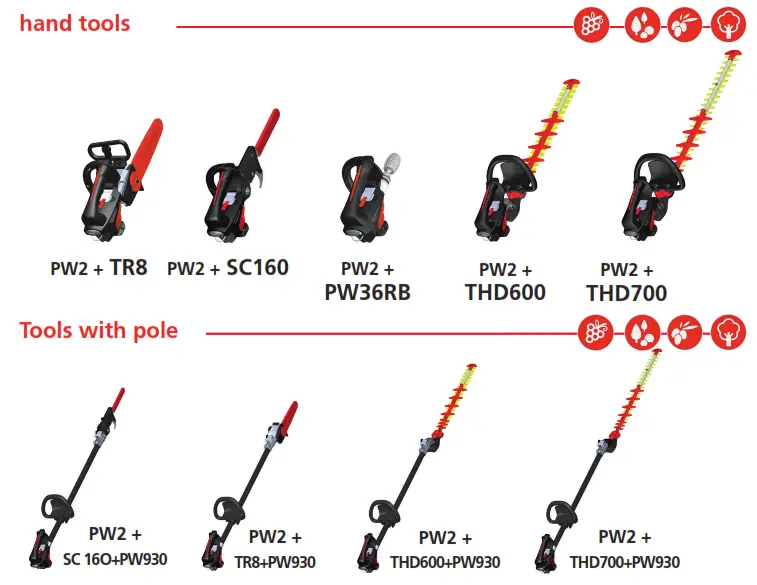

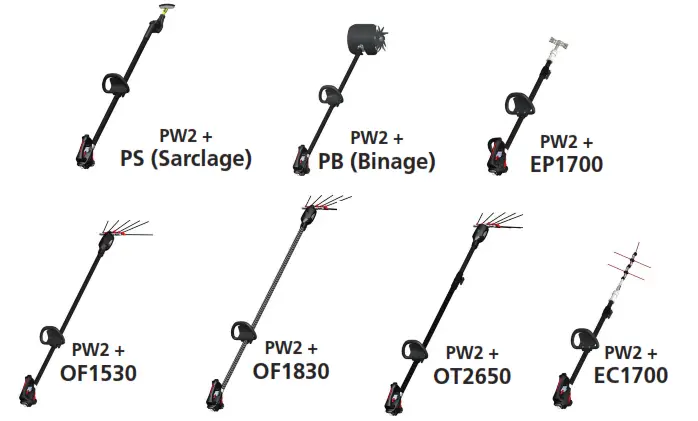

1 HANDLE = 8 TOOLS

SAFETY INSTRUCTIONS

 WARNING. Read all safety warnings and all instructions.
Failure to abide by warnings and instructions could lead to an electric shock, fire and/or serious injury.
Keep all safety warnings and instructions so that you can refer to them at a later date.
The term “tool” in the warnings refers to your electrical tool run off the main supply (with supply power cord) or your electrical battery-operated tool (without a supply power cord).

PERSONAL PROTECTIVE EQUIPMENT

	Read the user manual carefully, especially the safety instructions.
	You MUST wear a helmet, eye protection and hearing protection.
	Hand protection, for work gloves.
	Foot protection by closed toed shoes
	Face protection, or visor.
	Note: The extensions poles are made of carbon, which conducts electricity. Do not use the extensions poles near electricity supply points or electrical wires.
	Note: Do not place any part of your body close to the blade. Do not remove cut material or hold the material you wish to cut while the blades are moving.

ENVIRONMENTAL PROTECTION

	Follow the specific instructions for waste elimination in your country. Electrical appliances should not be thrown in the garbage. The device, accessories and packaging should be recycled.
	Ask your specialist INFACO retailer for the latest information on eco-compatible waste elimination.

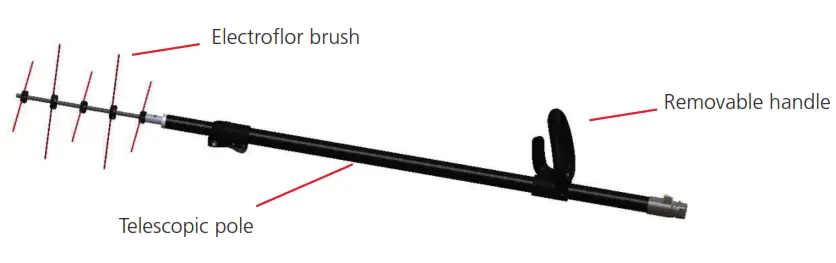

GENERAL OVERVIEW

CHARACTERISTICS

VIEWS OF ACCESSORIES

PW2 Handle Réf : PW2	Power cord Réf : PW225S	Battery 500Wh 10,4 Amp. Réf : L810B	Battery 150Wh 3,1 Amp. Réf : 731B + 539F20	Battery 120Wh 2,5Amp. Réf : 831B
NOT PW2	NOT PW2	NOT L810B	NOT F3010	NOT F3015

USER’S MANUAL

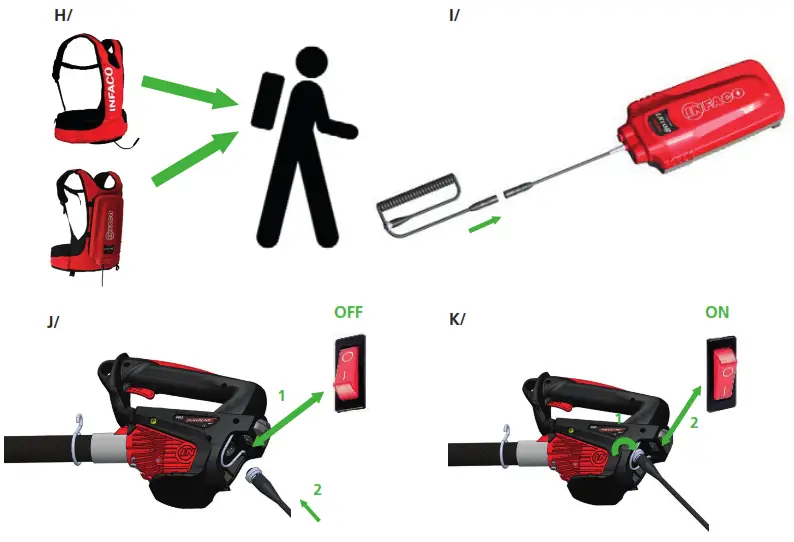

INSTALLATION AND POWER CONNECTION

Only use INFACO brand batteries with a supply voltage 48 volts. It is imperative to read the operating instructions for the tools and accessories before handling or connecting the tool.
If it is raining, the battery vest must be worn underneath waterproof clothing so that the battery unit and control box remain dry.

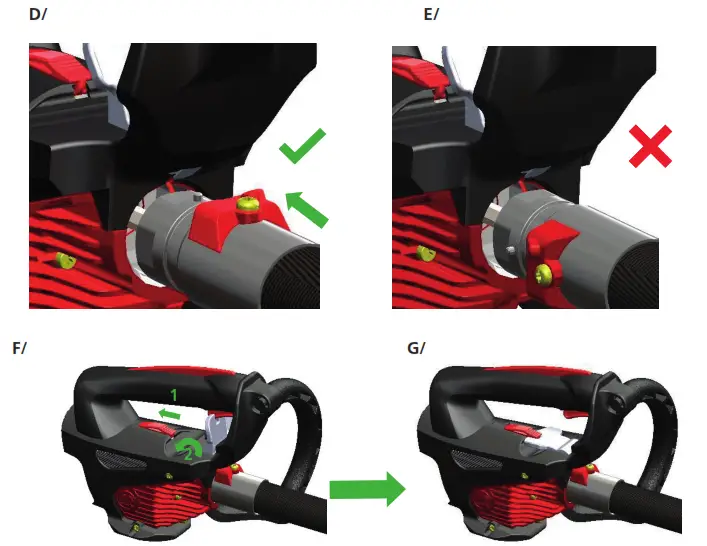

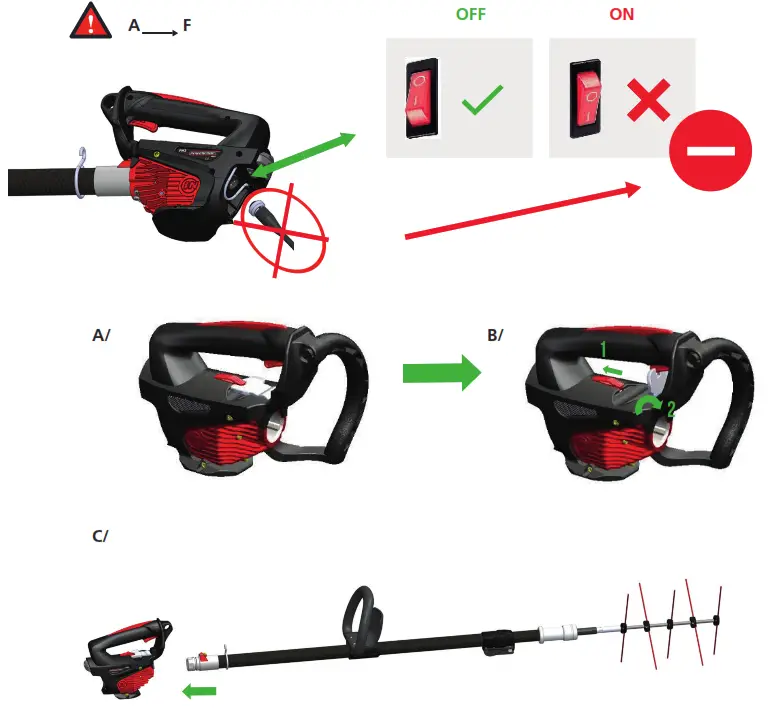

USING THE MACHINE

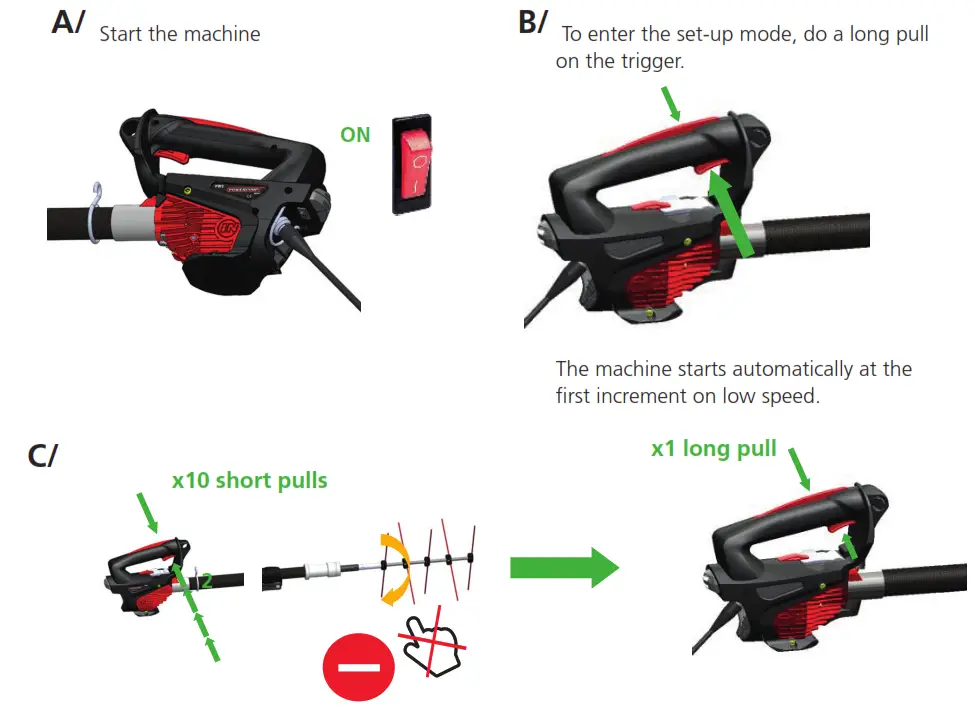

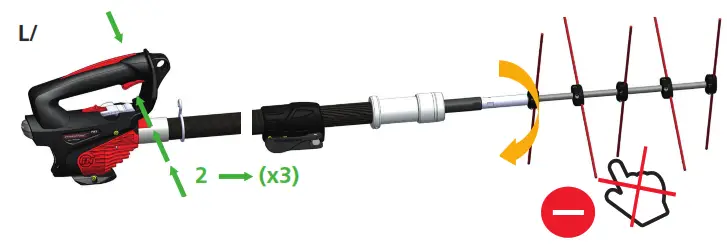

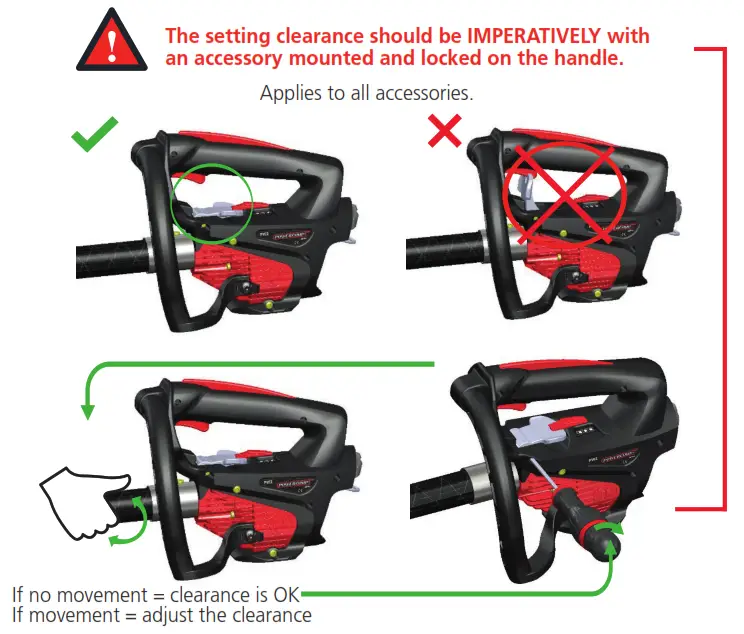

SETTING CLEARANCE

1 Start: 2 short pulls of the trigger = ON
Standby output: 2 short pulls of the trigger = ON
2 Normal operations:
1 long pull of the trigger = ON / Releasing the trigger = OFF
1 short pull of the trigger = ON / 1 short pull of the trigger = OFF

SETTING OF ROTATION SPEED
10 speed increments available between 320 and 1900 r/min

Select the requested speed with successive short pulls on the trigger. 10 speed increments available. Validate the requested speed and exit the set-up mode with a long pull on the trigger until the machine stops completely. The machine is ready to work, the speed will be locked until the next set-up.
The tool is fitted with an electronic protection system. As soon as the brush becomes blocked due to meeting strong resistance, the electronic system causes the motor to stop. Restart the tool by carrying out operation «l» in “Using the Tool” on page 8.

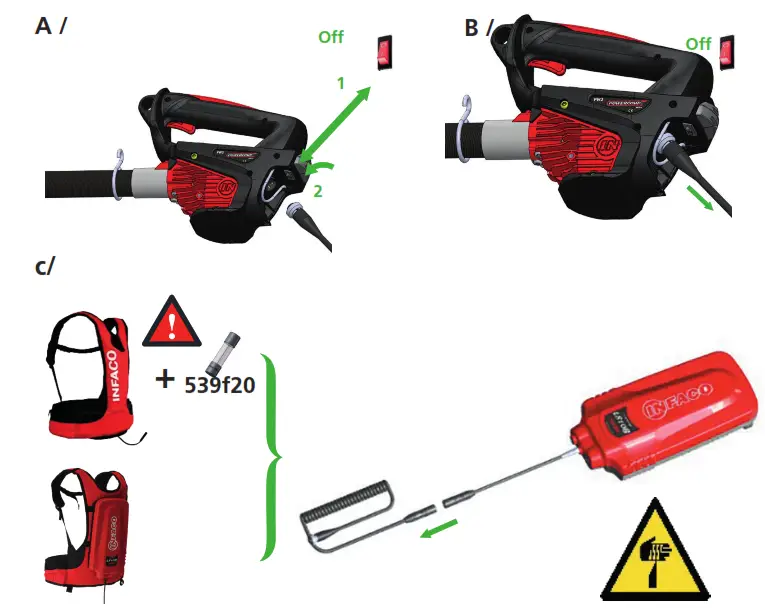

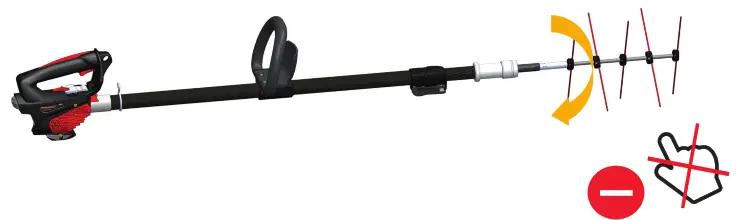

SAFETY PRECAUTIONS

For transportation, storage, maintenance, tool maintenance or any other operation outside of using the tool you must unplug the tool.

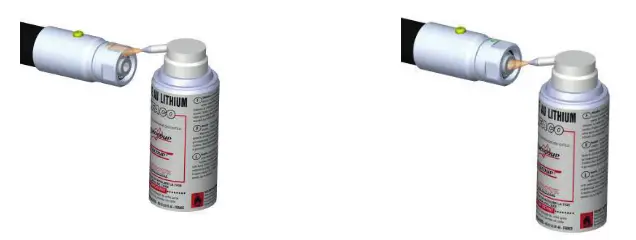

WEEKLY GREASING

ASSEMBLING THE BRUSH

Prepare the carbon shaft, half-shell and wires required, according to use.

1. Place a lock-nut on each half-shell (supplied with the machine. (Fig. 1A)
2. Place a lock-nut on each half-shell..
   The wire must be positioned symmetrically.
3. Place the unit on the end of the carbon shaft. (Fig. 1B).
4. Pinch the wire with a second half-shell.
5. Tighten the unit with Torx T20 Allen key and the two screws supplied with the machine (Fig. 1C)
6. Repeat the procedure, with a different of 90° between each shell. Leave approximately 3 cm of space free at the end for fixing the shaft to the chuck (Fig. 1D).

Do not mount more than 8 wires per brush (max wire length 30 cm).

SAFETY INSTRUCTIONS

BEWARE! In order to reduce the risk of electrical discharge, injury and fire during the use of electrical tools, please observe the following basic safety measures. Read and follow these instructions before using the tool, and keep these safety instructions!
When not in operation, the POWERCOUP PW2 handle and its accessories must be disconnected and stored in their case.

POWERCOUP PW2 handle must always be disconnected from all power sources for to the following :

• Servicing.
• Charging the battery
• Maintenance.
• Transport.
• Storage.

While the tool is in operation, always remember to keep hands away from the accessory being used. Do not use the tool if you are tired or feeling unwell. Wear recommended safety equipment specific to each accessory. Do not leave the tool within the reach of children or visitors.

Do not use the tool if there is any risk of fire or explosion- for example in the presence of flammable liquids or gas.
Never carry the charger by its power cord, and so not pull on the power cord to unplug it.
Keep the power cord away from heat sources, oil or sharp edges.

Never use the tool at night or in poorly lit conditions without setting up extra lighting.
While using the tool, make sure you keep both feet on the ground and stay well-balanced.

BEWARE! ­ the extension poles and rake are made out of carbon ­ a conductive material. Do not use near electrical wires or other power sources.

WARRANTY CONDITIONS

The EC1700 POWERCOUP PW2 has a warranty for a period of two years against all manufacturing faults and defects :
This warranty corresponds to normal use of the tool and excludes:

• Damage due to poor maintenance or a lack of maintenance,
• Damage due to inappropriate usage,
• Damage due to normal wear and tear,
• Tools which have been dismantled by unauthorized repairers,
• External forces (fire, flooding, lightning, etc.),
• Damage from tool being dropped or from other impact,
• Tools with warranty cards not returned at the time of purchase,
• Tools used with a battery or charger other than those manufactured by INFACO.

INFACO shall not remit payment for any monetary loss incurred for the time the tool is unavailable during repairs.
All repairs made by a person other than an approved INFACO authorized service provider (ASP) will invalidate the equipment warranty.
In case of any breakdown, we strongly recommend that users of INFACO equipment either contact the retailer from whom they purchased the tool, or our after-sales service on (+33) 05 63 33 91 49 (France).
Please note our after-sales service shipping policy:

• For equipment submitted to us within the scope of the warranty, you pay to send it to us and we pay the return postage.
• For equipment which is not within its warranty period, you pay to send it to us and the return will be made at your cost, cash on delivery. We will send you an estimate if the cost of the repair is more than 80 ex-VAT.

RECOMMANDATIONS

Keep your work area tidy.
Untidiness in the work area increases the risk of accidents. Take the work area environment into account. Don’t expose electrical tools to the rain. Don’t use electrical tools in a humid or wet environment. Make sure the work area is well lit. Don’t use electrical tools if there are flammable liquids or gases in the vicinity. Protect yourself against electrical discharge. Avoid bodily contact with grounded surfaces, such as, for example: battery charger, multiway electrical sockets, etc…

Keep children away! Don’t allow other people to touch either the tool or the power cord. Keep others well away from your work area.
Store your tools in a safe place. Tools not in use should be stored in a dry, enclosed place, in their original packaging and out of the reach of children. Wear suitable working gear. Do not wear flowing clothes or jewelry. These could get caught up by moving parts. When working outdoors, it is recommended that you wear rubber gloves and shoes with non-slip soles. Use a hairnet if you have long hair. Wear protective goggles. Use a mask as well if the work you are doing produces dust or debris.
Take care of the lead. Never carry the charger by its power cord, and so not pull on the power cord to unplug it. Keep the power cord away from heat sources, oil or sharp edges.
Take good care of your tools. Regularly check the condition of the power cord and plug, and have them changed by an approved specialist if they show any signs of damage. Keep the POWERCOUP PW2 material dry and free of oil and grease. Remove the tool keys. Remove any adjustment keys before switching on the tool. Check whether your tool is damaged
Before using the tool, carefully check that the safety features are in perfect working order and whether any parts have been even slightly damaged. Have your tool repaired by a specialist. This tool is compliant with the safety regulations in force. All repairs must be carried out by an authorized service provider (ASP) or by INFACO and exclusively using original parts. Parts which are not original may seriously risk the safety of the user.

REPAIR

RETAILER SECTION
The retailer to keep this section

Month / year of manufacture : ……………………………….. Model:………………… EC1700…………………..
Last name : ……………………………………………………………………………………………………………………………….
First name : ………………………………………………………………………………………………………………………………
Company name : ………………………………………………………………………………………………………………………
Street address : ………………………………………………………………………………………………………………………….
…………………………………………………………………………………………………………………………………………………..
City : ………………………………………………………………………………………………………………………………………….
Zip code : …………………………………………………………….. Phone : …………………………………………………….
Purchase date : ………/………/………

CUSTOMER SIGNATURE

Do you already own an ELECTROCOUP pruning shear?:
Yes/No
If yes, serial #……………..
Observation : …………………………………………………………………………………………………………………………….

WARRANTY CARD

RETURN this form IMMEDIATELY, filled in with CAPITAL LETTERS to ensure full warranty coverage
Month / year of manufacture : ……………………………………………………………………………………….
Last name : ……………………………………………… First name : ………………………………………………..
Company name : …………………………………………………………………………………………………………….
Street address : ………………………………………………………………………………………………………………..
…………………………………………………………………………………………………………………………………………
City : …………………………………………. Zip code : ………………………………………………………………….
Phone: ……………………………… E-mail : ……………………………. E-mail : …………………………………..
Purchase date : ………/………/………

Do you already own an ELECTROCOUP pruning shear ? :
Yes/No
If yes, serial # ……………….
Model EC1700
Arboriculture
Pruning
Wine growing
Parks and gardens
Observation : ………………………………………………

RETAILER STAMP

RETAILER
TO BE KEPT BY THE RETAILER FOR
THE INFACO CUSTOMER FILE

MATERIEL FABRIQUÉ EN FRANCE

Manufacturer : INFACO S.A.S. – 81140 CAHUZAC-SUR-VÈRE (FRANCE)
Type : ELECTRO’FLOR EC1700
Weight of ELECTROLIV : Modèle EC1700 2790g
Max. power : 220 W
Battery voltage : 48 Volts

This information is being given for informational purposes only. It is under no circumstances contractual, and is subject to modification for reasons of improvement, without prior notice. Patented equipment.

Technical information or After-Sales:
INFACO-USA, INC.
2356 RESEARCH DRIVE LIVERMORE,
CA 94550 USA Office: (925) 371-0796
[email protected] http://www.infaco-usa.com

The following pictograms are used in this user’s manual :

    Indicates a risk of bodily harm, danger of death or a risk of damage to the tool if the instructions given in this user’s manual are not followed.
Indicates the presence of electrical voltage. Read this user’s manual carefully before using the tool. Make sure that you have understood how the tool works and is operated. Take good care of the tool in compliance with these instructions, so that it will always function correctly. Keep this user’s manual and the attached documentation close to the tool.

Declaration of Incorporation
INFACO S.A.S. declares that the new partly-completed machine designated below:

Electronic flower thinner machine
Brand name : INFACO
Serial no :
Model : ELECTRO’FLOR EC1700
Year of manufacture :

Est conforme aux dispositifs des directives :
Complies with the provisions of the directives for:

• “Appliances” (directive 2006/42/CEE)
• “Chargeurs électriques” (directive 2004/108/CEE) et aux réglementations nationales les transposant.
  “electric chargers” (directive 2004/108/CEE) and with national legislation adapting them.
  The person authorized to compile the technical file within the company INFACO is Mr. Gregory ALVAREZ.
  The equipment also complies with the provisions of the following European directives:

POWERCOUP PW2 – EC1700

A au poste de travail, LpA (NF EN 60745-2-11 : 2009) 69 dB(A)
Sound pressure level LpA
vibratoire, ah (EN12096)
Measured value of vibratory emission, ah 0.95 m/s2

Fait à – Signed in : CAHUZAC SUR VÈRE
M. DELMAS Daniel, Président – INFACO President
Date : 27/03/2020
Signature ­ Signature :

The partly-completed machine must not be put into service until the final machine into which it is to be incorporated has been declared in conformity with the relevant provisions of this Directive.
INFACO undertakes to provide national authorities with all relevant information concerning the machine.

NOTPW2EC1700_ENUSA_01
