LS751HD Series
DLP Projector
Quick Start Guidehttp://vsweb.us/app/ViewSonicProjector.phpDownload Ling : http://vsweb.us/q/dn.php

Contents hide

1 LS751HD Series DLP Projector

2 Documents / Resources

2.1 References

3 Related Posts

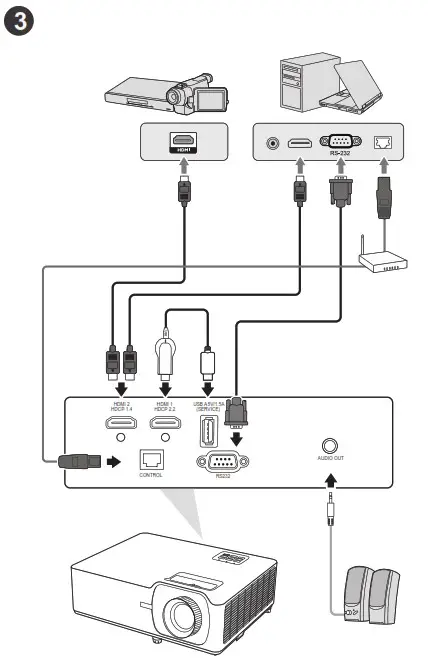

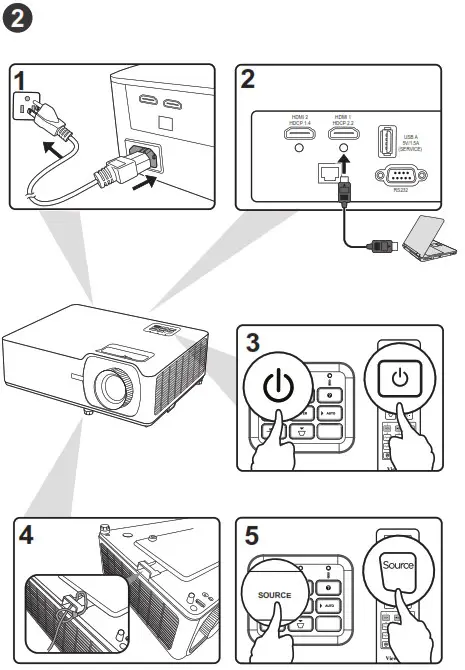

LS751HD Series DLP Projector

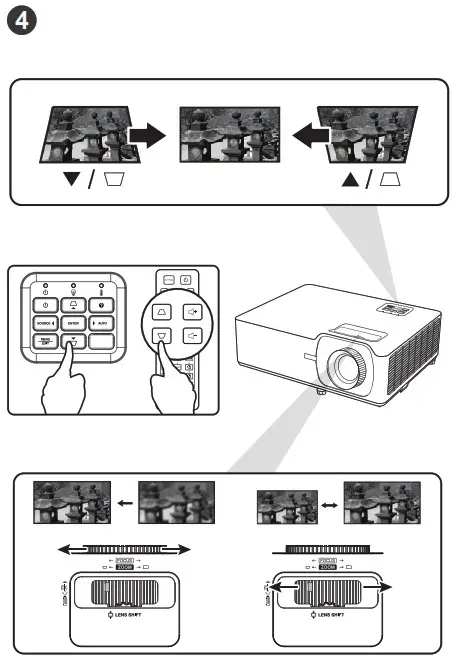

(a) Screen Size		16:6 Image on a 16:9 Screen
		(b) Projection distance				(c) Image height		(d) Vertical offset
		min.		max.		(c) Image height		min.		max.
inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm
30	763	36.67	931	58.67	1490	14.73	374	0	0	2.65	67
40	1016	48.81	1240	78.09	1984	19.61	498	0	0	3.53	90
50	1270	61.01	1550	97.62	2479	24.51	623	0	0	4.41	112
60	1524	73.21	1860	117.14	2975	29.42	747	0	0	5.29	134
70	1778	85.41	2170	136.66	3471	34.32	872	0	0	6.18	157
80	2032	97.62	2479	156.19	3967	39.22	996	0	0	7.06	179
90	2286	109.82	2789	175.71	4463	44.12	1121	0	0	7.94	202
100	2540	122.02	3099	195.23	4959	49.03	1245	0	0	8.82	224
110	2794	134.22	3409	214.76	5455	53.93	1370	0	0	9.71	247
120	3048	146.42	3719	234.28	5951	58.83	1494	0	0	10.59	269
130	3302	158.63	4029	253.8	6447	63.73	1619	0	0	11.47	291
140	3556	170.83	4339	273.33	6942	68.64	1743	0	0	12.35	314
150	3810	183.03	4649	292.85	7438	73.54	1868	0	0	13.24	336
200	5080	244.04	6199	390.47	9918	98.05	2491	0	0	17.65	448
250	6350	305.05	7748	488.08	12397	122.57	3113	0	0	22.06	560
300	7622	366.15	9300	585.84	14880	147.11	3737	0	0	26.48	673

(a) Screen Size		16:6 Image on a 16:9 Screen
		(b) Projection distance				(c) Image height		(d) Vertical offset
		min.		max.		(c) Image height		min.		max.
inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm
30	763	34.16	868	54.66	1388	13.52	343	0	0	2.43	62
40	1016	44.8	1138	71.68	1821	18	457	0	0	3.24	82
50	1270	56	1422	89.6	2276	22.5	572	0	0	4.05	103
60	1524	67.2	1707	107.52	2731	27	686	0	0	4.86	123
70	1778	78.4	1991	125.44	3186	31.5	800	0	0	5.67	144
80	2032	89.6	2276	143.36	3641	36	914	0	0	6.48	165
90	2286	100.8	2560	161.28	4097	40.5	1029	0	0	7.29	185
100	2540	112	2845	179.2	4552	45	1143	0	0	8.1	206
110	2794	123.2	3129	197.12	5007	49.5	1257	0	0	8.91	226
120	3048	134.4	3414	215.04	5462	54	1372	0	0	9.72	247
130	3302	145.6	3698	232.96	5917	58.5	1486	0	0	10.53	267
140	3556	156.8	3983	250.88	6372	63	1600	0	0	11.34	288
150	3810	168	4267	268.8	6828	67.5	1715	0	0	12.15	309
200	5080	224	5690	358.4	9103	90	2286	0	0	16.2	411
250	6350	280	7112	448	11379	112.5	2858	0	0	20.25	514
300	7622	336.08	8536	537.6	13655	135.03	3430	0	0	24.31	617

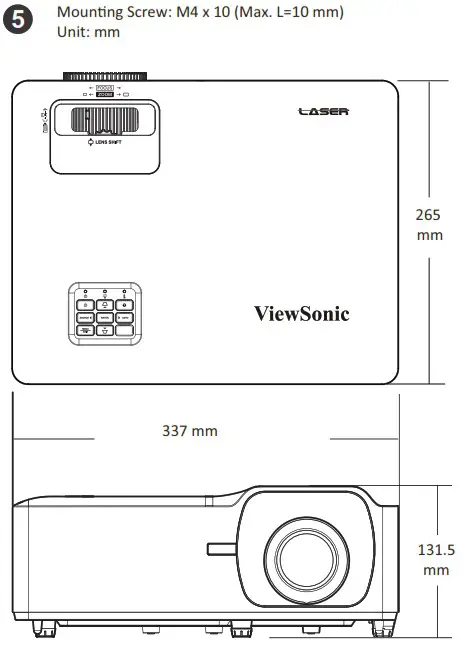

It is recommended that if you intend to permanently install the projector, please physically test the projection size and distance using the actual projector in situ before you permanently install it.

FCC Compliance Statement
This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Industry Canada ICES-003 Compliance: CAN ICES-003(B) / NMB-003(B)
CE Conformity for European Countries
The device complies with the EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU, Eco-design Directive 2009/125/EC. The full Declaration of Conformity can be found at the following website: https://www.viewsonicglobal.com/public/products_download/safety_compliance/projector/VS19337_CE_DOC.pdf

Declaration of ROHS2 Compliance
This product has been designed and manufactured in compliance with Directive 2011/65/EU of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (ROHS2 Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC).
