LS600W
DLP Projector

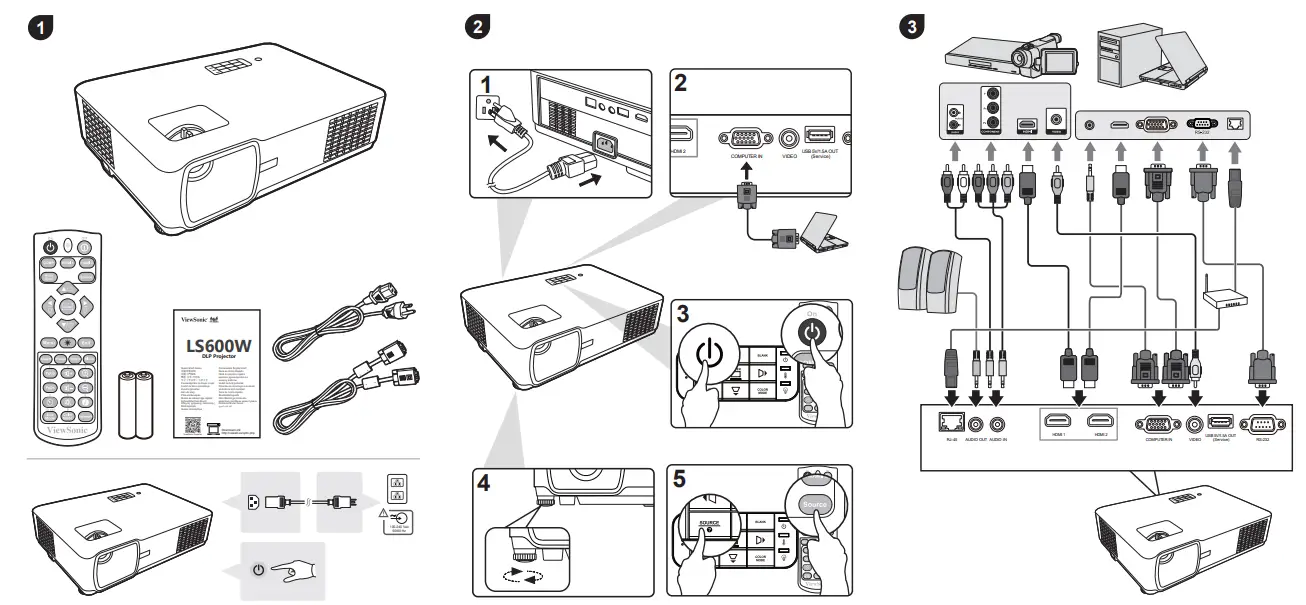

Quick Start Guide

Contents hide

LS600W DLP Projector

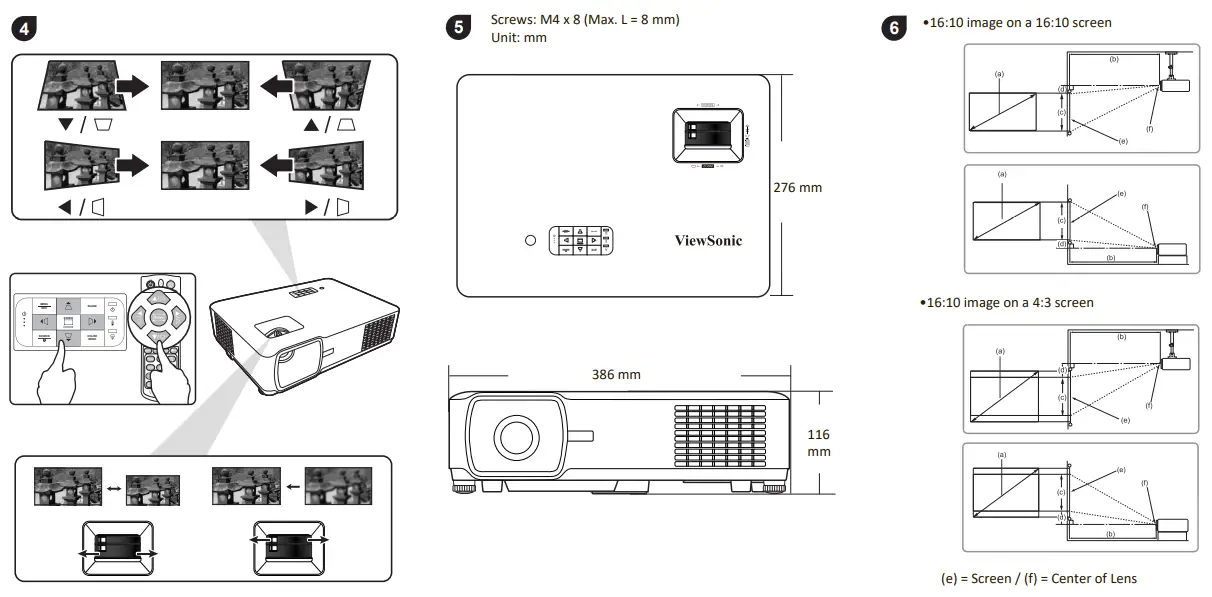

(a) Screen Size		16:10 Image on a 16:10 Screen
		(b) Projection distance				(c) Image height		(d) Vertical offset
		min. max.				(c) Image height		min. max.
inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm
30	762	35	883	42	1059	16	404	13	319	13.	319
40	1016	46	1177	56	1412	21	538	17	425	17.	425
50	1270	58	1471	70	1766	26	673	21	532	21.	532
60	1524	70	1766	83	2119	32	808	25	638	25.	638
70	1778	81	2060	97	2472	37	942	29	744	29.	744
80	2032	93	2354	111	2825	42	1077	33	851	34.	851
90	2286	104	2648	125	3178	48	1212	38	957	38.	957
100	2540	116	2943	139	3531	53	1346	42	1063	42.	1063
120	3048	139	3531	167	4237	64	1615	50	1276	50.	1276
150	3810	174	4414	209	5297	79	2019	63	1595	63.	1595
200	5080	232	5885	278	7062	106	2692	84	2127	84.	2127
250	6350	290	7356	348	8828	132	3365	105	2659	105.	2659
300	7620	348	8828	417	10593	159	4039	126	3190	126.	3190

(a) Screen Size
		(b) Projection distance				(c) Image heig height		(d) Vertical offset
		min. max.				(c) Image heig height		min. max.
inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm
30	762	33	833	39	999	15	381	12	301	12	301
40	1016	44	1110	52	1332	20	508	16	401	16	401
50	1270	55	1388	66	1666	25	635	20	502	20	502
60	1524	66	1666	79	1999	30	762	24	602	24	602
70	1778	77	1943	92	2332	35	889	28	702	28	702
80	2032	87	2221	105	2665	40	1016	32	803	32	803
90	2286	98	2498	118	2998	45	1143	36	903	36	903
100	2540	109	2776	131	3331	50	1270	40	1003	40	1003
120	3048	131	3331	157	3997	60	1524	47	1204	47	1204
150	3810	164	4164	197	4997	75	1905	59	1505	59	1505
200	5080	219	5552	262	6662	100	2540	79	2007	79	2007
250	6350	273	6940	328	8328	125	3175	99	2508	99	2508
300	7620	328	8328	393	9994	150	3810	119	3010	119	3010

There is 3% tolerance among these numbers due to optical component variations. It is recommended that if you intend to permanently install the projector, you should physically test the projection size and distance using the actual projector in situ before you permanently install it, so as to make allowance for this projector’s optical characteristics. This will help you determine the exact mounting position so that it best suits your installation location.
