PG701WU
DLP Projector

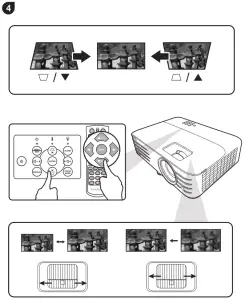

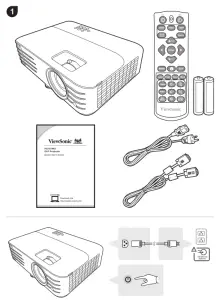

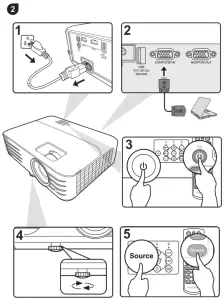

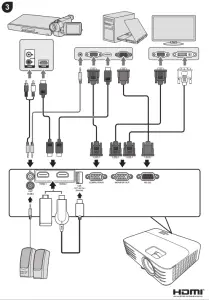

Quick Start Guide
ViewSonic Projector
http://vsweb.us/app/ViewSonicProjector.php
Download Link
http://vsweb.us/q/dn.php
Screws: M4 x 8 (Max. L = 8 mm) Unit: mm
• 16:10 image on a 16:10 screen
• 16:10 image on a 4:3 screen

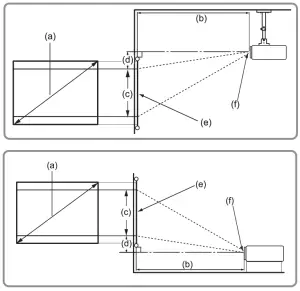

(a) Screen Size | 16:10 image on a 16:10 Screen | ||||||||||
(b) Projection distance | (c) Image height | (d) Vertical offset | |||||||||
| min. | max. | min. | max. | ||||||||
| inch | mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | mm |
| 60 | 1524 | 76 | 1938 | 84 | 2132 | 32 | 808 | 0.0 | 0.0 | 0.0 | 0.0 |
| 70 | 1778 | 89 | 2261 | 98 | 2487 | 37 | 942 | 0.0 | 0.0 | 0.0 | 0.0 |
| 80 | 2032 | 102 | 2584 | 112 | 2842 | 42 | 1077 | 0.0 | 0.0 | 0.0 | 0.0 |
| 90 | 2286 | 114 | 2907 | 126 | 3198 | 48 | 1212 | 0.0 | 0.0 | 0.0 | 0.0 |
| 100 | 2540 | 127 | 3230 | 140 | 3553 | 53 | 1346 | 0.0 | 0.0 | 0.0 | 0.0 |
| 110 | 2794 | 140 | 3553 | 154 | 3908 | 58 | 1481 | 0.0 | 0.0 | 0.0 | 0.0 |
| 120 | 3048 | 153 | 3876 | 168 | 4263 | 64 | 1615 | 0.0 | 0.0 | 0.0 | 0.0 |
| 130 | 3302 | 165 | 4199 | 182 | 4619 | 69 | 1750 | 0.0 | 0.0 | 0.0 | 0.0 |
| 140 | 3556 | 178 | 4522 | 196 | 4974 | 74 | 1885 | 0.0 | 0.0 | 0.0 | 0.0 |
| 150 | 3810 | 191 | 4845 | 210 | 5329 | 79 | 2019 | 0.0 | 0.0 | 0.0 | 0.0 |
| 160 | 4064 | 203 | 5168 | 224 | 5685 | 85 | 2154 | 0.0 | 0.0 | 0.0 | 0.0 |
| 170 | 4318 | 216 | 5491 | 238 | 6040 | 90 | 2289 | 0.0 | 0.0 | 0.0 | 0.0 |
| 180 | 4572 | 229 | 5814 | 252 | 6395 | 95 | 2423 | 0.0 | 0.0 | 0.0 | 0.0 |
| 190 | 4826 | 242 | 6137 | 266 | 6750 | 101 | 2558 | 0.0 | 0.0 | 0.0 | 0.0 |
| 200 | 5080 | 254 | 6460 | 280 | 7106 | 106 | 2692 | 0.0 | 0.0 | 0.0 | 0.0 |

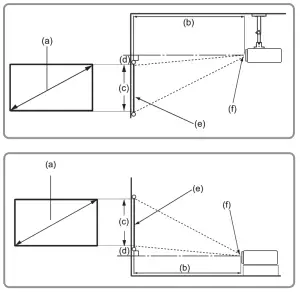

(a) Screen Size | 16:10 image on a 4:3 Screen | ||||||||||
(b) Projection distance | (c) Image height | (d) Vertical offset | |||||||||
min. | max. | min. | max. | ||||||||
| inch | mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | mm |
| 60 | 1524 | 72 | 1828 | 79 | 2011 | 30 | 762 | 0.0 | 0.0 | 0.0 | 0.0 |
| 70 | 1778 | 84 | 2133 | 92 | 2346 | 35 | 889 | 0.0 | 0.0 | 0.0 | 0.0 |
| 80 | 2032 | 96 | 2438 | 106 | 2681 | 40 | 1016 | 0.0 | 0.0 | 0.0 | 0.0 |
| 90 | 2286 | 108 | 2742 | 119 | 3017 | 45 | 1143 | 0.0 | 0.0 | 0.0 | 0.0 |
| 100 | 2540 | 120 | 3047 | 132 | 3352 | 50 | 1270 | 0.0 | 0.0 | 0.0 | 0.0 |
| 110 | 2794 | 132 | 3352 | 145 | 3687 | 55 | 1397 | 0.0 | 0.0 | 0.0 | 0.0 |
| 120 | 3048 | 144 | 3656 | 158 | 4022 | 60 | 1524 | 0.0 | 0.0 | 0.0 | 0.0 |
| 130 | 3302 | 156 | 3961 | 172 | 4357 | 65 | 1651 | 0.0 | 0.0 | 0.0 | 0.0 |
| 140 | 3556 | 168 | 4266 | 185 | 4692 | 70 | 1778 | 0.0 | 0.0 | 0.0 | 0.0 |
| 150 | 3810 | 180 | 4571 | 198 | 5028 | 75 | 1905 | 0.0 | 0.0 | 0.0 | 0.0 |
| 160 | 4064 | 192 | 4875 | 211 | 5363 | 80 | 2032 | 0.0 | 0.0 | 0.0 | 0.0 |
| 170 | 4318 | 204 | 5180 | 224 | 5698 | 85 | 2159 | 0.0 | 0.0 | 0.0 | 0.0 |
| 180 | 4572 | 216 | 5485 | 238 | 6033 | 90 | 2286 | 0.0 | 0.0 | 0.0 | 0.0 |
| 190 | 4826 | 228 | 5789 | 251 | 6368 | 95 | 2413 | 0.0 | 0.0 | 0.0 | 0.0 |
| 200 | 5080 | 240 | 6094 | 264 | 6704 | 100 | 2540 | 0.0 | 0.0 | 0.0 | 0.0 |
There is 3% tolerance among these numbers due to optical component variations. It is recommended that if you intend to permanently install the projector, you should physically test the projection size and distance using the actual projector in situ before you permanently install it, so as to make allowance for this projector’s optical characteristics. This will help you determine the exact mounting position so that it best suits your installation location.
