YETI® TANK
EXPANSION BATTERY
USER GUIDE
IMPORTANT SAFETY INSTRUCTIONS
Please save these instructions
Read all the instructions and cautions before beginning installation.
Keep Goal Zero Yeti Tank in a well-ventilated area.
Do NOT allow water to enter the Yeti Tank enclosure, the Goal Zero Yeti Lithium, or the Goal Zero Yeti Link.
Do NOT short the battery terminals.
Do NOT heat above 122°F/50°C or incinerate.
Recharge Tank after use.
Tank battery must be recycled or disposed of properly at end of battery life. Compatible with Yeti 1000, 1000X, 1400, 1500X, 3000, 3000X, and 6000X Lithium Power Stations
WARNING
Ensure the cable is fully inserted and tightly in place before use. Check upon subsequent uses. For questions, contact Solutions Center at [email protected] or 1-888-794-6250
Tipping hazard – do not stack Tanks more than two high.
GET TO KNOW YOUR GEAR

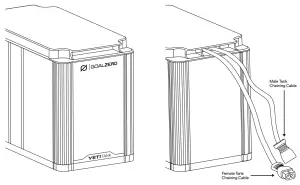

Front of Tank Expansion Battery | Back of Tank Expansion Battery |
 | |
HOW IT WORKS
The Goal Zero Yeti Tank Expansion Battery integrates with a Goal Zero Yeti Lithium or Yeti X Portable Power Station and Goal Zero Yeti Link Expansion Module to increase your energy storage capacity. The Yeti Tank is a chainable 100 Ah Lead-Acid Battery that adds an additional 1.2kWh to your home energy storage system.
HOW TO INSTALL
- Properly install Goal Zero Yeti Link Expansion Module (sold separately) into Goal Zero Yeti Lithium or Yeti X Power Station.

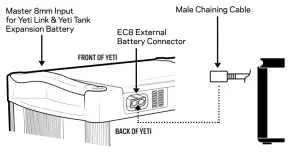

[Refer to Link User Guide for installation instructions. - Once Link is installed, connect the Male EC8 cable on the Tank to the EC8 external battery connector on the Link.

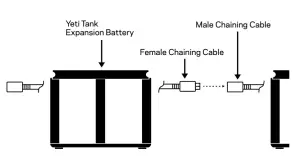

- If installing more than one, chain remaining Tanks by connecting male to female cables on additional Tanks.
 |  |
CHARGING YOUR YETI TANK
When Link and Tank are properly installed power passes through the 8mm port to the Tank and then into the Yeti. The Input Charge Indicator light on the Link will turn blue and the Lead-Acid State of Charge Indicator light will begin flashing green. NOTE: Upon plugin, all LEDs on the Link will turn on, then off before correct lights are displayed. The power source will charge the Yeti Lithium first. When the Yeti is fully charged, power will begin to store in the Yeti Tank.
NOTE
The 8mm input port on the Yeti Link is the only way to charge both the Yeti and Yeti Tank. Input ports on the Yeti display will only charge the Yeti, not the Yeti Tank.WARNING
Ensure the cable is fully inserted and tightly in place before use. Check upon subsequent uses. For questions, contact Solutions Center at [email protected] or 1-888-794-6250
Tipping hazard – do not stack Tanks more than two high.
FREQUENTLY ASKED QUESTIONS
Q: How long will a Tank battery last?
A: The Tank battery is rated for 300-400 cycles at 100% depth of discharge. Reducing the depth of discharge to 50% will double the life of the battery to 700 cycles. In other words, consistently draining the battery entirely will dramatically reduce its life. We recommend keeping your Tank battery charged at 50% full or higher.
Q: How long does it take to fully charge a Tank battery?
A: Using the Yeti Power Supply (plugged into the Yeti Link), each Tank will take around 10 hours to fully charge.
Q: Can I replace the Tank battery using any 12V lead-acid battery?
A: Yes, the lead-acid battery inside the Tank is easily replaceable.
Replacement batteries and instructions are provided on GoalZero.com.
Q: How many Tanks can I chain together?
A: As many as you like. There is no maximum for chaining Tanks.
Q: In what type of environment should I store my Tank(s)?
A: We recommend keeping your Tank in a well-ventilated, sheltered area.WARNING
Ensure the cable is fully inserted and tightly in place before use. Check upon subsequent uses. For questions, contact Solutions Center at [email protected] or 1-888-794-6250
Tipping hazard – do not stack Tanks more than two high.
TECHNICAL SPECIFICATIONS
Yeti Tank Expansion Battery
Lead-Acid to Lithium Expansion Battery | |
| Cell Chemistry | AGM Lead Acid |
| Pack capacity | 1200Wh (12V, 100Ah) |
| Lifecycles | 300-400 cycles minimum at 100% DOD |
| Shelf-life | Keep plugged in, or charge every 3 months |
| Dimensions | 12.9in x 6.8in. x 8.7in (Group 27) |
Charge times: | |
| Wall Charger (120W) | 10 hrs |
Ports: | |
| Expansion port male connector (input/output) | 12V, 100A Max |
| Expansion port female connector (input/output) | 12V, 100A Max |
General: | |
| Weight | 77.1 lbs (34.97kg) |
| Dimensions | 15.5 x 7.5 x 10.5 in (39.37x 19.05 x 26.67 cm) |
| Operating usage temp. | 32-104 F (0-40 C) |
| Chainable | Ye s |
| Warranty | 12 months |
| Certs |  |
GOAL ZERO HEADQUARTERS
675 West 14600 South
Bluffdale, UT 84065
Designed in the U.S.A.
Made in China
1-888-794-6250
goalzero.com
CL081021V1
