TORCH 500
Multi-Use Light + USB Power Bank
USER GUIDE

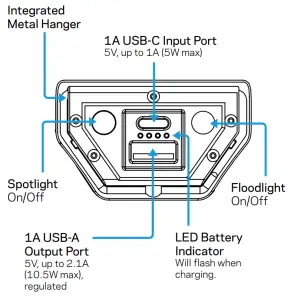

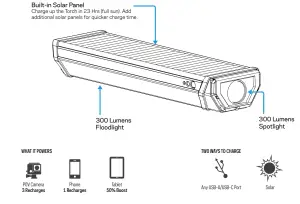

GET TO KNOW YOUR GEAR
GET TO KNOW YOUR GEAR
HOW IT WORKS
Adjust Light Settings
Floodlight and Spotlight operate with three settings: high, medium, and low.
Click the on/off button to cycle through each setting.
- Click the button once for high
- Click twice for medium
- Click three times for low.
NOTE: Each click must be performed within 5 seconds of the previous click in order to progress to the next setting. Wait 5 seconds and click a second time on any of the above settings to turn the light off.
| Runtimes | Low | Medium | High |
| Spotlight | 50 hrs | 7.5 hrs | 3.5 hrs |
| Floodlight | 50 hrs | 7 hrs | 3 hrs |
WARNING: Do not leave the Torch in the window of a vehicle in the hot sun. This can cause damage to the product.
FREQUENTLY ASKED QUESTION IEEE3ZEIS
Q: How do I know if the solar panel is working?
A: You’ll know the solar panel is working when the blue LED indicator lights turn on and start blinking. Angle the solar panel toward the sun for the best charging experience.
PRO TIP: Leave your Torch 500 on a windowsill so it’s always charged and ready to go.
TECHNICAL SPECIFICATIONS
Charge times: | |
| Goal Zero Nomad 10 | 4-6 hrs |
| Built-in Solar | 23-46 hrs |
| USB Source | 4 hrs |
Run time | |
| Spotlight (low power) | 50 hrs |
| Spotlight (medium power) | 7.5 hrs |
| Spotlight (high power) | 3.5 hrs |
| Floodlight (low power) | 50 hrs |
| Floodlight (medium power) | 7 hrs |
| Floodlight (high power) | 3 hrs |
| Both Lights (high power) | 2 hrs |
Battery | |
| Cell Chemistry | Li-NMC |
| Cell Capacity | 18.7Wh (3.6V, 5200mAh) |
| Lifecycles | Hundreds of cycles |
| Shelf-life | Charge every 3-6 months |
| Management System | Charging and low-battery protection built-in |
Light | |
| Spot Light | 300 Lumens |
| Flood Light | 300 Lumens |
Solar | |
| Rated Power: | 1.2W |
| Cell Type | Monocrystalline |
Ports | |
| USB-A Port (Output) | 5V, up to 2.1A (10.5W max), regulated |
| USB-C Port (Input) | 5V, up to 1A (5W max) |
General | |
| Weight | 12.8 oz (363 g) |
| Dimensions | 8.8 x 2.2 x 1.4 in (22.4 x 5.6 x 11.4 cm) |
| Operating Usage Temperature | 32-104 F (0-40 C) |
| Certs |
|
| Non-replaceable light sources | |
| Warranty | 12 Months |
Be sure to activate your warranty at goalzero.com/warranty
GOAL ZERO HEADQUARTERS
675 West 14600 South Bluffdale,
UT 84065 1-888-794-6250
Designed in the U.S.A.
Made in China
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference, and
- this device must accept any interference received, including interference that may cause undesired operation.
GOALZERO.COM
CL081021V1
