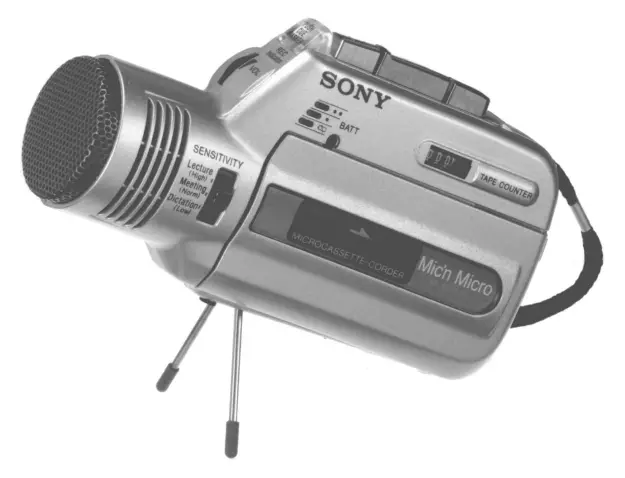

SONY M-100MC Micro Microcasstte Recorder

SPECIFICATIONS

• Tape:
  (normal position type)
• Recording system
  2-track 1-channel monaural
• Speaker
  Approx. 2.8cm (1 1/8 in.) dia.
• Tape speed
  2.4cm/s (15/16 ips), 1.2cm/s (15/32 ips)
• Frequency range
  • High : 400 – 3,000Hz Normal,
  • Low : 400 – 4,000Hz
• Output
  Earphone jack (minijack) for 8 – 300ohms earphone
• Power output (at 10% harmonic distortion)
  220mW
• Battery life
  (Approx. hours) (EIAJ*)
• Power requirements
  3V DC
  Two R6 (size AA) batteries
• Dimensions (w/h/d)
  • Approx. 126.0 x 68.0 x 40.8 mm (5 x 2 3/4 x 15/8 in.) incl.
  • projecting parts and controls
• Mass
  Approx. 180g (6.4 oz) incl. batteries
• Supplied Accessories
  • Hand strap (attached to the unit) (1)
  • Microcassette tape (1) (EXCEPT US, Canadian, AEP model)
  • Wind screen (1) (US model)
  • R6 (size AA) batteries (2) (Tourist model)
  • Earphone (1) (Tourist model)

Design and specifications are subject to change without notice.

Batteries                              Recording

• Sony alkaline LR6 (SG): 16.0
• Sony R6P (SR):               5.5

Note: Measured value by the standard of EIAJ (Electronic Industries Association of Japan) (Using a Sony Microcassette MC-60)

SECTION 5 EXPLODED VIEWS

NOTE :

• XX, -X mean standardized parts, so they may have some difference from the original one.
• Items marked “ * ”are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items.
• The mechanical parts with no reference number in the exploded views are not supplied.
• Hardware (# mark) list and accessories and packing materials are given in the last of this parts list.
• Abbreviation
  • E:Indication of country of origin
  • 1E :No indication of country of origin

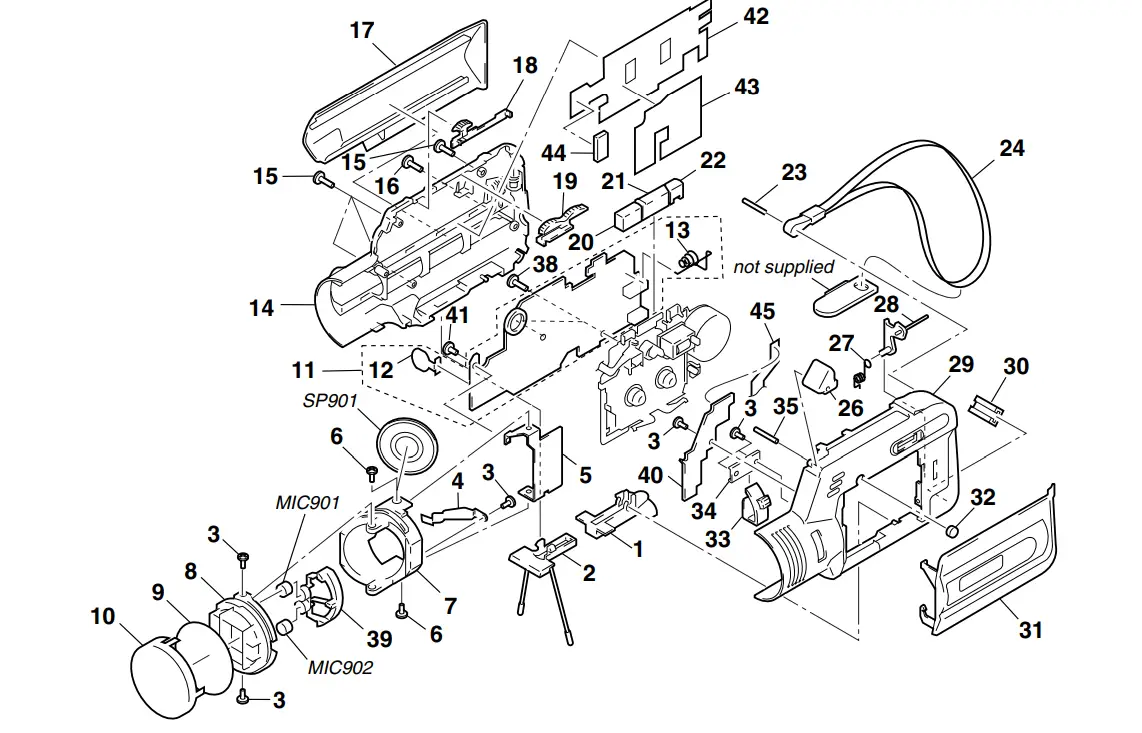

5-1. FRONT SECTION

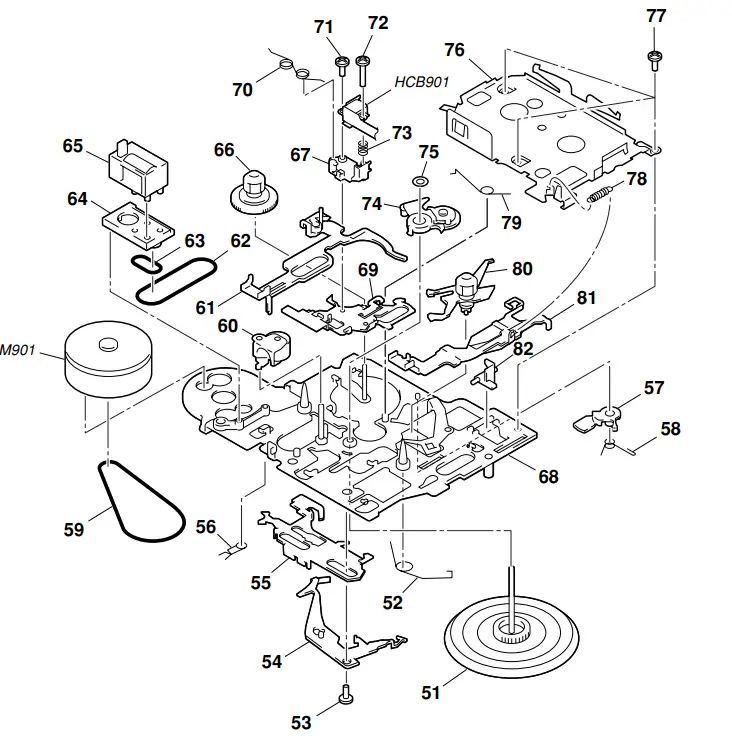

5-2. MECHANISM DECK SECTION (MZ-100MC-14)
