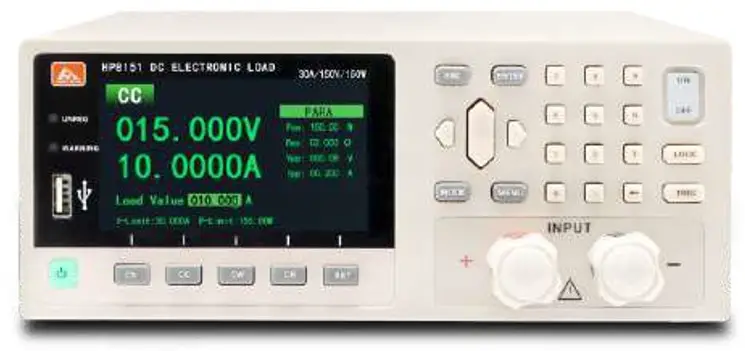

Hope Tech 150 To 300w Series Programmable Dc Electronic Load User Guide

150 to 300W Series Programmable DC Electronic Load
User Guide

OVERVIEW

• HT8XXX load is a precision programmable DC electronic load controlled by a high-performance microprocessor. It uses a 3.5-inch TFT true-color LCD display with a Chinese and English menu.
• Offers 4 basic working modes (CC/CV/CR/CW) and 10 functional modes.
• With comprehensive protection, over-heat protection, over-current protection, over-power protection, over-voltage protection, and loop oscillation protection. HT8XXX series  E-load supports RS232, LAN, USB and analog interfaces to fit your versatile solution and testing needs.

4 basic working modes CC/CV/CR/CW and 11 functional modes multiple extended function modes:

• Short test function
• DYNA dynamic test function
• OCP over current protection mode
• BATT battery mode
• EFFT load effect mode
• SWEEP dynamic frequency conversion scanning function
• TIMING _me measurement function
• OVP over-voltage protection mode
• AUTO mode
• LIST function
• LED (HP8151 has no LED mode)

FEATURES

• 500kHz high-speed voltage, current sampling rate
• High-precision voltage and current measurement
• Fast loop response speed and current slew rate Programmable single step up to 10μS
• Equipped with remote four-wire compensation
• Unique real-time display of current ripple and voltage ripple
• Real-time display of load power and resistance

APPLICATION

SPECIFICATION

Model	HT8151				HT8151A		HT8151B			HT8201
Inputvottage	15V	150V			15V	150V	50V	500V		15V	150V
input current	3A	30A			3A	30A	1.5A	15A		3A	30A
input power					150W					200W
Min.operationvdtage			1.5V@30A				7.5VaT 5A			1.5Va30A
Min risetirne@ FS current					10us
CV mode
Range	15V	150V			15V	150V	50V	500V		15V	150V
Resolution	0.2mV	2m			0.2mV	2mV	0.7mV	7mV		0.2mV	2mV
Accuracy					±(0.05%+0.025%FS)
CC mode
Range	3A	30A			3A	30A	1.5A	15A		3A	30A
Resolution	0.04mA	0.4mA			0.04mA	0.4mA	0.02mA	0.2mA		0.04mA	0.4mA
Accuracy					±(0.05%+0.05%FS)
CR mode
Range	0.10 -7.5k0			I	0.1O-7.5k0		0.10-7.5k0		I	0.1O-7.5k0
Resolution					16Bits
Accuracy					±0.1%
CW mode
Range					150W				I	200W
Resolution					16Bits
Accuracy					t (0.1%+0.1%FS)
LED mode
bandwidth					100kHz0,..t
Rd coefficient					0.001-1
Dynamic mode
Ta&Tb					10uS-50s
Min. resolution					10us
Mill. rise time	1.5A/us				1.5A/us		0.8A/us			1.5A/us
Read-back voltage
Range	15V	150V			15V	150V	50V	500V		15V	150V
Resolution	0.1 mV	1mV			0.1 mV	1mV	0.3mV	3mV		0.1mV	1mV
Accuracy					±(0.025%+0.025%FS)
Read-back current
Range	3A	30A			3A	30A	1.5A	15A		3A	30A
Resolution	0.02mA	0.2mA			0.02mA	0.2mA	0.01 mA	0.1mA		0.02mA	0.2mA
Accuracy					t(0.05%+0.05%FS)
Read-back Ripple
Range(R/I)					150V/30A		I 500V/15A		I	150V/30A
bandwidth					10Hz-250kHz
Accuracy					±1%
Protection range
Over-pmerprotection					158W					210W
Over-cunentprotedion			32A				16A			32A
Over-voltage protection			158V				525V			158V
Over-temperature protection					-;85°C
Specification
Dimension (D*W*1-1)					358mm*214mm”88mm
Gross Weight					3.8K9
