SIMPLEX GRINDER PUMP CONTROL PANEL AND ALARM
Instruction Manual
APPLICATIONS
- Simplex Grinder Pump Control Panels and Alarms are designed exclusively for use with IGP Grinder Series pumps in applications such as lift pump chambers and sewage ejector basins
FEATURES
- Controls the pump and warns of high liquid levels
- Color-coded terminal strip for ease of installation
- Corrosion-resistant NEMA 4X fiberglass, waterproof enclosure with padlock provision
- HOA switch allows for “Hand” (manual), “Off” or “Automatic” operation
- Three floats (sold separately) control on, off, and alarm functions
- The alarm ON/OFF switch controls the power to audible and visual alarm signal device
- Contains start and run capacitors and start relay necessary for proper motor operation and third-party approval
- CULus listed
SERIES SPECIFICATIONS
| Item No. | Model No. | Volts | Hz | Phase | FLA | Weight (lbs) |
| 515354 | A-SF230CBG-215 | 208/230 | 60 | 1 | 16 | 15 |
| 515361 | 1052443 | 208/230 | 60 | 1 | 22 | 15 |

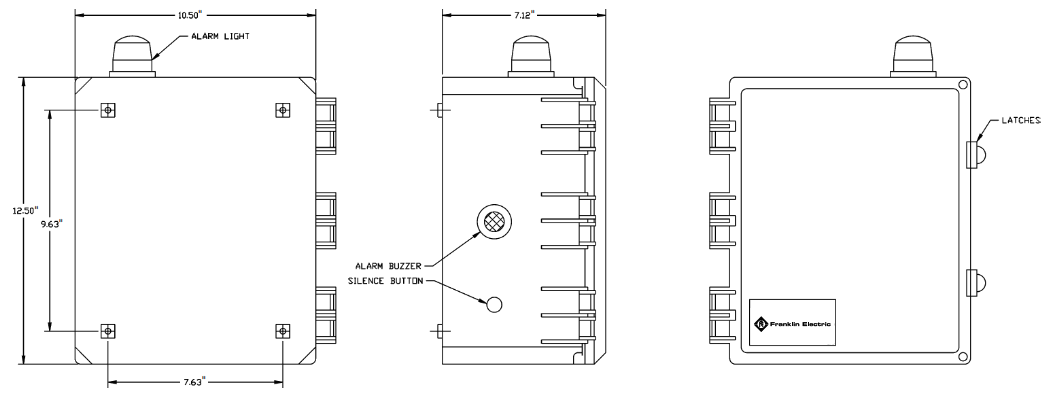

ENGINEERING DATA

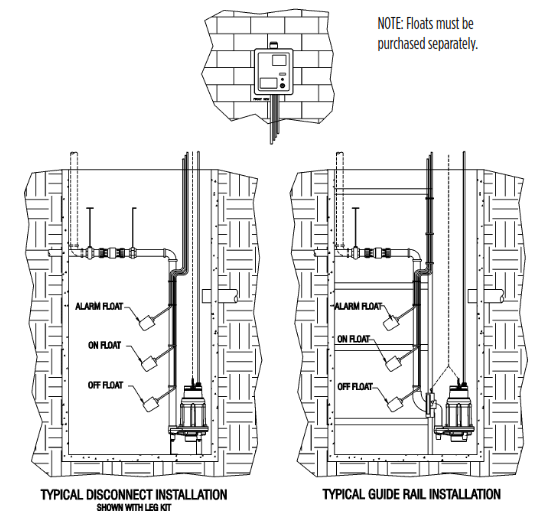

TYPICAL INSTALLATION
INSTALLATION INSTRUCTIONS
WARNING: Turn off the power source before installing or adjusting this device. Failure to turn off power could result in serious or fatal electric shock.
- Determine the mounting location for the control panel. Liquid-tight connectors should be used on all cables entering the panel. Conduit connectors, if used, must be sealed.
- Check local codes, the schematic, and the installation/operation manual for power circuit requirements. On the control panel, determine the “power in” location
(from the building power supply). CAUTION: BE SURE THE POWER SUPPLY VOLTAGE AND PHASE ARE THE SAME AS THE PUMP MOTORS BEING INSTALLED. - Determine the location on the control panel for the pump power cables and float switch cables. Drill holes to fit the type of cable fittings to be used.
- Attach floats as shown in the Typical Installation drawing and instruction manual.
- Following step-by-step instructions and wiring diagram included with the panel, complete connections of all cables.
- Follow the “Manual Testing” procedure in the instruction manual.
NOTE: Franklin Electric cannot be responsible for damages caused by faulty or negligent installation of the control. We recommend that you engage the services of a competent plumber, electrician, or qualified service person to install this product in accordance with national and local electrical codes.
ACCESSORIES: Some installations may require a moisture-free junction box to house electrical connections. These are available with liquid-tight connectors.
The liquid-tight connectors are also available separately.
9255 Coverdale Road, Fort Wayne, IN 46809
Tel: 1.866.271.2859 Fax: 1.866.271.2709
franklinengineered.com
996781 04-20
