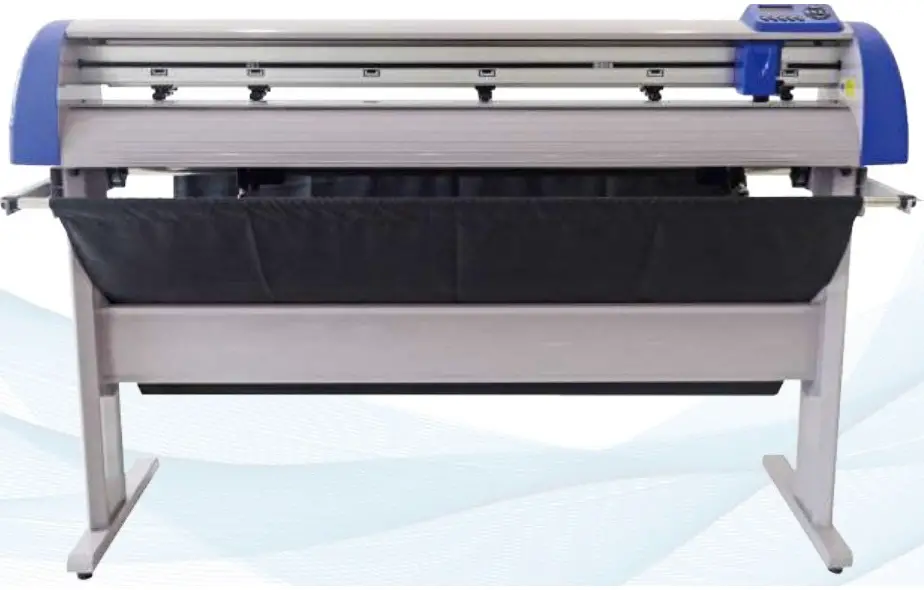

Saga SGB720II Cutting Plotter Owner’s Manual

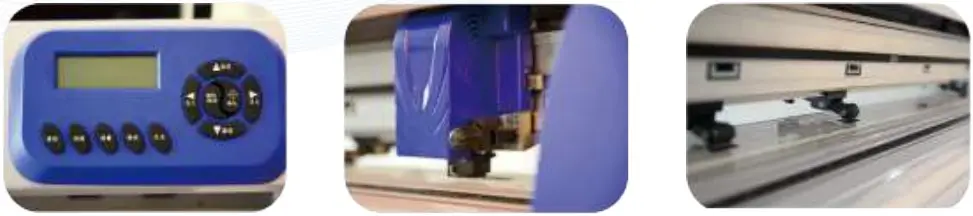

MAIN FEATURES
- High force cutting head with 4 wheels
- Aluminum alloy construction, ABS end caps, welded steel stand
- Available with ARM for fully automatic contour cutting

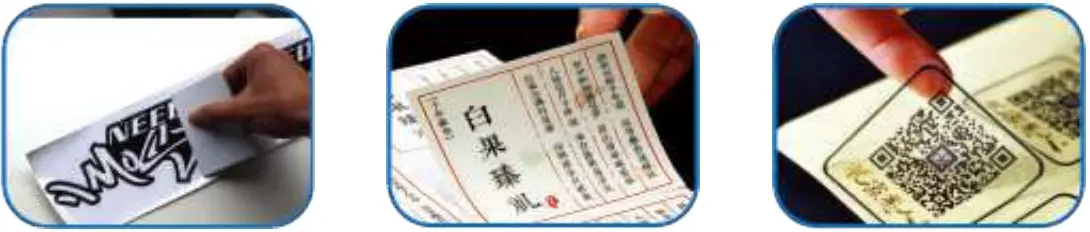

CUTTING SAMPLES
SPECIFICATIONS
| Model Name | SG-B720II/B720IIP | SG-B1400II/B1400IIP | SG-B1800II/B1800IIP |
| Maximum sheet size | 720mm | 1400mm | 1800mm |
| Maximum cutting size | 610mm | 1295mm | 1695mm |
| Minimum cutting character | About 5mm² | ||
| Mechanical resolution | 0.02mm | ||
| Repeat precision | 0.082mm | ||
| Maximum linear cutting speed | 960mm/s | ||
| Maximum cutting force | 750g | ||
| Cutting control system | DC Servo | ||
| Motor speed | 0-3000RPM | ||
| CPU | 64－DSP | ||
| Package dimensions | L1030mm×W350mm×H490mm | L1710mm×W350mm×H490mm | L2100mm×W400mm×H550mm |
| Actual dimensions | L930mm×W250mm×H260mm | L1610mm×W250mm×H260mm | L2010mm×W250mm×H260mm |
| Gross/Net weight | 27±10kg/25±10kg | 42±10kg/35±10kg | 68±10kg/47±10kg |
| Software and compatibility | |||
| Connectivity | USB/RS﹣232 | ||
| Software and compatibility | Dragon Cut, for computer, compatible for Windows7,8,10 (USB direct connection to the computer) | ||
| Corel Draw/ Illustrator Plug-in (SD direct connection to the computer) | |||
| Power and working environment requirements | |||
| Power source | 100V～240V,50/60Hz | ||
| Power | 150W | ||
| Operation environment | Temperature +5℃ to +35 ℃ (Fahrenheit 41-95),Humidity 30% -75% (Non-condensing) | ||
| Stand ﹠pocket | Included | Included | Included |
This parameter is subject to change without prior notice. The company reserves the right of final interpretation
HEFEI SAGA COMPUTER NUMERICAL CONTROL Co.,Ltd.
Tel: +86-551-63444544
Address：Block7 Liando U-valley,Jilin Crossing of Fanhua Avenue, Baohe District, Hefei, Anhui Province ,PRC
