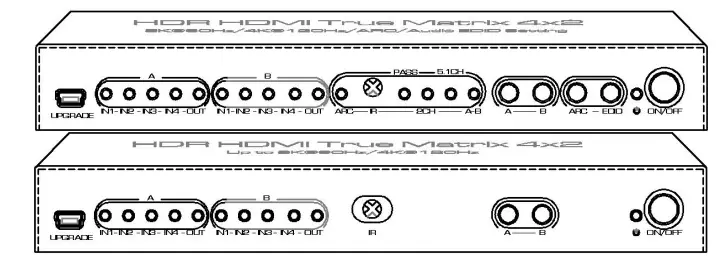

YPAY HDMX0016M1 8K HDR HDMI True Matrix 4×2
FEATURES OF THE INTERFACE

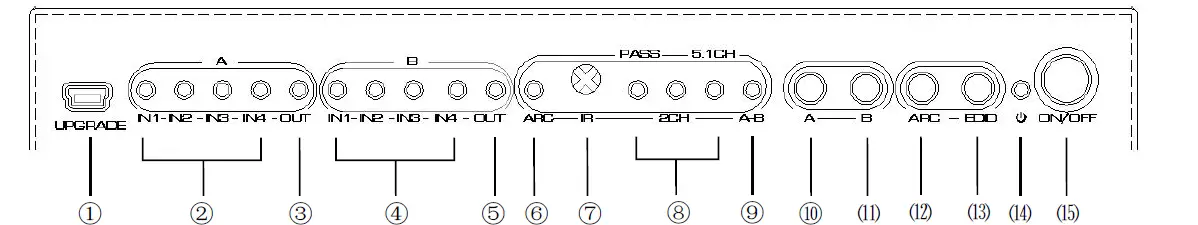

HDMX0016M1（Includes audio parts）
| No. | Description | Introduction |
| ① | Mini USB port | Only for factory upgrade |
| ② | HDMI input indicators for channel A | The selected input channel indicator will light up. |
| ③ | HDMI output indicator for channel A | Lighting when HDMI OUTA has signal output. |
| ④ | HDMI input indicators for channel B | The selected input channel indicator will light up. |
| ⑤ | HDMI output indicator for channel B | Lighting when HDMI OUTB has signal output. |
| ⑥ | ARC status indicator | Lighting when ARC on. |
| ⑦ | IR receiving window | Receive the commands sent by the infrared remote control. |
| ⑧ | EDID mode indicators | Include three audio EDID modes: PASS/2CH/5.1CH |
| ⑨ | Audio source channel indicator | Lighting when Audio output is homologous to HDMI OUTA. Light off is homologous with HDMI OUTB. |
| ⑩ | Input selection key of channel A | Loop to select the input channel of HDMI OUTA |
| ⑾ | Input selection key of channel B | Loop to select the input channel of HDMI OUTB |
| ⑿ | ARC on/off key | HDMI ARC (Audio return channel) function on/off. |
| ⒀ | EDID mode selection key | Support three audio EDID mode switching :PASS/2CH/5.1CH. |
| ⒁ | Power status indicator | Lighting when power on. |
| ⒂ | Power switch | Power self – lock switch, turn on when pressed, turn off when bounced. |

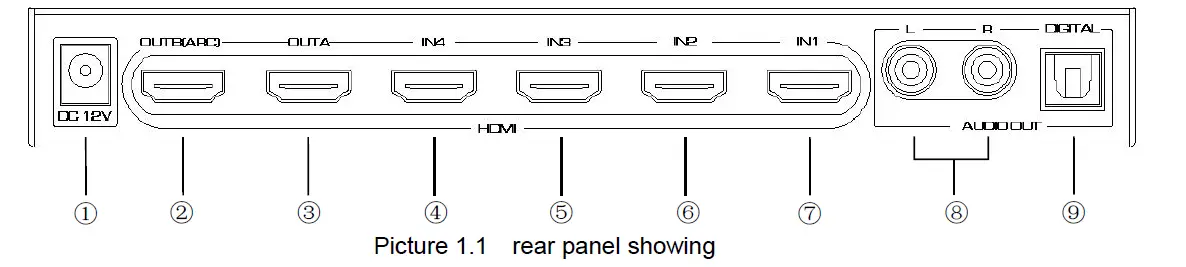

| No. | Description | Introduction |
| ① | Power jack | Requires 6-12V power supply |
| ② | HDMI output port B | Connects to monitor with HDMI port. This port also supports ARC. |
| ③ | HDMI output port A | Connects to monitor with HDMI port |
| ④ | HDMI input port 4 | Connects to your source device by HDMI cable. |
| ⑤ | HDMI input port 3 | Connects to your source device by HDMI cable. |
| ⑥ | HDMI input port 2 | Connects to your source device by HDMI cable. |
| ⑦ | HDMI input port 1 | Connects to your source device by HDMI cable. |
| ⑧ | Analog audio ports | Synchronized output stereo analog audio, contains left and right channels. |
| ⑨ | Digital audio port | Synchronized output digital audio by fiber optic. |

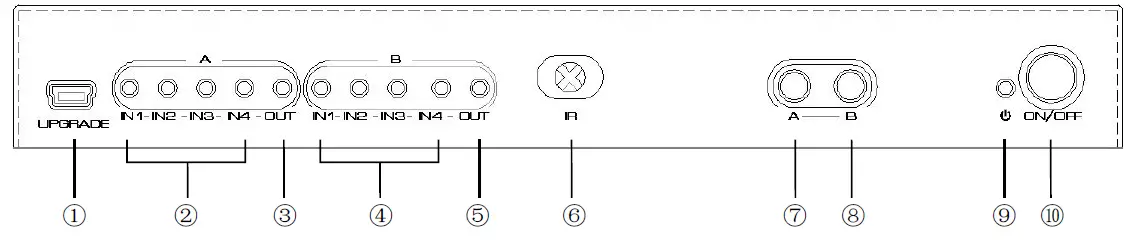

HDMX0017M1（No audio parts）
| No. | Description | Introduction |
| ① | Mini USB port | Only for factory upgrade |
| ② | HDMI input indicators for channel A | The selected input channel indicator will light up. |
| ③ | HDMI output indicator for channel A | Lighting when HDMI OUTA has signal output. |
| ④ | HDMI input indicators for channel B | The selected input channel indicator will light up. |
| ⑤ | HDMI output indicator for channel B | Lighting when HDMI OUTB has signal output. |
| ⑥ | IR receiving window | Receive the commands sent by the infrared remote control. |
| ⑦ | Input selection key of channel A | Loop to select the input channel of HDMI OUTA |
| ⑧ | Input selection key of channel B | Loop to select the input channel of HDMI OUTB |
| ⑨ | Power status indicator | Lighting when power on. |
| ⑩ | Power switch | Power self – lock switch, turn on when pressed, turn off when bounced. |
| No. | Description | Introduction |
| ① | Power jack | Requires 6-12V power supply |
| ② | HDMI output port B | Connects to monitor with HDMI port. This port also supports ARC. |
| ③ | HDMI output port A | Connects to monitor with HDMI port |
| ④ | HDMI input port 4 | Connects to your source device by HDMI cable. |
| ⑤ | HDMI input port 3 | Connects to your source device by HDMI cable. |
| ⑥ | HDMI input port 2 | Connects to your source device by HDMI cable. |
| ⑦ | HDMI input port 1 | Connects to your source device by HDMI cable. |

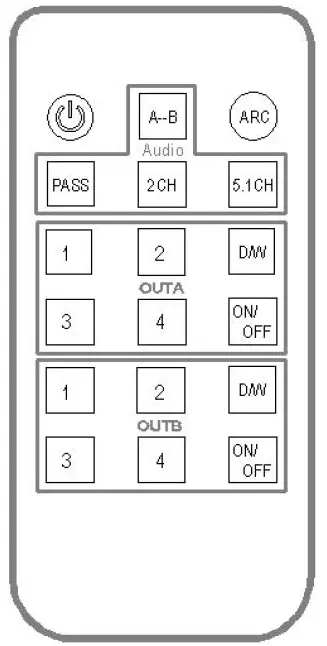

Picture 1.4 IR panel showing and function introduction
| Remote keys | Panel keys | Functional description |
| POWER | / | Power standby on/off button |
|
A-B | Press AUDIO key more than 3 seconds |
Select A/B for the audio output source channel |
| ARC | Press ARC key | ARC turn on / turn off |
|
PASS |
Press AUDIO key | Audio EDID PASS mode. The audio output format is determined by the EDID information of the TV. |
| 2CH | Audio EDID 2CH mode.
Priority output stereo audio in this mode. | |
|
5.1CH | Audio EDID 5.1CH mode. Priority output 5.1 channel bit stream in this mode. The analog output ports have no output now. | |
| 1/2/3/4 | Press A/B key | Input source selection of A/B output channel. |
|
D/W |
Press A/B key more than 3 seconds | HDMI1.4 compatibility mode turn on/off Try to turn on this mode when there is a problem using both HDMI1.4 signal source and HDMI2.0 TV. When turned on, the 5 LEDs in group A/B will flash 4 times at the same time, and flash twice when turned off |
| ON/OFF | / | HDMI A/B output port enabled or disabled |
- Please take out the film at the rear of the remote before you use. Please insert the film to remote rear if you do not use the remote for long time.

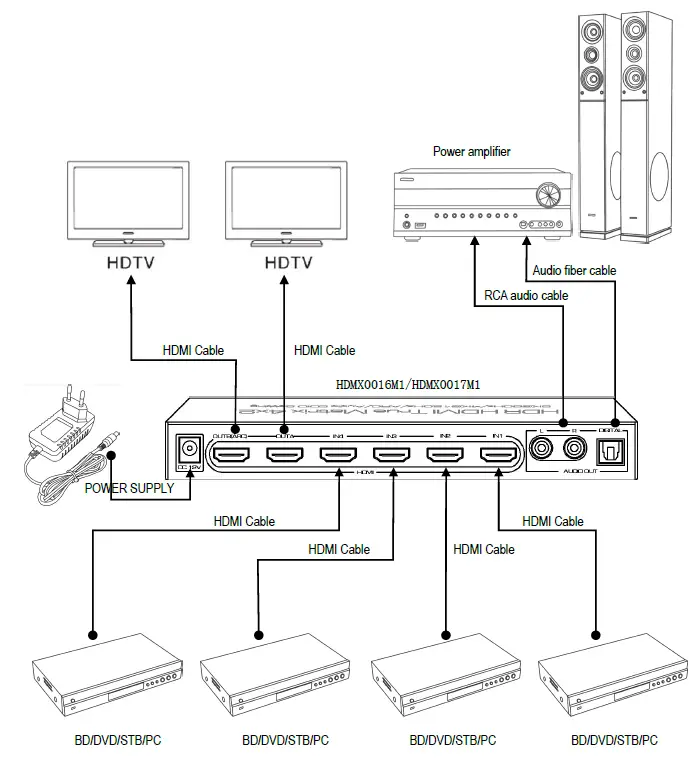

Connection and operation
Matters needing attention:
- Please use a standard HDMI cable and connect the cable before powering the equipment.
- In matrix mode (In this mode, the outputs of A and B are different), output ports A and B cannot output 8K signals at the same time. Only one group is allowed to output 8K and the other group output 4K or less.
- The product has power-off memory function. The setting state of the output channel is recorded and saved. After the power is off, the saved data will be automatically retrieved for configuration.
- The AUDIO OUT is a set of multiplexed ports that allow you to select HDMI OUTA/B sounds by using the “A-B” key.
- The Audio EDID mode selection is also available for multiplexing. When the audio source selects channel A, the audio EDID mode is valid for channel A. So when the audio source selects channel B, the audio EDID mode is valid for channel B.
- Analog audio can only be output when the audio format is LPCM, so it is recommended to choose the EDID mode in 2CH mode when using analog audio output.
- If you want to use ARC or CEC, you must connect the TV to the OUTA port. Before using ARC, make sure your TV HDMI port supports ARC and the ARC have been turned on.
SPECIFICATIONS
| Model No. | HDMX0016M1(Includes audio parts) HDMX0017M1(No audio parts) |
| Model name | 8K HDR HDMI True Matrix 4×2 |
| Input ports | HDMIX4 |
| Output ports | HDMIX2 RCAX2、Optical X1 (Only for HDMX0016M1) |
| Video format | 480P/720P/1080P/2160P@24/25/30/50/60/100/120Hz Up to 4320P@50/60Hz, Support HDR/Dolby Vision |
| Deep color | 8/10/12/16Bit@2160P 8/10bit@4320P |
| Audio format | Dolby HD/DTS HD/Dolby Atoms/Dolby AC3/DTS/LPCM Etc. |
| Transmission bandwidth | 1200MHz Max. |
| Transmission rate | 48Gbps Max. |
| IR distance | ≤5m |
| Input cable length | 2160P/AWG 26 ≤5m；1080P/AWG 26 ≤10m |
| Output cable length | 2160P/AWG 26 ≤5m；1080P/AWG 26 ≤12m |
| Power adapter specification | Input: AC 100~240V Output: DC 12V/1.5A |
| Max working current | 500mA |
| Working temperature range | -5 ~ +40℃ |
| Working humidity range | 5 to 85%RH（No Condensation） |
| Storage temperature | -15 to 55℃ |
| Storage humidity | 5 ~95%RH(No Condensation) |
| Size | 250x75x30 (mm) |
| Weight | 440g |
| Accessories | Manual, Remote, Power Adaptor |
