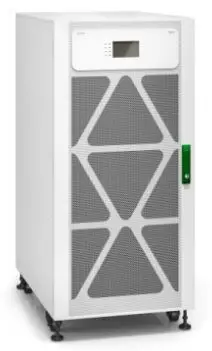

Schneider Electric Easy UPS 3M Battery Runtimes for UPSs for External Batteries and Classic Battery Cabinets
Battery Runtimes
Easy UPS 3M
Battery Runtimes for UPSs for External Batteries and Classic Battery Cabinets
- Battery runtimes are listed in minutes.
- Battery runtimes are estimated values based on battery manufacturer data for operation at 25 °C.
- Runtimes are given with Leoch battery type XP12-300 for E3MCBC10A and E3MCBC10D. Previous versions of E3MCBC10A and
- E3MCBC10D with battery type XP12V2500 do not match the given runtimes.
- Runtimes are given with Leoch battery type XP12-350 for E3MCBC10B, E3MCBC10C, and E3MCBC10E. Previous versions of E3MCBC10B,
- E3MCBC10C, and E3MCBC10E with battery type XP12V3000 do not match the given runtimes.
Battery Runtimes for 60 and 80 kVA UPSs and Classic Battery Cabinets
| UPS rating | 60 kVA | 80 kVA | ||||||
| Power factor | 1 | |||||||
| 25% load | 50% load | 75% load | 100% load | 25% load | 50% load | 75% load | 100% load | |
| E3MCBC7C | 40.5 | 17 | 9.6 | 6 | 28 | 11 | 6 | NA |
| E3MCBC7D | 64 | 28 | 16.5 | 11 | 45.5 | 19.5 | 11 | 7 |
| E3MCBC10A | 100 | 44.5 | 26.5 | 18 | 72 | 31 | 18 | 11.5 |
| E3MCBC10B | 120 | 54 | 32.5 | 22 | 86.5 | 37.5 | 22 | 14.5 |
| E3MCBC10C | 135 | 61 | 37 | 25.5 | 98 | 43 | 25.5 | 17 |
| E3MCBC10D | 225 | 100 | 63 | 44 | 160 | 73 | 44 | 30.5 |
| E3MCBC10E | 270 | 120 | 76 | 53.5 | 190 | 87.5 | 53.5 | 37 |
| 2 x E3MCBC7C | 92.5 | 40.5 | 24.5 | 16.5 | 65 | 28 | 16 | 10.5 |
| 2 x E3MCBC7D | 140 | 64 | 39 | 27 | 100 | 46 | 27 | 18.5 |
Battery Runtimes for 100 and 120 kVA UPSs and Classic Battery Cabinets
| UPS rating | 100 kVA | 120 kVA | ||||||
| Power factor | 1 | |||||||
| 25% load | 50% load | 75% load | 100% load | 25% load | 50% load | 75% load | 100% load | |
| E3MCBC7C | 21 | 8 | NA | NA | 16.5 | 6.1 | NA | NA |
| E3MCBC7D | 34 | 14 | 8 | NA | 27.5 | 11 | 6 | NA |
| E3MCBC10A | 55.5 | 23 | 13 | 8.4 | 44 | 18 | 10 | 6.1 |
| E3MCBC10B | 66.5 | 28.5 | 16 | 10.5 | 53.5 | 22 | 12.5 | 7.8 |
| E3MCBC10C | 75.5 | 32.5 | 19 | 12.5 | 60.5 | 25.5 | 14.5 | 9.3 |
| E3MCBC10D | 125 | 56 | 33.5 | 23 | 100 | 44.5 | 26.5 | 18 |
| E3MCBC10E | 150 | 67.5 | 41 | 28 | 120 | 53.5 | 32.5 | 22 |
| 2 x E3MCBC7C | 50 | 21 | 12 | 7.6 | 40.5 | 16.5 | 9.5 | 6 |
| 2 x E3MCBC7D | 79 | 35 | 20.5 | 13.5 | 64 | 28 | 16 | 11 |
| 2 x E3MCBC10A | NA | NA | NA | NA | 100 | 44.5 | 26.5 | 18 |
| 2 x E3MCBC10B | NA | NA | NA | NA | 120 | 53.5 | 32.5 | 22 |
| 2 x E3MCBC10C | NA | NA | NA | NA | 135 | 61 | 37 | 25.5 |
| 2 x E3MCBC10D | NA | NA | NA | NA | 225 | 100 | 63 | 44 |
| 2 x E3MCBC10E | NA | NA | NA | NA | 270 | 120 | 76 | 53.5 |
| E3MCBC10A+ E3MCBC10D | NA | NA | NA | NA | 160 | 72.5 | 44.5 | 30.5 |
| E3MCBC10B+ E3MCBC10E | NA | NA | NA | NA | 195 | 87.5 | 53.5 | 37.5 |
Battery Runtimes for 160 and 200 kVA UPSs and Classic Battery Cabinets
| UPS rating | 160 kVA | 200 kVA | ||||||
| Power factor | 1 | |||||||
| 25% load | 50% load | 75% load | 100% load | 25% load | 50% load | 75% load | 100% load | |
| E3MCBC7C | 11 | NA | NA | NA | 8 | NA | NA | NA |
| E3MCBC7D | 19 | 7.5 | NA | NA | 14 | NA | NA | NA |
| E3MCBC10A | 31 | 12 | 6.2 | NA | 23 | 8.5 | NA | NA |
| E3MCBC10B | 37.5 | 15 | 7.9 | NA | 28 | 10.5 | 5.1 | NA |
| E3MCBC10C | 43 | 17 | 9.4 | 5.5 | 32 | 12.5 | 6.3 | NA |
| E3MCBC10D | 72.5 | 31 | 18 | 11.5 | 55 | 23 | 13 | 8.4 |
| E3MCBC10E | 87 | 37.5 | 22 | 14.5 | 66.5 | 28 | 16 | 10.5 |
| 2 x E3MCBC7C | 28.5 | 11 | 6 | NA | 21 | 8 | NA | NA |
| 2 x E3MCBC7D | 45.5 | 19.5 | 11 | 7.4 | 34.5 | 14 | 8 | NA |
| 2 x E3MCBC10A | 72.5 | 31 | 18 | 11.5 | 55 | 23 | 13 | 8.4 |
| 2 x E3MCBC10B | 87 | 37.5 | 22 | 14.5 | 66.5 | 28 | 16 | 10.5 |
| 2 x E3MCBC10C | 99 | 43 | 25.5 | 17 | 75.5 | 32.5 | 18.5 | 12 |
| 2 x E3MCBC10D | 160 | 73 | 44 | 30.5 | 125 | 55.5 | 33.5 | 23 |
| 2 x E3MCBC10E | 195 | 87.5 | 53.5 | 37 | 150 | 67 | 40.5 | 28 |
| E3MCBC10A+ E3MCBC10D | 115 | 51.5 | 31 | 21 | 89.5 | 39 | 23 | 15.5 |
| E3MCBC10B+ E3MCBC10E | 140 | 62 | 37.5 | 25.5 | 105 | 47 | 28 | 19 |
