ENVEOLI2111020_V1 – End of Life Instructions – Easy UPS 3S
Product End of Life Instructions

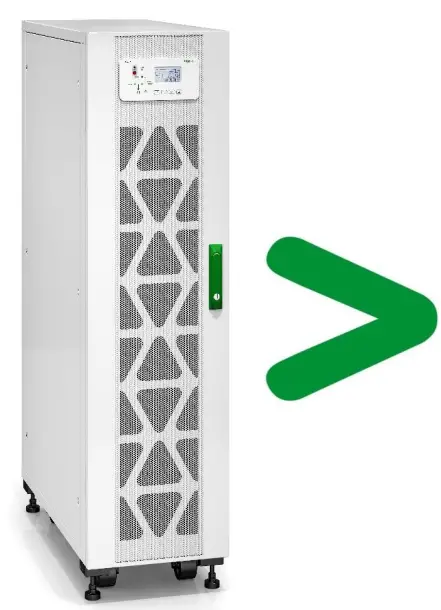

Easy UPS 3S
Easy 3S 10-40 kVA (400V) and 10-20 kVA (208V) IEC 3 phase UPS
Easy UPS 3S
Potential disassembly risks
Hazard of electric shock, explosion or arc flash
The UPS contains an internal energy source. Hazardous voltage can be present even when disconnected from the utility/mains supply. Before installing or servicing the UPS system, ensure that the units are OFF and that utility/mains and batteries are disconnected. Wait five minutes before opening the UPS to allow the capacitors to discharge.
End of Life Instructions
End of Life Instructions

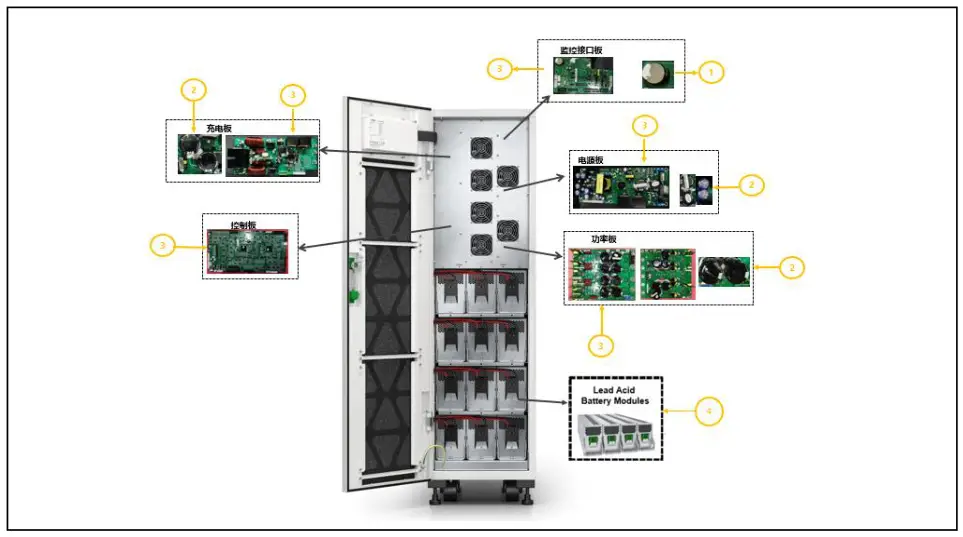

| Recommendation | Number on drawing | Component / Material | Weight (ing) | Comment |
| To be depolluted | 1 | Batteries (Lithium metal coin batteries)* | 2.98 | 1 x coin batteries |
| To be depolluted | 2 | Electrolytic Capacitors* | 1104.65 | 25 x large electrolytic capacitors |
| To be depolluted | 3 | Electronic Board > 10cm² | 5079.74 | 17 X PCBs >10cm2 |
| To be depolluted | 4 | Battery (Lead-acid)* | 324000 | 12 X lead-acid battery |
Product description
Product description| Manufacturer identification | Schneider Electric Industries SAS |
| Brand name | Schneider Electric |
| Product function | The Schneider Electric Easy UPS 3S is an easy-to-install, easy-to-connect, easy-to-use, and easy-to-service 10- 40 kVA 3 phase UPS ideal for small and medium businesses, data centers, and other mission critical applications. |
| Product reference | E3SUPS20KHB |
| Total representative product mass | 125475.4 g |
| Representative product dimensions | 1400 mm x 380 mm x 840 mm |
| Date of information release | Mar-22 |
Additional information
Additional information| Legal information | The product family must be disposed according to the legislation of the country. This document is intended for use by end of life recyclers or treatment facilities. It provides the basic information to assure an appropriate end of life treatment for the components and materials of the product. |
| Recyclability potential 81% | Based on “ECO’DEEE recyclability and recoverability calculation method” (version V1, 20 Sep. 2008 presented to the French Agency for Environment and Energy Management: ADEME). |
Schneider Electric Industries SAS
Country Customer Care Center
http://www.schneider-electric.com/contact
35, rue Joseph Monier CS 30323
F- 92506 Rueil Malmaison Cedex
RCS Nanterre 954 503 439
Capital social 896 313 776 €
www.schneider-electric.com
ENVEOLI2111020_V1
Published by Schneider Electric
© 2019 – Schneider Electric – All rights reserved
