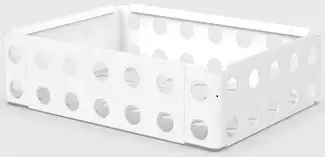

CAKE AC00078 Makka Front Small Basket Instructions
Instructions
Mountad in front of the bike on Makka carrier front.

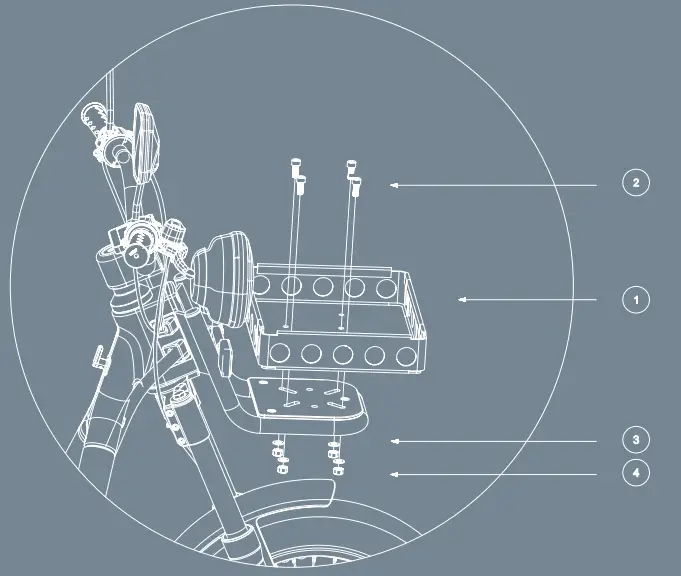

| Items | Component |
| 1 | Basket |
| 2 | Screw |
| 3 | Washer |
| 4 | Nut – the nut to be torqued to 15Nm |
Can be mounted in two different positions: behind the bike on Makka carrier rear or in front of the bike on Makka carrier front.
Fasteners included
- 4x screws
- 4x washer
- 4x nut
Tools needed
- Hex key 6 mm
- Wrench 13 mm
Note:
be aware of the loading height with this product to make sure it does not cover the light and turn signals.
Please contact your local CAKE service center if you need support
