Makka carrier / front
Instructions
Makka Front Carrier

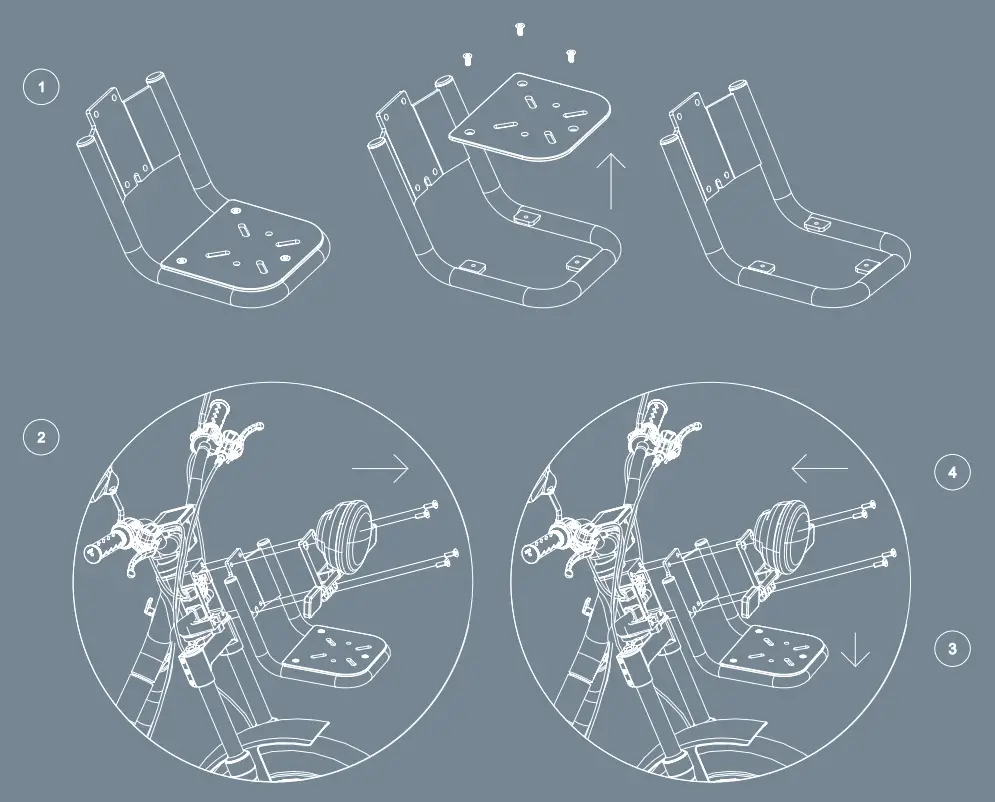

| Items | Instructions | |
| 1 | Remove the plate from the carrier by removing the three screws | Fasteners included |
| 2 | Remove the headlight from the frame by removing the four screws | 4x screws 3x screws |
| 3 | Put the headlight through the carrier and put the plate back with the three screws | Tools needed Torx 45 Torx 30 |
| 4 | Install the carrier between the headlight and the frame using the four new screws | |
| 5 | Tighten the small screws on the removable plate to 10Nm and the big screws to 15Nm | |
Note: be aware of the loading height with this product to make sure it does not cover the light and turn signals.
Please contact your local CAKE service center if you need support
