BRADFORD WHITE CSW2TW Atmospheric Vent Gas

Product Information

• This is a residential gas replacement parts list for the model C(D,S)W2TW50T10F(BN,CX,SX) and C(D,S)W2TW75T10(BN,CX,SX) gas water heaters. The parts list includes various components such as blowers, air mixing inlet, pressure switches, blower temperature switch, gaskets, power cord, vent adaptor, condensate hose kit, flue reducer, heat trap inserts, flue baffle, plug type anode, blower harness, T&P valve, inner doors, outer door, drain valve, flammable vapor sensor clip and sensor, sensor harness, gas valves, mixing valve, burner assembly, pilot assembly, and orifices.
• Please note that both the model and serial numbers are required when ordering replacement parts.
• Dimensions and specifications are subject to change without notice.

Product Usage Instructions

1. Identify the specific replacement part needed based on the item description and model number.
2. Ensure you have the model and serial numbers of your gas water heater available for ordering the correct replacement part.
3. Contact the manufacturer or authorized dealer to place an order for the replacement part.
4. Provide the necessary details including the model and serial numbers when ordering the replacement part.
5. Follow any additional instructions provided by the manufacturer or authorized dealer regarding installation or replacement of the specific part.
6. If an inner door gasket kit is recommended for a specific part, consider ordering it to ensure proper installation.
7. For burner assembly replacements, it is recommended to order the specific component required for quicker delivery.
8. Refer to the product manual or consult a professional if you are unsure about the installation or replacement process.

NOTE: BOTH MODEL AND SERIAL NUMBERS ARE REQUIRED FOR ORDERING REPLACEMENT PARTS

Dimensions and specifications subject to change without notice.

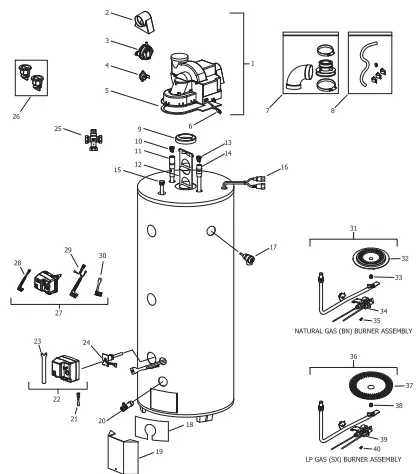

CDW2TWSOT SERIES

• LP GAS (SX) BURNER ASSEMBLY TO REPLACE LP GAS (CX) BURNER ASSEMBLY ON ALL MODELS EXCEPT 75 & 100 GAL. NON-DEFENDER MODELS

• Inner door gasket kit recommended
• Ordering a complete burner assembly may increase delivery time. Please order the specific component required for the quickest delivery.
• Order with item 10. 4 A
• Order with item 13.
• # A420 Anode may need to be cut to length
• For serial numbers beginning with “J” or sooner
• For serial numbers beginning with “K” or later

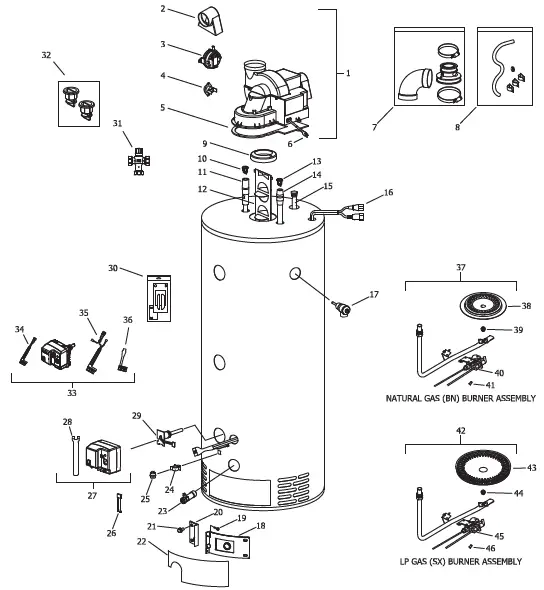

CDW2TW75T SERIES

LP GAS (SX) BURNER ASSEMBLY TO REPLACE LP GAS (CX) BURNER ASSEMBLY ON ALL MODELS EXCEPT 75 & 100 GAL. NON-DEFENDER MODELS

• Inner door gasket kit recommended
• Ordering a complete burner assembly may increase delivery time. Please order the specific component required for the quickest delivery.
• Order with item 10. 4 A
• Order with item 13.
• # A420 Anode may need to be cut to length
• For serial numbers beginning with “J” or sooner
• For serial numbers beginning with “K” or later

BRADFORD WHITE® WATER HEATERS

Ambler, PA
For U.S. and Canada field service, contact your professional installer or local Bradford White sales representative.

• Sales/800-523-2931
• Technical Support/800-334-3393 Email: [email protected]
• Warranty/800-531-2111
• Email/[email protected]
• Service Parts/800-538-2020
• Email/[email protected]
• International: [email protected]

CANADA

• Halton Hills, Ontario, Canada
• Sales & Technical Support/866-690-0961, 905-203-0600
• Fax/905-636-0666
• Email Warranty: [email protected]
• Technical Support: [email protected]
• Parts: [email protected]
• Orders: [email protected]
• www.bradfordwhite.com
