HALO Tire Inflator
Product Information

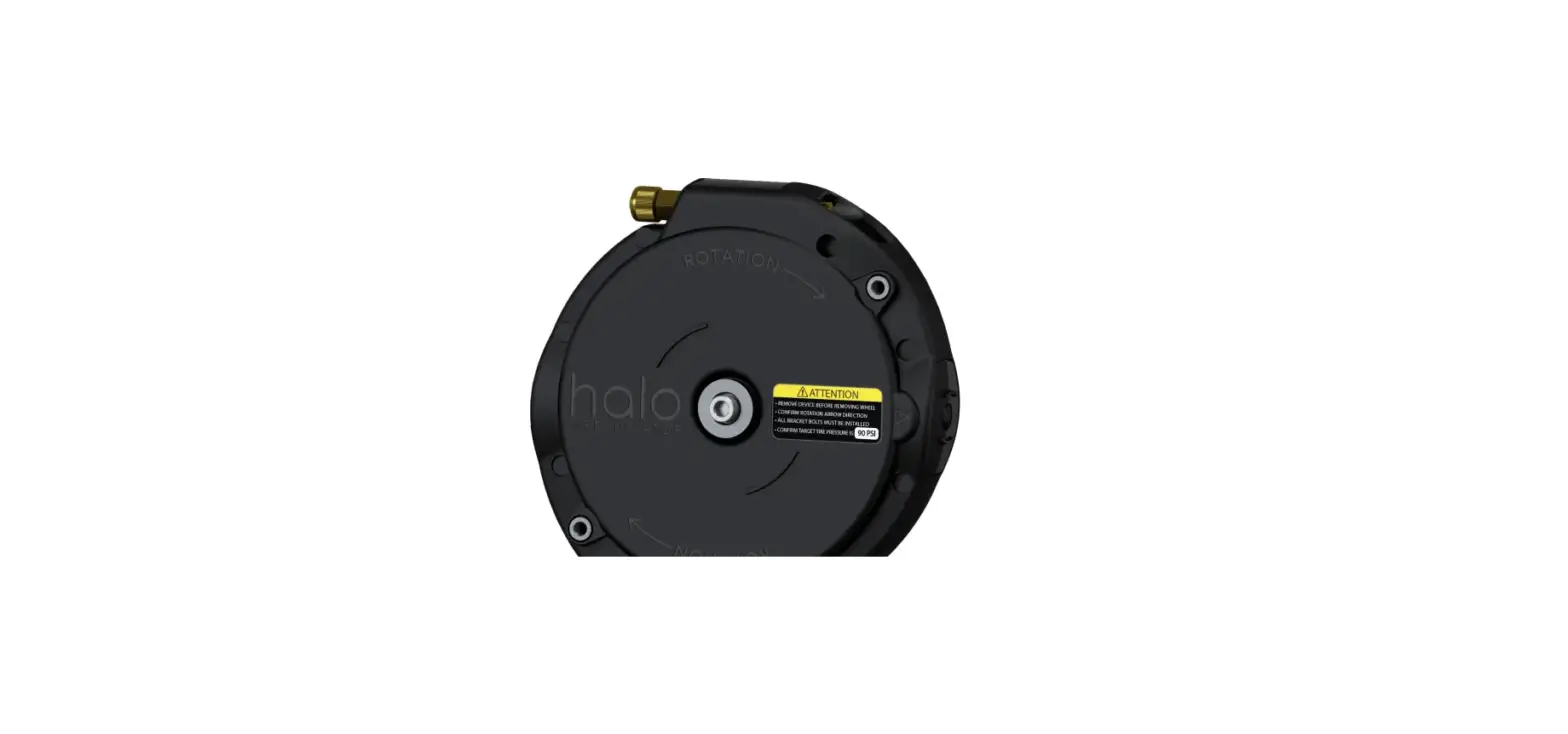

The Halo Tire Inflator is a completely mechanical, rotary pump
designed for dual or wide-base tires on tractors and trailers. It
is an easy-to-install, bolt-on device that can be mounted in 5-10
minutes per wheel-end without the need for connection to an onboard
air compressor. The Halo is not intended to replace regular
pressure-checks and tire maintenance practices as specified by the
FMCSA in their Compliance, Safety, Accountability (CSA) Program.
Aperia encourages users to take care of their tires and Halos for
their safety.
Product Usage Instructions
Pre-Trip Inspection:
- Visually check that there is no severe damage to the
system. - Check that all screws, washers, bolts, and nuts are present.
This includes cracked, bent, melted, corroded, or shattered system
components. - Visually check that the hose(s) are attached to Halo and tire
valve stem(s). - Measure tire pressure using the T-stem valve on the hose.
Warning: Do not operate the vehicle with severely
damaged system components, missing hardware, loose hoses, or flat
tires as it poses a safety risk.
Measuring Tire Pressure:
Use the T-stem valve on the hose to measure the tire pressure or
deflate/inflate the tire manually. Warning: Do not use the
Aperia service port on the Halo to inflate a tire as it could lead
to severe leaks.
Roadside Calls:
The Halo and hoses must be removed when a wheel is removed, but
the bracket can remain installed. If the technician is unfamiliar
with the Halo, show them the Roadside Removal Instructions provided
in the packet or on the Aperia Literature Webpage.
More Information
For more information, please visit our website at www.aperiatech.com.
Roadside Removal Instructions
| Tools | |
|---|---|
| Channel-lock pliers | 5/8 Wrench |
| Socket wrench | 1/2 Deep Socket |
| Security tool | T-40 security torx (stored in vehicle) |
- Unscrew hoses (b, c, d).
- Remove Halo (a, b, c). Do not remove bracket.
- Do not reinstall until the vehicle returns to the shop.
If you need further assistance, please contact
us:
Phone: (650) – 741 – 3231
Keep in vehicle
DRIVER GUIDE
INTRODUCTION
The Driver Guide provides an introduction to the Halo Tire Inflator and guidance on how to handle the most common situations that drivers encounter requiring interaction with the Halo.
What is the Halo?
The Halo Tire InflatorTM is a completely mechanical, rotary pump, compatible with dual or wide-base tires on tractors and trailers. As an easy-to-install, bolt-on device, it can be mounted in 5-10 minutes per wheel-end and does not require connection to an onboard air compressor.
The Halo is not intended to replace regular pressure-checks and tire maintenance practices as specified by the FMCSA in their Compliance, Safety, Accountability (CSA) Program. Aperia encourages users to take care of their tires and Halos, both of which are important for their safety.
What to check during pre-trip inspection
Please follow the steps below for each Halo and report any issues to the maintenance team.
1. Visually check that there is no severe damage to the system.
2. Check that all screws, washers, bolts, and nuts are present.
This includes cracked, bent, melted, corroded, or shattered system components.
3. Visually check that the hose(s) are attached to Halo and tire valve stem(s).
4. Measure tire pressure using the T-stem valve on the hose.
Do no operate the vehicle with a severely damaged system component, missing WARNING hardware, loose hoses or flat tires. Doing so will cause a safety risk.
How to measure tire pressure
Use the T-stem valve on the hose to measure the tire pressure or deflate/inflate the tire manually.
WARNING
Do not use the Aperia service port on the Halo to inflate a tire. This could lead to severe leaks.
what to do during Roadside calls
The Halo and hoses must be removed when a wheel is removed but the bracket can remain installed. If the technician is unfamiliar with the Halo show them the Roadside Removal Instructions in this packet or on the Aperia Literature Webpage www.aperiatech.com/literature.
More information
For more information please visit our website at www.aperiatech.com
ROADSIDE REMOVAL INSTRUCTIONS
TOOLS
Channel-lock pliers 5/8″ Wrench Socket wrench
1/2″ Deep Socket
Security tool
T-40 security torx
(stored in vehicle)
DO NOT remove center bolt
Need Help?
(650) – 741 – 3231
1. UNSCREW HOSES b
a d
c
2. REMOVE HALO a
c
b
DO NOT remove bracket
DO NOT reinstall until vehicle returns to shop.
PN: 91-00006428 Rev. A
Aperia Technologies 3160 Corporate Place Hayward, CA 94545 USA Phone: (650) 741- 3231
©2018 Aperia Technologies
www.aperiatech.com
