Fanttik X8 Nano Portable Lightweight Tire Inflator User Manual

X8 Nano Portable Lightweight Tire Inflator
User Manual

Nano Portable Lightweight Tire Inflator

Please read this instruction manual carefully before use and keep it for future reference.

Quick Start Guide

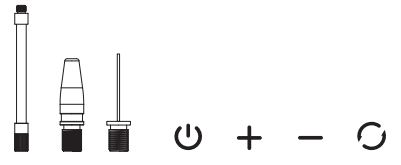

1. Air Tube
2. Nozzle
3. Ball Needle Adapter x2
4. Power Button
5. Plus Button
6. Minus Button
7. Mode Button &Illumination Button

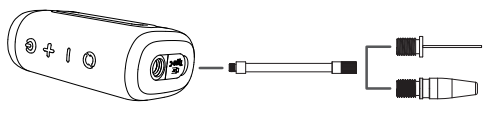

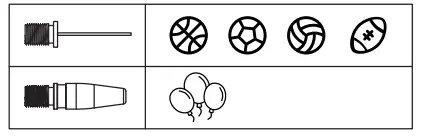

1. Install the air tube and choose an applicable adapter, which depends on the inflatable target.
2. Connect the inflator to the air valve of the inflatable target securely.

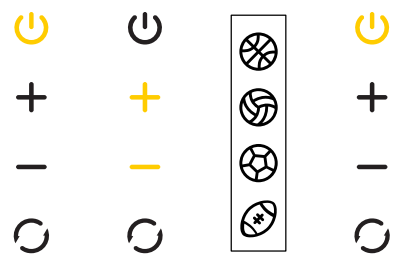

3. Long press the Power Button and the inflator will be turned on in manual mode. Press “+”/“-” Button to adjust the target pressure value in manual mode, or press the Mode Button to select a preset mode. Press the Power Button to start inflating.

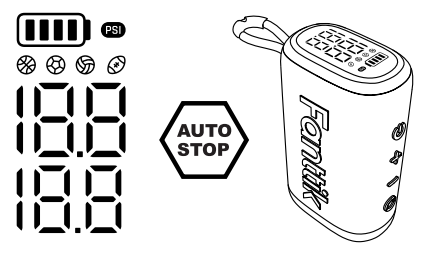

4. The inflator will automatically stop at the target pressure value. Disconnect it from the target.

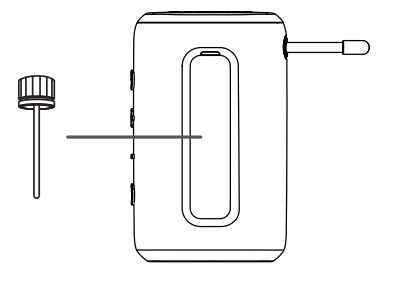

5. Long press the Power Button to turn off the inflator and store it properly. Then store the ball needle in the product setting position.

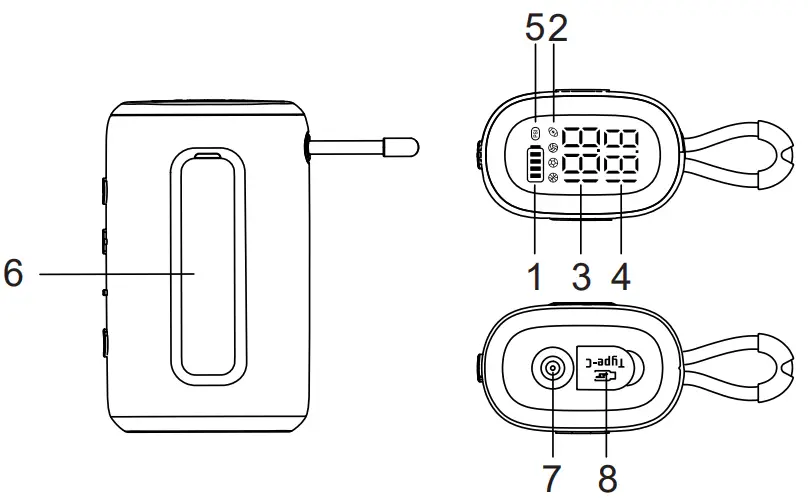

Product Overview

1. Battery indicator
2. Preset mode
3. Target pressure value
4. Real-time pressure value
5. Pressure unit
6. Neddle adapter storage bin
7. USB-C port
8. Air outlet

Warm Tips: USB-C port is used for charging X8 Nano with USB cable. Air outlet is used for connecting with air tube.

Air Pressure Reference Table

Light

Press the Mode button more than 2 seconds to turn the inflator’s light
+ on when it’s off. The light makes it easy to see in the dark , such as connecting the air compressor to a valve.
- When the light is on, press the mode button as above to cyclethrough SOS and OFF.
Note: After 30 minutes, the light will automatically turn off. .

Specifications

Attention

• Avoid moisture, sand and fall.
• Keep away from combustible and explosives.
• Do not store the product in a place that is too cold or hot.
• This product is not a toy and should not be used by kids whose age is below 3 years old.
• It is forbidden to throw the product into fire or discard it at random due to the built -in lithium battery.
• Keep a safe distance between little kids and needle adapter. It can help avoid risk of swallowing by accident.

Warranty info

Your Warranty Includes
12-Month Coverage
Within 12 months of purchase, we will provide timely and effective online after-sales service. We will repair or replace any defective product (due  o
manufacturing fault) within the warranty period.
How to Return Your Fanttik Product
Contact [email protected] with your order number.
If your purchase was fulfilled by Amazon, please use Amazon’s 30-day return service.

www.fanttik.com
[email protected]
METASEE LLC
5205 Broadway #634 Pearland Texas 77581
Made In Chania
