Vaclife Vl738 Tire Inflator User Manual

TIRE INFLATOR
USER MANUALVL738

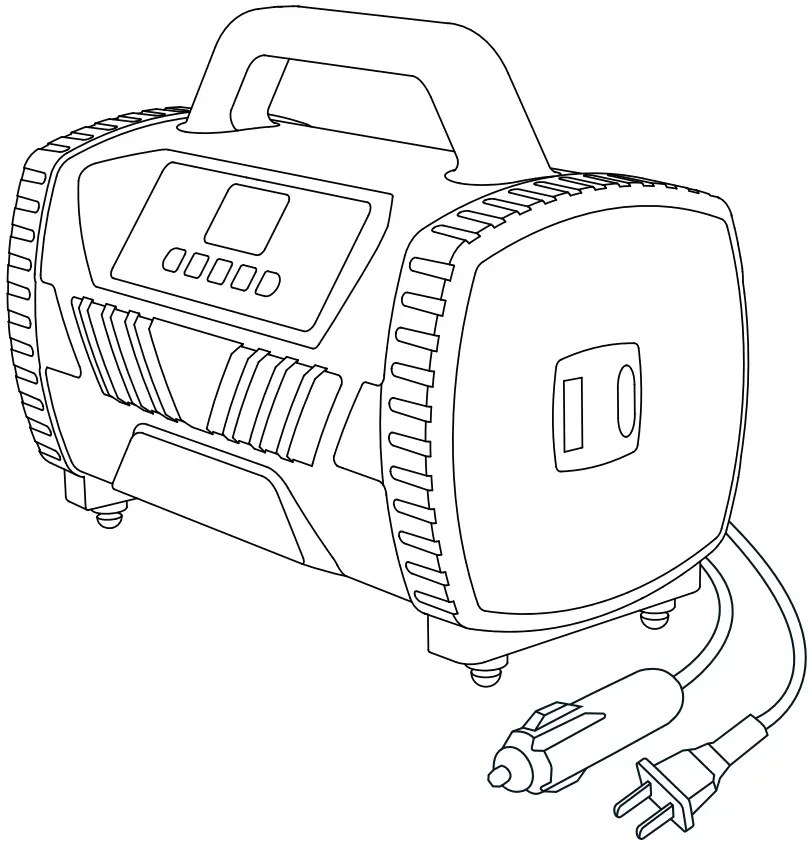

VL738 Tire Inflator

THANK YOU FOR YOUR PREFERENCE FOR VACLIFE
If you have any problems with our product, please feel free to contact us.

CAUTIONS

Note: Please read carefully and SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
Misuse may lead to product damage and physical injury.

Precautions

• Do not disassemble, repai, or modify the appliance by yourself.
• Keep the appliance out of the reach of children and pets. Close supervision is necessary when the appliance is used around children.
• Keep the appliance away from fire, flammable gases, liquids, and strong magnetic fields. Or it may increase the risk of fire and burst.
• This product contains small accessories which might cause suffocation of children.
• The appliance is applicable to cars with tire pressure ≤ 50 psi and tire width ≤245mm. It’s not suitable for large vehicles like trucks, vans, or off-road vehicles.

Safety Instructions

• Do not use the appliance if it is damaged or the cable is broken, it might cause electric shock.
• Do not use this appliance in the rain, snow, or where there are liquids.
• Checkif the nozzle and preset pressure are suitable for the inflatable before inflating, or it may impose hazard.
• Use the accessories included i the package ONLY.
• Itis normal that the air hose and the cigarette lighter may get hot during and after use. Avoid long-time physical contact with these parts.
• Itis recommended that the continuous working time of this appliance should be less than 8 minutes. Let it cool down for 5-10 minutes between every 8 minutes of use.
• Please do not overdnflate, or personal injury might be triggered due to high pressure.
• Please do not pullthe cable or the hose violently.
• It is recommended to connect the wire that needs to be used ONLY.
• Experiments show that the gas of the car tire will escape when the air nozzle has been removed, leading to a decrease of 0.5:2.0 psi in tire pressure. VacLife considers this case, so we make a unique design that the tire pressure would exceed 0.52.0 psi over the preset pressure. This allows it to achieve proper tire pressure after the removal of the air nozzle

Storage and Cleaning

• Let it cool down before storage.
• Please keep the appliance in a dry and cool place when not used for a long time.
• Do not use chemical detergent to clean the appliance. Use mild soap and a damp cloth to wipe the body only.

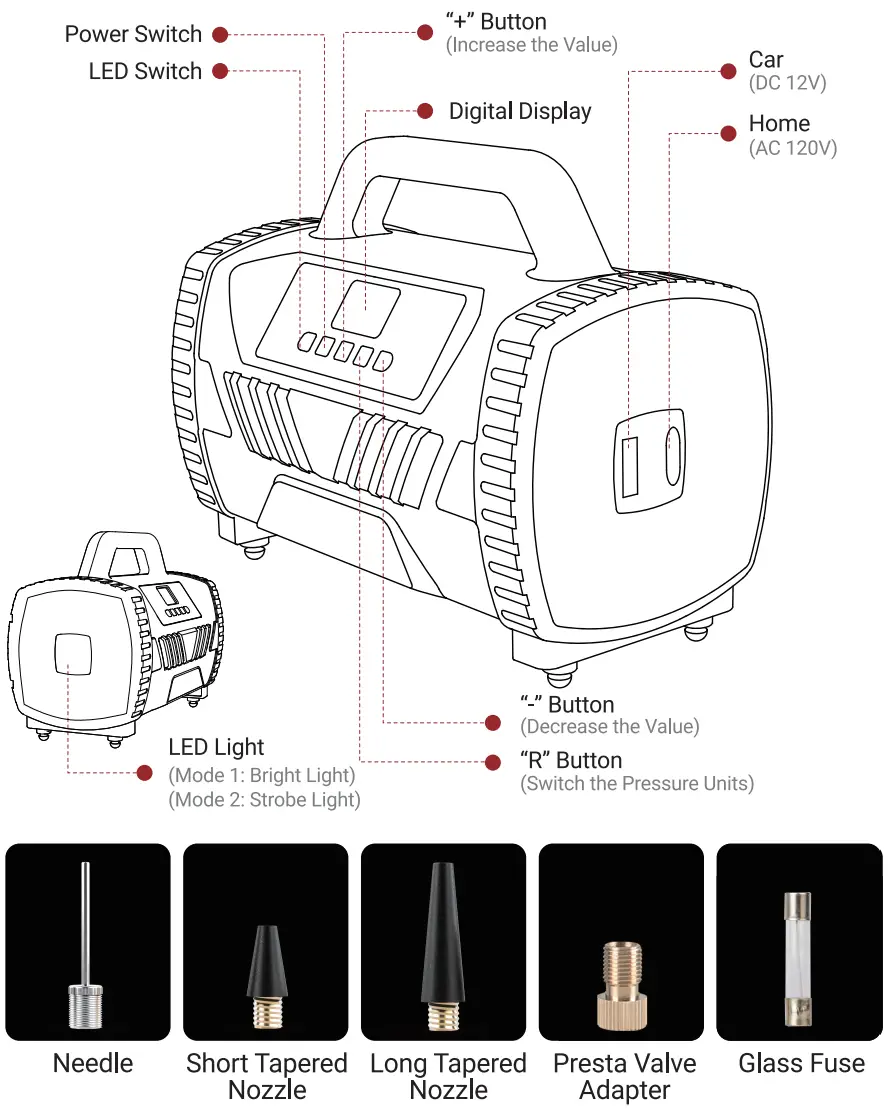

PRODUCT DETAILS

PRODUCT PARAMETERS

Power: 120W
Working Voltage: DC 12V / AC 120V
Maximum Operating Current: 10 A
Pressure Measurement Accuracy: ±0.5 PSI
Pressure Unit: PSI, KPA, BAR, KG/CM²
Continuous Working Time: ≤ 8 Mins
Cable Length (for car): 9.2 Ft
Cable Length (for home): 5.2 Ft
Maximum Working Pressure:
For Car Tire ≤ 50 PSI
For Air Mattress ≤ 150 PSI

DISPOSAL INFORMATION

• This appliance is made of environment-friendly and recyclable material. Recycle where possible.
• Do not dispose of the appliance in the normal domestic waste!
  Dispose of the appliance and accessories in accordance with local regulations.

PRODUCT OPERATION

BEFORE INFLATION: CHOOSE THE RIGHT NOZZLE

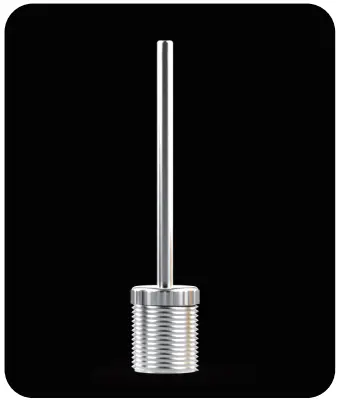

	The needle can be used to inflate various kinds of balls like basketballs, footballs, volleyballs, etc.

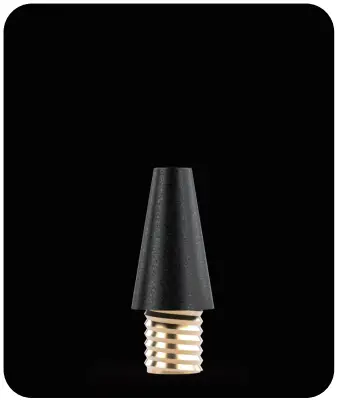

	Short tapered nozzle can be used to inflate air matresses, air beds, etc.

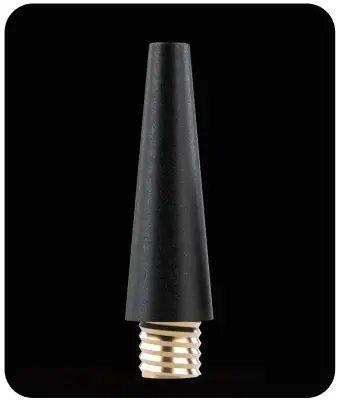

	Long tapered nozzle can be used to inflate objects fike Swimming rings, etc.

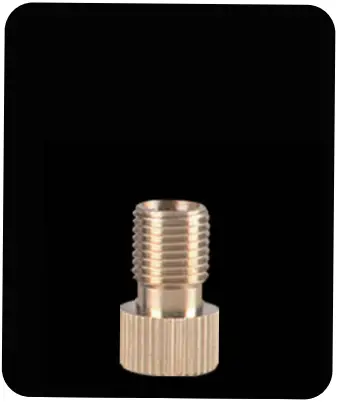

	Presta valve adapter can be used to inflate tires of road bicycles.

BEFORE INFLATION: FIND YOUR DESIRED PRESSURE

Note: This table is for reference ONLY. Please refer to the instructions or manual of the item being inflated for exact inflating pressure specifications.

HOW TO USE (For Car):

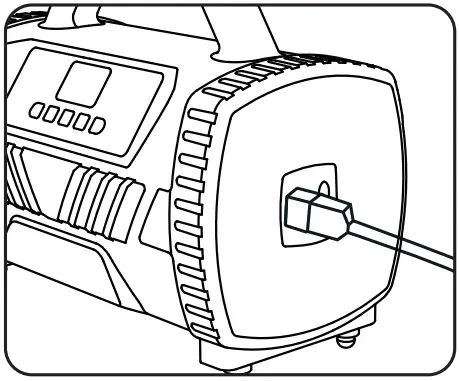

	Step 1 Insert the wire for car to the DC socket

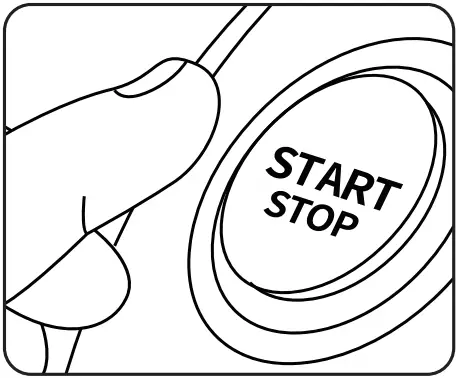

	Step 2 Start the car engine before plugging in the power cord.

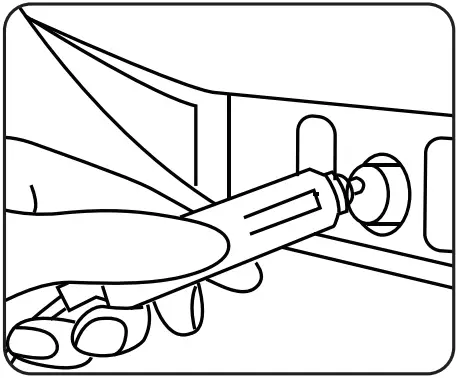

	Step 3 Insert the power cord into the 12V cigarette lighter socket.

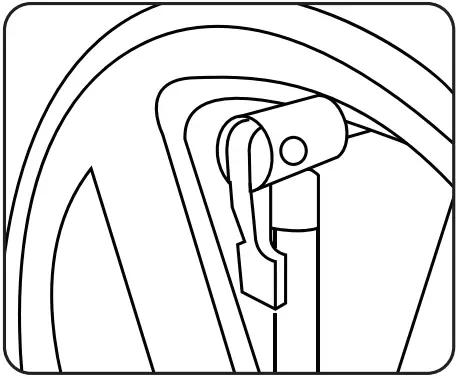

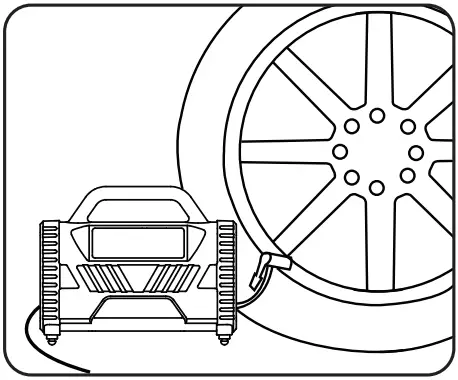

	Step 4 Remove the dust cap of the valve, and then connect the air hose to the valve tightly.

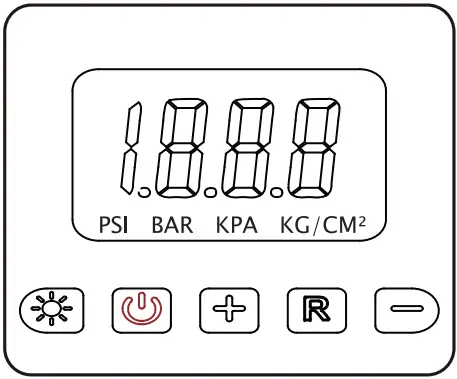

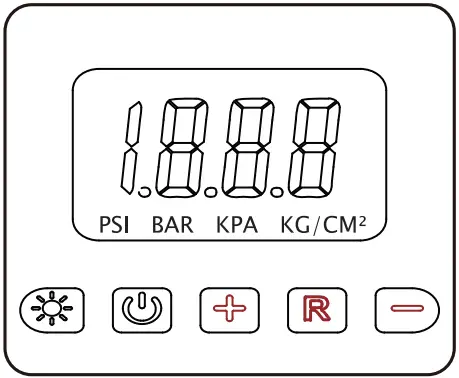

	Step 5 Press the “R” button to choose the pressure unit and then press “+” or “-” to set your desired pressure.
	Step 6 Press the power switch to start inflating. When the preset pressure is reached, the inflator would automatically stop.
	Step 7  Press the power switch again to tum off the appliance after inflation. Disconnect the power cord and the nozzle.

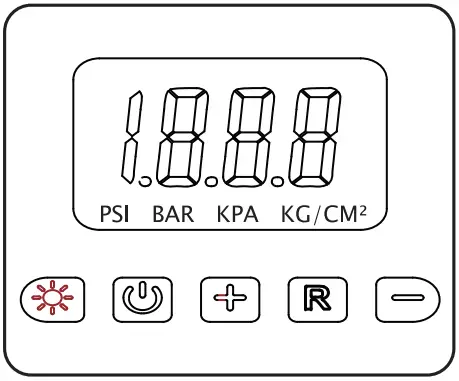

	Step 8 When the appliance is used at night or in dark environments, you can press the button to turn on/off the light.

HOW TO USE (For Home):

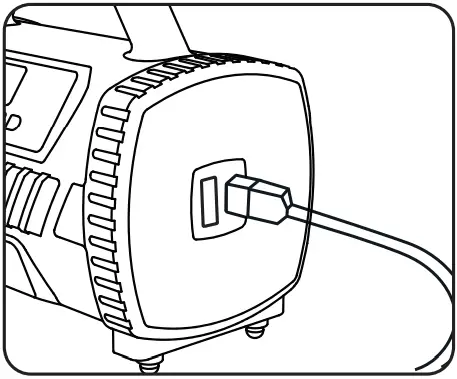

	Step 1 Insert the wire for car to the AC socket.

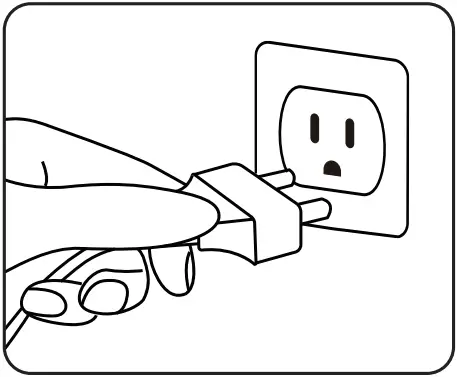

	Step 2 Insert the power cord into the 120V socket.

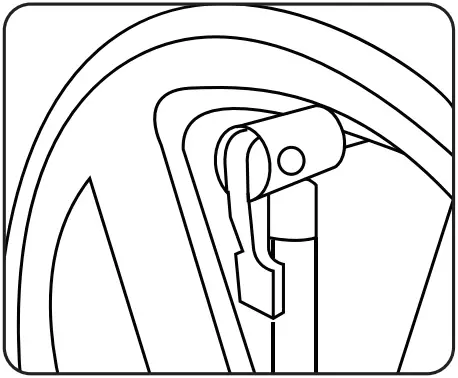

	Step 3 Remove the dust cap of the valve, and then connect the air hose to the valve tightly.

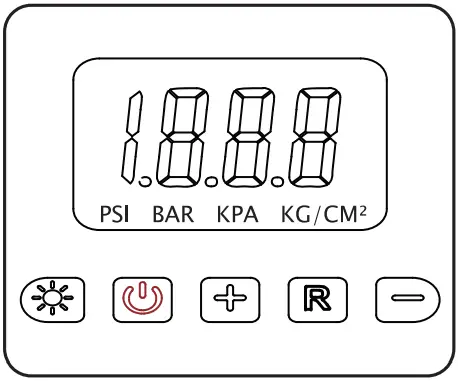

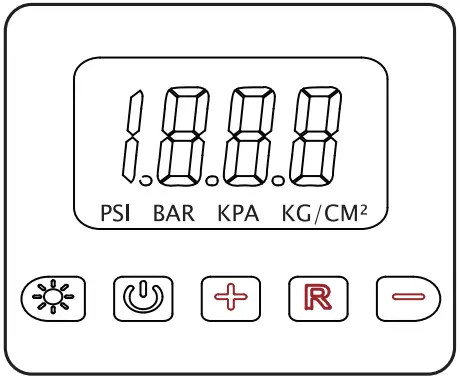

	Step 4 Press the “R” button to choose the pressure unit and then press “+” or “-” to set your desired pressure
	Step 5 Press the power switch to start inflating. When the preset pressure is reached, the inflator would automatically stop.
	Step 6 Press the power switch again to tum off the appliance after inflation. Disconnect the power cord and the nozzle.
	Step 7 When the appliance is used at night or in dark environments, you can press the button to turn on/off the light.

TROUBLESHOOTING

If you have any other problems, please feel free to contact our customer service team.
[email protected]

WARRANTY

ABOUT WARRANTY

NOTE
Please check if there are accessories damaged or lost. If there are, please contact our customer service team to get a replacement or a full refund.
[email protected]

Innovator of Essential Power Tools
