AIR PUMP(WIRED)
USER MANUAL
Before using the product, please read this instruction manual carefully and keep it for future reference.
Precautions
- This product is not a toy and children are forbidden to use it. It is recommended that users be over 16 years old, please keep a safe distance between children and this product during use.
- The product has a built-in dc motor, which may produce electric sparks during work. Plus, don’t use it inflammable and explosive environments.
- If there s abnormal noise or temperature is too high during work, please Shut down immediately.
- Before setting the inflation pressure value, please confirm the correct measurement unit is selected, otherwise, it may cause accidents such as a puncture, and the common Unit conversion:lbar:14.5psi, lbar=100kpa, 1bar=1.02kg/cm2.
- When inflating, do not leave, and observe the inflating process to prevent the inflation pressure is too high in case the preset pressure is forgotten to preset.
Product recommended inflation pressure gauge
| Inflation Pressure Gauge | ||
| Bicycle | 12,14,16 inch bicycle tires | 30-50psi |
| 20.22.24 inch bicycle tires | 40-50psi | |
| 26,27.5,29 inch mountain bike tires | 45-65psi | |
| 700c road bike open tire | 100-130psi | |
| 700c road bike tube | 120-145psl | |
| Motorcycle | Motorcycle, electric motorcycle tire | 1.8-2.8bar |
| Car | Small car tires | 2.2-2.8bar |
| Ball | Basketball | 7-9 psi |
| Football | 8-16 psi | |
| Volleyball | 4-5psi | |
| Rugby | 12-14psi | |
The recommended inflation pressure Is for reference only. Please refer to the Instruction manual of the product to be inflated for specific inflated pressure.
Inflation time
| Inflate 195/65 R15 tires from 0 to 35psi | Inflation time<5 min |
| Inflate 700*23C tires of bikes from 0 to 120psi | Inflation timed<1 min |
| Inflate 26*195 tires of mountain bike tires 0 to 55psi | Inflation time <1 min |
| Inflate a size 5 football from 0 to 5psi | Inflation time <30 sec |

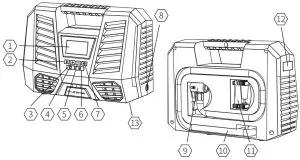

Component Names
| 1. Display Screen 2. “S” unit setting 3. “+” Press button 4. Power button 5. “-” Decompression Key 6. “M” Mode Switch 7. Illuminated key | 8. Power connector 9. Inflatable mouth 10. Inflatable tube 11. Inflatable needle 12. Power cord storage box 13. Light |
Parts List
Steps for usage
- Start the car engineer
- Put the plug into the DC 12V cigarette lighter, and the appliance is automatically switched on. The appliance is automatically switched off if there is no operation in 2 min. Hold down
the button for 3 sec to restart the appliance. lt also can be stopped if you press the button. - Connect appliance nozzle with the valve of the object. The screen shows the present pressure of the object.
- Switch mode by pressing
button: Basketball/ Bicycle/ motorcycle/ Automobile/SUV.Automobile mode is defaulted setting as a first start-up. - Switch the unit of pressure by pressing
a button. - Set desired pressure value by pressing
a button. Advised pressure setting: Basketball 8 PSI/ Bicycle 50 P51/ motorcycle 2.0 BAR /Automobile 2.5 BAR/SUV 2.8 BAR. - Startup the appliance by pressing the button. The appliance is automatically stopped working when the pressure reaches a preset value.
the button for 3 sec to restart the appliance. lt also can be stopped if you press
button: Basketball/ Bicycle/ motorcycle/ Automobile/SUV.Automobile mode is defaulted setting as a first start-up.
a button.
a button. Advised pressure setting: Basketball 8 PSI/ Bicycle 50 P51/ motorcycle 2.0 BAR /Automobile 2.5 BAR/SUV 2.8 BAR.Tips
- The appliance does not work if the pressure of the present value is less than the actual value.
- Switch on the light by pressing
the button if the appliance is used in the dark site.
the button if the appliance is used in the dark site.Product Parameter
| Rated Voltage | 12V | Material | ABS+Alloy |
| Rated Current | <8A | Line Length | 3M |
| Rated Power | <100W | Noise | 80db |
| Continuous working time | <30min | Air Flow | >35L/min |
| Cylinder specifications | 22MM | Output air pressure | 150PSI |
