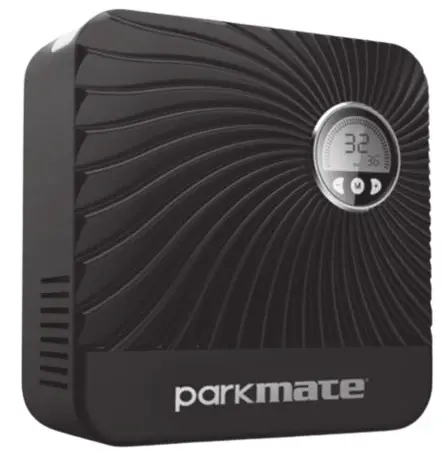

Digital Tyre Inflator
with Inbuilt LED Light
YOUR SAFETY COMES FIRST™

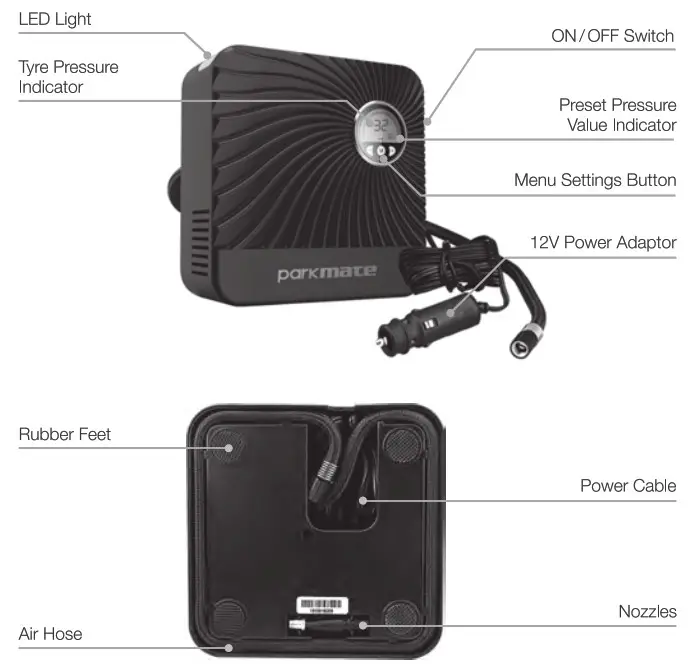

Product Overview
How to use your Digital Tyre Inflator

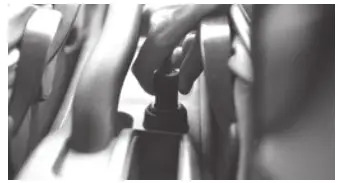

 | 1. Power your vehicle ON and connect the unit’s power adaptor to your vehicle’s cigarette lighter. |

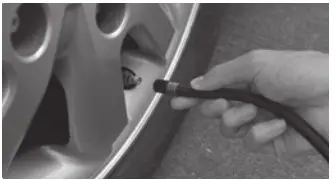

 | 2. Screw the air hose connector to your vehicle’s tyre valve nozzle. |
 | 3. Press the menu settings button on your unit to select the unit of pressure. (Bar, kPa, PSI or kg/cm’). 4. After selecting the unit of pressure, press the ‘+’ and ‘-’ button to select the required pressure value. You can see this value on the bottom right comer of the screen. The large value in the centre of the screen will indicate the current tyre pressure. |

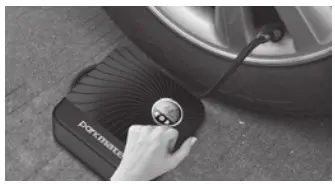

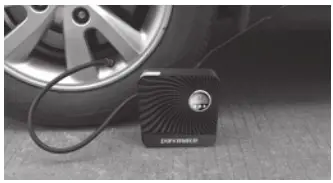

 | 5. Press the ON/OFF switch to start inflating your tyre. 6. After the required pressure is reached, press the ON/OFF switch to power OFF the unit and remove the air hose connector from your vehicle tyre. Be sure to screw the nozzle cap back onto your tyre nozzle. |
NOTE: Refer to your vehicle user manual to find out the required tyre pressure. For your safety, if the unit is switched ON before you connect the air hose to your tyre, the unit will not work. Switch OFF and then back ON to use safely.
Specifications
Operating Voltage: DC 12V
Operating Temperature: Orc ~ +60°C
Rated Power: 102W
Max Current: 8.5A
Max Inflatable Pressure: 150 PSI
Speed: For 196 / 65R15 Tyre From 0 ~ 35PSI < 7 Mins
Power Cable Length: 3 Metres
Air Hose Length: 0.5 Metres.
